DAYTON AUDIO LBB-3V2 Battery Power Supply Module

New
The Dayton Audio LBB-3v2 power module is a turnkey solution for reliably powering portable battery-powered projects. It accepts three 18650 lithium-ion batteries (not included) and provides a regulated 12V DC output capable of delivering up to 5A. Thanks to its pre-wired JST connectors, installation requires no soldering.

No customer reviews yet, login to write a review.

By buying this product you get 1 loyalty point


Yes, notify me when available !
Reference : 21236
New product

19,90 €tax incl.

16,58 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

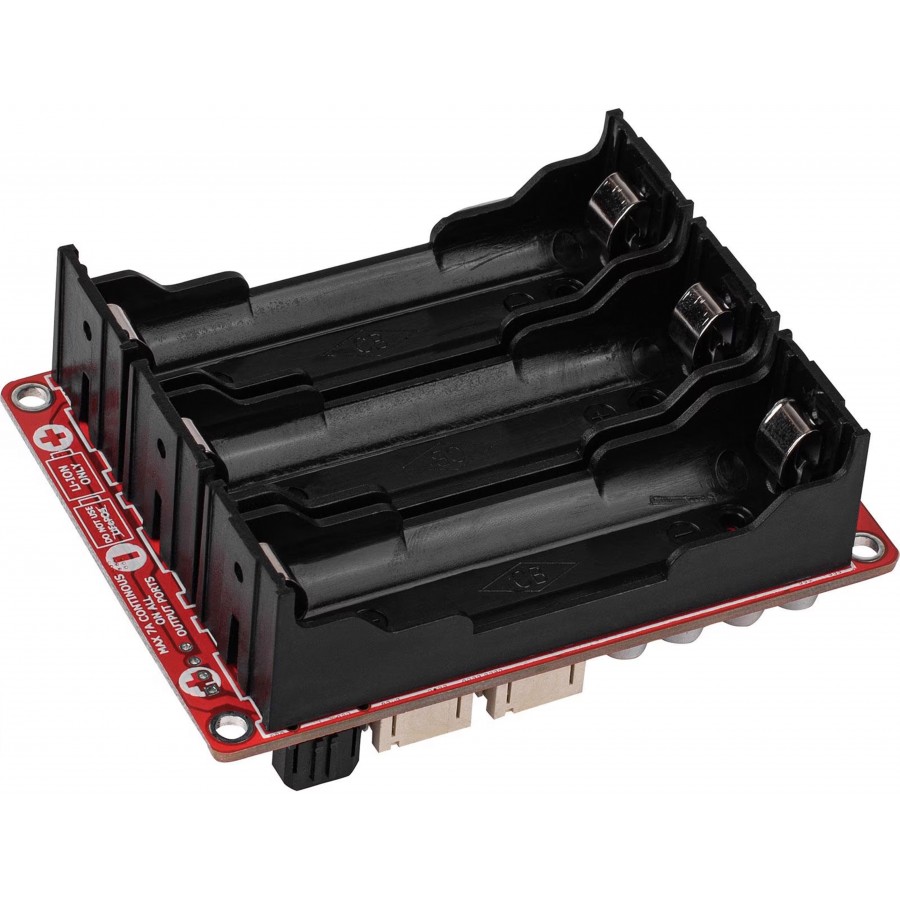

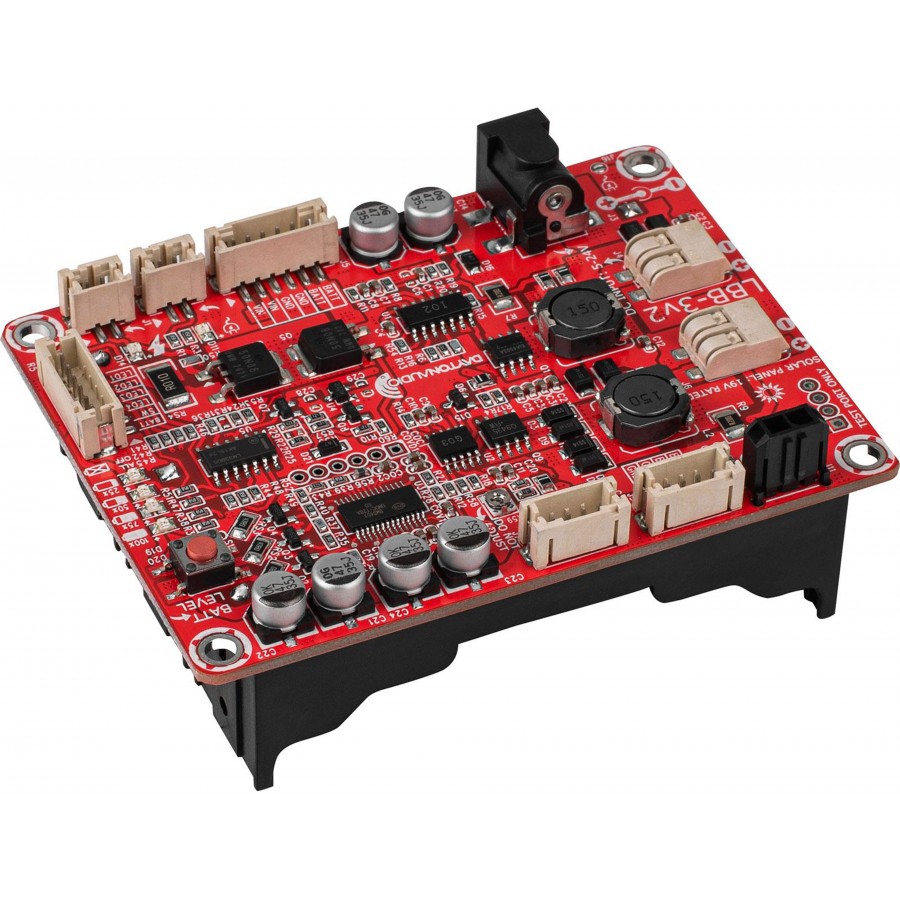

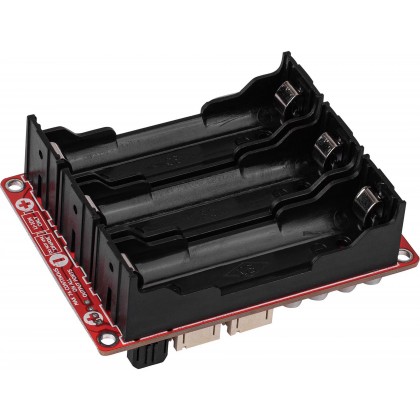

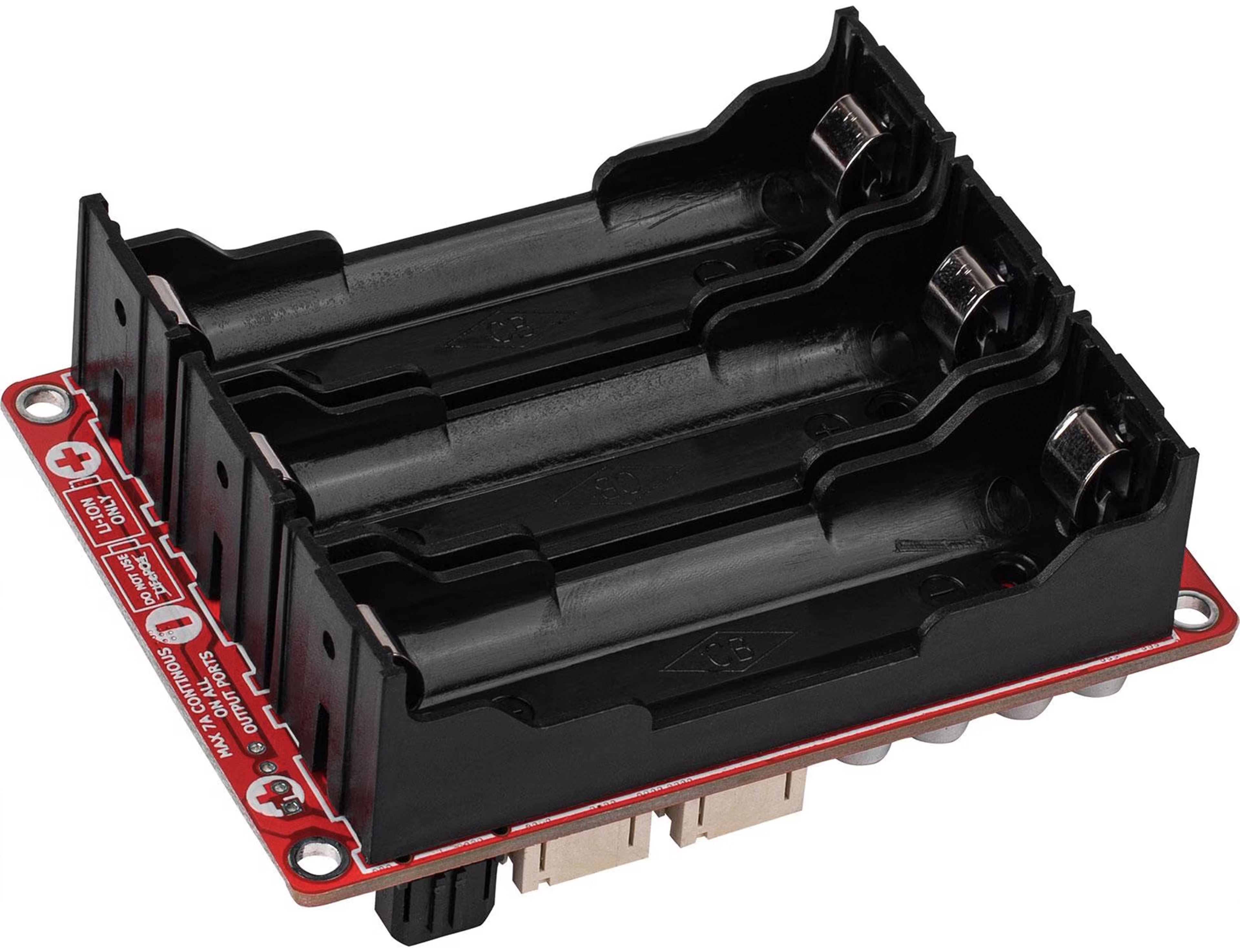

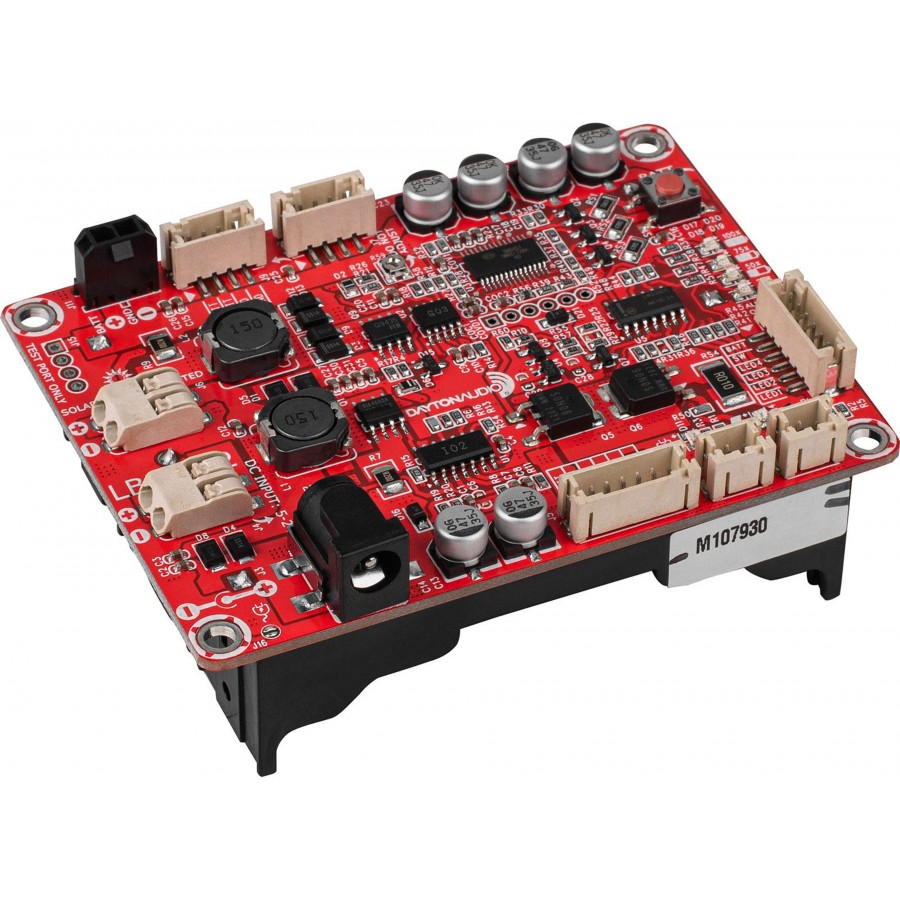

Dayton Audio LBB-3v2 Battery Power Supply Module 3x18650 12V

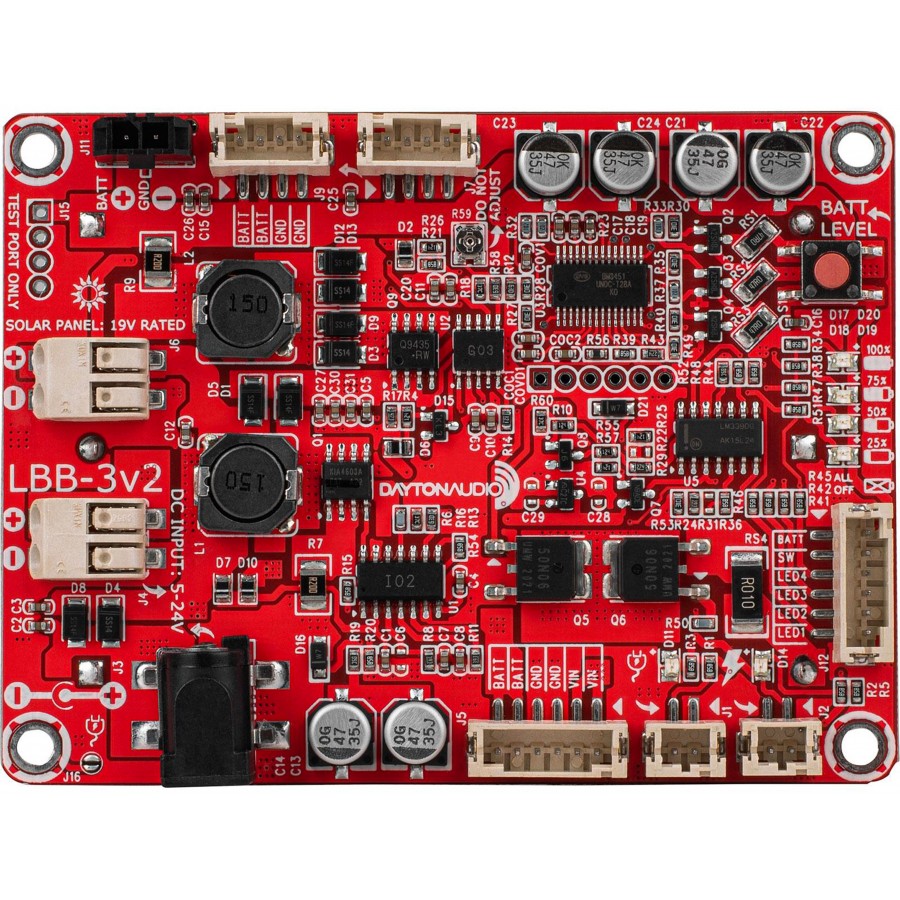

Dayton Audio LBB-3v2 : Front view


The Dayton Audio LBB-3v2 power module is a turnkey solution for reliably powering portable battery-powered projects. It accepts three 18650 lithium-ion batteries (not included) and provides a regulated 12V DC output capable of delivering up to 5A. Thanks to its pre-wired JST connectors, installation requires no soldering.

In terms of charging and power supply, the LBB-3v2 accepts a wide input range from 5 V to 24 V DC, which includes both a conventional adapter and a solar power supply (19 V recommended for solar charging). The board has a built-in protection circuit against overcharging and excessive discharging of the three cells, which optimises their service life and ensures overall safety.

Technical characteristics

Specifications
Product typeBattery power supply
Battery18650 (sold separately)
Input voltage5V - 24V
Output voltage12V
Output currentUp to 5A
Général
Dimensions91.4 x 68.6 x 33mm
Conditionnement1x Dayton Audio LBB-3v2

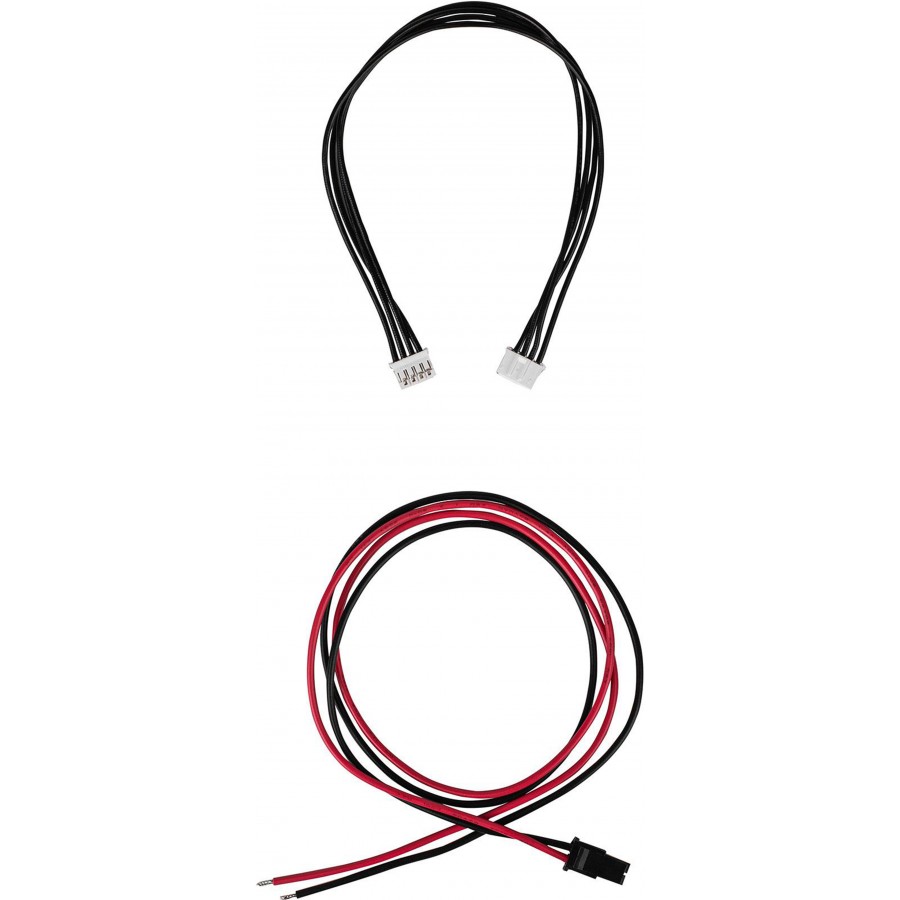

1x 50 cm 2-conductor power cable
1x 20 cm 4-conductor power cable

Data sheet
InputPCB Connector
OutputPCB Connector
Output voltage (V)12.0
Output current (A)5.0
Input voltage (V)5.0
Input voltage (V)24.0
Power SupplyBattery
