WONDOM PS-BC12112 BCPB3 Battery Management System Module 5x Lithium 18650

WONDOM PS-BC12112 BCPB3 Battery Management System Module 5x Lithium 18650

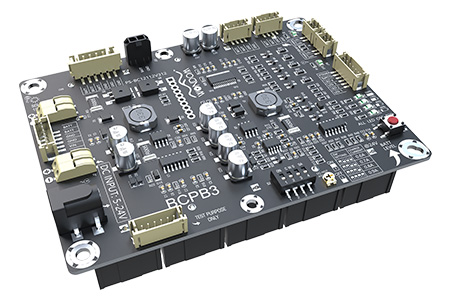

The Wondom BCPB3 is a battery management and protection module, taking advantage of the performance and reliability of the previous models while offering more battery slots.  The BCPB3 can thus accommodate 5 Lithium 18650 batteries in series.

Average votes for this product
5.0 / 5

By buying this product you get 1 loyalty point


Reference : 14396
New product

19,90 €tax incl.

16,58 € tax excl.

- +

Shipping date: 29-03-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Wondom BCPB3 PS-BC12112

Battery Management System Module 5x Lithium 18650

Wondom BCPB3 PS-BC12112 Module BMS d'Alimentation Charge de Batterie 5x Lithium 18650

The Wondom BCPB3 is a battery management and protection module, taking advantage of the performance and reliability of the previous models while offering more battery slots.  The BCPB3 can thus accommodate 5 Lithium 18650 batteries in series and can be used as a power bank, as a power supply or simply to recharge your batteries for external use.  The module supports a wide range of input charging voltages and hybrid charging sources.  Any 5-24V 2A AC adapter can be used to charge the batteries with the BCPB3.

The balancing and protection circuitry constantly monitors each cell voltage, charge/discharge current and temperature to provide effective protection against overloads, overdischarges, input/output overcurrents, short circuits and overtemperatures.

Lithium 18605 batteries are sold separately.

Technical characteristics

Specifications
Product typeBMS module (Battery Management System)
Compatible battery typeLithium 18650
Number of battery slots5
Power voltage5-24V 0.5-2A
Power outputunregulated
Full load: 21V
Unloaded: 15V
Possibility of output 2x5V 2A regulated with a USB output module
ProtectionShort circuits
Over temperature
Over voltage
Under voltage
Overcharge
Overdischarge
Solar charging support
Multiple discharging ports
Max discharge current5A
General
Dimensions122 x 91.5 x 35mm
Weight168g

Data sheet
InputPCB Connector
InputNC
OutputPCB Connector
Output voltage (V)21.0
Output current (A)5.0
Input voltage (V)5.0
Input voltage (V)24.0
Power SupplyBattery

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
très efficace
entièrement satisfait de ce kit qui gère bien la charge des batteries . on peut recharger en branchant un courant de 5 à 24v , y compris par panneau solaire et il se débrouille donc très pratique, le seul bémol c'est qu'il n'y a pas de bouton 'off' , donc le système tourne en permanence, pour çà prévoir des interrupteurs sur les sytèmes alimentés .
ce module est livré avec tout ses cables donc inutile de commander le pack de cable en option (PS-BC12311)
