UP2STREAM AMP WB50 Stereo Amplifier Module Wifi Bluetooth 4.2 Multiroom 24/192kHz 2x50W

UP2STREAM Module amplificateur stereo Wifi Bluetooth 4.2 Multiroom 2x80W New

No customer reviews yet, login to write a review.

By buying this product you get 6 loyalty points


Reference : 14067
New product

65,83 €tax excl.

Including 0,04 € for green tax
Available

- +

Shipping date: 18-09-2019.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

UP2STREAM WiFi & BT AMP BOARD

Amplifier module FDA / Airplay Multiroom 196kHz - 24bit





With no less than 50 watts of power per channel (4Ω), an ultra complete connectivity and plethora of advanced features (Multiroom, dedicated app control), the amplification module UP2STREAM WiFi & BT is the ideal choice for building / repair / improvement projects for active speakers and integrated amplifiers. Enjoy the FDA technology with its great power / space ratio.

The PCB supports Airplay, DLNA, Spotify Connect, Qplay, UPnP. It directly supports the decoding of files up to 192kHz - 24bit and can play files from a local network, a platform for Internet streaming, a physical media (USB key) or even a physical media connected to a remote device (PC, smartphone ...).

Full Digital Amplifier


The amplification stage is built around a STA 326 STMicroelectronics chip. It is a Full Digital Amplifier (FDA), a popular approach to its power / dimensions ratio.

The FDA technology requiring no conversion, amplification only needs a digital input stream. This allows the module to perform alone the essential functions of a complete audio system: receiving the audio stream, decoding the stream (if it is not already I2S), volume control and power amplification.

With this integration, the amplification module is can drive loads from 4 to 16Ω. It can deliver power over a 2x50W uner 4Ω load with a THD 1% and a linear response over the 20Hz-20kHz band.

Connectivity

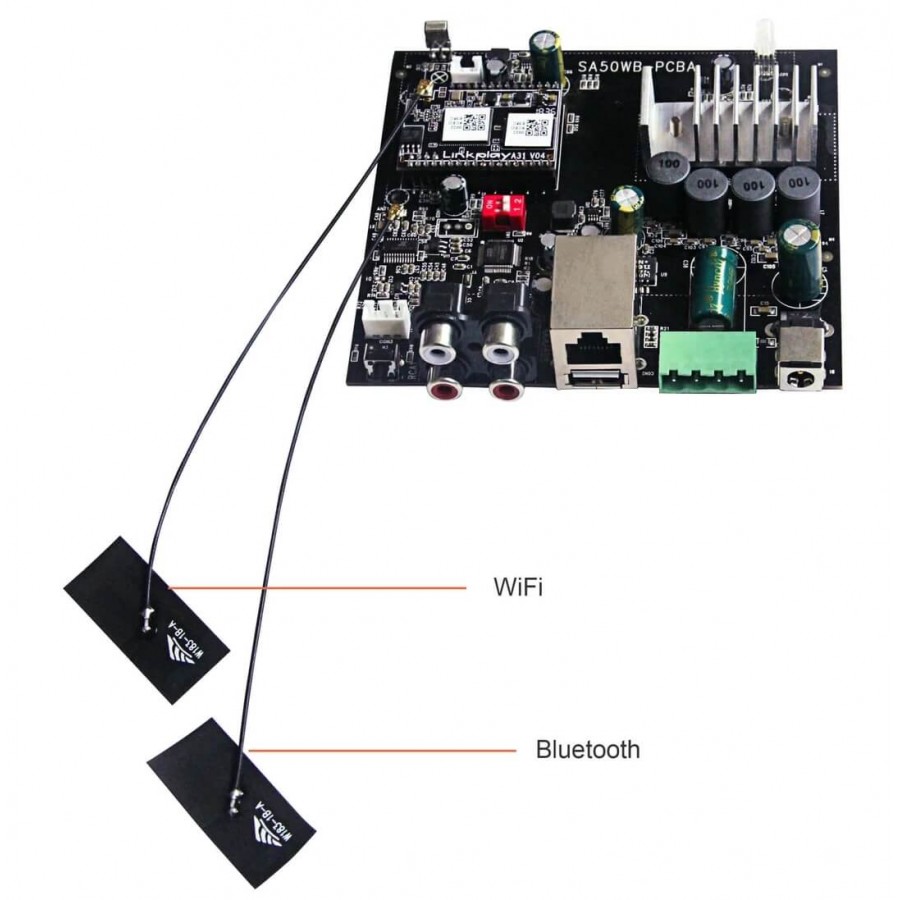

The UP2STREAM amplifier module includes a Linkplay A31 Unit. It connectivity has been specially developed for audio use with native DLNA & Multiroom support.

This Wi-Fi connection and offers a feature-type network drive to which you can stream the audio data from a smartphone / tablet app.

Broadband connectivity (802.11b / g / n with a bandwidth of 300Mbps) authorizes the transfer of dematerialized audio streams up to 192kHz / 24-bit.

Finally, this feature is not exclusive to a single device, since this unit is multiroom ready. That is to multiples modules of this type can work together, each connected to its pair of passive speakers and being collectively or individually controlled from a single connected device.

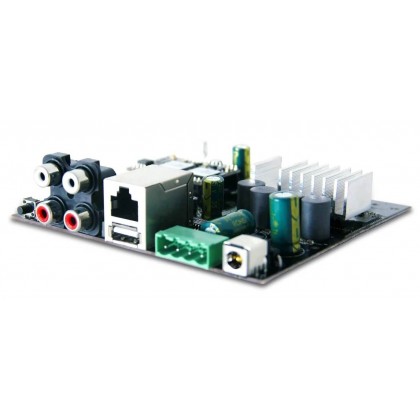

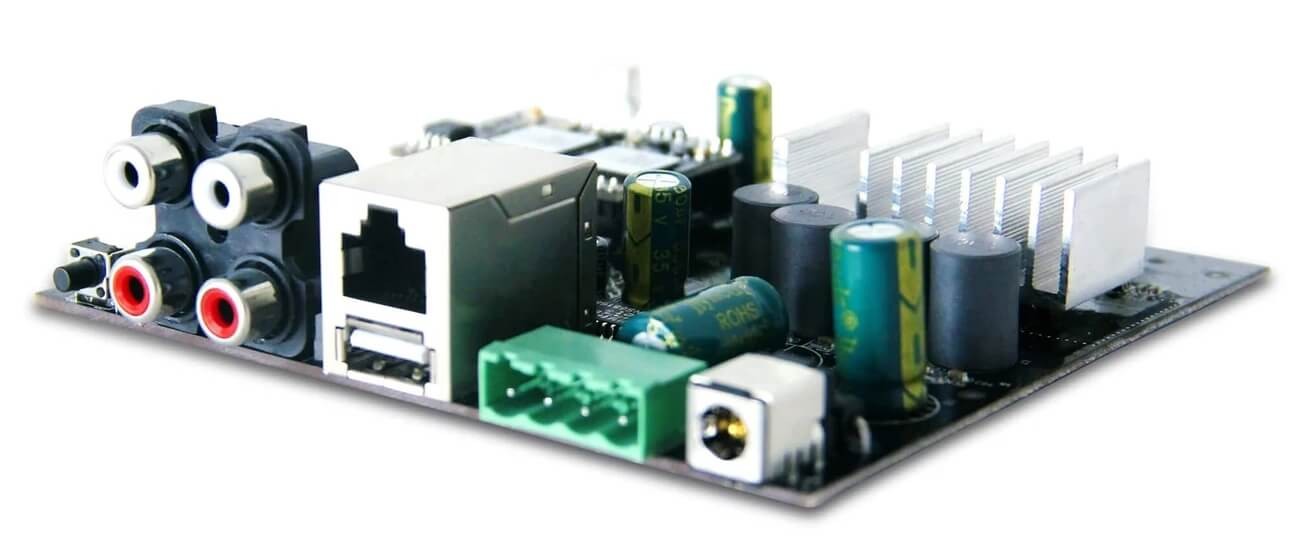

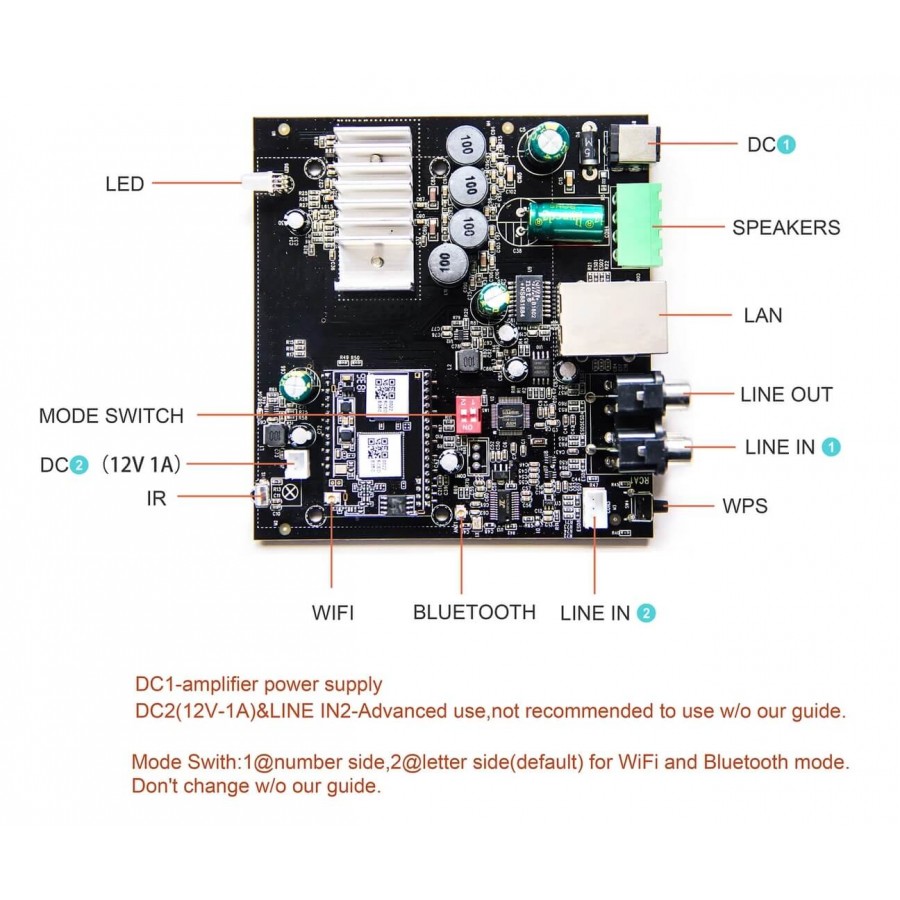

Once mounted in the housing, this module can easily join an existing installation thanks to two line-inputs. Those are available through a stereo RCA connector and connector 2.54 XH connector type.

Similarly, a LAN connector (RJ45) adds another layer of security and stability and will be greatly appreciated if any of the WiFi issuer, repeater would fail. It is also useful or for very extensive multiroom systems with remote units.

Many services available



The UP2STREAM modules have their own app called 4STREAM (Android & IOS). The latter is used to group the essential control functions (volume, EQ), reading (track selection, play./pause, connection to an online streaming service) and even live stream (direct sending a audio file from the onboard memory of the phone / tablet).

Many services are supported starting with AirPlay, DLNA, Spotify Connect, UPNP, internet radio and stereo pairing (sending each channel on a dedicated amplifier module then sync). There is also an advanced version of the latter function with Line-In to All Speakers, which allows each module to share and synchronize the input signal with all the multiroom network.

Finally, the device can natively connect to many audio resources :  Spotify, Tidal, Qobuz, iHeartRadio, TuneIn, QQ Music, Napster ...

Specifications
TypeModule amplifier
Power2 x 80W 8ohm
2 x 50W 4 ohm
supported impedances4Ω / 8Ω
Amplification TechnologyFDA (Full Digital)
Chip amplificationSTA326
Inputs (wired)RCA Stereo (Line)
Molex 3 pins (Line)
RJ45
Inputs (wireless)WiFi 2.4G
Bluetooth 4.2
OutputsSpeaker terminals
RCA Stereo (Line Out)
IR receiverYes (remote control not supplied)
Power supply12V-32V
Default 24V 6A
NOT SUPPLIED
Package Contents
Up2Stream WiFi & Bluetooth AMPx1
