SMSL PL100 PRO CD Player Black
By buying this product you get 15 loyalty points
Viewed products
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.

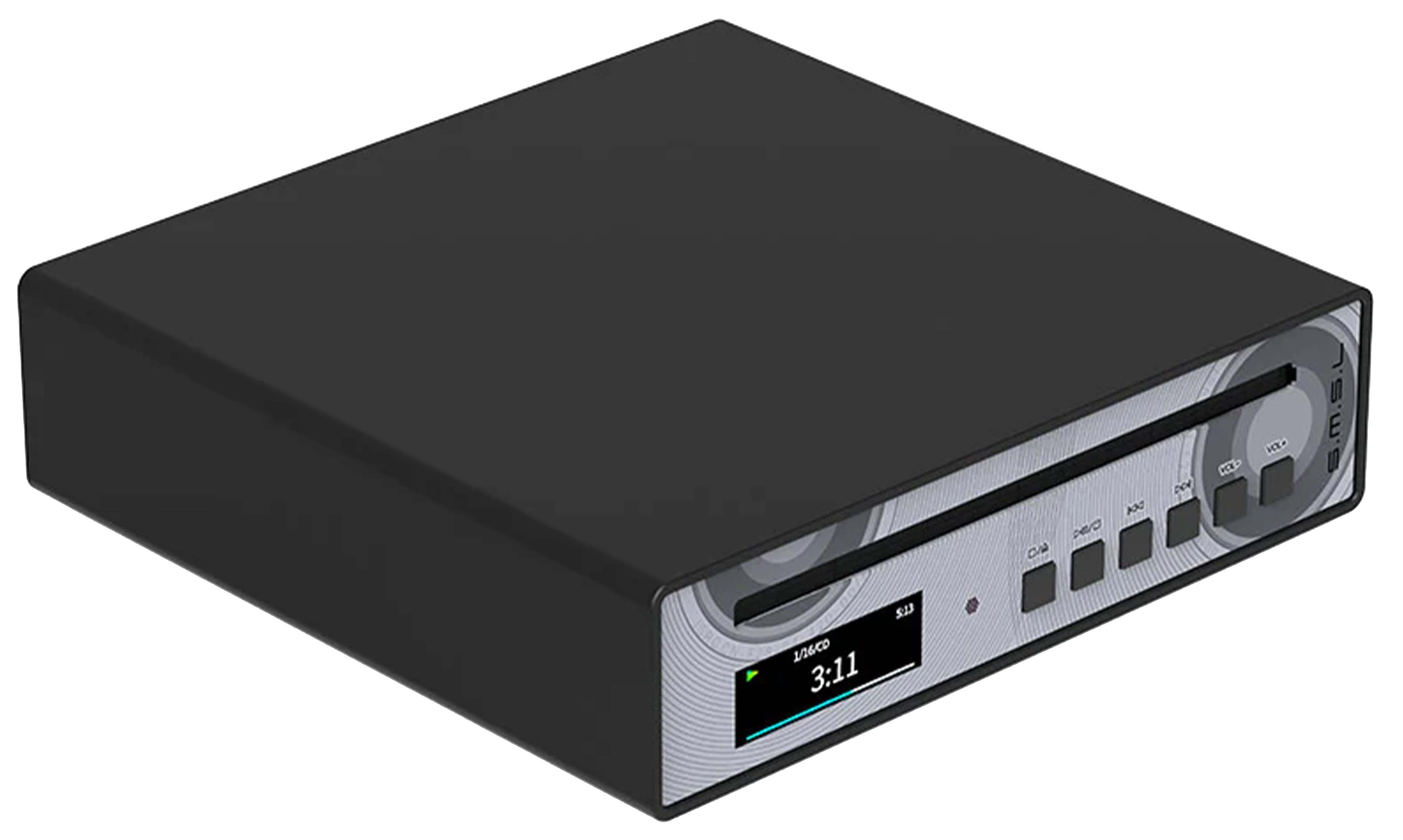

SMSL PL100 Pro CD Player 2x CS43131 MQA Black

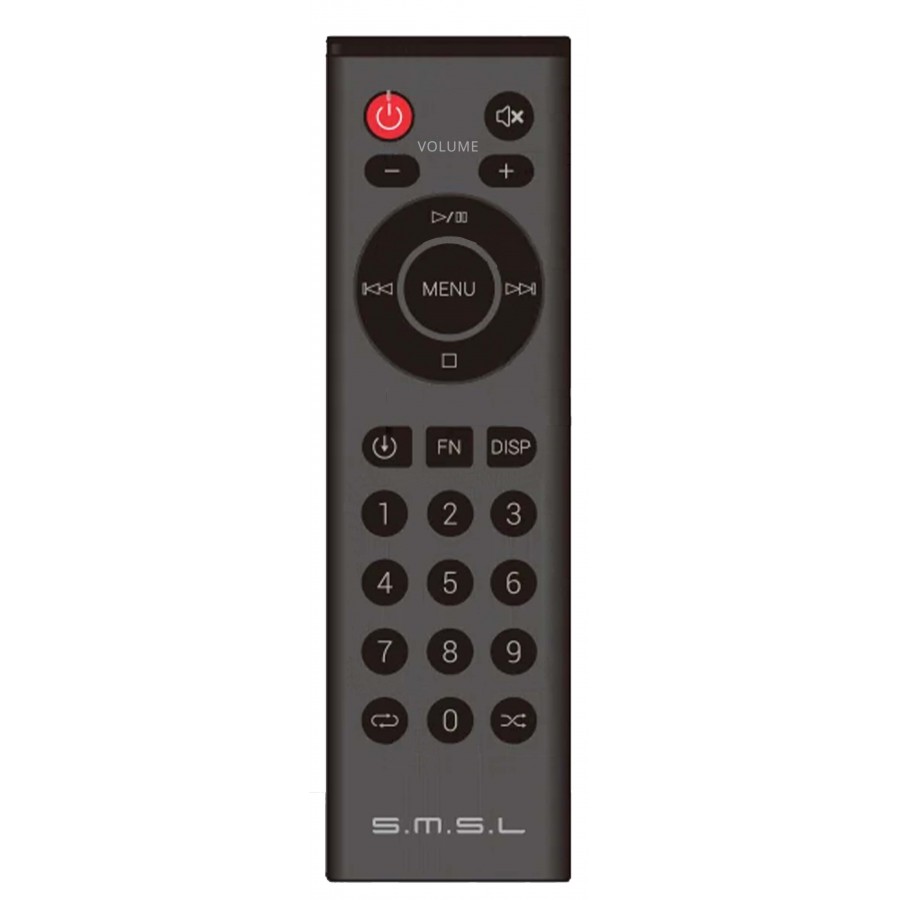

The SMSL PL100 Pro, an evolution of the PL100, is a CD player now based on two CS43131 DAC chips combined with a PLL (Phase-Locked Loop) circuit to provide sound reproduction as close as possible to the original source. The unit supports several CD formats: CD / CD-R / CD-RW / MP3 CD. It also features multiple outputs including a coaxial output, an optical Toslink output, a single-ended RCA output and a balanced XLR output. In addition, it includes a single-ended 3.5mm headphone output and a balanced 4.4mm headphone output capable of delivering up to 2x200mW at 32 Ohm for a high level of compatibility. The PL100 Pro retains the form factor of its predecessor and also features a display, several control buttons and a remote control for full remote operation.
SMSL PL100 Pro: 2x CS43131 DAC chip
The CS43131 DAC chips, combined with the PLL circuit, provide high-quality CD decoding for a final sound reproduction with excellent transparency. Indeed, the PLL circuit significantly reduces jitter during playback while the two DAC chips ensure symmetrical signal processing.
SMSL PL100 Pro: Raw digital outputs
The coaxial output and the optical Toslink output of the PL100 PRO are capable of delivering the raw signal for a direct connection to a DAC in order to achieve the best possible sound quality.
SMSL PL100 Pro: 3.5mm and 4.4mm headphone outputs
Thanks to its CS43131 DAC chips, the SMSL PL100 Pro CD player is also capable of delivering up to 2x200mW at 32 Ohm through its balanced 4.4mm output, allowing it to drive a wide range of headphones and earphones.
SMSL PL100 Pro: Flexible installation
The form factor of the SMSL PL100 Pro CD player allows it to be positioned either horizontally or vertically.

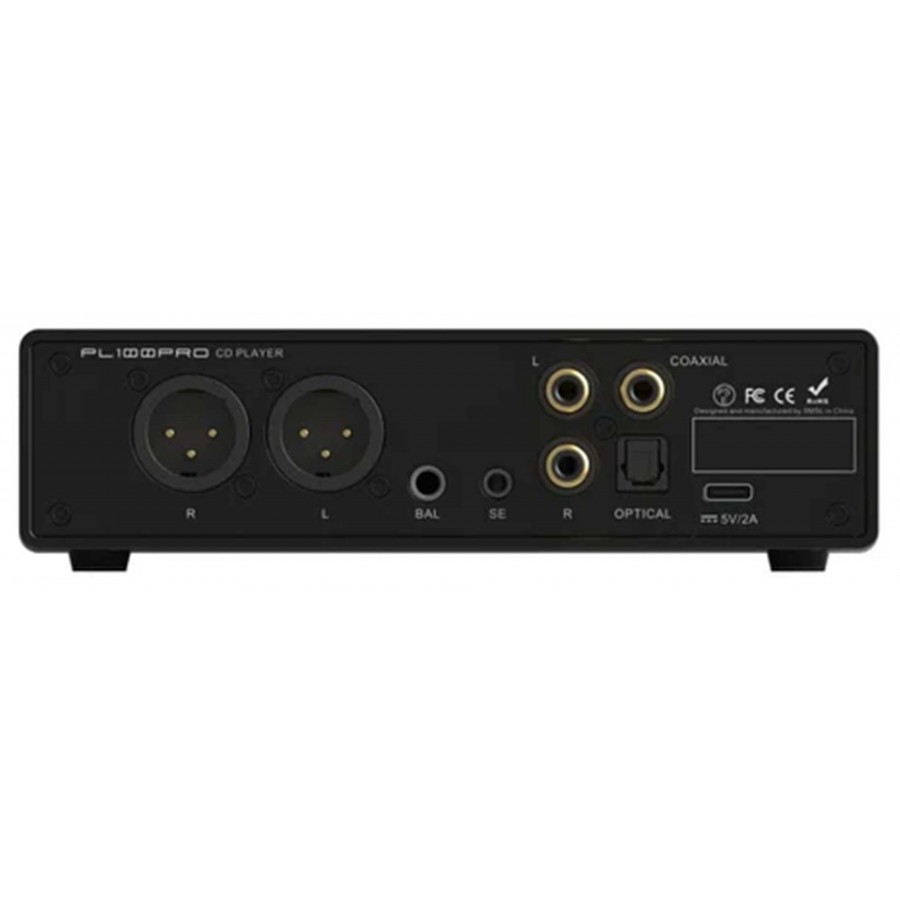

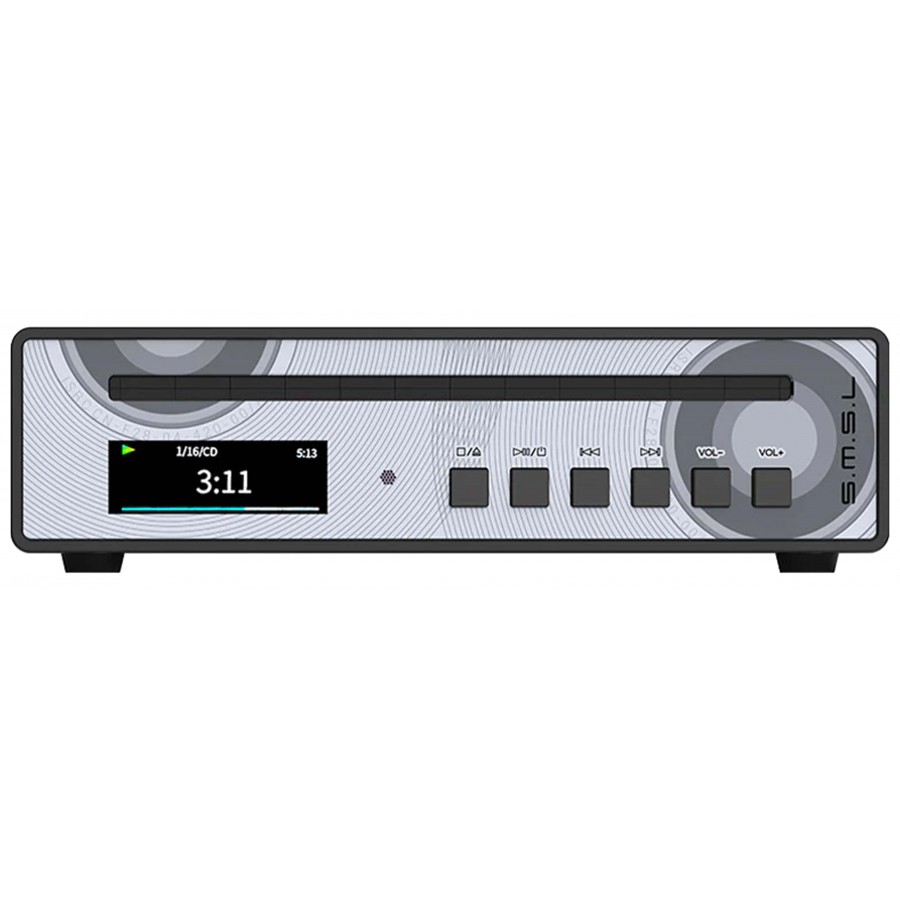

SMSL PL100 Pro Overview
| 1 | Disc slot |
| 2 | Display |
| 3 | IR remote receiver |
| 4 | Control buttons |
| 5 | Balanced XLR output |
| 6 | Balanced 4.4mm headphone output |
| 7 | Single-ended 3.5mm headphone output |
| 8 | Single-ended RCA output |
| 9 | Coaxial output |
| 10 | Optical Toslink output |
| 11 | USB-C power port |
This device does not work with USB-PD (Power Delivery) power supplies. Please use a 5V 3A power supply.
Technical specifications
| Specifications | |
|---|---|
| Product type | CD player |
| DAC chip | 2x CS43131 |
| Input | CD |
| Output | 1x Coaxial output 1x Optical Toslink output 1x Single-ended stereo RCA output 1x Balanced stereo XLR output 1x Single-ended 3.5mm headphone output 1x Balanced 4.4mm headphone output |
| Supported CD formats | CD / CD-R / CR-RW / MP3 CD |
| Output level | RCA: 2Vrms XLR: 4Vrms |
| THD+N | 0.001% |
| SNR | 110dB |
| Headphone output power | |
|---|---|
| Balanced Jack 4.4mm | 100mw @ 16Ω 200mw @ 32Ω 160mw @ 64Ω 85mw @ 150Ω 53mw @ 300Ω 25mw @ 600Ω |
| Single-ended Jack 3.5mm | 58mw @ 16Ω 58mw @ 32Ω 45mw @ 64Ω 23mw @ 150Ω 12mw @ 300Ω 6mw @ 600Ω |
| General | |
|---|---|
| Power consumption | 4W |
| Standby consumption | < 0.1W |
| Dimensions | 160 x 44.5 x 160mm |
| Weight | 953.5g |
| Color | Black |
| Package contents | 1x SMSL PL100 Pro 1x USB-A to USB-C power cable 1x Remote control |
