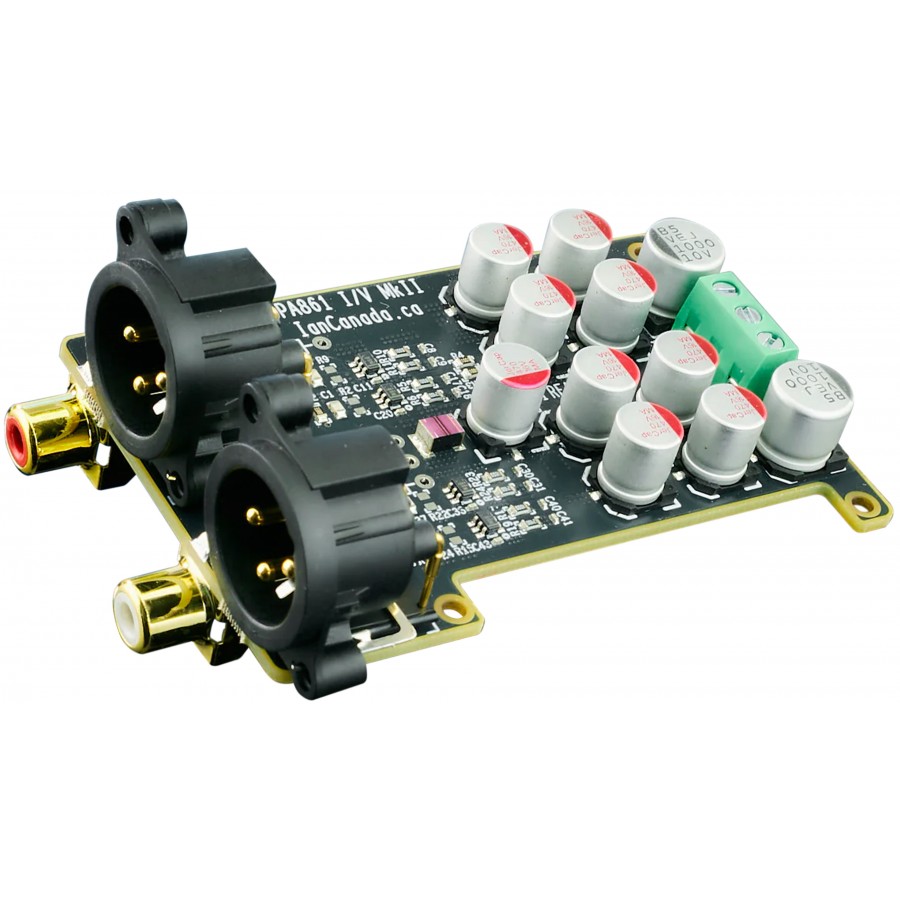

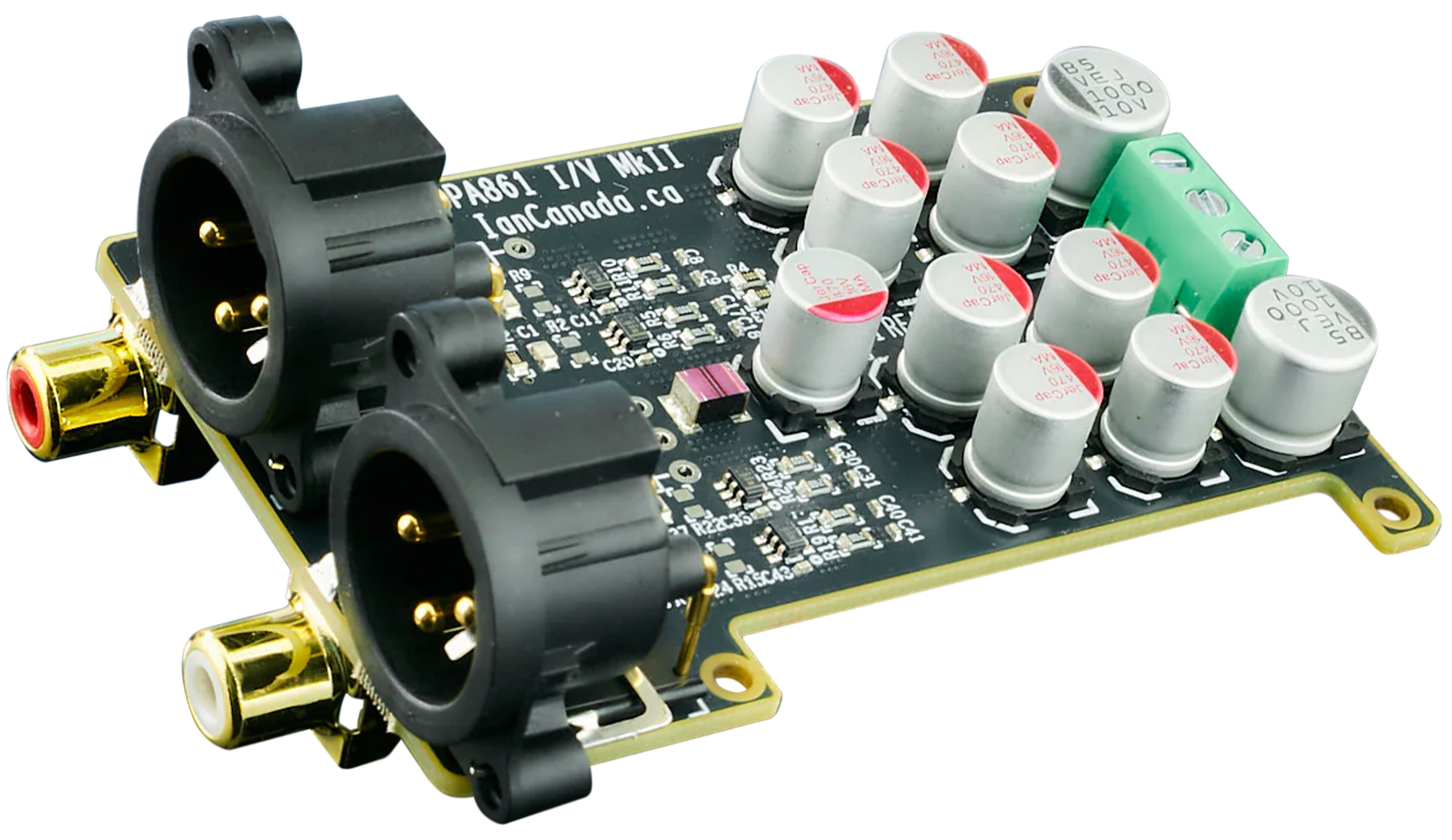

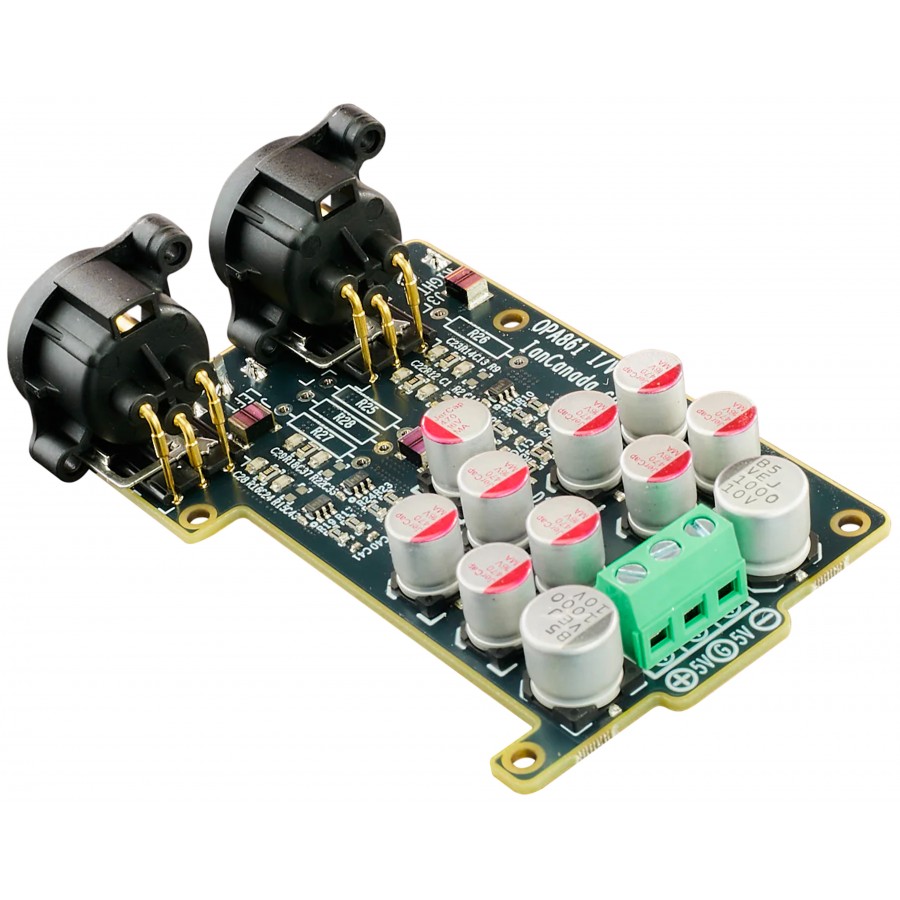

IAN CANADA OPA861 fully Balanced Zero Feedback I/V Stage

IAN CANADA OPA861 fully Balanced Zero Feedback I/V Stage
The Ian Canada OPA861 is a special transconductance operational amplifier with a very high slew rate of up to 900V/µS over a wide bandwidth up to 80MHz. The performance of the OPA861 is ultimately very similar to that of a super-transistor. In input current / output voltage mode with zero feedback, the input impedance can be less than 10Ω.
No customer reviews yet, login to write a review.

By buying this product you get 16 loyalty points


Reference : 17013
New product

169,00 €tax incl.

140,83 € tax excl.

- +

Shipping date: 22-02-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Ian Canada OPA861

Étage I/V Symétrique Zéro Feedback

Ian Canada OPA861 Étage I/V Symétrique Zéro Feedback

The Ian Canada OPA861 is a special transconductance operational amplifier with a very high slew rate of up to 900V/µS over a wide bandwidth up to 80MHz. The performance of the OPA861 is ultimately very similar to that of a super-transistor. In input current / output voltage mode with zero feedback, the input impedance can be less than 10Ω. This very low input impedance (closed to short circuit) and its ultra high speed make this module the almost perfect solution as an I/V converter. In particular, it has been validated with great success as a SE I/V stage for the TDA1541 DAC.

This Ian Canada module is the first fully balanced I/V stage of the OPA861. Unlike all other active I/V stages, the OPA861's I/V stage is closer to passive I/V stages such as a resistor or transformer, but with much better dynamic performance.

The sound style is also totally different from what traditional I/V stages offer. It provides a clear, detailed and extremely rich sound. The sound stage is also more open and better spatialized. The restitution becomes particularly lively and dynamic. It does not color the music, however, and is as close as possible to the original sound.

This Ian Canada OPA861 I/V stage can be an excellent option for high performance current mode and balanced DACs such as the ES9038Q2M, ES9028Q2M, ES9038Pro, AK4499, PCM1704 or TDA1541 for example.

Key features :

  • Zero feedback.
  • Fully balanced.
  • Impedance less than 10Ω.
  • 80MHz bandwidth and 900V/µS slew rate.
  • Balanced output level : 4Vrms @ 0dB
  • High precision and low noise metal film resistors.
Ian Canada OPA861 Étage I/V Symétrique Zéro Feedback

Technical characteristics

Specifications
Product typeBalanced I/V stage module
Supply voltage±5VDC
Outputs1* Single-ended stereo RCA
1* Balanced stereo XLR
General
Dimensions85*55.5mm
Mounting holes spacing58*49mm

Data sheet
InputPCB Connector
OutputXLR
OutputRCA
