SMSL DS200 DAC Headphone Amplifier
By buying this product you get 12 loyalty points
![[GRADE S] MINIDSP FLEX HT Audio DSP Processor 2x8 Channels SHARC ADSP21489 XMOS HDMI ARC eARC](https://www.audiophonics.fr/68133-thumb_default/minidsp-flex-ht-stockb.jpg)
![[GRADE A] AUNE S9C PRO DAC 2x ES9068AS Discreet Headphone Amplifier 5W Bluetooth 32bit 768kHz DSD512 MQA Back](https://www.audiophonics.fr/64487-thumb_default/aune-s9c-pro-dac-2x-es9068as-discreet-headphone-amplifier-5w-bluetooth-32bit-768khz-dsd512-mqa-back.jpg)
SMSL DS200 DAC Headphone Amplifier CS43131 XMOS XU316 32bit 768kHz DSD526
With the DS200, SMSL presents a compact DAC and headphone amplifier with a retro-futuristic aesthetic. It's equipped with a Cirrus Logic CS43131 DAC chip combined with a 3rd-generation XMOS XU-316 chip, enabling it to support sampling rates up to PCM up to 32bit 768kHz and DSD up to DSD256, with a total harmonic distortion of just 0.00019%. Its coaxial, USB, and optical inputs and Bluetooth 5.1 connectivity make it a flexible device, capable of integrating into a wide range of configurations.

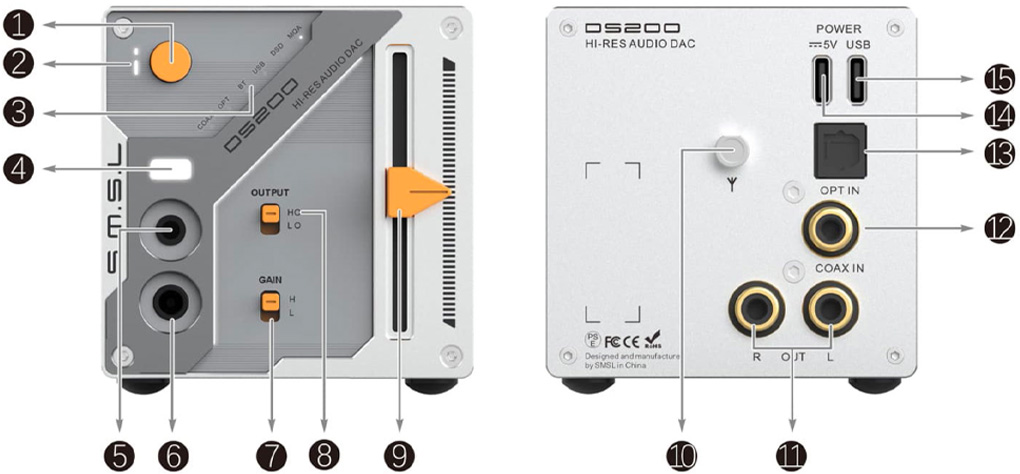

SMSL DS200 Overview
| 1 | Mode selector |
| 2 | Power indicator light |
| 3 | Indicator light for active mode |
| 4 | Mood light |
| 5 | 3.5mm jack headphone output |
| 6 | 4.4mm jack headphone output |
| 7 | Gain selector |
| 8 | Output selector |
| 9 | Volume control |
| 10 | Bluetooth antenna |
| 11 | Line output |
| 12 | Coaxial input |
| 13 | Optical input |
| 14 | Auxiliary USB-C power supply |
| 15 | USB-C input |
Technical characteristics
| Specifications | |
|---|---|
| Product type | DAC Headphone Amplifier |
| Inputs | 1x Optical Toslink 1x Coaxial 1x USB-C Bluetooth |
| Outputs | 1x Single-ended 3.5mm jack headphone output 1x Balanced 4.4mm jack headphone output 1x Stereo line output |
| DAC Chip | CS43131 |
| Supported sampling rates | USB : PCM up to 768kHz / DSD up to DSD256 Optical / Coaxial : PCM up to 192kHz / DSD64 (DoP) |
| Output level | 2.0Vrms |
| Dynamic range | 127dB |
| Signal-to-noise ratio | 127dB |
| Total harmonic distortion more noise (THD+N) | < 0.1W |
| Bluetooth version | 5.1 |
| Supported Bluetooth codec | SBC |
| General | |
|---|---|
| Power supply voltage | 5V DC |
| Energy consumption | Standby : < 0.1W In use : 3W |
| Weight | 346g |
| Dimensions | 70 x 70 x 113mm |
| Color | Silver |
| Package | 1x SMSL DS200 |
| Input | USB |
| Input | Optical |
| Input | SPDIF |
| Input | Bluetooth |
| Output | Jack 3.5mm |
| Output | RCA |
| Output | Jack 4.4mm |
| DAC / ADC Chip | CS43131 |
| Max sampling rate | 768kHz |
| Max sampling rate | DSD256 |
| Color | Silver |
| Class | N/A |
| Networking | No |
| Remote Control | No |
