FIIO M11 PLUS Digital Audio Player DAP 2x AK4497EQ 2x THX AAA-78 Balanced Bluetooth WiFi AirPlay2 MQA 32bit 384kHz DSD256
By buying this product you get 84 loyalty points
![[GRADE B] FIIO K9 PRO ESS DAC 2x ES9038PRO Headphone Amplifier 2x THX-AAA 788+ Bluetooth aptX-HD LDAC 32bit 384kHz DSD256 MQA](https://www.audiophonics.fr/60594-thumb_default/fiio-k9-pro-ess-dac-2x-es9038pro-headphone-amplifier-2x-thx-aaa-788-bluetooth-aptx-hd-ldac-32bit-384khz-dsd256-mqa.jpg)

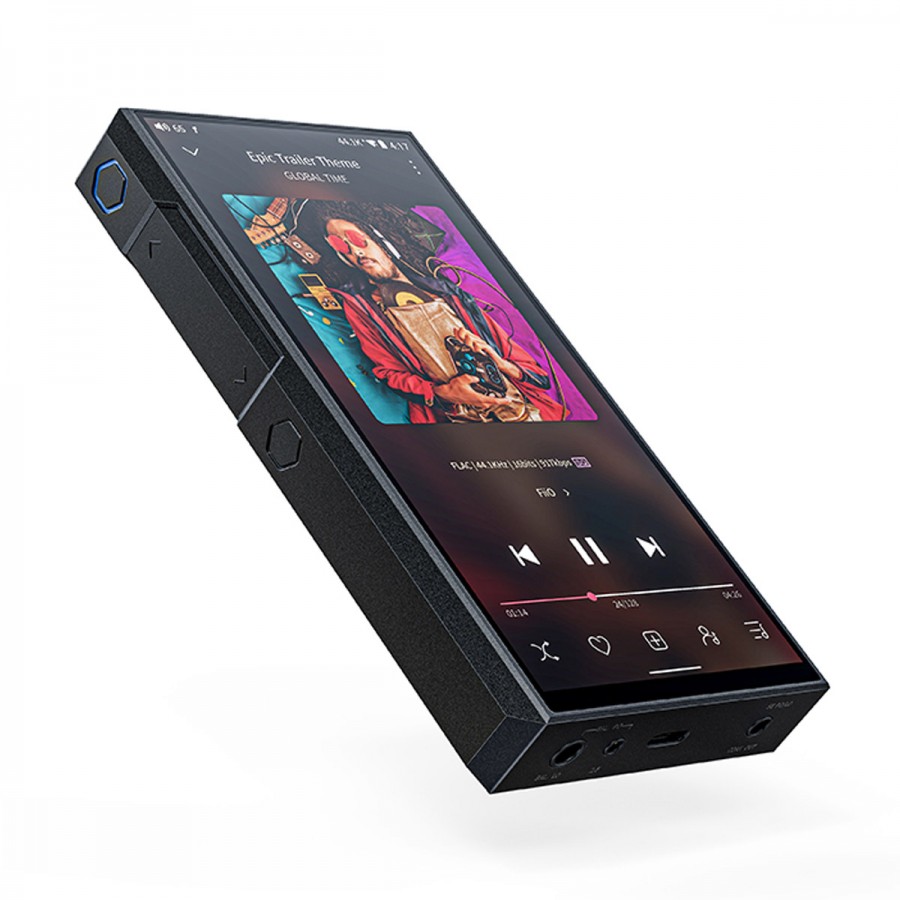

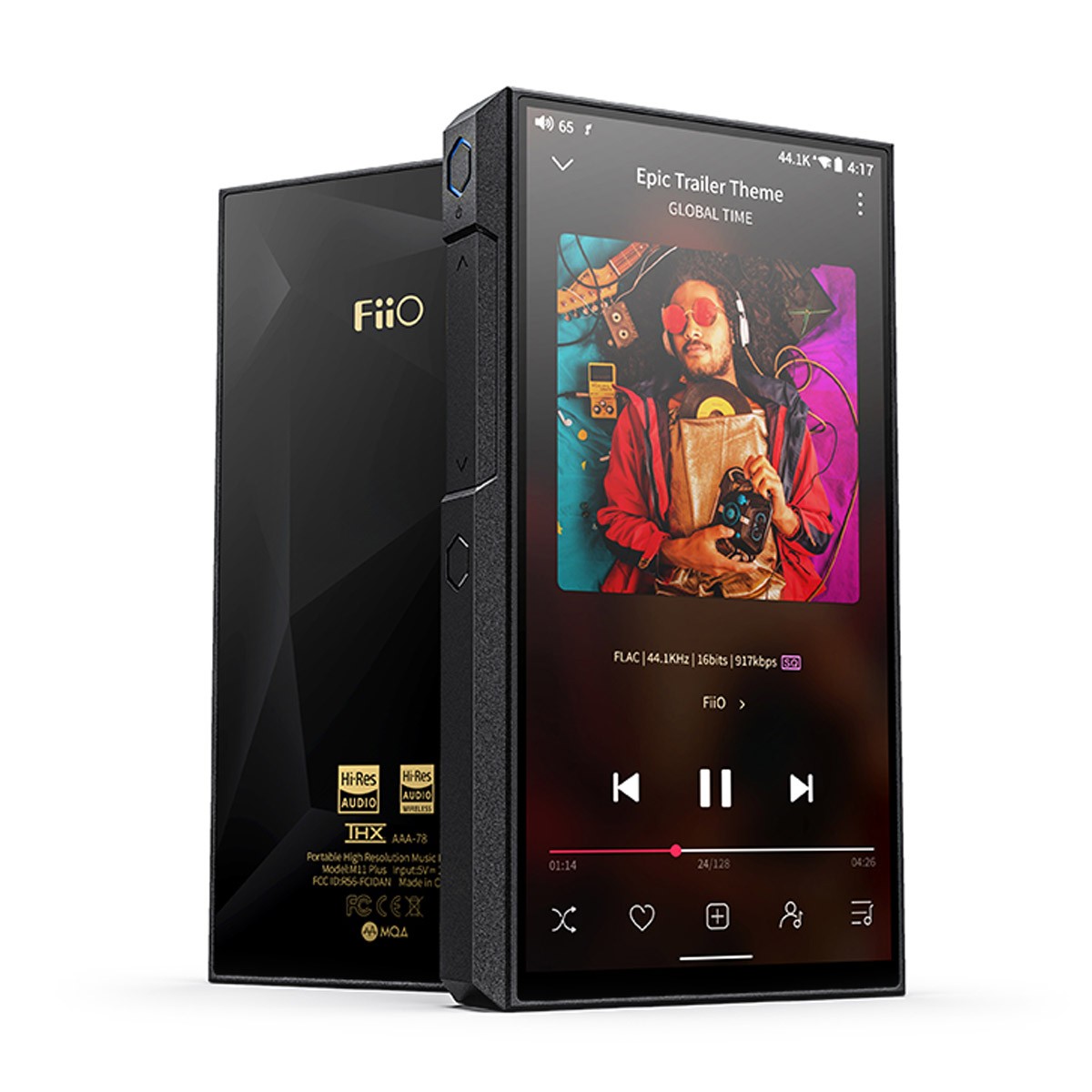

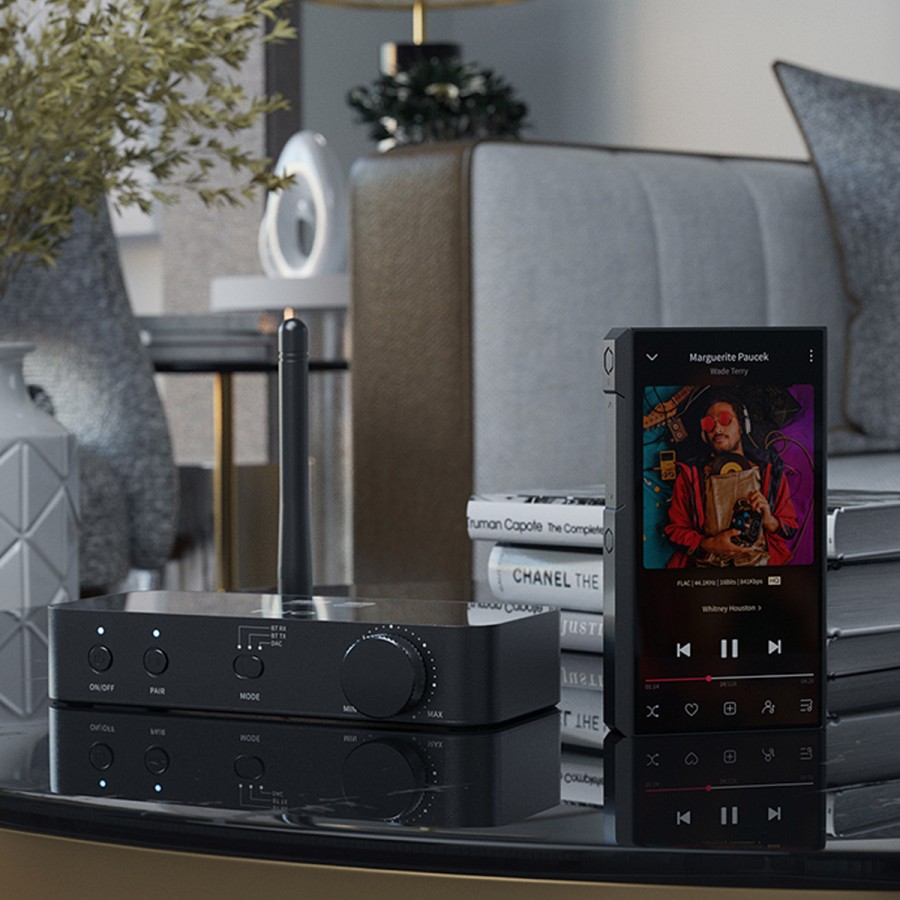

FiiO M11 Plus
Digital Audio Player DAP 2x AK4497EQ 2x THX AAA-78 Balanced Bluetooth WiFi AirPlay2 MQA 32bit 384kHz DSD256
FiiO offers with its M11 Plus LTD a high-end music player, designed to deliver the best sound quality wherever you are. With a flawless design, it embeds high-end audio components in an optimized and intelligent architecture. Complete, practical and versatile, the M11 Plus LTD is a great fit for any purpose.
Dual AKM AK4497EQ DAC
The digital / analog conversion stage of the M11 Plus LTD is entrusted to two AKM AK4497EQ DaC chips. These allow to deliver a rich, natural and precise sound, while supporting high resolutions, up to 32bit 768kHz and DSD512.
Octa-Core Snapdragon 660 CPU
For fast and efficient data processing, the M11 Plus LTD uses an octa-core Snapdragon 660 processor, ensuring a smooth experience regardless of usage. In addition, this model provides low power consumption for long battery life.
2x THX AAA-78 Amplification stage
The amplifier stage of the player is powered by a pair of THX AAA-78 chips. They benefit from an error correction technology for a detailed reproduction and a large sound scene.
Anti-interference circuit
The M11 Plus LTD adopts a new internal architecture based on modular circuits. Each module of the circuit has its own shielding for perfect separation of each section. This design ensures that each part does not interfere with the others for a minimal noise level.
Optimized power supply
This DAP integrates three independent power supplies, in order to provide a large energy supply to the different circuits and to offer consistent power combined with a nice dynamic range. The heat dissipation has also been optimized with numerous measures for maximum stability and durability.
Perfect synchronization, minimum jitter
For this DAP, FiiO has developed its own 4th generation FPGA, integrating the DAPS (Digital audio Purification System) technology. This FPGA works in conjunction with 2 NDK custom clocks for maximum precision and extremely low jitter.
Bi-directional Bluetooth & WiFi
Particularly convenient, the FiiO M11 Plus LTD takes advantage of bi-directional Bluetooth reception and WiFi with DLNA and AirPlay support for wireless use. The Bluetooth 5.0 chip also supports the aptX HD and LDAC transmission codecs for high quality playback.

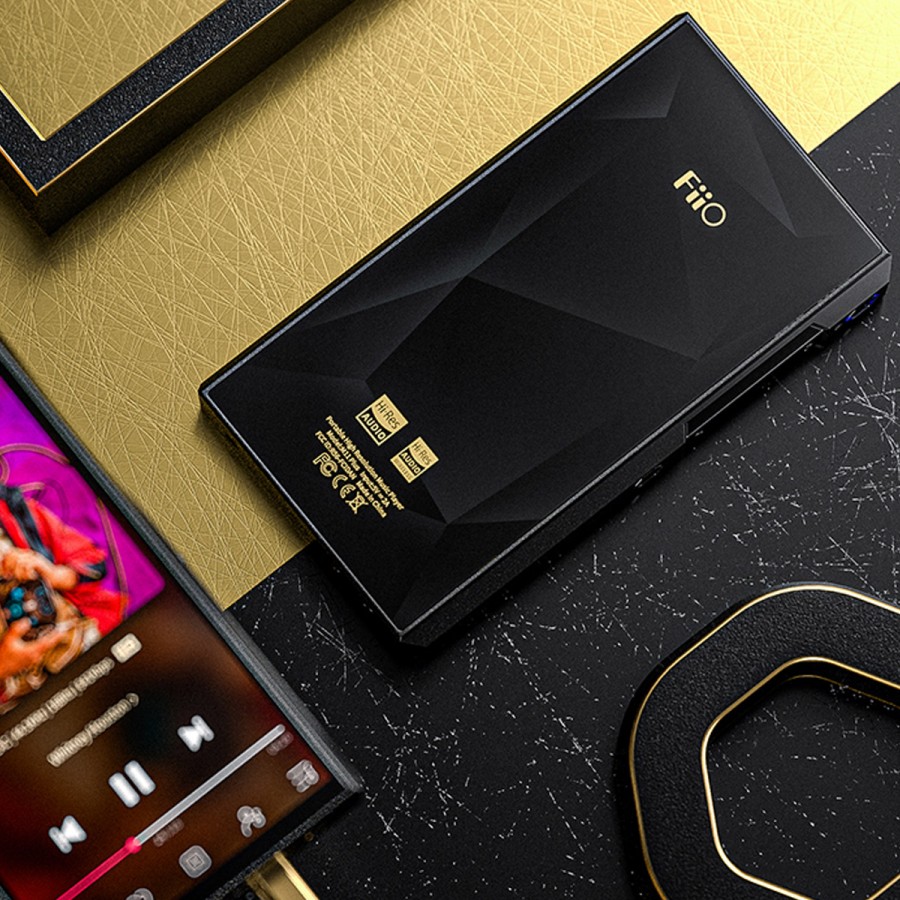

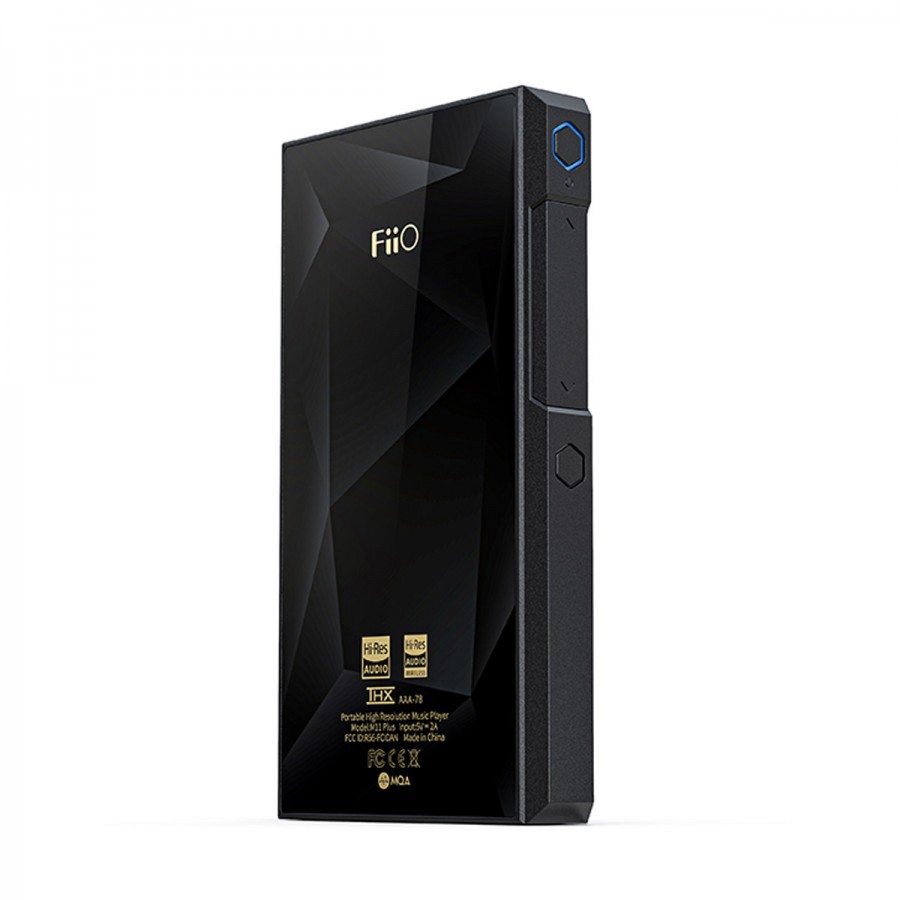

Modern geometric design
FiiO has put a lot of work into the design of its Walkman. Marked by a modern geometric aesthetic, it is also optimized for intuitive use, with every button easily accessible at all times.
Intelligent volume
The M11 Plus LTD's unique intelligent volume system uses a volume knob combined with touchscreen adjustment for precise and comfortable volume level adjustment.

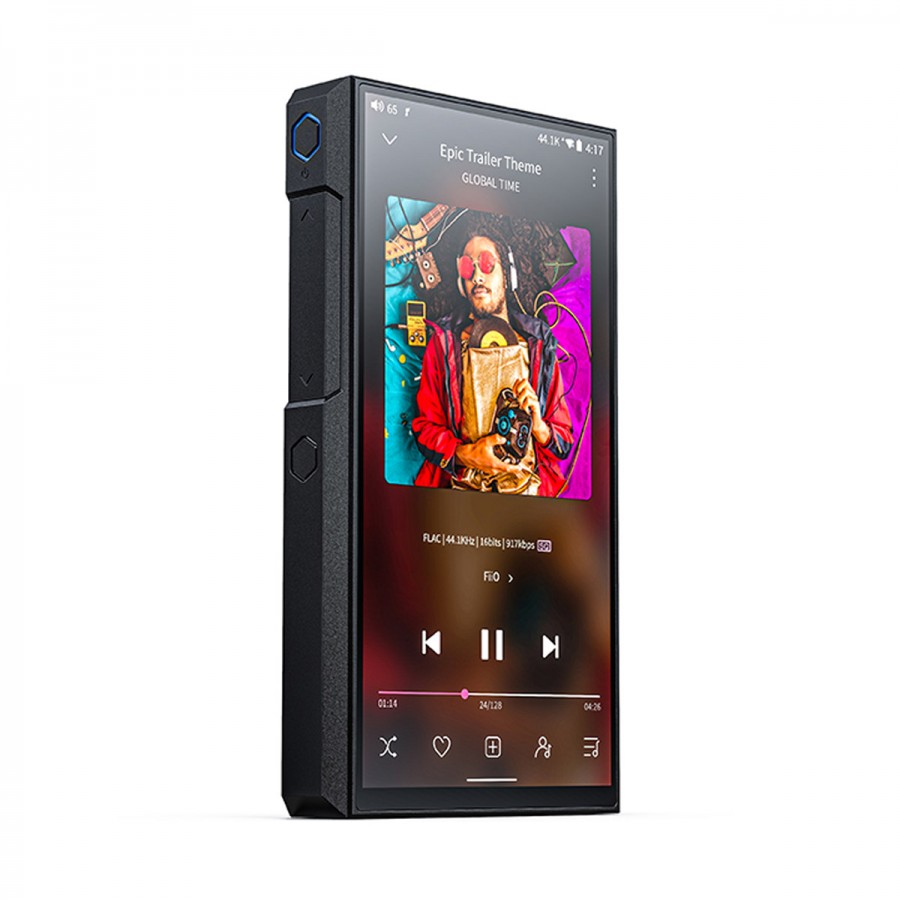

5.5" Screen
Dressed in a beautiful 5.5" IPS touch screen, the M11 Plus LTD displays beautiful colors. Offering an optimal visual experience, this screen allows you to enjoy an intuitive and easy user experience.
Balanced outputs & USB DAC mode
Adjustable gain
The M11 Plus LTD provides 3 selectable gain levels. Each gain level has a 120 level adjustable volume. This setting allows the DAP to be used with most headphones on the market, whether they are high impedance or very sensitive in-ear monitors.
Android 10
The M11 Plus LTD runs on a version of Android 10 specially adapted by FiiO for a smooth and intuitive experience. Every detail has been meticulously optimized by the brand for a pleasant use.
With you all day long
With a 6000mAh battery supporting Quick Charge QC2.0/3.0/4.0 and USB-PD technology for fast charging, the M11 Plus LTD will be able to accompany you all day, on the go or at home. The DAP can be used for 11.5 hours continuously and will last for 41 days on standby.
DSD & MQA
The FiiO DAP supports very high resolution files. It is thus compatible with DSD up to DSD256, but also allows MQA 8x decoding. This last format allows a sound reproduction as close as possible to the quality of the original recordings, with a limited file size.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Digital audio player (DAP) |
| DAC Chips | 2x AKM AK4497EQ |
| Amplification chips | 2x THX AAA-78 |
| LPF | 3x OPA1642 |
| Touchscreen | IPS 5.5" 1440x720px |
| Connectors / Connectivity | Bi-directional USB-C Bi-directional Bluetooth AirPlay2 FiiO Link WiFi 2.4GHz/5GHz UpNP |
| Outputs | 1x Single-ended Jack 3.5mm headphone output 1x Balanced Jack 2.5mm headphone output 1x Balanced Jack 4.4mm headphone output |
| Bluetooth codecs | SBC, AAC, aptX, aptX HD, LDAC |
| RAM | 4GB |
| Storage | ROM : 64GB Expandable via Micro SD (not included) |
| Supported sampling rates | PCM up to 32bit 384kHz DSD up to DSD256 DXD up to 24bit 352.8kHz MQA |
| Recommended headphone impedance | Single-ended output : 16-150Ω Balanced output : 16-300Ω |
| EQ | 10 bands, ±12dB 8 presets |
| Battery | 6000mAh Quick Charge QC4.0 / PD2.0 |
| Single-ended Jack 3.5mm Headphone output @ A-Weighting | |
|---|---|
| Output power | ≥ 295mW @ 16Ω, THD+N < 1% ≥ 206mW @ 32Ω, THD+N < 1% ≥ 23mW @ 300Ω, THD+N < 1% |
| Output impedance | ≤ 1Ω |
| THD+N | < 0.0006% @ 1kHz, 32Ω |
| Separation | ≥ 76dB @ 1kHz, 32Ω |
| Line output @ A-Weighting | |
|---|---|
| THD+N | < 0.00079% @ 1kHz, 10kΩ |
| SNR | > 121dB |
| Frequency response | 5Hz - 90kHz (-5dB) |
| Noise floor | < 1.7µV |
| Channel separation | > 105dB @ 1kHz, 10kΩ |
| Line level | 2V |
| Balanced Jack 2.5mm / Jack 4.4mm Headphone output @ A-Weighting | |
|---|---|
| Output power | ≥ 500mW @ 16Ω, THD+N < 1% ≥ 588mW @ 32Ω, THD+N < 1%, 4.3V ≥ 88mW @ 300Ω, THD+N < 1% |
| Output impedance | ≤ 2Ω |
| THD+N | < 0.00146% @ 1kHz, 32Ω |
| Separation | ≥ 111dB @ 1kHz, 32Ω |
| Noise floor | < 3µV |
| SNR | ≥ 120.5dB |
| Balanced line output @ A-Weighting | |
|---|---|
| THD+N | < 0.00042% @ 1kHz, 10kΩ |
| SNR | > 124dB |
| Frequency response | 5Hz - 90kHz (-5dB) |
| Noise floor | < 2µV |
| Channel separation | > 114dB @ 1kHz, 10kΩ |
| Line level | 2.61V |
| General | |
|---|---|
| Dimensions | 136.6 x 75.7 x 17.6mm |
| Weight | 310g |
| Color | Black |
| Input | Micro SD |
| Input | Bluetooth |
| Input | WiFi |
| Input | USB |
| Output | Jack 3.5mm |
| Output | Jack 4.4mm |
| Output | WiFi |
| Output | Jack 2.5mm |
| Output | Bluetooth |
| DAC / ADC Chip | AK4497EQ |
| Max sampling rate | 384kHz |
| Max sampling rate | DSD256 |
| Color | Black |
