TINYSINE Potentiometer Kit V2 for DSP Amplifier Module
No loyalty points for this product.
TinySine Kit Potentiometer Kit V2 for DSP Amplifier Module

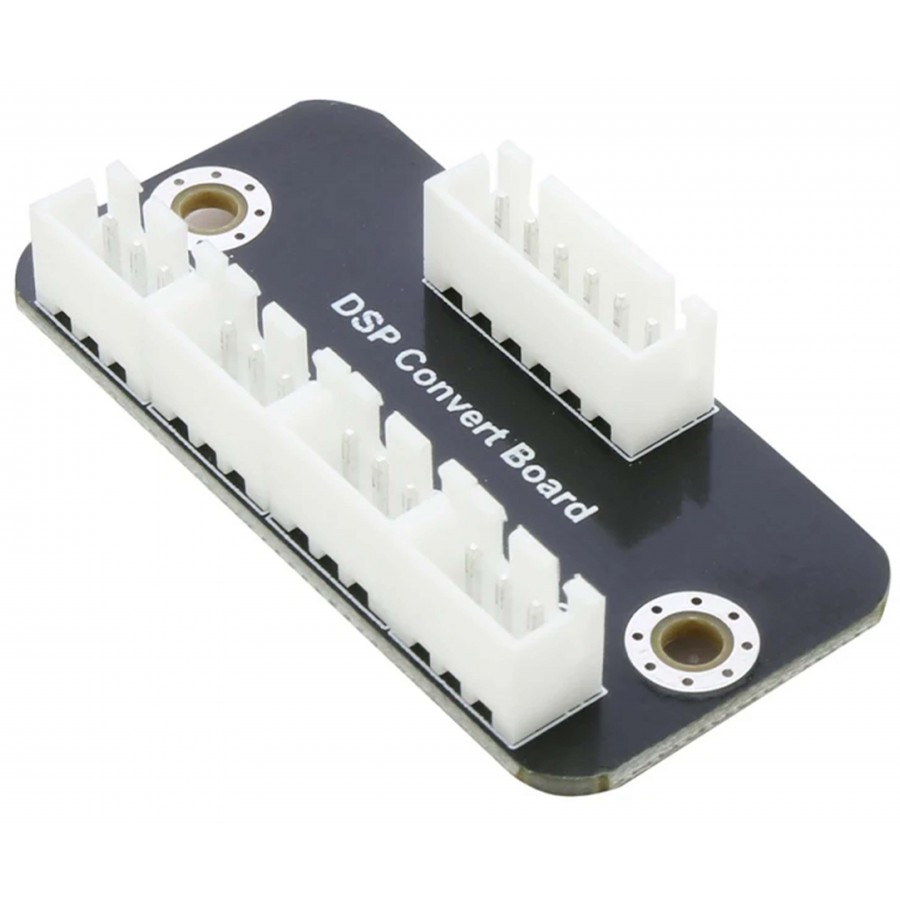

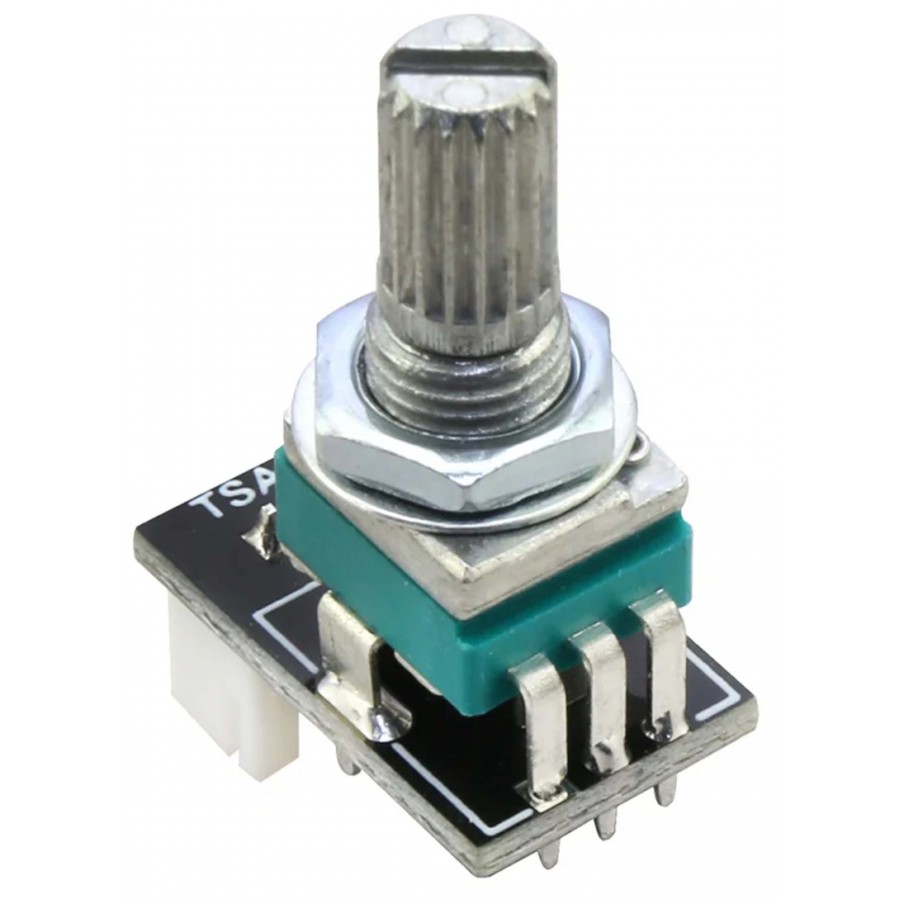

This kit includes 4 potentiometers and an adapter board. Each potentiometer module is equipped with a 10K potentiometer on the board. It can work with the Tinysine DSP audio amplification board and control audio volume, bass, midrange, and treble by turning each potentiometer.
It is compatible with many TinySine modules:
- TSA8804
- TSA1701
- TSA7551
- TSA8800
- TSA8802
- TSA7802

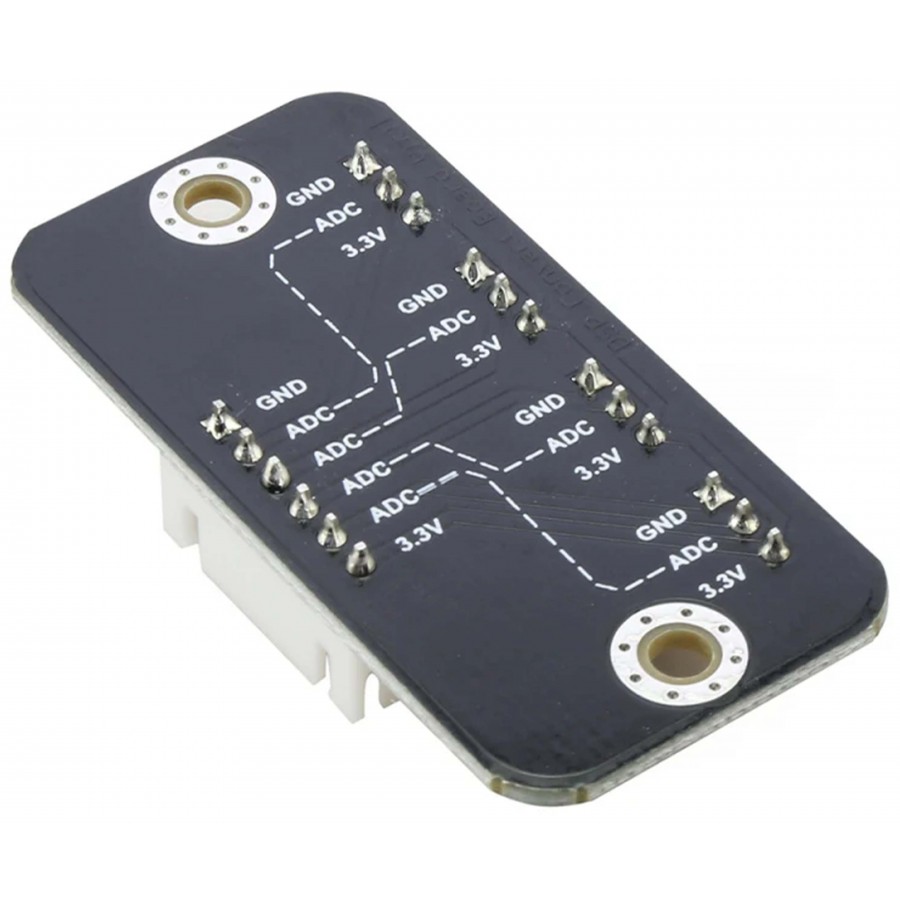

When using this kit with the TSA1701 and TSA1702 models, you must first disconnect the solder pads located on the back of the board, otherwise the ADC port may be damaged.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Potentiometer kit |
| General | |
|---|---|
| Board dimensions | 20.5 x 12.5mm |
| Potentiometer shaft diameter | 6.75mm |

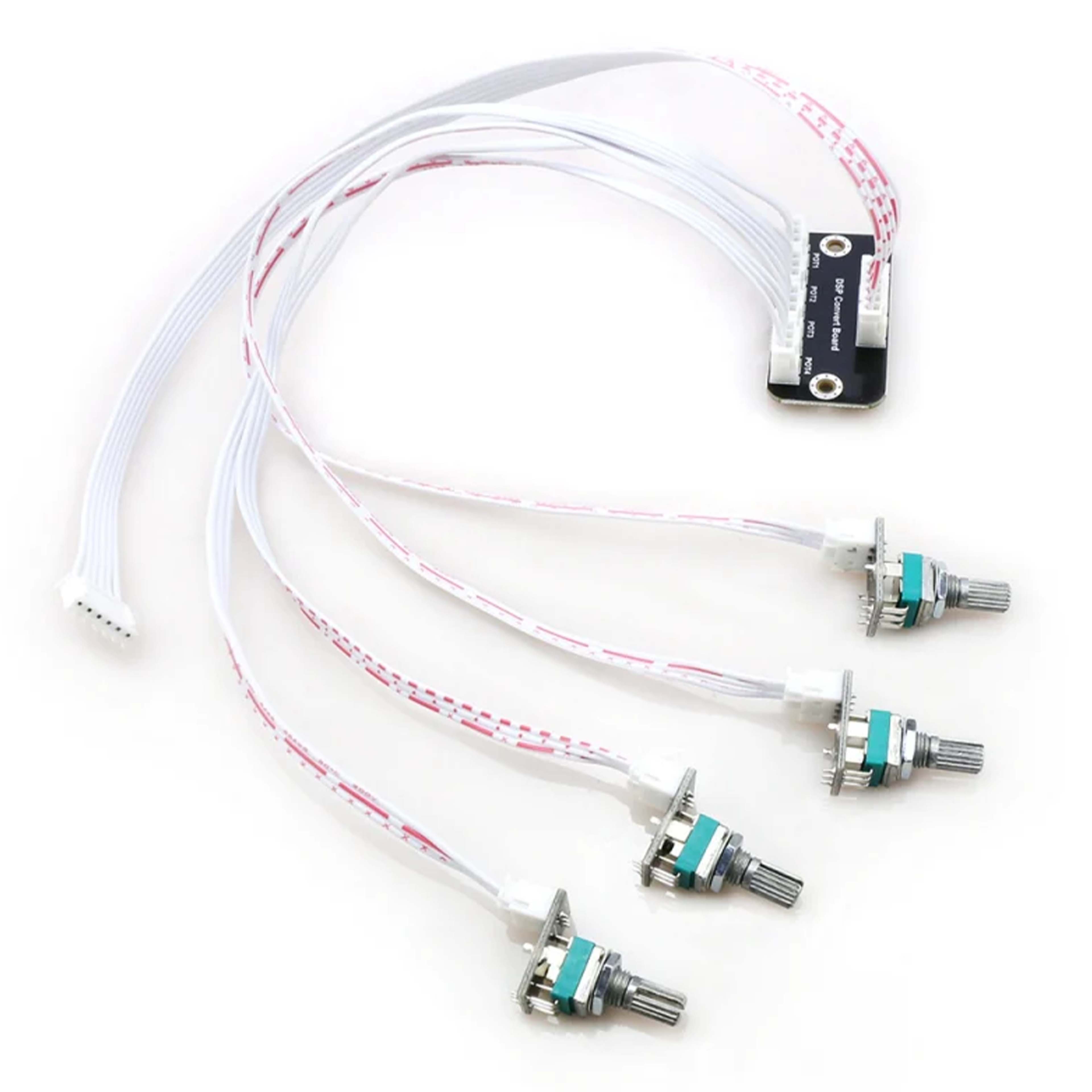

| Package | 1x DSP conversion board 4x TSA1301 potentiometer module 1x 6-pin JST XH cable 4x 3-pin JST XH cable |
