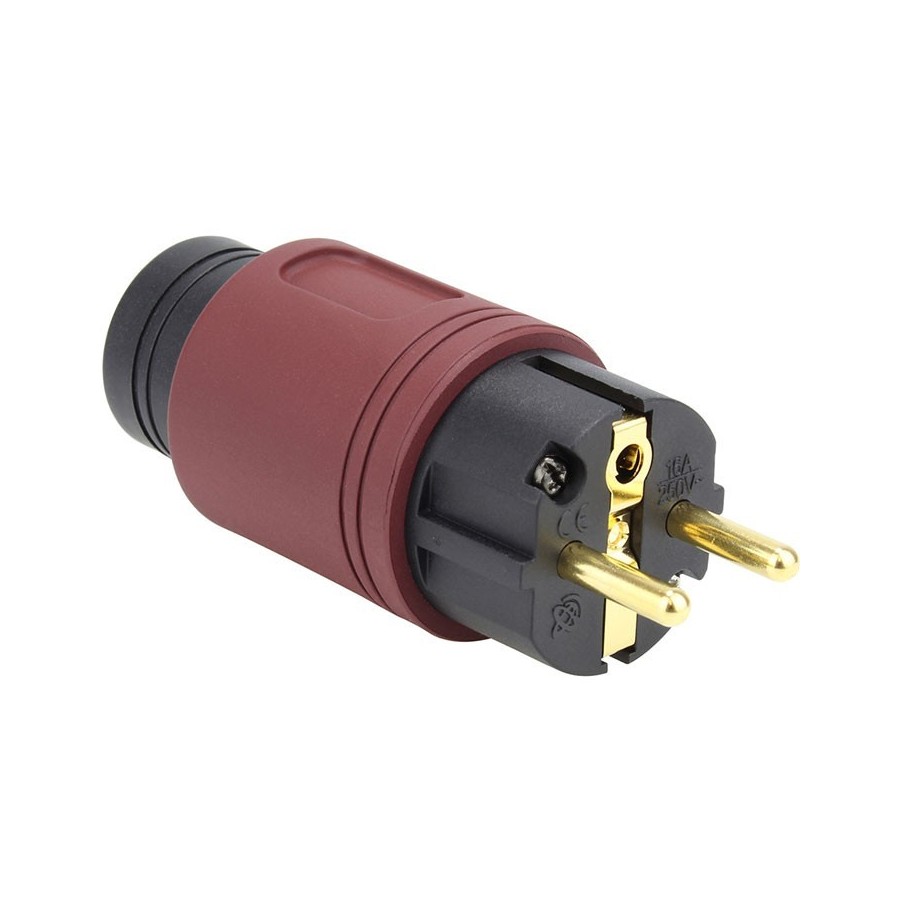

ELECAUDIO RS-34GW Schuko Type E/F Power Connector 24k Gold / SIlver Plated Ø16.5mm Bordeaux

ELECAUDIO RS-34GW Wine Schucko Power Plug 24k Gold/SIlver Plated Ø16.5mm

Average votes for this product
5.0 / 5

By buying this product you get 2 loyalty points


Reference : 10026
New product

24,90 €tax incl.

20,75 € tax excl.

- +

Shipping date: 29-03-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product


More info

These Hi-Fi power connectors where developed in France to be used with the most sophisticated power cables in the market.

The body with an exclusive and modern design was built with high pressure. His composition, 30% Fiber Glass, and 66% Nylon, can even support industrial environments, resistant to high temperatures, impacts and crushing.

We can even call these power connectors as a hybrid, an industrial quality adapted to a Hi-Fi use.

With his uniform 4mm body injection for effective vibration and resonance dampening you can use it in many ways.

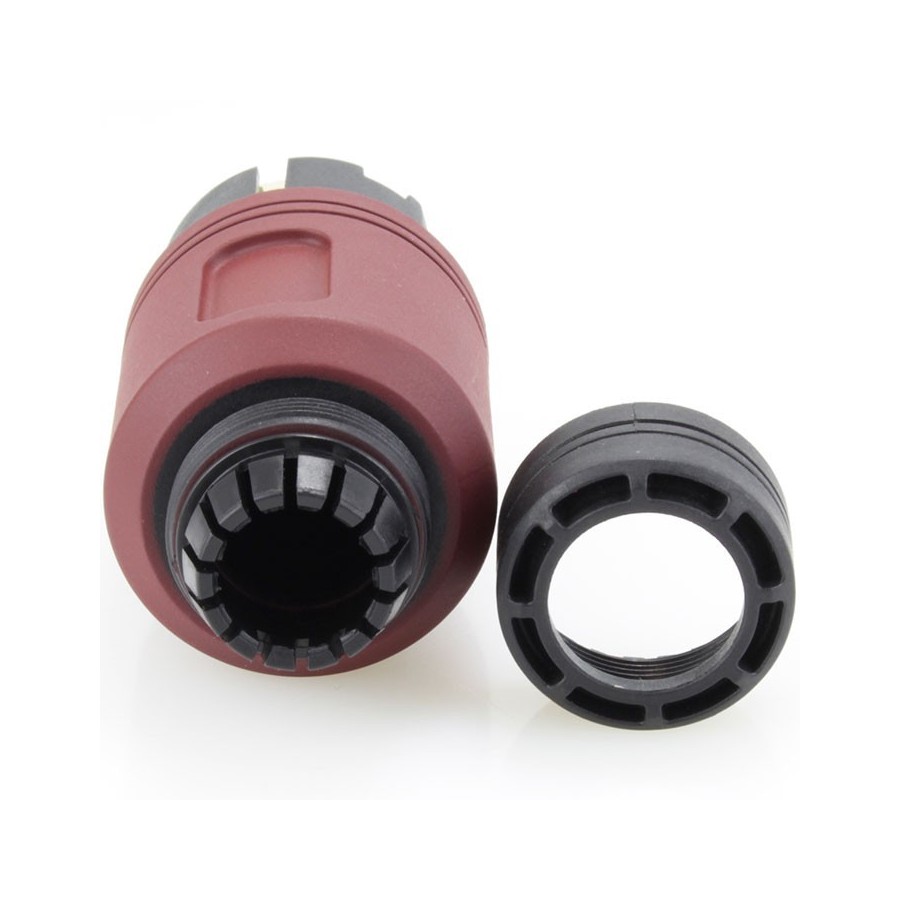

Thanks to a twist grip clinch claw for cables diameters from 13.5mm to 16.5mm you can have a wide option of cable diameters to create the perfect Hi-Fi grade power cable. This clinch claw will allow the cable to stay always centered no matter the cable diameter. (Diameter Reducer for ELECAUDIO RS-24, RS-34, et RI-24 Connectors is avaible lower in this page)

All the connectors are screw Stainless steel for maximum strength.

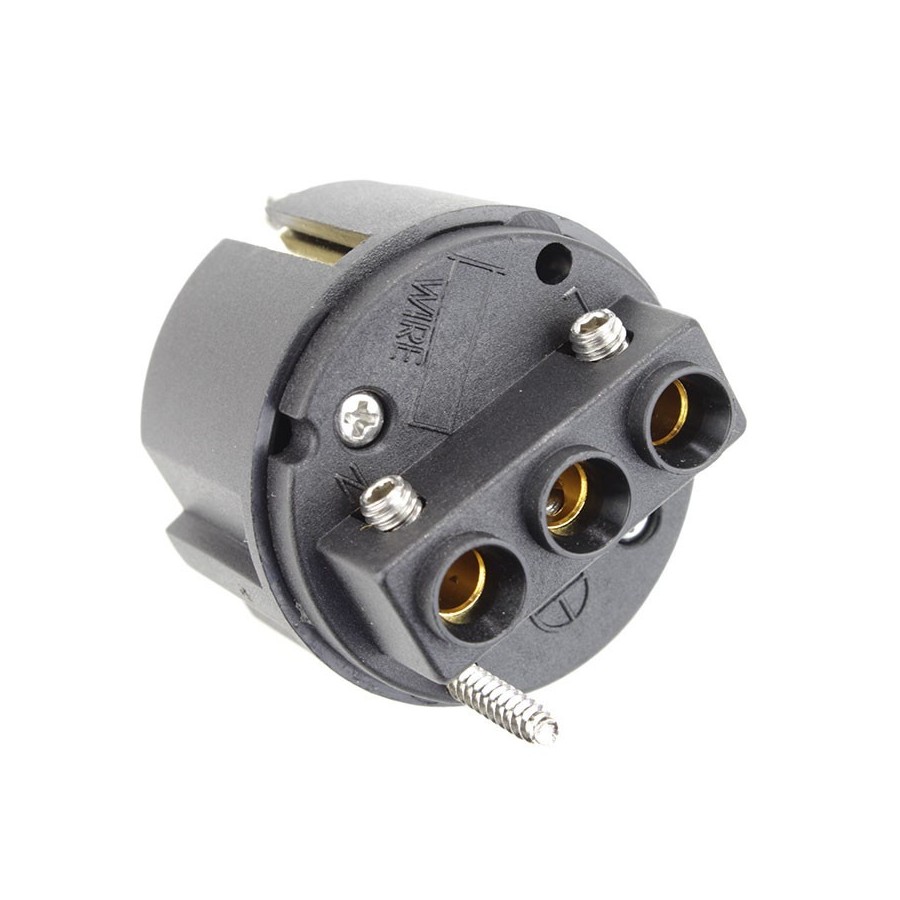

The head of the connector also benefits of the alloy Fiberglass / Nylon for its dielectric and mechanical qualities. Contacts are copper alloy non-magnetic in one piece and machined from solid, which is applied on Silver/24K gold plating.



Specifications:

  •    Body : 30% Glass Fiber & à 66% Nylon
  •    Screws: (BTR 2mm screws)
  •    Plated: Silver/ Gold 24k
  •    Maximum conductors section: 15mm² (4.5mm diameter)
  •    Cable diameter : de 13.5mm à 16.5mm
  •    Tension/Voltage : 16A / 250V
  •    Total length: 103.7 mm
  •    Diameter: 42 mm
  •    Weight : 92g






Data sheet
Max cable diameter (mm)16.5
Mounting typeTo screw
ConnecticMale
ConnectorPLug CEE 7/7
Contacts Material (Connector)Copper Alloy
Contacts Plating (Connector)Gold
Contacts Plating (Connector)Silver
Rated current (A)16.0

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
2 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Simple et efficace
Facile à mettre en oeuvre, de bonne qualité et bien finie..
 (1)
 (0)
This review has been posted for ELECAUDIO RS-34GW Schuko Type E/F Power Connector 24k Gold / SIlver Plated Ø16.5mm Bordeaux
Note :
 5/5
Date :
tres bon produit !
bonne prise de trés bonne qualité! le corp est trés rigide , ce qui facilite le maintient de cables de gros diamètre (yarbo 8000 ! )
couleur élégante et plutot discrete !
Bon RQP !
utilisées sur rallonge sur barrette , platine vinyle , boitier d'alim séparé, dac oppo ! excellent avec le yarbo !
 (0)
 (0)
This review has been posted for ELECAUDIO RS-34GW Schuko Type E/F Power Connector 24k Gold / SIlver Plated Ø16.5mm Bordeaux
