AsciLab C6BBookshelf Speakers 250W 4 Ohm 85dB Black (Pair)

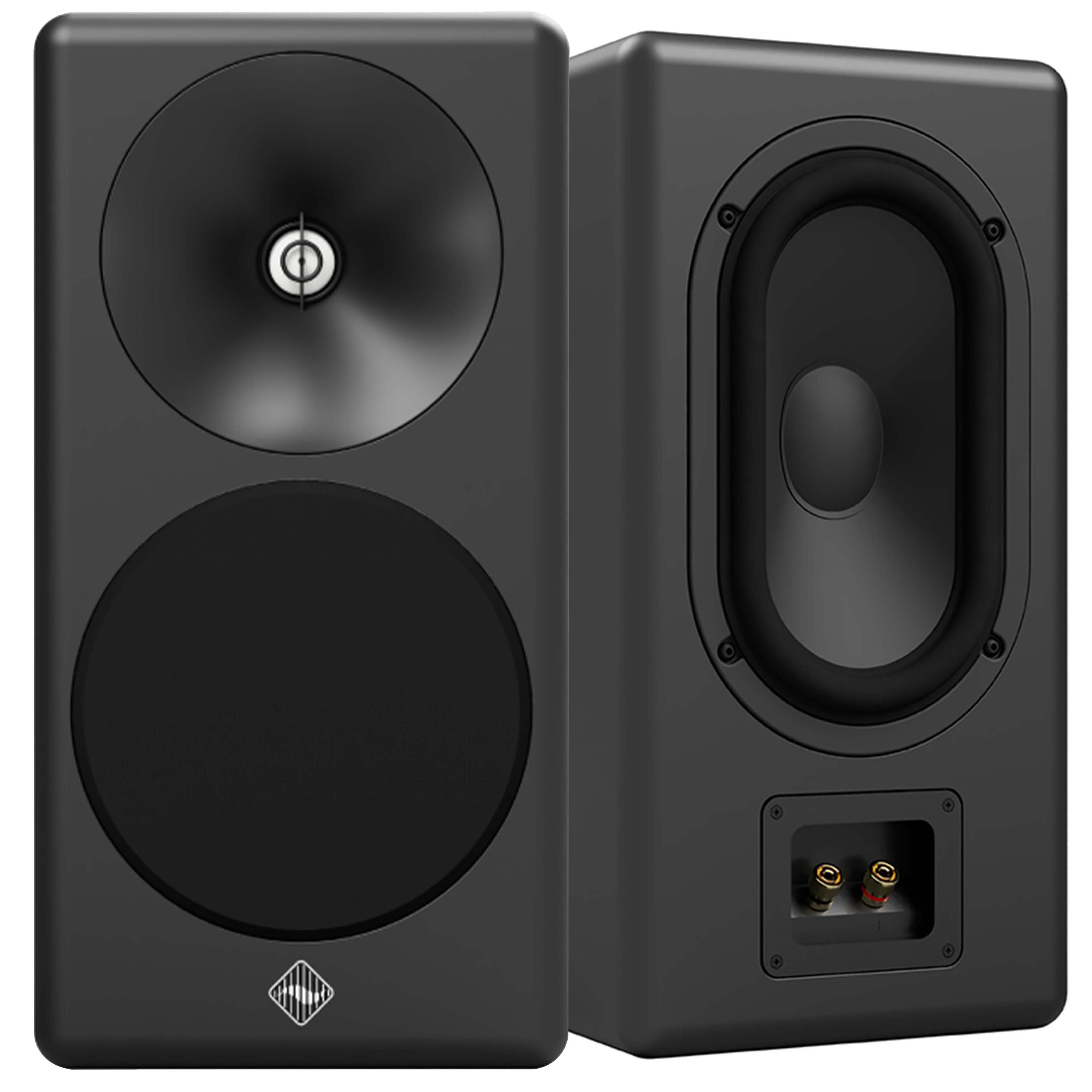

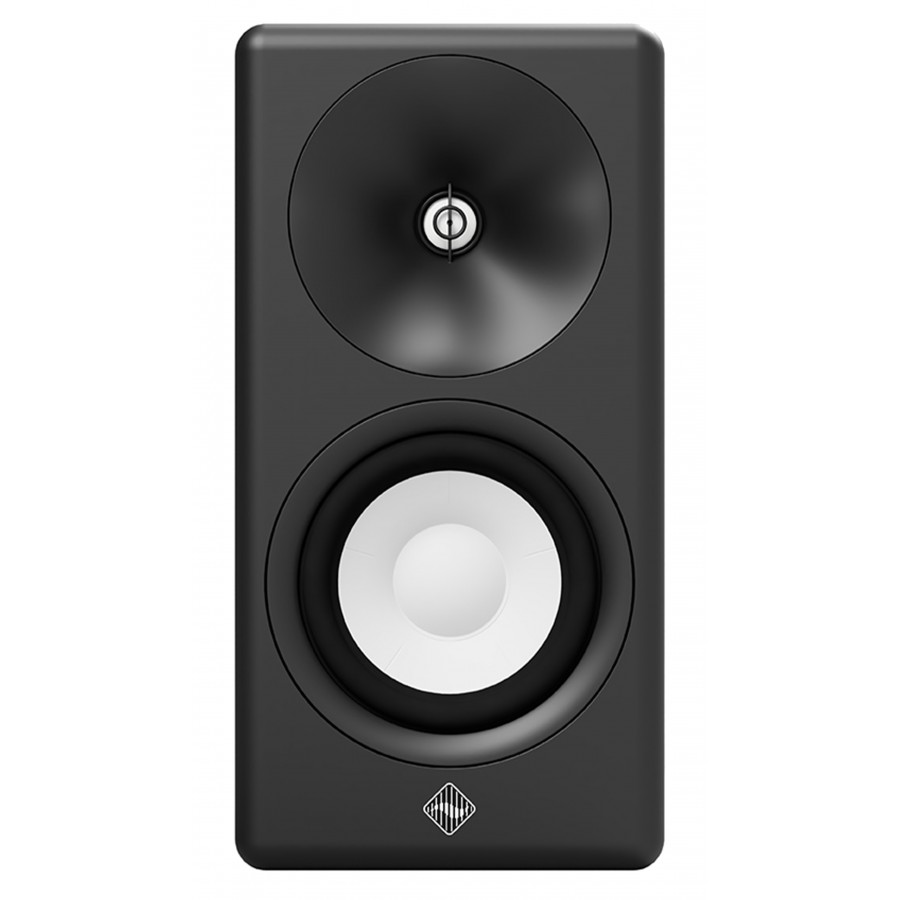

The AsciLab C6B are passive bookshelf speakers offering precise, powerful sound reproduction in a compact format. These 2-way speakers feature a 1“ alumina-ceramic dome tweeter with custom waveguide and phase tapping, combined with a 6” woofer with alumina-ceramic cone, all housed in an enclosure with passive radiator. The 5x8" passive radiator provides a considerable boost at low frequencies. Their design allows for lower crossover points and reduced distortion, for an extremely clear sound reproduction. The C6Bs feature a fourth-order crossover at 1.1kHz, optimized via Klippel NFS, and support up to 250W of amplification. They are ideal for demanding audiophile or professional studio use.
For other colors, please contact us via our contact form. The classic white model is available here.
AsciLab C6B: Optimized tweeters for controlled sound dispersion
AsciLab C6B tweeters feature a waveguide and internal phase plug designed to precisely manage sound dispersion. These elements avoid phase interference, reduce internal resonance and improve off-axis dispersion. The advantages of this type of configuration translate into a more linear frequency response, reduced distortion and better spatialization of sound, offering a more coherent soundstage.
AsciLab C6B: 6" woofer in alumina ceramic
Despite their compact size, the 6" woofers in AsciLab C6B loudspeakers are capable of delivering powerful, well-defined bass in spaces of up to 25m². Alumina ceramics provide exceptional rigidity for faithful, distortion-free reproduction, even at high volume, thanks to a strong limitation of cone deformation at high sound pressure. High-performance and dynamic, these woofers also come with an aesthetically pleasing protective grille, combining performance and design.
AsciLab C6B: A 5x8" passive radiator
AsciLab C6B speakers feature a passive radiator at the rear. This limits unwanted resonance while optimizing low-frequency reproduction. This solution also helps reduce distortion at high volumes, unlike a bass-reflex port, which can generate turbulence. AsciLab has also chosen to integrate a passive radiator in order to maintain a relatively compact speaker design.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Passive speakers |
| Design | 2 way |
| Tweeter | 1" alumina ceramic dome tweeter |
| Woofer | 6" alumina-ceramic woofer with aluminum chassis |
| Design | With passive radiator |
| Finish | Mate |
| Crossover frequency | 1.1kHz |
| Sensitivity | 85dB @ 2.83V / 1M |
| SPL Max. (Full-bandwidth) | 99dB SPL |
| SPL Max. (>100Hz) | 105dB SPL |
| Frequency response | -3dB @ 50Hz / -6dB @ 41Hz |
| Impedance | Nominal 4 ohm (min 200Hz / 2.6 ohm) |
| Recommanded amplification | 50W - 250W |
| Connection to screw terminals | Banana 4mm Bare wires Forks |
| General | |
|---|---|
| Dimensions | 40 x 20.3 x 26.5cm |
| Weight | 8.4kg/speaker |
| Color | Black |
| Package | 1x Pair of AsciLab C6B speakers 2x Woofer grids |
| Color | Black |
| Impedance (Ω) | 4 |
| Efficiency / Sensitivity (dB) | 85.0 |
| Lowest frequency (Hz) | N/A |
| Highest frequency (Hz) | N/A |
| Power (W) | 250.0 |
| Number of ways | 2 |
| Number of loudspeakers | 3 |
| Speaker type | Passive |
| Speaker form factor | Bookshelf speaker |
