VIBORG LE505G Angled Schuko Connector Type E/F
By buying this product you get 4 loyalty points

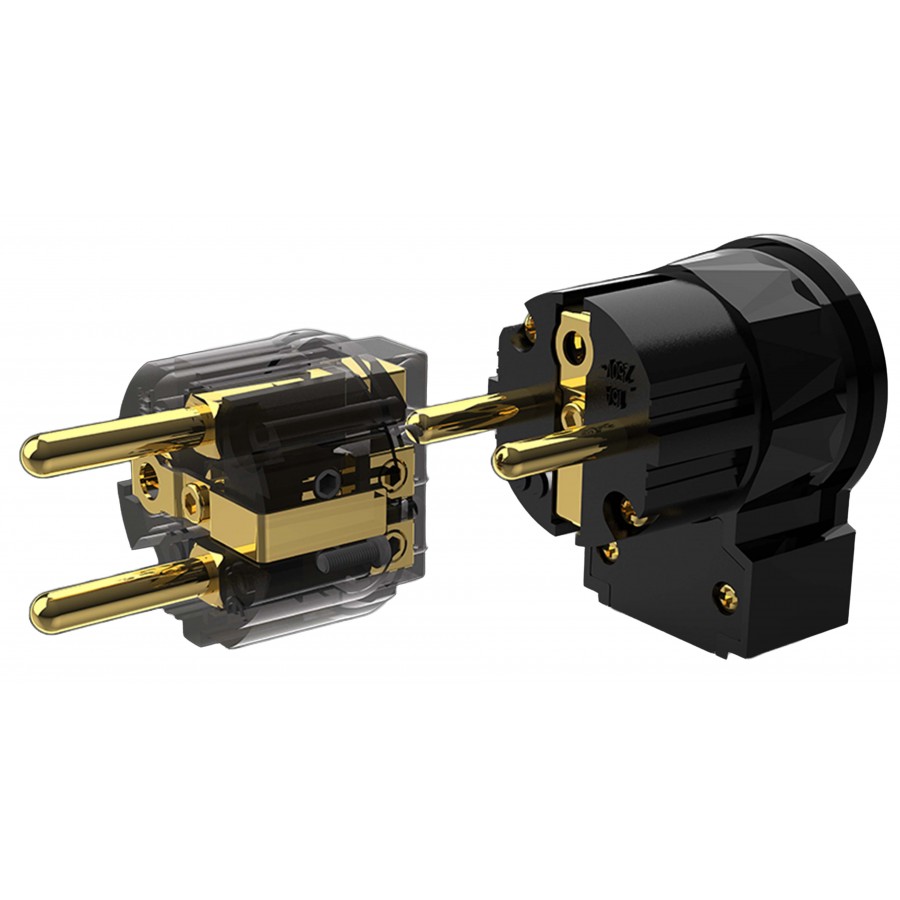

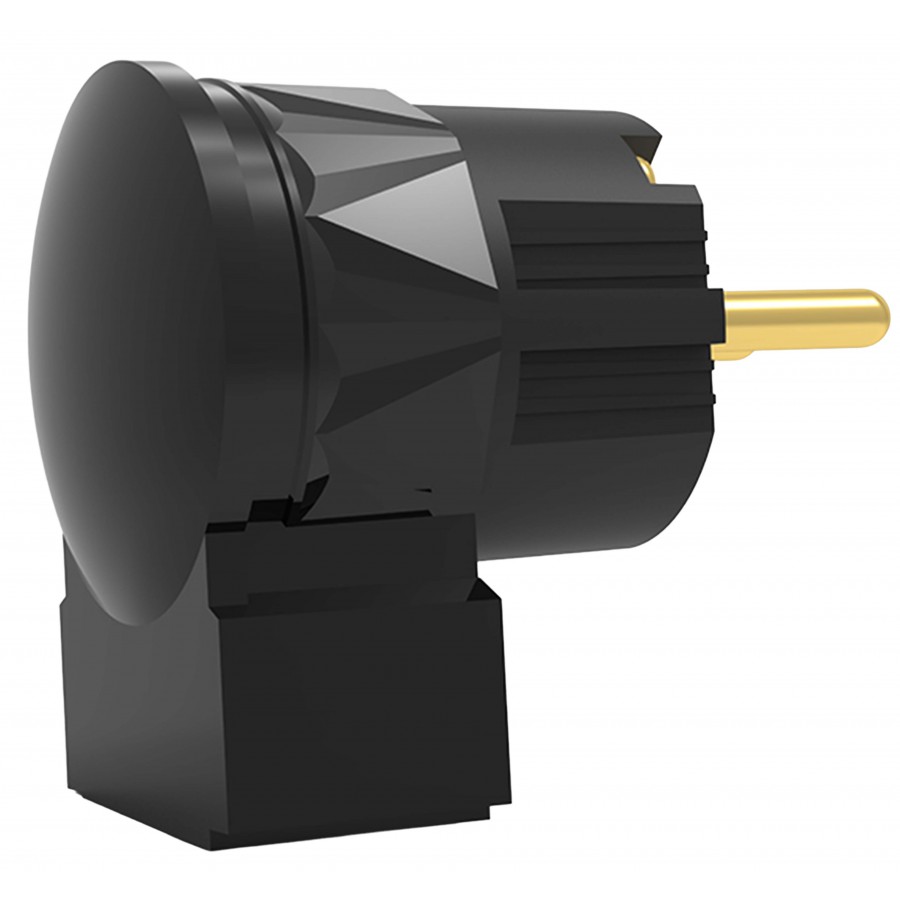

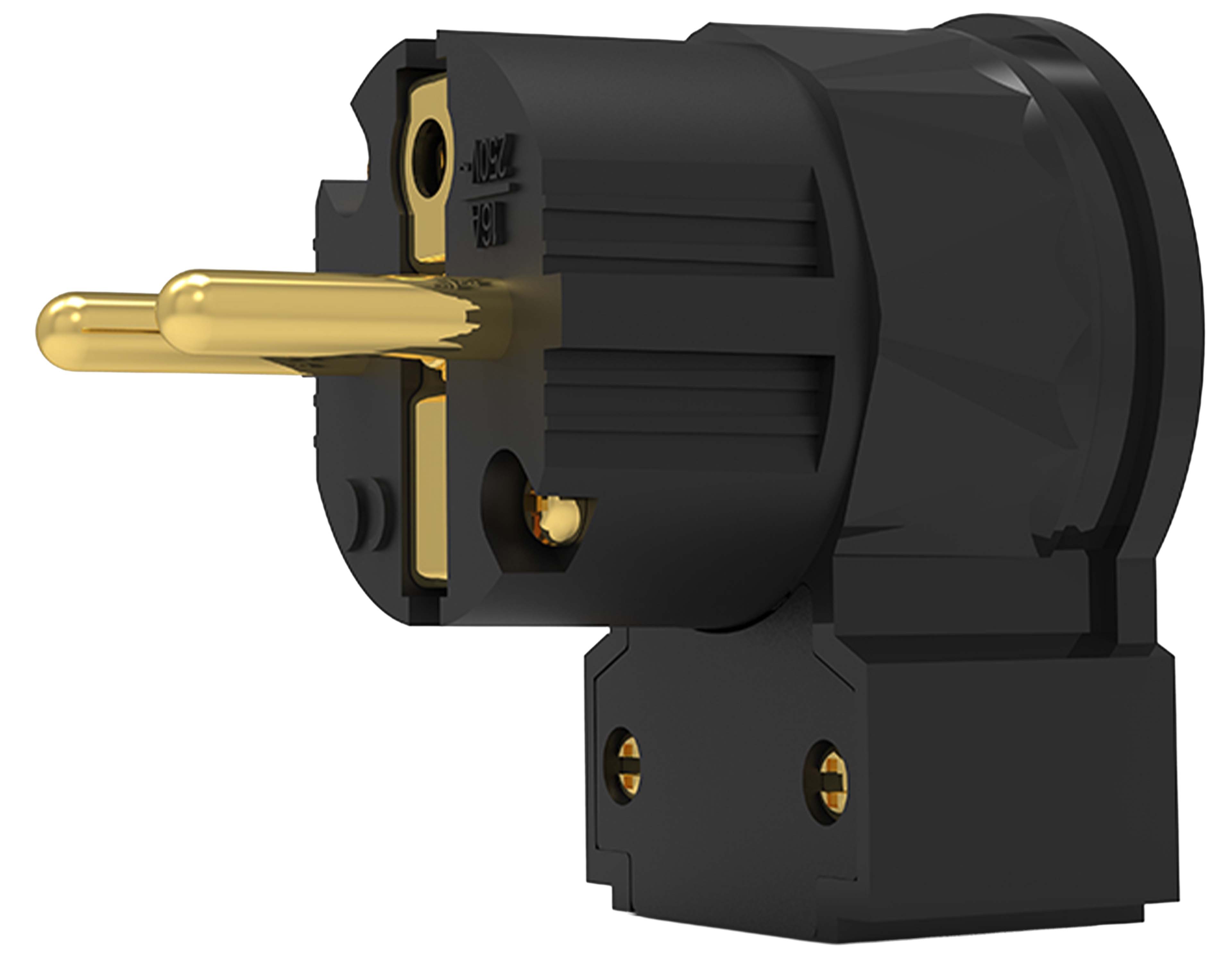

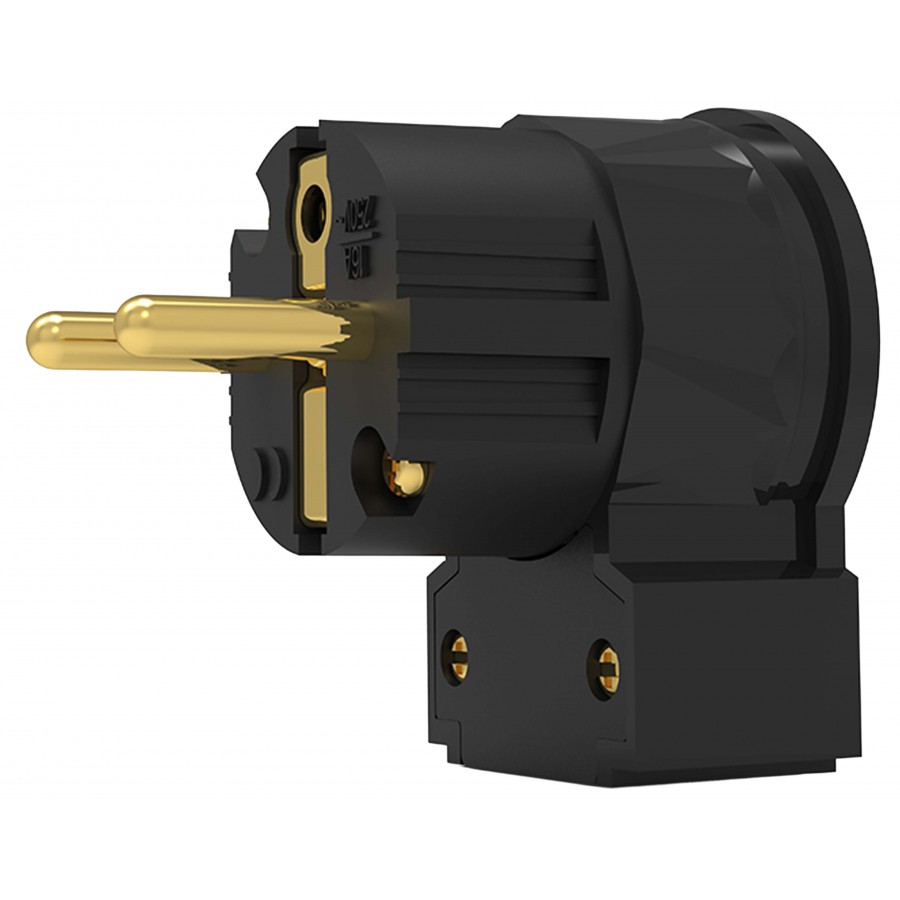

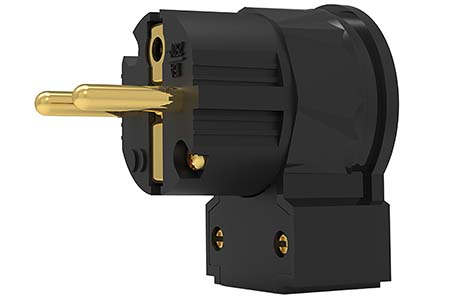

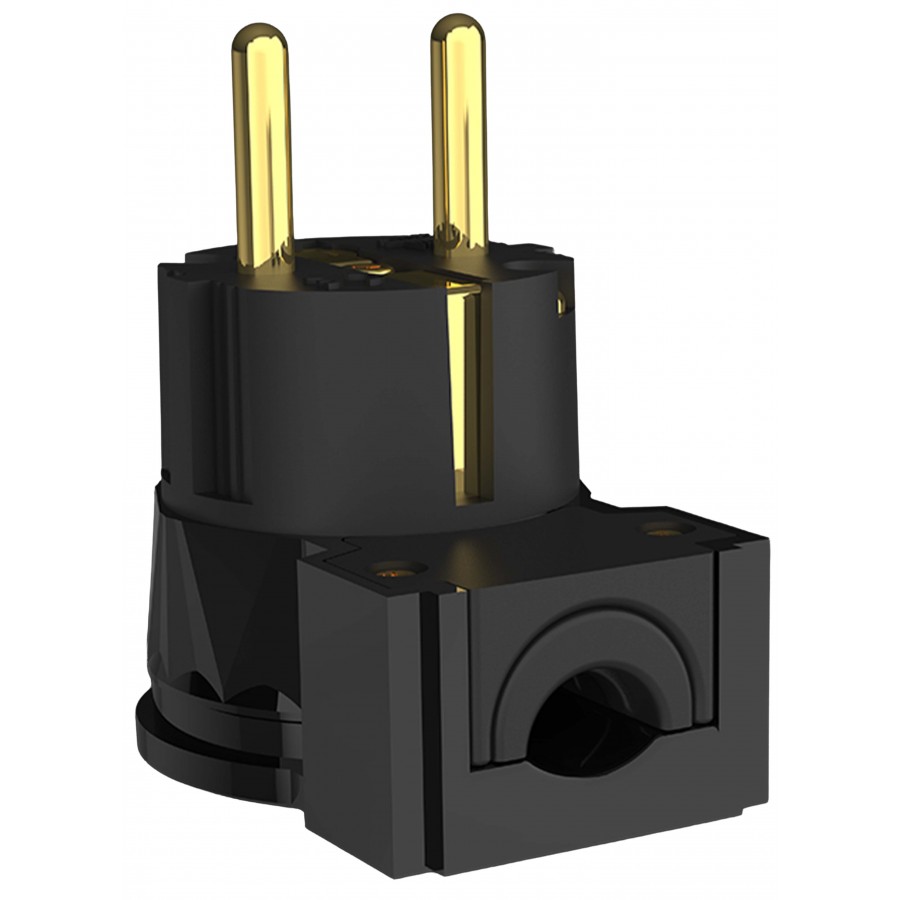

Viborg LE505G Angled Schuko Type E/F Connector Pure Copper OFC Copper / Silver / 24k Gold Plated Ø19mm
This Viborg LE505G angled Schuko connector is ideal for designing and upgrading high-performance, high-quality power cables. Its pure copper contacts with OFC copper / silver / 24k gold plating ensure very high conductivity and excellent resistance to oxidation. The insulation is made of nylon and fiberglass, robust and lightweight materials that are also electromagnetically neutral. Assembly is very simple thanks to a screw-lock system.
Technical Specifications
| Specifications | |
|---|---|
| Product type | Angled Schuko connector |
| Contact material | Pure copper |
| Contact plating | OFC copper / silver / 24k gold |
| Insulation | Nylon and fiberglass |

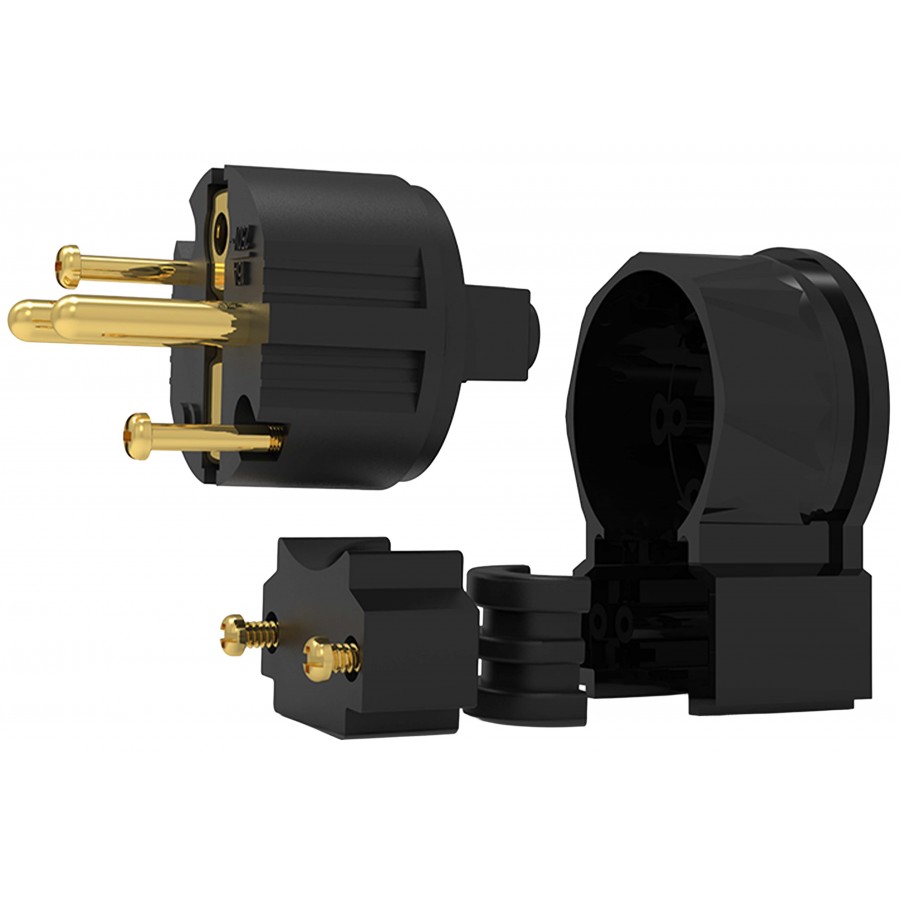

| Assembly | Screw-lock |
| Compatible cable diameter | Ø6-19mm |
| Maximum conductor diameter / cross-section | Ø4.5mm / 19mm² |
| Voltage / Current | 250VAC 16A |
| Maximum cable diameter | Ø7mm-Ø19mm |

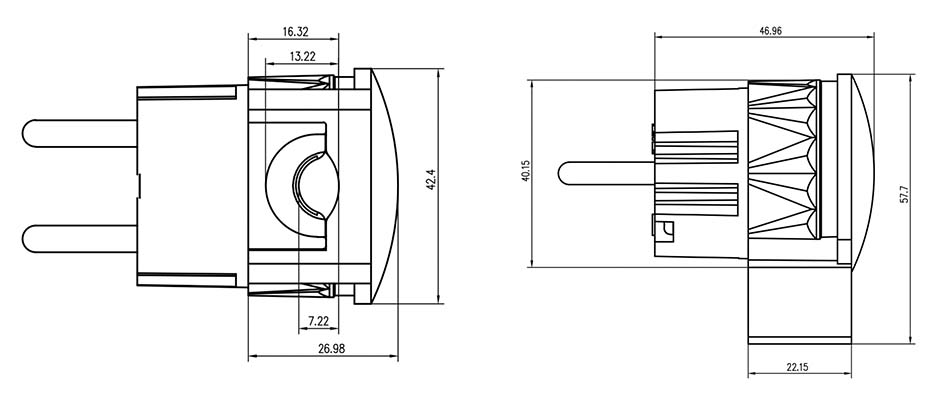

| Dimensions | 46.97 x 57.7 x 42.4 mm |
| General | |
|---|---|
| Package | 1x Viborg LE505G |
| Max cable diameter (mm) | 19.0 |
| Mounting type | To screw |
| Connectic | Male |
| Connector | Schuko |
| Contacts Material (Connector) | Copper |
| Contacts Plating (Connector) | Silver |
| Contacts Plating (Connector) | Gold |
| Contacts Plating (Connector) | Copper |
| Rated current (A) | 16.0 |
