DAYTON AUDIO RSS315HF-4 Reference Speaker Driver Subwoofer Aluminium 400W 4 Ohm 90dB 23Hz - 1000Hz Ø30.5cm

DAYTON AUDIO RSS315HF-4 Reference HP de Grave/Subwoofer 30.5cm
Average votes for this product
5.0 / 5

By buying this product you get 17 loyalty points

Reference : 4944
New product

174,17 €tax excl.

Including 0,25 € for green tax

- +

Shipping date: 19-01-2021.

Orders placed before 11AM (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans
More info

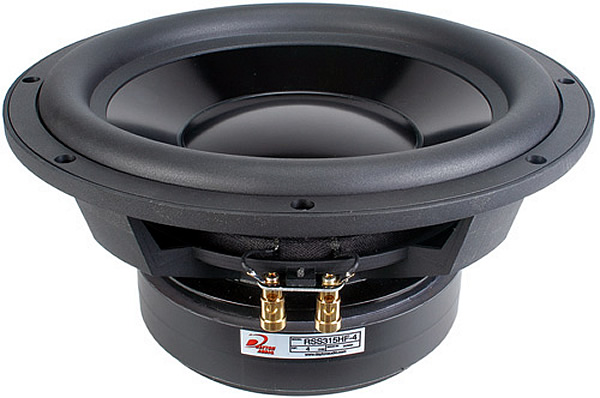

Integrated into the "Reference Series"of DAYTON AUDIO, the bass unit RSS315HF-4takes on board the quality and performance criteria that made the success of esteem of the "RS" line of the American manufacturer.

As with all speakers of the reference series, the main objective of this subwoofer is to maintain extremely low distortion ratesdespite a dizzying descent into the serious infra.

Thus the intermodulation distortions of the 2nd and 3rd orders are kept in respect by the use ofthree distinct electrical shortcuts of the engine.

A spider made of Aramid fiber, with exceptional thermal and mechanical resistance, helps to ensure linear and silent excursionof the mobile crew

Notably, the RSS315HF-4also adopts a devastating look with itscone Aluminum color black anodized , herlarge suspension half rubber rollerhigh quality, and sound chassis owner rigid and perfectly ventilated.

"High Fidelity" (HF) version for home audio applications oriented to the accuracy and quality of bass reproduction, with no special constraints on the volume of the load.


  • Largely ventilated motor eliminating compression phenomena that are harmful to the linearity and silence of the excursion
  • Very resistant cone Aluminum Anodized Black
  • Three-way electric motor for minimum distortion
  • Double Layer Coiloffering superior protection to EMI
  • Suitable for installation in load close or bass-reflex
  • High quality building materials for increased durability



Download DAYTON-RSS315HF-4 DataSheet

Optimum cabinet size according to BassBox 6 Pro

Sealed Volume20.11 Litres
Sealed F353 Hz
Vented Volume58.05 Litres
Vented F330 Hz

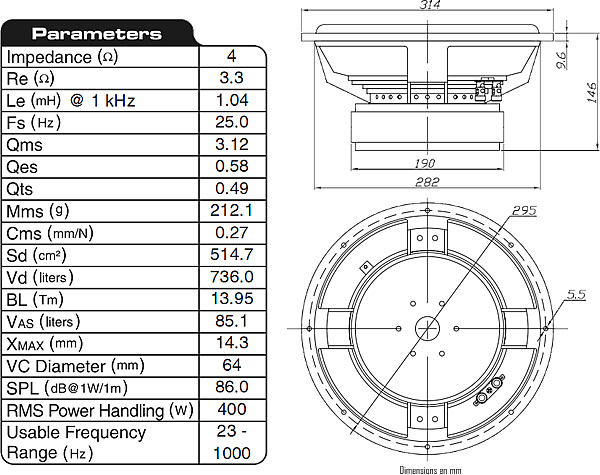

Data sheet
Speaker Power (W RMS)400.0
Speaker TypeSubwoofer
Impedance (Ω)4
Loudspeaker diameter (mm)305.0
Diaphragm typeAluminium
Efficiency / Sensitivity (dB)86.0
Xmax (mm)14.0
Lowest frequency (Hz)23
Highest frequency (Hz)1000
We deliver all of France, and internationally.
To discover the amount of the shipping costs, you just have to go in your shopping cart once the desired products added.
To discover our different services and delivery options, click on the following logos:
Colissimo - TNT - SoColissimo
Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
2 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
Date :
Top ! caisson clos de 29l
Vraiment top le caisson clos ! Je voulais un sub home cinéma qui soit propre niveau diffusion. Les modèles basses reflex ne m'ont jamais convaincu. L'autre avantage est la petit taille du caisson, pour une surface émissive d'un 30 cm.
J'ai réalisé la caisse en CP de 22mm avec renforts internes, sans matériaux amortissant. Cote 36 x 36 extérieur. plan Speaker Box Lite.
Le HP est bien fini et a une belle allure si l'on parle d'esthétique.
Je l'ai également utilisé en Hi-Fi sur des sons Electro ! Ça remue vraiment bien tout en restant propre. Top !
This review has been posted for DAYTON AUDIO RSS315HF-4 Reference Speaker Driver Subwoofer Aluminium 400W 4 Ohm 90dB 23Hz - 1000Hz Ø30.5cm
Note :
Date :
Parfait pour un caisson basse fréquence clos
Monté dans un caisson clos avec filtre DSP et amplification dédier,
La réponse reste parfaitement plate entre 40 et 150Hz +/- 1db
chute à -3db à 33Hz comme prévu dans le calcul et -6dB à 22Hz. Le caisson utilise un résonateur Helmholtz fortement amortis par de la laine, accordé 120Hz avec une bande passante +/- 80Hz . La distorsion est bien contenu dans la plage 33 à 150Hz et remonte légèrement entre 150 et 200Hz la courbe oscillant dans cette dernière plage à +/- 3db.
This review has been posted for DAYTON AUDIO RSS315HF-4 Reference Speaker Driver Subwoofer Aluminium 400W 4 Ohm 90dB 23Hz - 1000Hz Ø30.5cm
