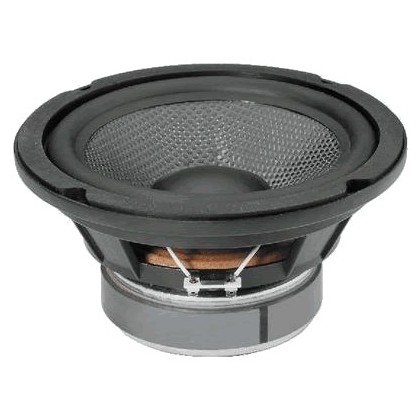

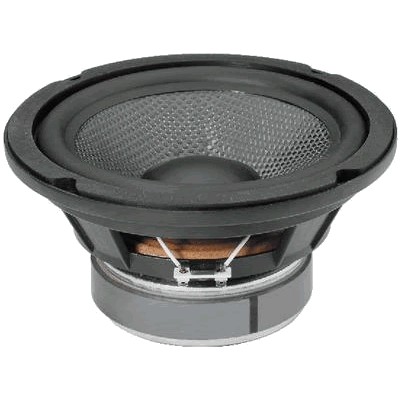

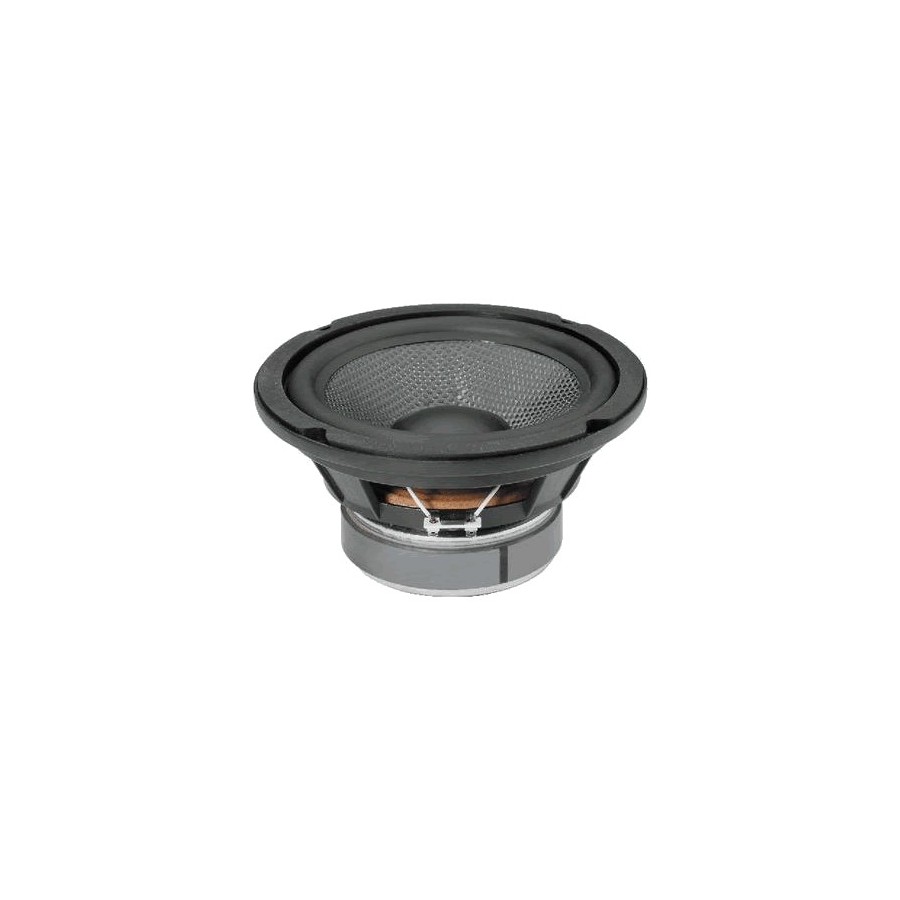

MONACOR SPH-200CTC Speaker Driver Woofer
This Monacor SPH-200CTC dual-coil woofer is particularly well-suited to the natural reproduction of vocals, delivering incredible bass depth. It also delivers astonishingly accurate sound.
No customer reviews yet, login to write a review.
By buying this product you get 11 loyalty points
Reference : 1932
New product
![[GRADE S] MINIDSP FLEX HT Audio DSP Processor 2x8 Channels SHARC ADSP21489 XMOS HDMI ARC eARC](https://www.audiophonics.fr/68133-thumb_default/minidsp-flex-ht-stockb.jpg)
![[GRADE A] AUNE S9C PRO DAC 2x ES9068AS Discreet Headphone Amplifier 5W Bluetooth 32bit 768kHz DSD512 MQA Back](https://www.audiophonics.fr/64487-thumb_default/aune-s9c-pro-dac-2x-es9068as-discreet-headphone-amplifier-5w-bluetooth-32bit-768khz-dsd512-mqa-back.jpg)
Monacor SPH-200CTC Speaker Driver Woofer Dual Coil 2x60W 2x8Ω 88dB 22Hz-4000Hz Ø20.3cm
This Monacor SPH-200CTC dual-coil woofer is particularly well-suited to the natural reproduction of vocals, delivering incredible bass depth. It also delivers astonishingly accurate sound.
Technical characteristics
| Specifications | |
|---|---|
| Speaker driver type | Woofer |
| Nominal diameter | Ø20.3cm |
| Power handling | RMS : 2x60W Max : 2x100W |
| Impedance | 2x 8Ω |
| Frequency response | 22Hz - 4000Hz |
| Sensitvity | 88dB/W/m |
| Voice coil diameter | Ø50mm |
| Magnet weight | 840g |
| Magnet diameter | Ø120mm |
| Weight | 2.76kg |
| Thiele-Small parameters | |
|---|---|
| Resonant frequency (Fs) | 22Hz |
| DC resistance (Re) | 2x 6.8Ω / 3.4Ω |
| Voice coil inductance (Le) | 2x 1.0mH / 1.0mH |
| Mechanical quality coefficient (Qms) | 4.91 |
| Electromagnetic quality coefficient (Qes) | 0.23 |
| Total quality factor (Qts) | 0.22 |
| Equivalent volume (Vas) | 75L |
| Mechanical suspension compliance (Cms) | 1.16mm/N |
| Moving mass (Mms) | 45g |
| Force factor (BL) | 9Tm |
| Max linear excursion (Xmax) | ±3.75mm |
| Effective cone area (Sd) | 214cm² |
| Materials | |
|---|---|
| Cone | Carbon fiber |
| Basket | Diecast |
| Voice coil former | Kapton |
| Mounting informations | |
|---|---|
| Total external diameter | Ø211mm |
| Cutout diameter | Ø181mm |
| Depth | 115mm |
| Bolt circle diameter | Ø181mm |
| Number of mounting holes | 4 |
| Speaker Power (W RMS) | 60.0 |
| Speaker Type | Subwoofer |
| Impedance (Ω) | 8 |
| Loudspeaker diameter (mm) | 250.0 |
| Diaphragm type | Carbon fiber |
| Efficiency / Sensitivity (dB) | 88.0 |
| Max Linear Excursion (Xmax) (mm) | 3.7 |
| Lowest frequency (Hz) | N/A |
| Highest frequency (Hz) | 4000 |
