Audiophile regulated power supply for any Hifi device running on 12V (DAC, digital sources for example).

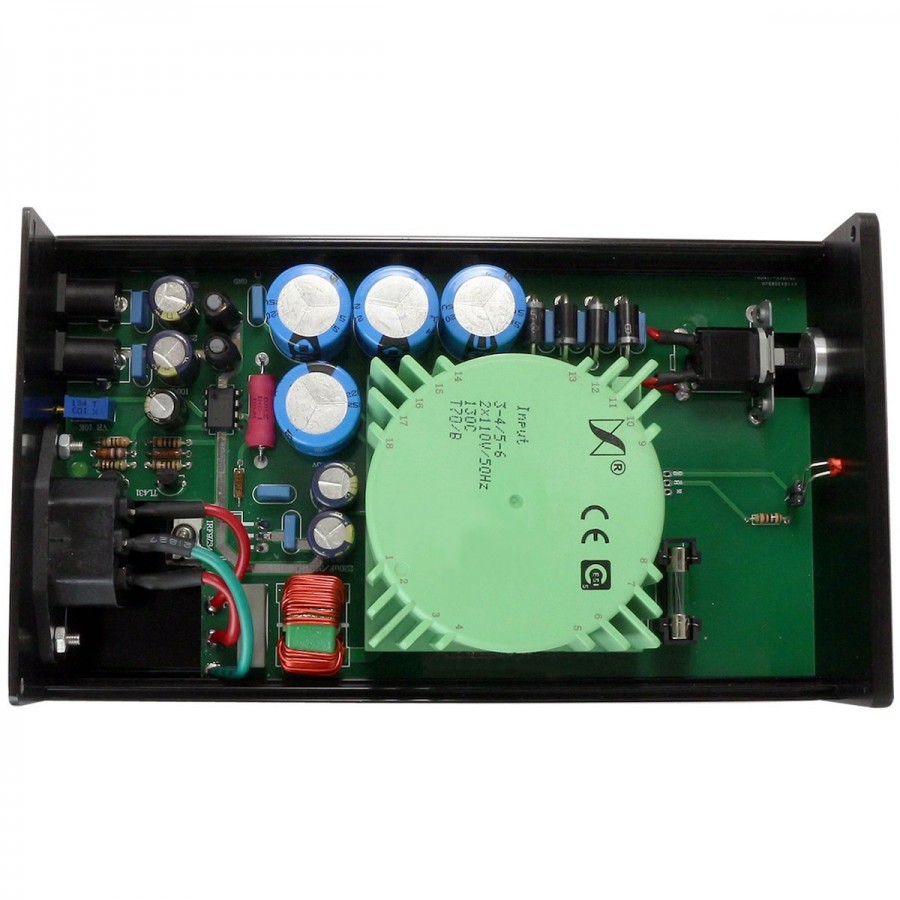

Here is a regulated and stable linear power supply for any high quality DIY audiophile project. All the necessary technical refinements are incorporated into this dedicated audio power supply.
EIt includes a Hexfet IRF controller of series 34Z driven by low-noise OP Analog-Device and not an integrated circuit. The incorporated EMI RFI filtering ensures a very low noise (ripple) of electrical pollution (- of 30mv).
Thecomponents of this power supply are of first quality with DALE resistors and 4 capacitors of filtering BC of 220μf each. The benefits of a linear quality feed are better readability of the acute medium and a much better cut out.
nsaidsi this regulated linear power solution developed by our team comes to compete with more expensive solutions.

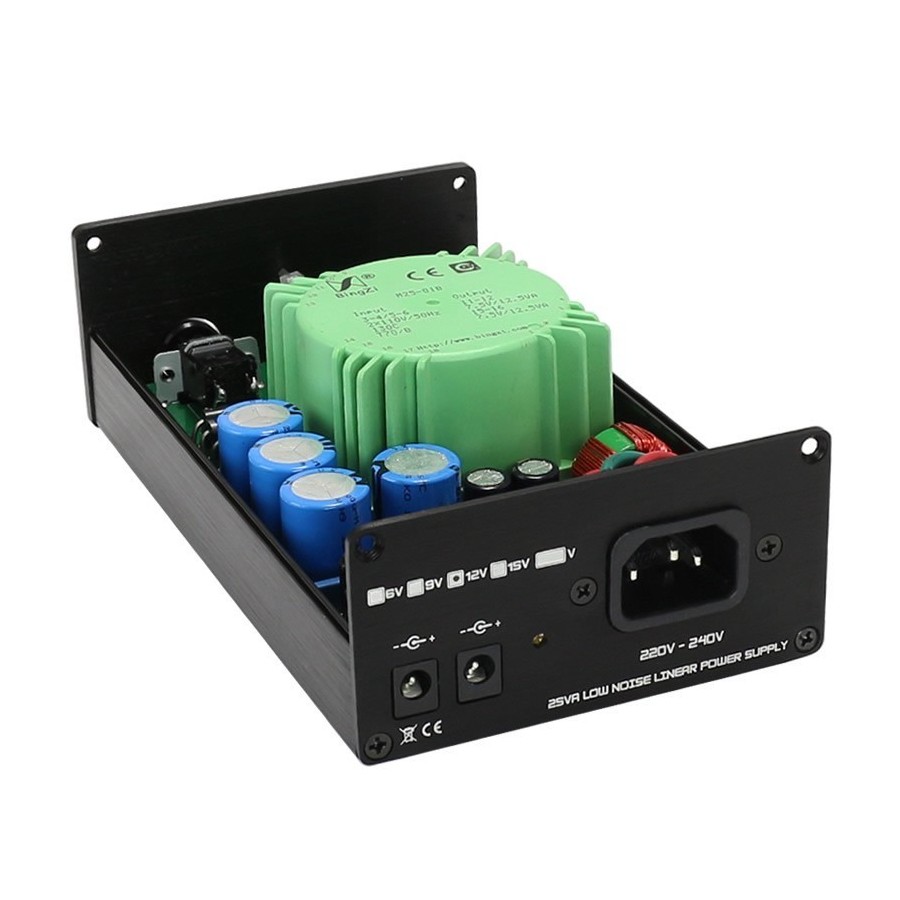

Equipped with a 100% Aluminum case, two DC 5.5 / 2.1mm output jacks, this power supply with an extremely stable 25VA transformer even under heavy load will allow you to make the best of audio connected.
As this power supply do not have over current protection, the load should not exceed it's capacity.
- Case: 100% Brushed and sanded aluminum
- Black Anodized
- Input Voltage: AC 220V
- Output Voltage / Current:
- 12V 1.25A MAX Continuous
- 12V 2.0A MAX (5min)
- Outputs: 2 outputs Jack DC 5.5 / 2.1mm
- IEC socket
- Shielded molded anti-vibration transformer 25VA
- AOP-controlled HEXFET IRF-type controller

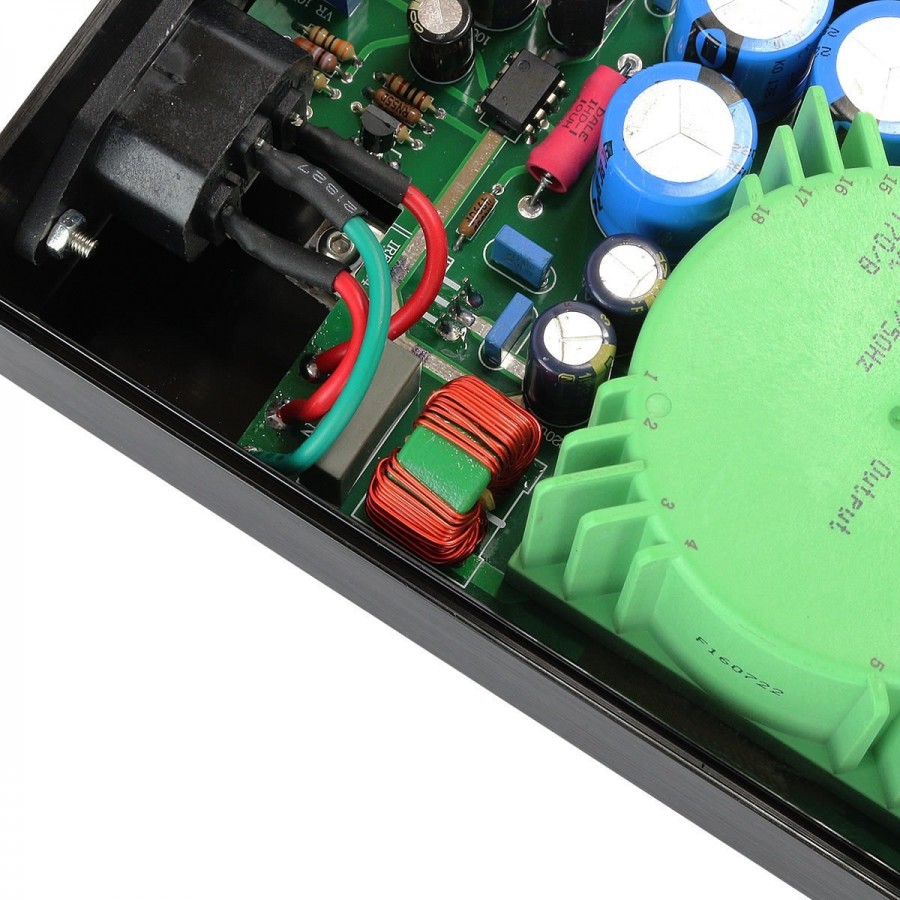

- EMI RFI filter with chokes and film capacitors
Dimensions and weight:
- 174 x 100 x 51 mm
- Weight: 0.850kg
- DC Jack / DC Jack 5.5 / 2.1 Cable not included
- Power cable not included
