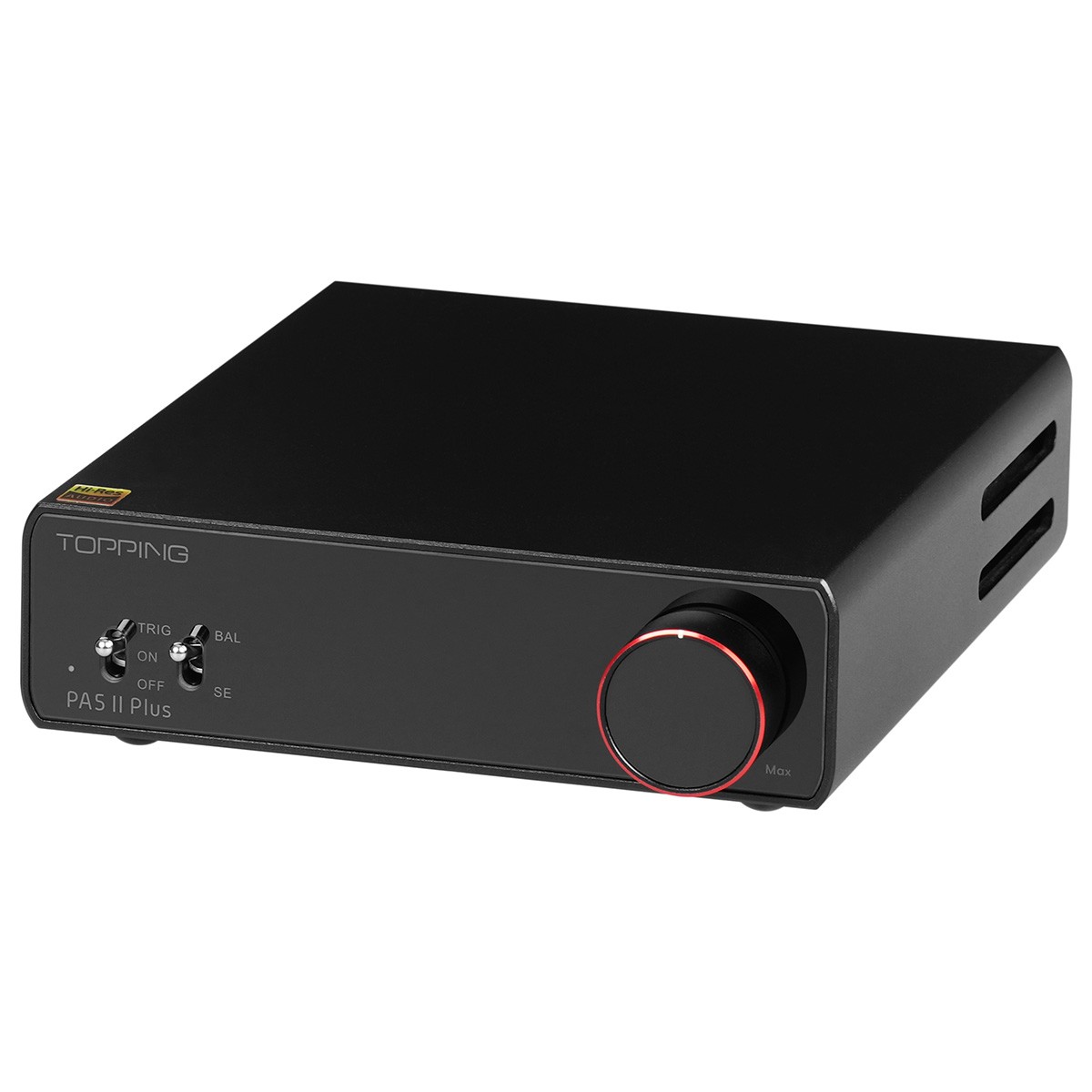

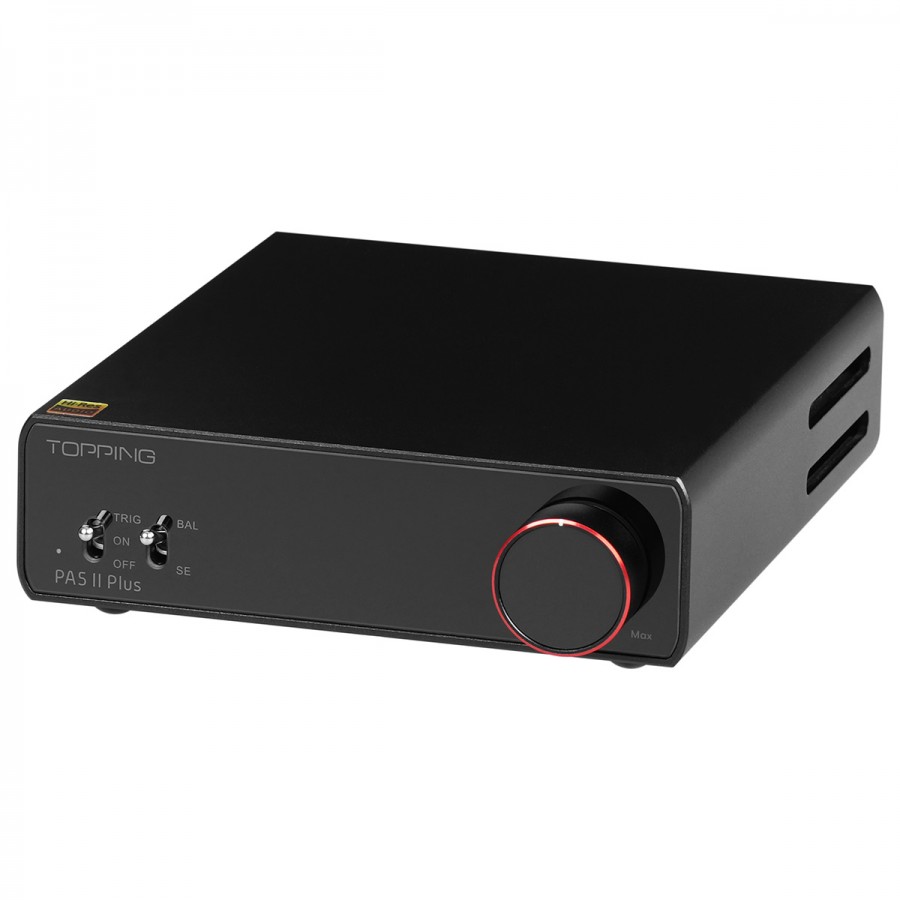

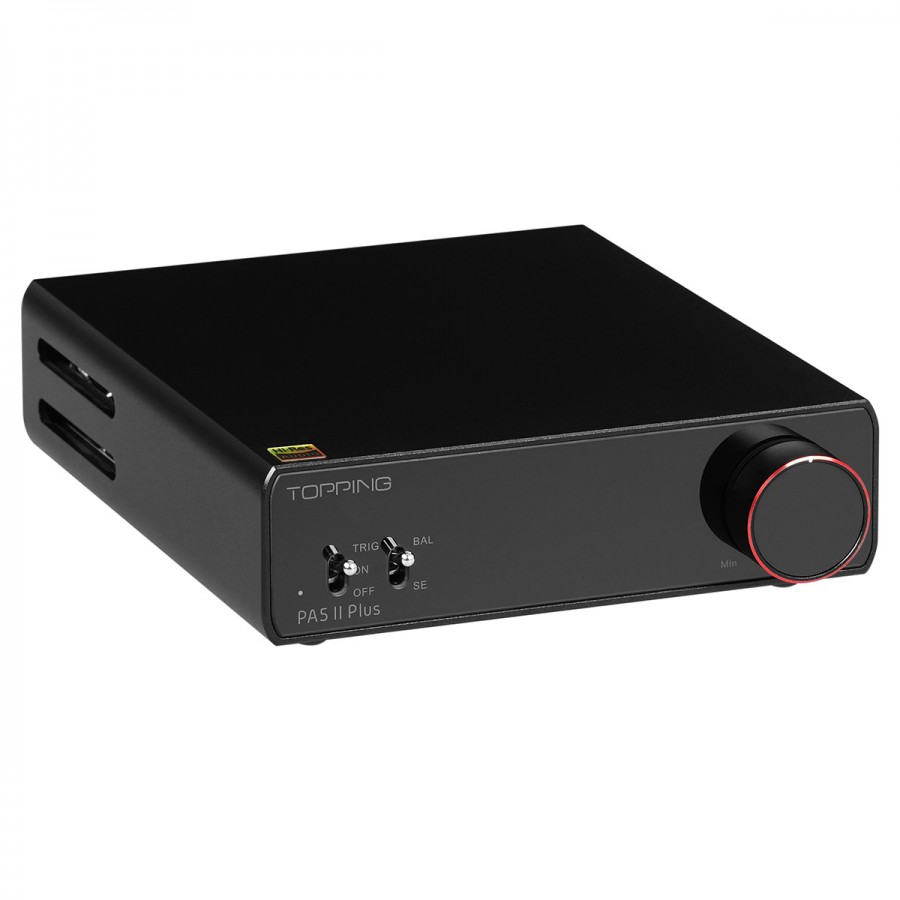

TOPPING PA5 II PLUS Class D Amplifier Balanced 2x125W 4 Ohm Black

TOPPING PA5 II PLUS Class D Amplifier Balanced 2x125W 4 Ohm Black
15%
Topping's PA5 II Plus amplifier is a compact and powerful model, adopting a totally balanced structure and an innovative Class D amplifier circuit, enabling it to develop a significant power of 2x125W into 4Ω with a low level of distortion. The excellent parameterisation carried out by the brand's engineers ensures clear, clean and deep sound reproduction, with no background noise. At 5W and 4Ω, THD+N is measured at less than 0.0004%.

No customer reviews yet, login to write a review.


Reduced price!
Reference : 18004
New product
Limited special offer

329,00 €tax incl.

-15%

279,65 €tax incl.

233,04 € tax excl.
Including 0,05 € for green tax

- +


Last items in stock !
Shipping date: 26-07-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Topping PA5 II PLUS

Class D Amplifier Balanced 2x125W 4 Ohm Black

Topping PA5 II Plus Class D Amplifier Balanced 2x125W 4 Ohm Black

Topping's PA5 II Plus amplifier is a compact and powerful model, adopting a totally balanced structure and an innovative Class D amplifier circuit, enabling it to develop a significant power of 2x125W into 4Ω with a low level of distortion. The excellent parameterisation carried out by the brand's engineers ensures clear, clean and deep sound reproduction, with no background noise. At 5W and 4Ω, THD+N is measured at less than 0.0004%.

The PA5 II Plus also incorporates an effective and comprehensive protection circuit, acting against overvoltage, undervoltage, short-circuit, overcurrent and overheating.

On the input side, there is a choice of single-ended stereo RCA or two 6.35mm TRS jacks for balanced input. Output is via conventional speaker terminals that accept banana plugs. There's also a 12V trigger on the rear of the unit, enabling the PA5 II Plus to be connected to other devices to take advantage of the automatic on/off function.

To use the 12V trigger function, it must be activated using the switch on the front of the device.

Topping PA5 II Plus Class D Amplifier Balanced 2x125W 4 Ohm Black
Topping PA5 II Plus Class D Amplifier Balanced 2x125W 4 Ohm Black

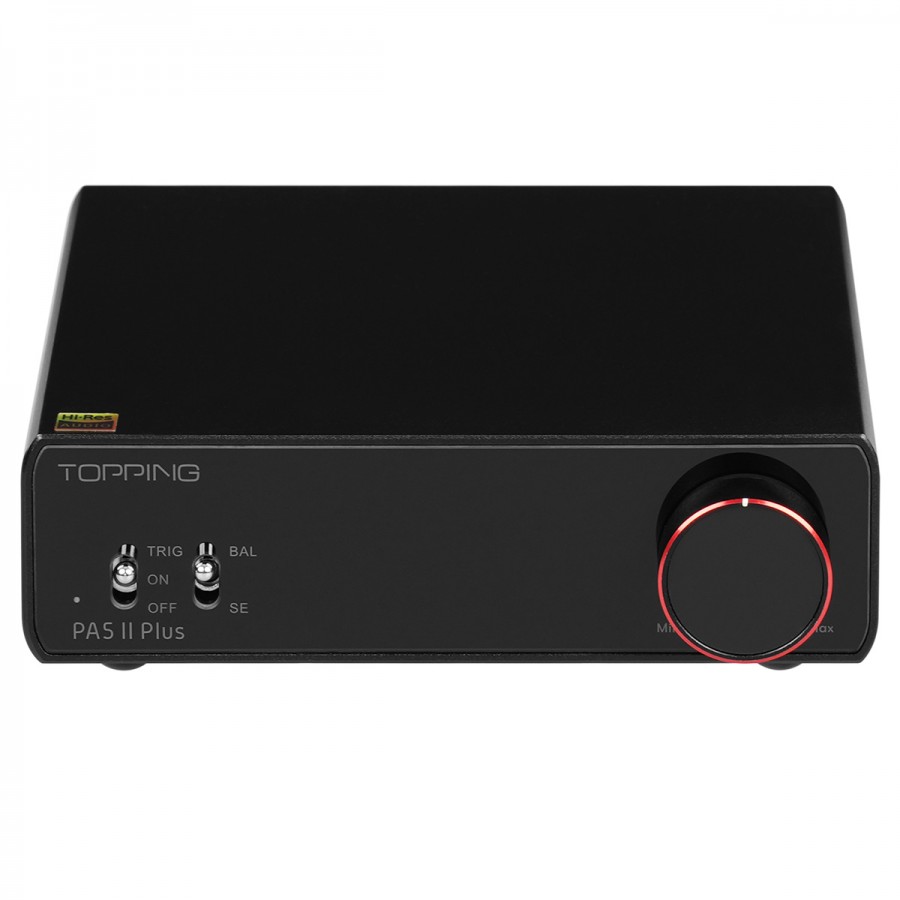

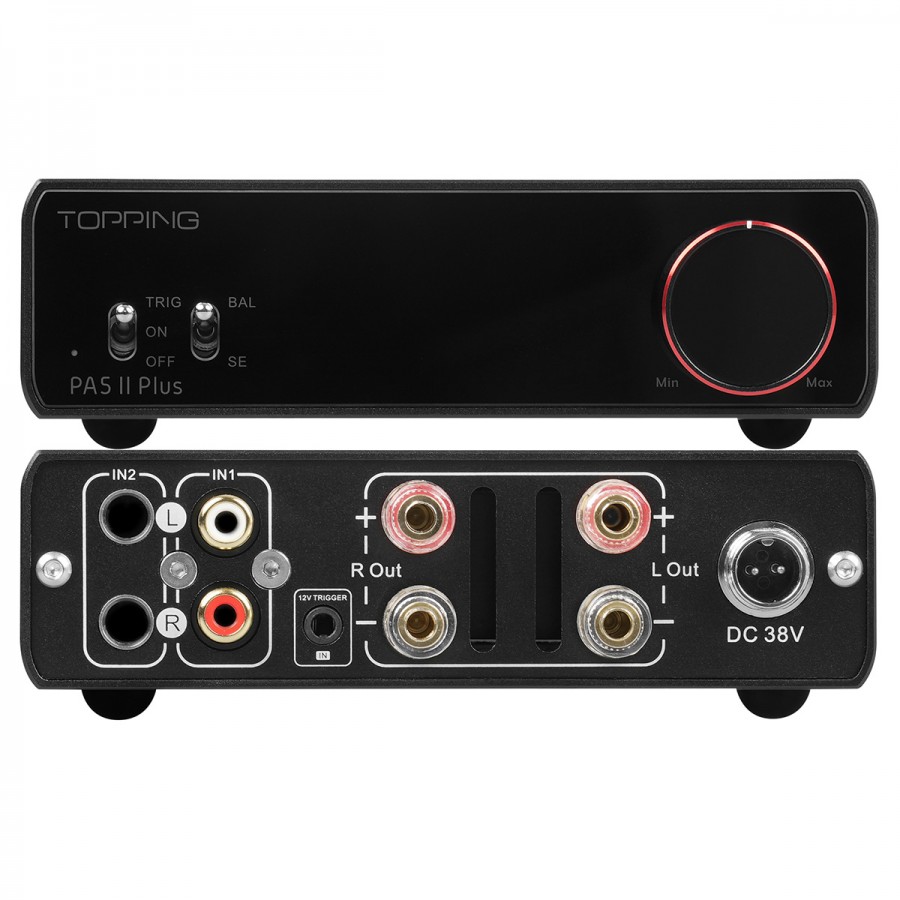

1ON-OFF / Trigger switch
2ON/OFF LED indicator
3Input selector
4Volume button
5Balanced Jack 6.35mm TRS left channel input
6Single-ended RCA left channel input
7Speaker R+ output
8Speaker HP L+ output
9Power input
10Balanced Jack 6.35mm TRS right channel input
11Single-ended RCA right channel input
12Trigger 12V Jack 3.5mm input
13Speaker R- output
14Speaker L- output

Technical characteristics

Specifications
Product typeAmplifier
Amplification typeClass D
InputsSingle-ended stereo RCA
Balanced Jack 6.35mm TRS
OutputSpeaker terminal
Trigger12V
Balanced input measurements
THD+N (@ 1kHz, A-Weighted)< 0.0004% @ 4Ω 5W
< 0.0003% @ 8Ω 5W
THD+N (@ No-Weighted, 20kBW)< 0.0015% @ 4Ω 5W
< 0.0006% @ 8Ω 5W
SNR124dB (@ max out, 1kHz, A-Weighted)
Dynamic range124dB (@ 1kHz, A-Weighted)
Frequency response20Hz - 40kHz (±0.3dB)
Output level65Vpp @ 4Ω
68Vpp @ 8Ω
Noise< 15µVrms (@ A-Weighted)
Crosstalk-106dB (@ 1kHz)
Input sensitivity2.6Vrms
Gain19.2dB
Channel balance0.1dB
Output power2x140W @ 4Ω, THD+N < 10%
2x125W @ 4Ω THD+N < 1%
2x85W @ 8Ω, THD+N < 10%
2x65W @ 8Ω, THD+N <1%
Single-ended input measurements
THD+N (@ 1kHz, A-Weighted)< 0.0005% @ 4Ω 5W
< 0.0004% @ 8Ω 5W
THD+N (@ No-Weighted, 20kBW)< 0.0015% @ 4Ω 5W
< 0.0006% @ 8Ω 5W
SNR121dB (@ max out, 1kHz, A-Weighted)
Dynamic range121dB (@ 1kHz, A-Weighted)
Frequency response20Hz - 40kHz (±0.3dB)
Output level65Vpp @ 4Ω
68Vpp @ 8Ω
Noise< 15µVrms (@ A-Weighted)
Crosstalk-90dB (@ 1kHz)
Input sensitivity1.3Vrms
Gain25dB
Channel balance0.1dB
Output power2x140W @ 4Ω, THD+N < 10%
2x125W @ 4Ω THD+N < 1%
2x85W @ 8Ω, THD+N < 10%
2x65W @ 8Ω, THD+N <1%
General
Supply voltage38VDC 3A
Standby consumption< 0.5W
Dimensions (W*D*H)129*166*41mm
Weight680g
ColorBlack
Package1* Topping PA5 II Plus
1* Power supply

Data sheet
InputJack 6.35mm
OutputSpeaker terminal
ColorBlack
Channel2 (Stereo)
ClassClass D / T
Amplifier chipN/A
Power (W)125.0
Remote ControlNo
