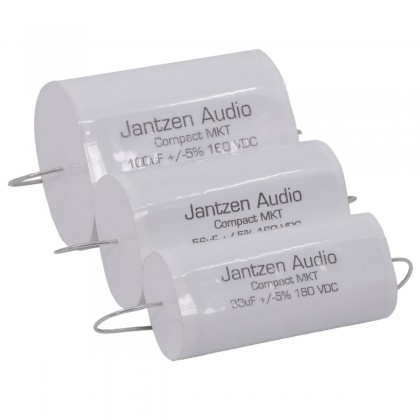

Jantzen Audio's Compact MKT capacitors are made from the highest quality metallized polyester film available. Jantzen Audio has succeeded in making these capacitors more compact and giving them better sonic properties than standard film capacitors. With a nominal voltage of 160V DC, these capacitors are also more versatile than electrolytic capacitors, whose nominal voltage is usually only 63V DC or 100V DC. Thanks to their rounded square shape (flat top and bottom surface), they can be easily stacked when it's necessary to couple several capacitors in parallel to achieve a higher capacitance value for a certain crossover position. Stackable, they also take up much less space than equivalent round values.
Technical characteristics
Specifications | |
---|---|
Capacitor type | MKT axial compact capacitor |
Voltage rating | 160VDC 100VAC |
Capacity tolerance | ±5% |
Capacity | 3.3µF |
Capacitor foil | Metallized polyester foil |
Dielectric insulation | Polyester foil |
Terminal leads | Tinned 4N copper wire |
Dielectric absorption factor | < 0.5% @ 20°C |
Dielectric thickness | 5µm |
ESR | Extremely low |
Dissipation factor | Extremely low |
Self-inductance | < 15nH |
Temperature range | -55°C / +125°C |
Metal layer thickness | 0.3µm |
Metal layer conductivity | 1.2Ω/cm² |
Dimensions (L x P x H) | 25 x 15 x 10mm |
Color | White |
Tolerance (%) | 5 |
Capacitor capacitance (µF) | 3.3 |
Rated voltage (V) | 100.0 |
Rated voltage (V) | 160.0 |
Capacitor type | Film capacitor |
Capacitor format | Axial |
