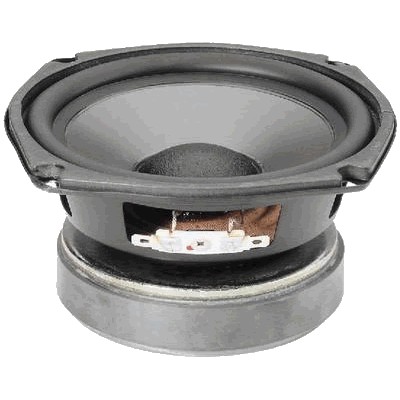

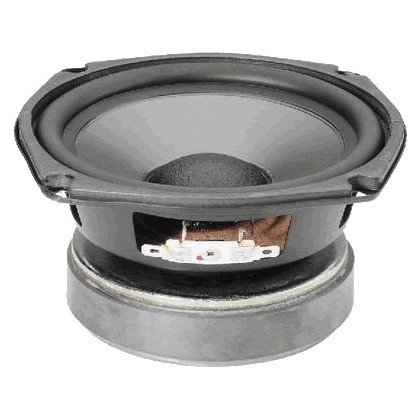

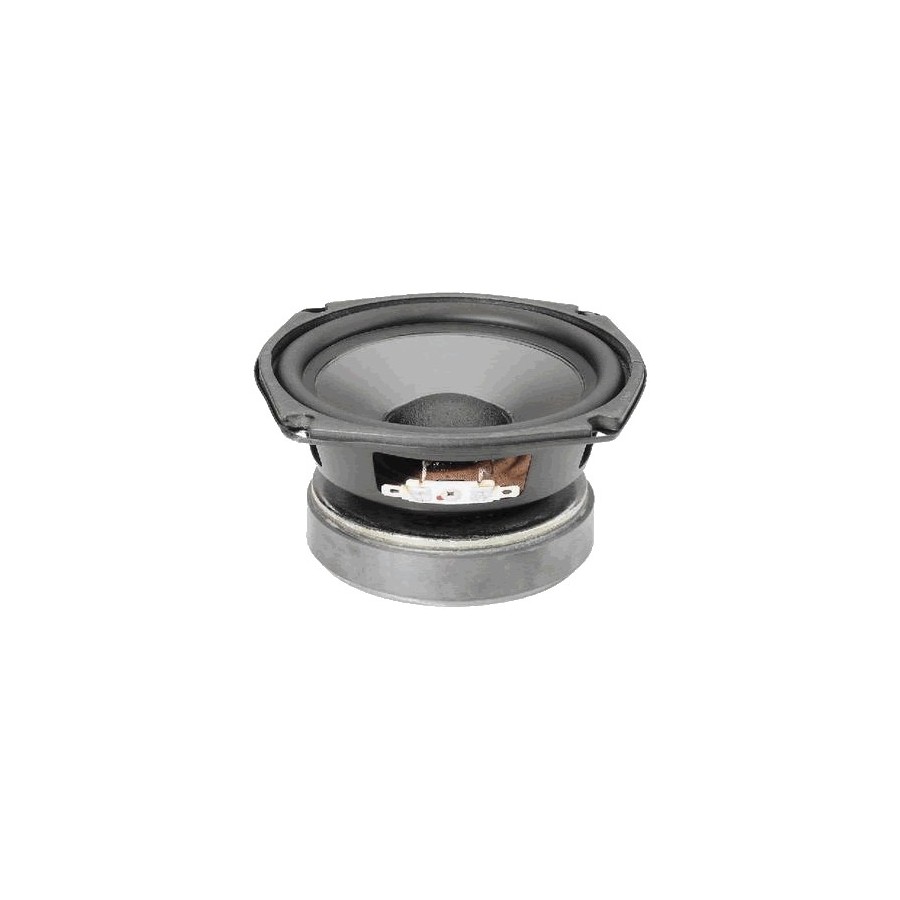

MONACOR SPH-135TC Speaker Driver Midbass 2x30W 2x8 Ohm Ø13cm

Monacor SPH-135TC
No customer reviews yet, login to write a review.

By buying this product you get 4 loyalty points


Reference : 832
New product

45,70 €tax incl.

38,08 € tax excl.
Including 0,30 € for green tax
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info
Bass-mid-speaker, 2 x 60 W MAX , 2 x 8 Ω

Double coil, polypropylene membrane, good attenuation of mediums, for miniature subwoofer or for loudspeaker of library, 2 ways.
Speakers Speakers
Impedance (Z)2 x 8 Ω
Resonance frequency (fs)40 Hz
Maximum bandwidthf3-6000 Hz
Freq. cut. (fmax).4000 Hz
Maximum power2 x 60 W MAX
Rated power (P)2 x 30 W RMS
Pressure sound. (1W / 1m)85 dB
Compliance susp. (Cms)1.69 mm / N
Moving mass (Mms)8.9 g
Mechanical resistance (Rms)0.7 kg / s
Smech. (Qms)3.44
Electrical overvoltage (Qes)0.48
Fact. total surge (Qts)0.42
Volume equ. (VAS)16 l
DC resistance. (Re)2 x 7.5 Ω / 3.8 Ω
Inductance coil. (The)2 x0.6 mH / 0.6 mH
Coil diameter20 mm
Coil holderAlu
Height winding10.5 mm
Air gap height6 mm
Linear Excursion (X MAX )± 2.25 mm
Transmitting surface (Sd)95 cm 2
Flight. air displaced (Vd)21.4 cm 3
Force factor (BxL)4.2 Tm
Ref. (No)0.2%
Magnet diameter100 mm
Magnet Weight13.3 oz.
cuttingØ 123 mm
Mounting depth 70 mm
Dimensions138 x 138 mm
Weight1.2 kg
Recommended Min Volume
<img src = "http://www.monacor.com/global_img/blank.gif" alt = "" width = "10" height = "1" />
closed10 l
bass reflex20 l



Data sheet
Speaker Power (W RMS)30
Speaker TypeMidbass
Impedance (Ω)8
Loudspeaker diameter (mm)130.0
