FIIO TINY B DAC Portable Headphone Amplifier Black
By buying this product you get 2 loyalty points
![[GRADE B] AUDIOPHONICS HPA-S500ET Power Amplifier Class D Stereo Purifi 1ET7040SA 2x500W 4 Ohm](https://www.audiophonics.fr/68112-thumb_default/audiophonics-hpa-s500et-stockb.jpg)
![[GRADE S] ASCILAB C6B Bookshelf Speakers 250W 4 Ohm 85dB Gray + White Waveguide (Pair)](https://www.audiophonics.fr/71027-thumb_default/ascilab-c6b-gray-sbs.jpg)

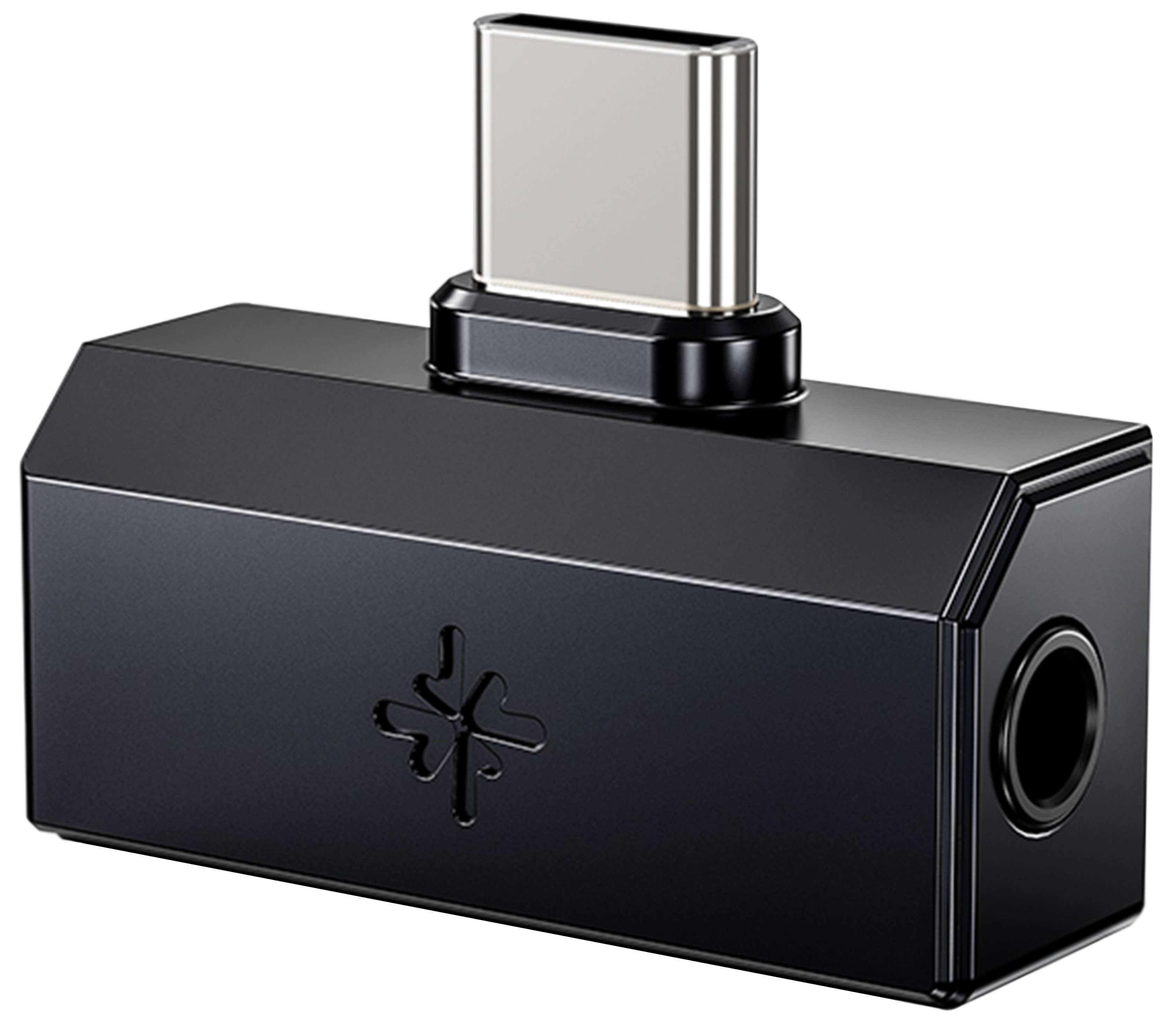

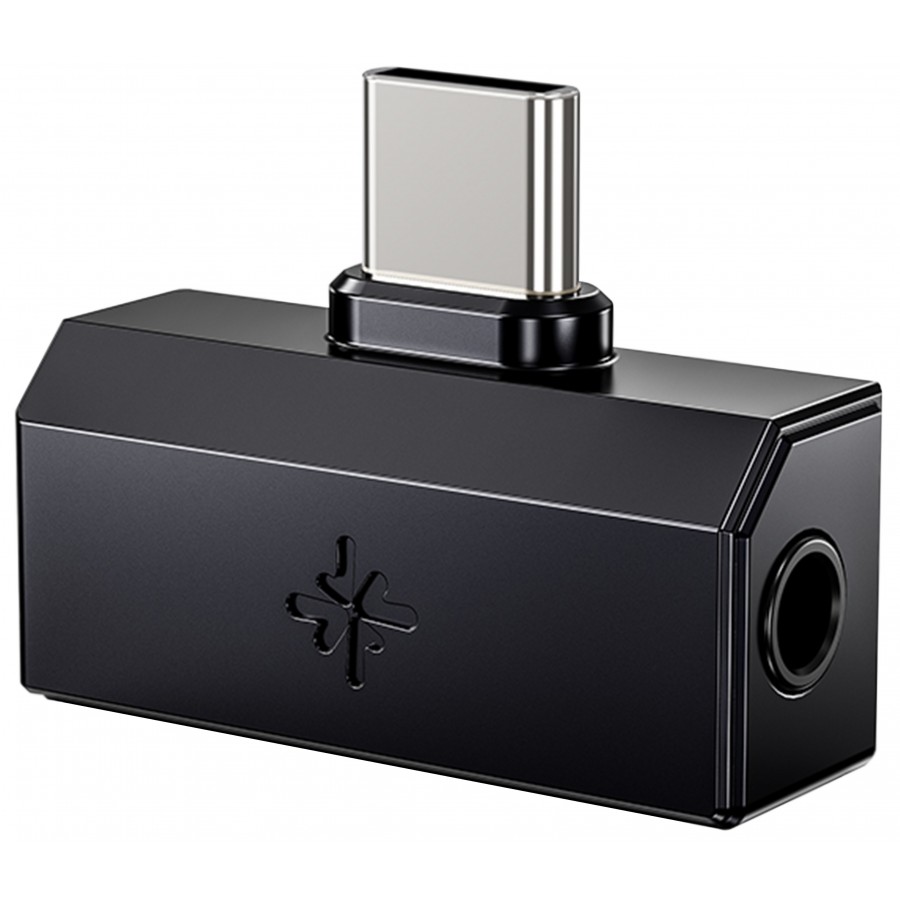

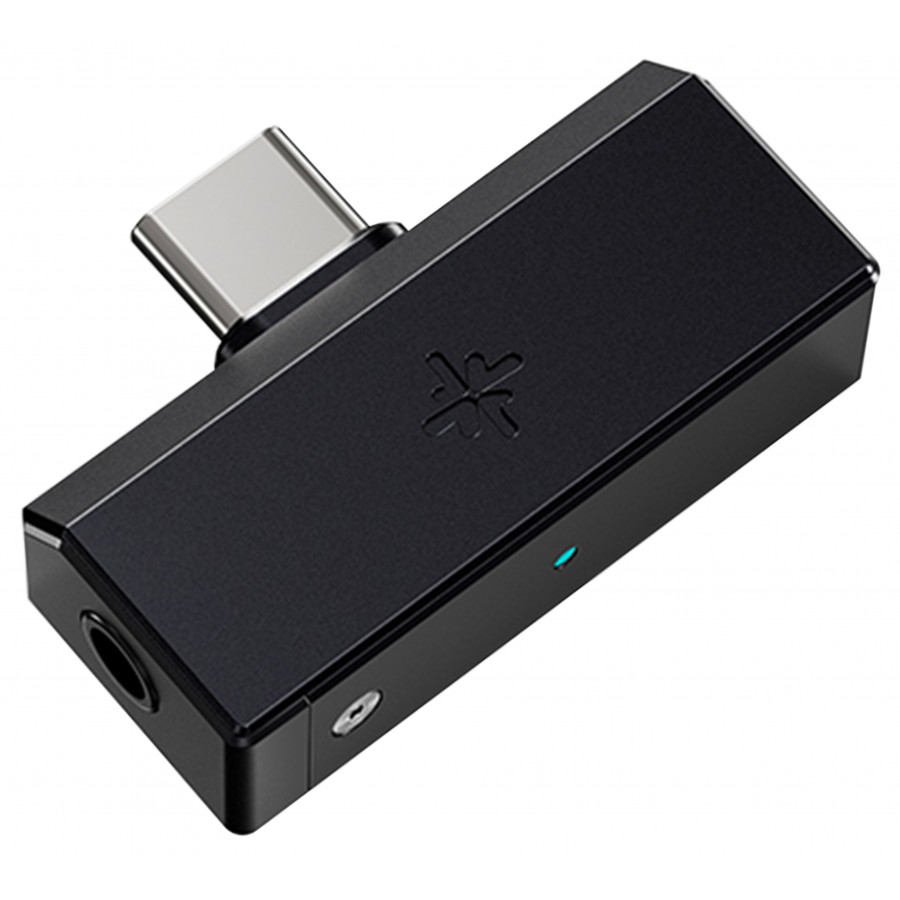

FiiO TINY B DAC Portable Headphone Amplifier 3.5mm / 4.4mm Jack 32bit 384kHz DSD256 Black
The FiiO Tiny B is a small, portable, and convenient USB DAC and headphone amplifier USB portable that allows you to listen to music simultaneously on two pairs of headphones. Its DAC chip SpaceTouch SPV4040 supports signals up to PCM 32bit 384kHz and DSD256.
The Tiny B has a USB-C input and either an single-ended 3.5mm jack or a balanced 4.4mm jack for audio output. In addition, the Tiny B is compatible with the FiiO Control app, which includes a 10-band parametric equalizer.
The headphone amplifier stage of the FiiO Tiny B delivers 68mW of power at 16Ω and 34mW at 32Ω on its single-ended 3.5mm jack output, while the balanced 4.4mm jack output delivers 45mW at 16Ω and 34mW at 32Ω. The Tiny B is equipped with an LED sampling rate indicator and supports UAC2.0 and 1.0 protocols, making it easy to use with a wide variety of devices.
Conveniently, the TINY B also supports headphone/earphone cables with remote controls, allowing for simplified control of your media, volume, or calls. The whole unit is encased in an elegant metal shell that is both sturdy and lightweight.
FiiO Tiny B: Additional features with the FiiO Control app
The FiiO Control app, available for Android and iOS devices or via a web browser on a PC, provides access to additional customization features. These include access to a parametric equalizer (PEQ), the ability to change the UAC protocol version, and precise volume adjustments.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Portable DAC and headphone amplifier |
| Input | 1x USB-C |
| Output | 1x Single-ended Jack 3.5mm 1x Balanced Jack 4.4mm |
| Supported sampling rates | PMC up to 32bit 384kHz DSD up to DSD256 |
| Control app | FiiO Control |
| Compatibility | Android iOS Windows Mac |
| UAC support | UAC 1.0 UAC 2.0 |
| Single-ended Jack 3.5mm headphone output performances | |
|---|---|
| Output power | ≥ 68mW @ 16Ω, THD+N < 1% ≥ 34mW @ 32Ω, THD+N < 1% |
| THD+N | 0.0034% |
| Output impedance | < 0.5Ω |
| SNR | ≥ 105dB (A-wt) |
| Balanced Jack 4.4mm headphone output performances | |
|---|---|
| Output power | ≥ 45mW @ 16Ω, THD+N < 1% ≥ 34mW @ 32Ω, THD+N < 1% |
| THD+N | 0.01% |
| Output impedance | < 0.2Ω |
| SNR | ≥ 100dB (A-wt) |
| General | |
|---|---|
| Dimensions | 35 x 24 x 10.8mm |
| Weight | ~ 10g |
| Color | Noir |
| Package | 1x FiiO Tiny B |
| Input | USB |
| Output | Jack 3.5mm |
| Output | Jack 4.4mm |
| Max sampling rate | DSD256 |
| Max sampling rate | 384kHz |
| Color | Black |
| Class | N/A |
| Networking | No |
| Remote Control | No |
