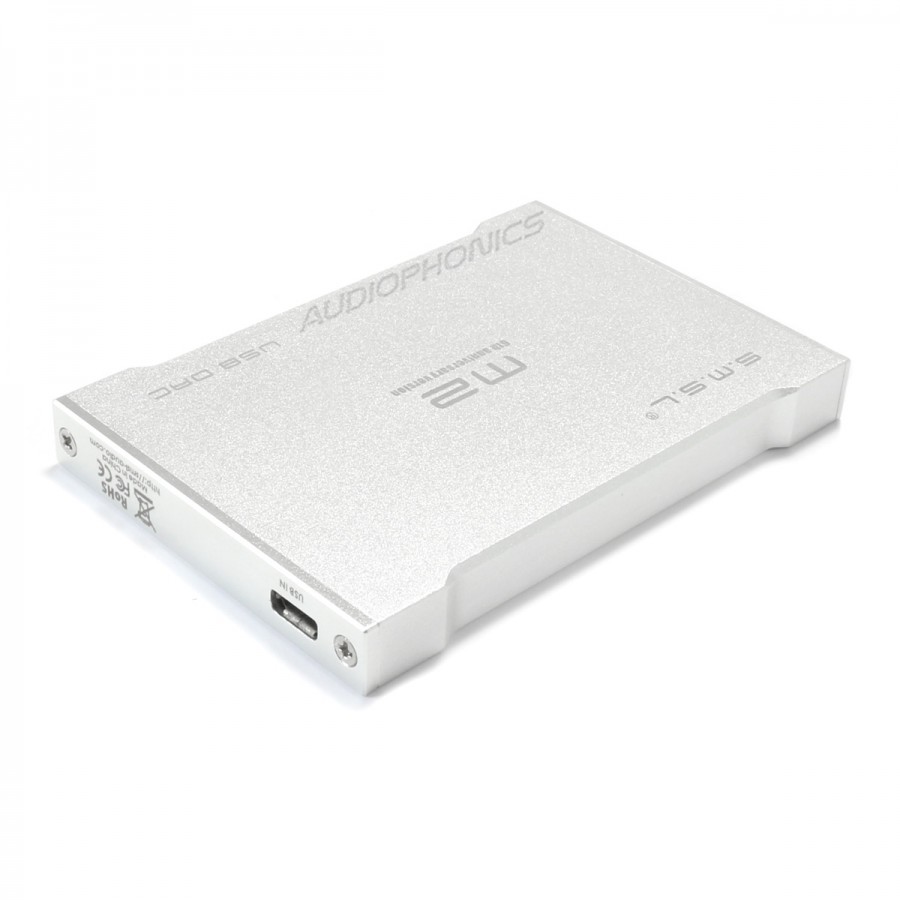

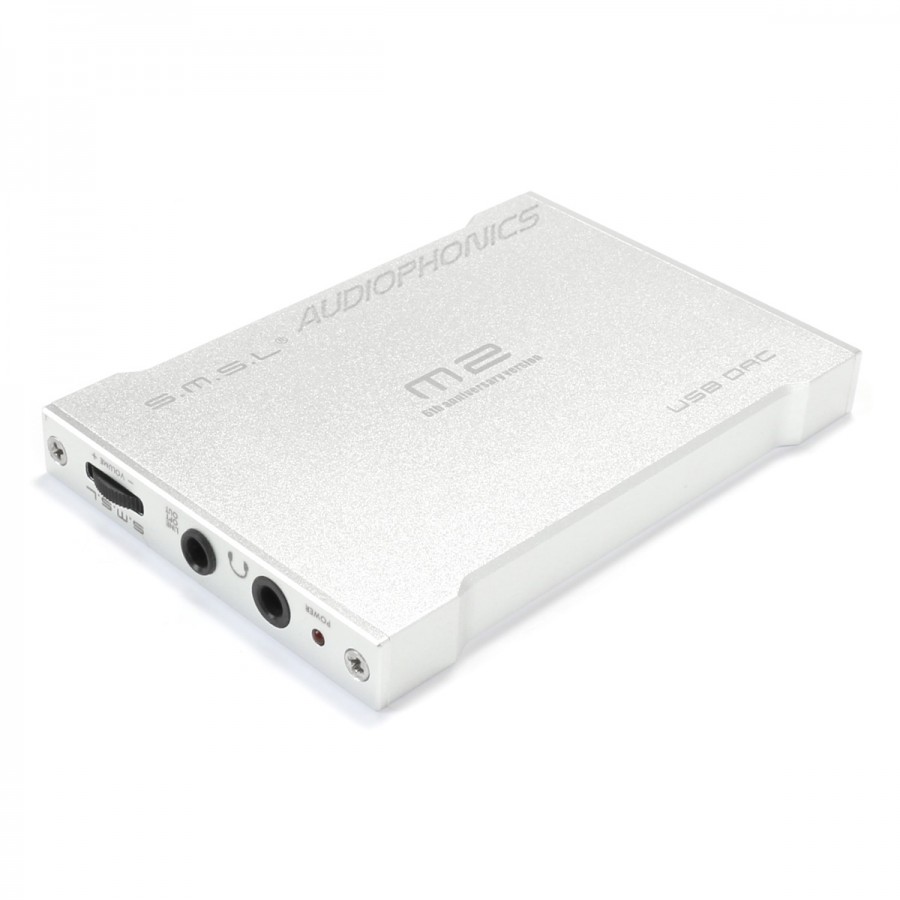

SMSL M2 USB DAC ES9023 24bit 96kHz Headphone Amplifier 130mW 32 Ohm Silver

SMSL M2 USB DAC ES9023 24bit 96kHz Headphone Amplifier 130mW 32 Ohm Silver

No customer reviews yet, login to write a review.

By buying this product you get 4 loyalty points

Reference : 13570
New product

48,25 €tax excl.

Including 0,04 € for green tax
This product is no longer in stock
Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.

More info

This nomadic helmet amplifier has nothing to envy the sedentary high-end of the market.
It is coupled to an ES9023 converter and an Asynchronous USB interface SA9027 to get the most out of your high fidelity audio sources.
It is equipped with an integrated amplifier MAX9722 for amplification.

This small concentrate of effective technology is above all pleasant and powerful.

Characteristics :

  • DAC ES9023
  • Interface USB 2.0 Asynchronous SA9027
  • Supports files up to 24bit 96kHz (including 88.2kHz)
  • Noise Ratio: 105 dB
  • Dynamic range: 110dB
  • THD + D: <0.003%
  • Frequency response: 10Hz - 48kHz
  • Supported impedances: 8 - 600 Ohms
  • Output power: 130mW at 32 Ohms
  • Output Voltage: 2Vrms
  • Power Consumption: <0.5W
  • Volume control
  • Mini USB port
  • Line Output / Optical Jack 3.5mm
  • Headphones Jack 3.5mm
  • Chassis Aluminum machined CNC anodized Black
  • Dimensions: 87x58.5x9.6mm
  • Weight: 55g
  • Supplied with: 1 mini USB cable A to USB-A
  • Compatible with ASIO, WASAPI
  • Color : Black

Data sheet
InputMini USB
OutputJack 3.5mm
DAC ChipES9023
Max sampling rate96kHz
Channel2 channels (Stereo)
