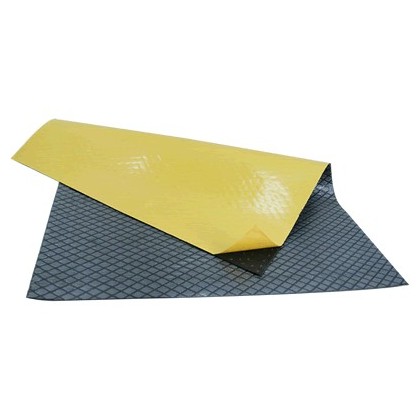

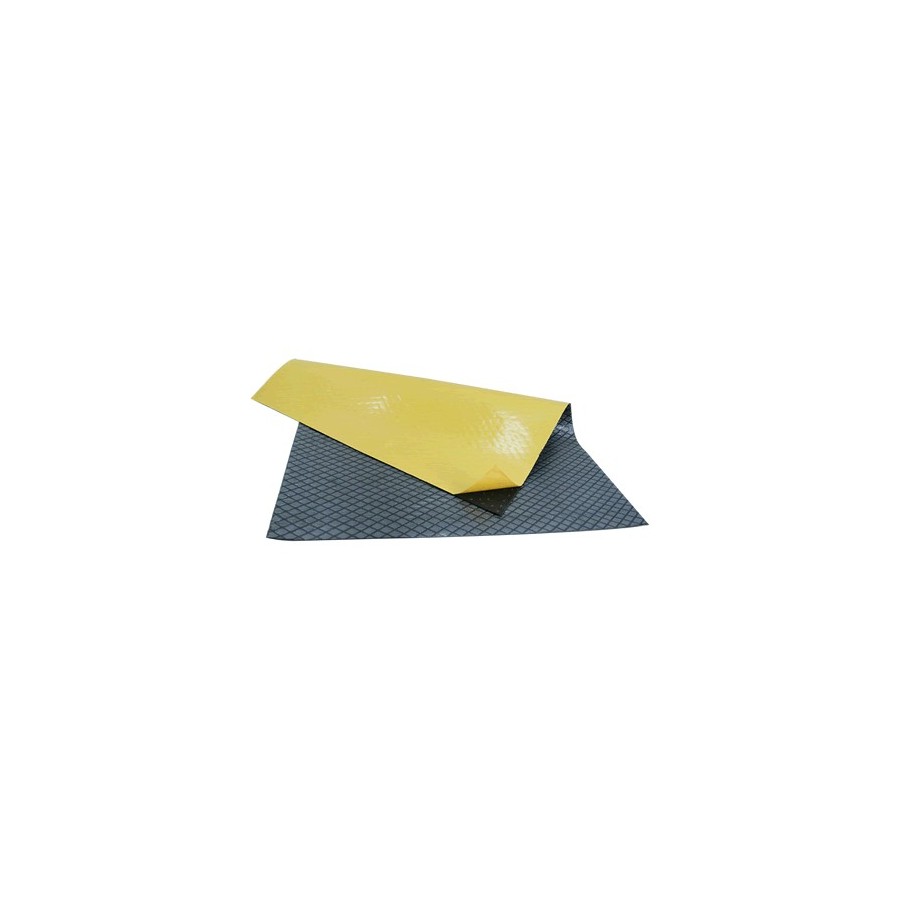

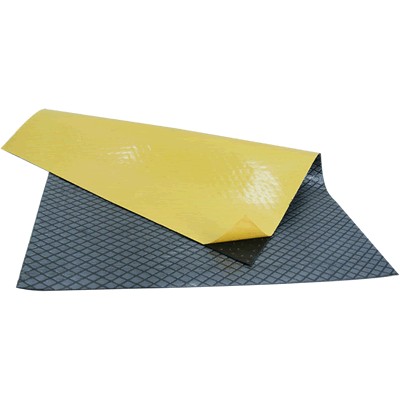

[GRADE B] PINTA AMORTSONBi10A PHD Self-Adhesive Bitumen Backing 400x500mm

The Amortson® Bi are particularly suitable for damping sheet, plate, metallic objects or plastics excited by solid or air. They are also used to reinforce wall insulation by the combined effects of mass supply and damping on coincidence phenomena.

Amortson® Bi should be applied at a temperature above 18 ° C. It is even recommended to preheat it to 30 ° C. After application, Amortson® Bi should be strongly reinforced (2 Kg / dm²). The substrates to be treated must be free of oil, grease, moisture and dust.

Weight per square meter:
Bi 3A PHD: 3 kg / m² -> 0.55kg / plate of 400x500 (thickness 1.6mm)
Bi 5A PHD: 5 kg / m² -> 1kg / plate of 400x500 (thickness 2.7mm)
Bi 10A PHD: 10 kg / m² -> 2.4kg / plate of 400x500 (thickness 5.0mm)

Datasheet as PDF
