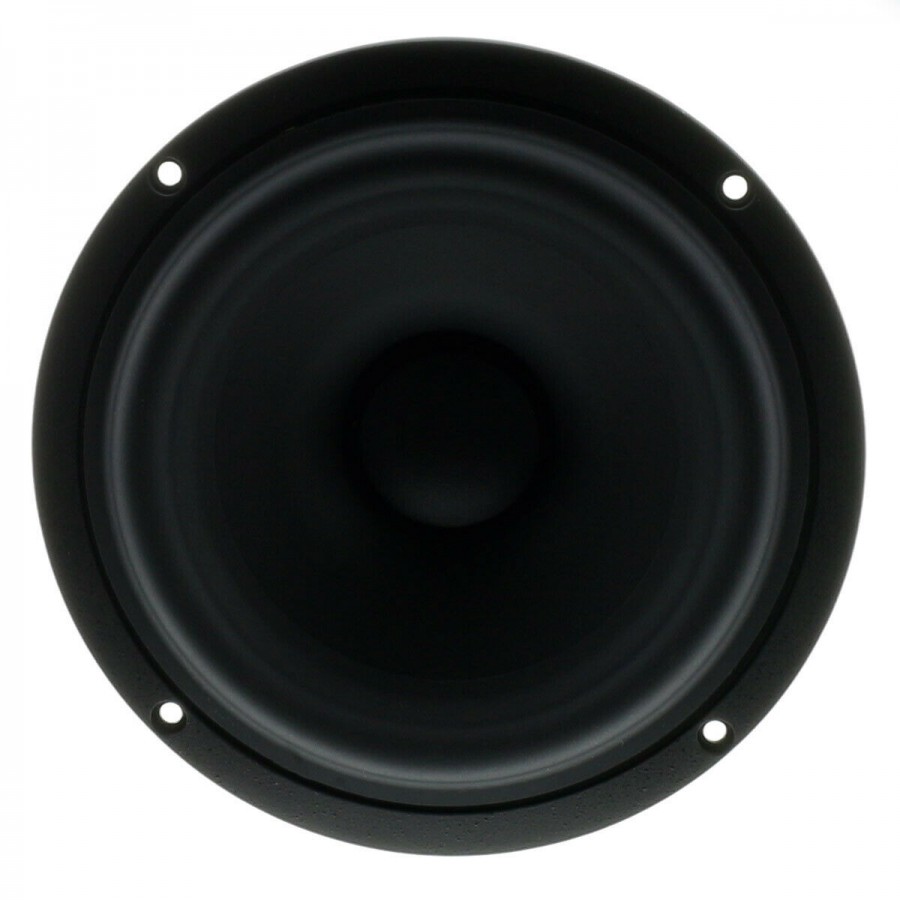

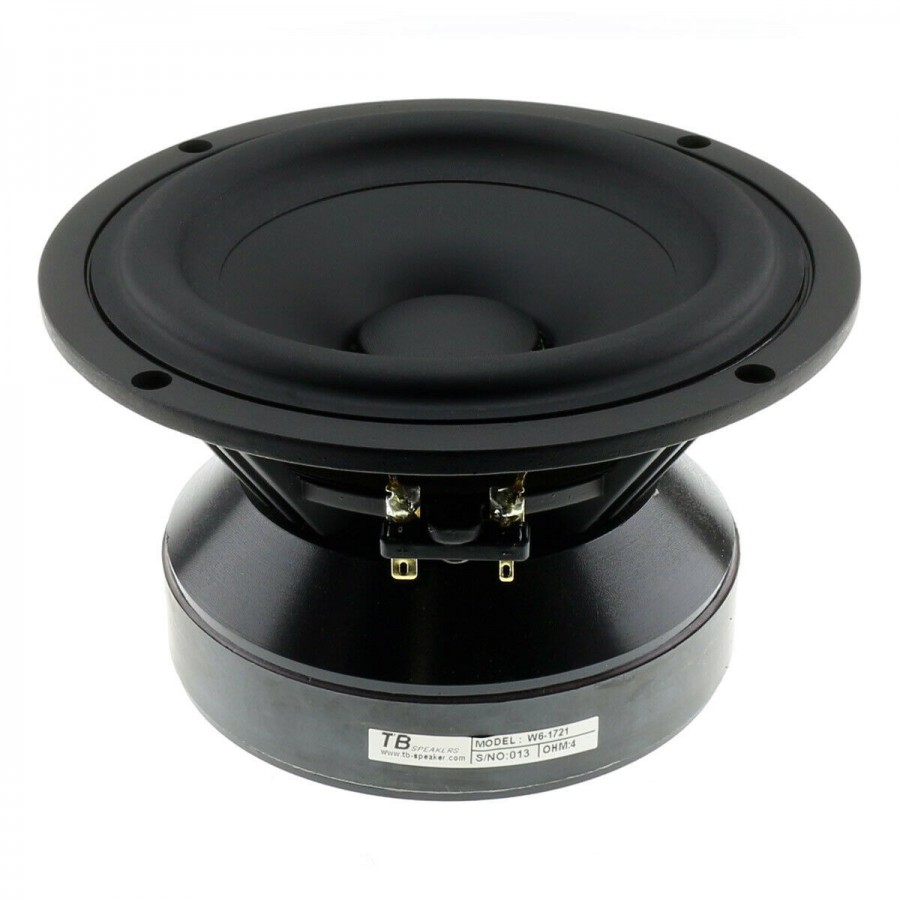

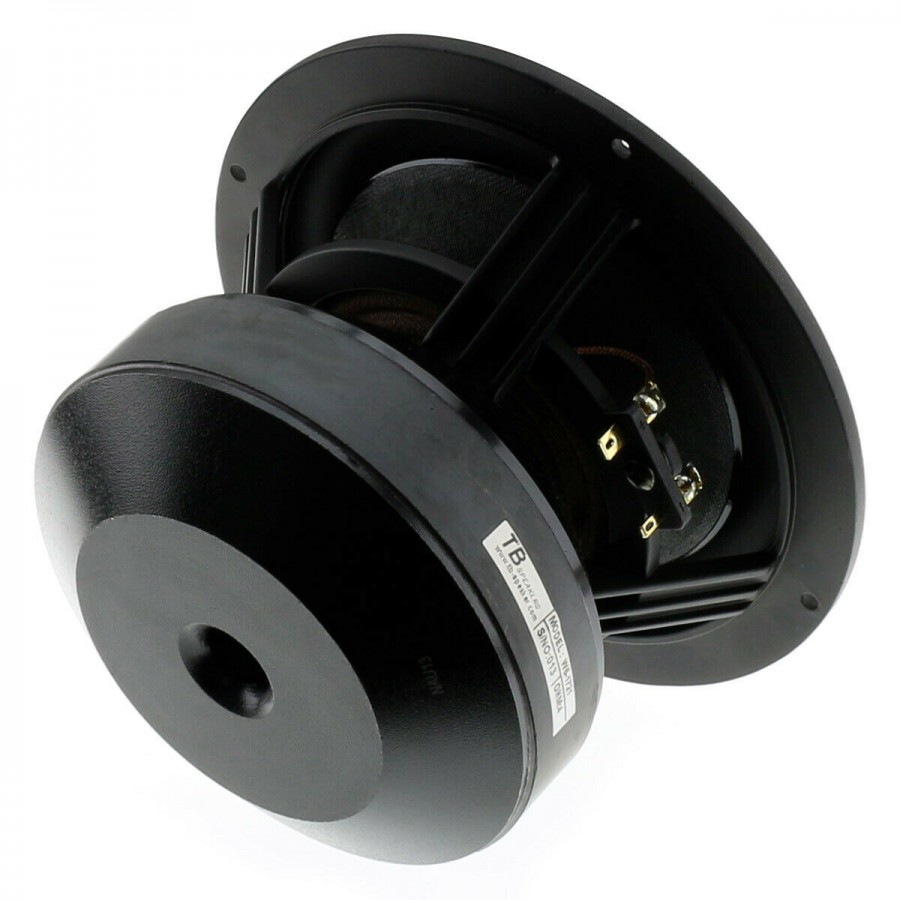

[GRADE S] TANG BAND W6-1721 Speaker Driver Midbass 50W 4 Ohm 88dB Ø16.5cm
The Tang Band W6-1721 low midrange driver is equipped with a 3.8cm voice coil, moved by a massive 1.4kg ferrite magnet. Its design allows it to achieve a very low level of second and third order harmonic distortion. This impressive motor is coupled to a paper diaphragm with a rubber surround, all supported by a cast aluminum frame.
By buying this product you get 11 loyalty points
Refurbished product - Grade S
New product, never used.
Tang Band W6-1721
Speaker Driver Midbass 50W 4Ω 88dB Ø16.5cm
The Tang Band W6-1721 low midrange driver is equipped with a 3.8cm voice coil, moved by a massive 1.4kg ferrite magnet. Its design allows it to achieve a very low level of second and third order harmonic distortion. This impressive motor is coupled to a paper diaphragm with a rubber surround, all supported by a cast aluminum frame.
Technical characteristics
| Specifications | |
|---|---|
| Speaker driver type | Midbass |
| Nominal diameter | Ø16.5cm (6.5") |
| Power handling | RMS : 50W Max : 100W |
| Impedance | 4Ω |
| Frequency response | 40Hz - 5000Hz |
| Sensitivity | 88dB @ 2.83V/1m |
| Voice coil diameter | Ø3.8cm |
| Thiele-Small parameters | |
|---|---|
| Resonant frequency (Fs) | 40Hz |
| DC Resistance (Re) | 3.4Ω |
| Voice coil inductance (Le) | 0.084mH |
| Mechanical quality factor (Qms) | 3.58 |
| Electromagnetic quality factor (Qes) | 0.49 |
| Total quality factor (Qts) | 0.43 |
| Compliance equivalent volume (Vas) | 1.04 ft.³ |
| Mechanical compliance of suspension (Cms) | 1.058mm/N |
| Force factor (BL) | 5.12Tm |
| Max linear excursion (Xmax) | 8mm |
| Surface area of cone (Sd) | 139.9cm² |
| Materials | |
|---|---|
| Cone | Paper |
| Surround | Rubber |
| Frame | Cast aluminum |
| Magnet | Ferrite |
| Informations de montage | |
|---|---|
| Overall outside diameter | Ø17.6cm (6.94") |
| Cutout diameter | Ø14.7cm (5.8") |
| Depth | 10.9cm (4.3") |
| Number of mounting holes | 4 |
| Optimum cabinet size (Measured with Bass Box 6 Pro) | |
|---|---|
| Sealed volume | 0.33ft.³ |
| Sealed F3 | 79Hz |
| Vented volume | 1ft.³ |
| Vented F3 | 42Hz |
