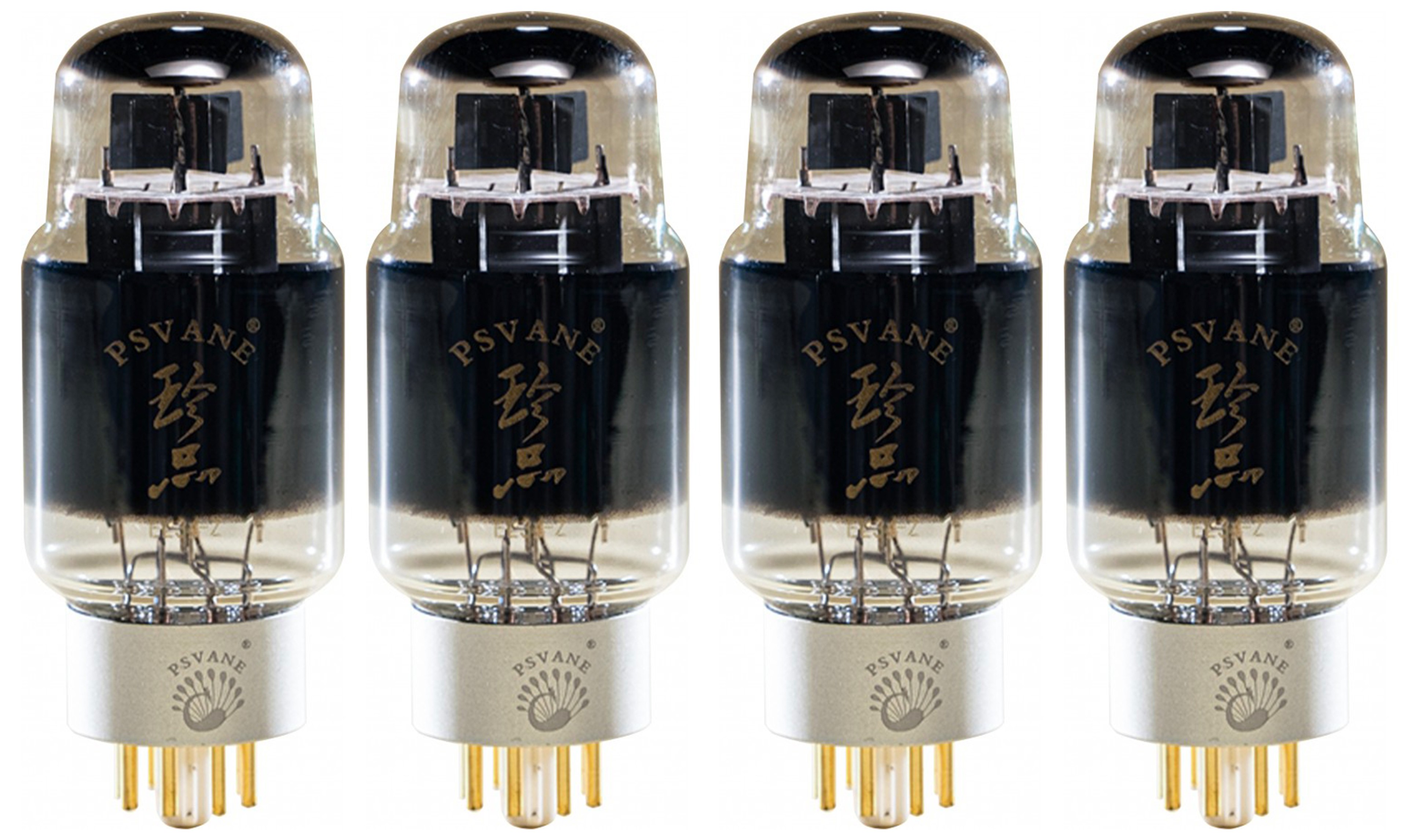

[GRADE A] PSVANE EL34-Z Power Vacuum Tube (Matched Quad)
Refurbished Product - Grade A
PSVANE's EL34-Z power tube offers a soft, warm sound, full and natural, with good balance and no background noise. PSVANE offers us a tube with a more pronounced analog texture than conventional tubes, with voices more prominent than usual and an overall sound evocative of vinyl.
PSVANE's EL34-Z power tube offers a soft, warm sound, full and natural, with good balance and no background noise. PSVANE offers us a tube with a more pronounced analog texture than conventional tubes, with voices more prominent than usual and an overall sound evocative of vinyl.
No customer reviews yet, login to write a review.
Reduced price!
Reference : 22119
Refurbished
Viewed products
![[GRADE A] DAYTON AUDIO MKSX4 Low Profil Subwoofer Speaker 160W Ø20cm](https://www.audiophonics.fr/72897-thumb_default/dayton-audio-mksx4-low-profil-subwoofer-speaker-160w-o20cm.jpg)
![[GRADE A] DAYTON AUDIO SPA250DSP Class D Amplifier & DSP for Subwoofer Module 250W](https://www.audiophonics.fr/72890-thumb_default/dayton-audio-spa250dsp-class-d-amplifier-dsp-for-subwoofer-module-250w.jpg)
![[GRADE A] DAYTON AUDIO DSA215-8 Speaker Driver Woofer 80W 8 Ohm 89dB 35Hz - 7000Hz Ø20cm](https://www.audiophonics.fr/72887-thumb_default/dayton-audio-dsa215-8-speaker-driver-woofer-80w-8-ohm-89db-35hz-7000hz-o20cm.jpg)
![[GRADE S] LAIV CRESCENDO VERSE R2R DAC Preamplifier Headphone Amplifier 32bit 768kHz DSD256 Silver](https://www.audiophonics.fr/72882-thumb_default/laiv-crescendo-verse-silver.jpg)
Refurbished Product - Grade A
Damaged packaging box

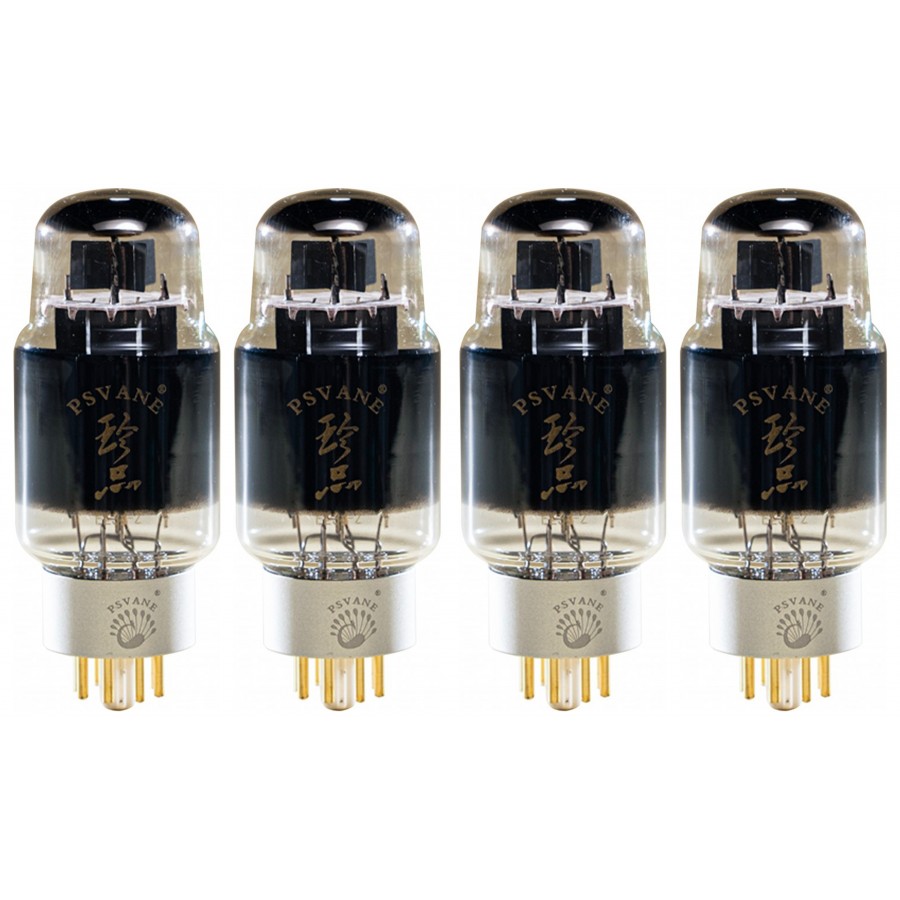

PSVane EL34-Z Power Vacuum Tube (Matched Quad)
PSVane's EL34-Z power tube offers a soft, warm sound, full and natural, with good balance and no background noise. PSVane offers us a tube with a more pronounced analog texture than conventional tubes, with voices more prominent than usual and an overall sound evocative of vinyl.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Power tube |
| Number of pins | 8 |
| Package | Matched quad |
| Dimensions | 118 x 43mm |
| ELECTRICAL CHARACTERISTICS | |
|---|---|
| Filament heating voltage | 6.3V |
| Filament heating current | 1.5A |
| Anode operating voltages | 250 V |
| Grid 2 voltage | 250V |
| Control voltage grid 1 | -12.5V |
| Plate current | 100mA |
| Mutual conductance | 11 mA/V |
| Amplification power of grid 1 & 2 | 11 |
| Limit Ratings | |
|---|---|
| Anode voltage | 800V |
| Second grid voltage | 500V |
| First grid voltage | -100V |
| Anode Power Dissipation | 25W |
| Second grid power dissipation | 8W |
| Cathode current when the first grid resistor is self-biased at 0.7 MΩ | 150 mA |
| Fixed bias voltage | 0.5 MΩ |
| Filament cathode voltage | ±100V |
| Glass shell temperature | 250℃ |
| Interelectrode capacitance | Input capacitance : 15.2 PF Output capacitance : 8.4 PF Cross-circuit : 1.1PF Filament-cathode : 10PF |
| fixed bias voltage | 0.5 MΩ |
