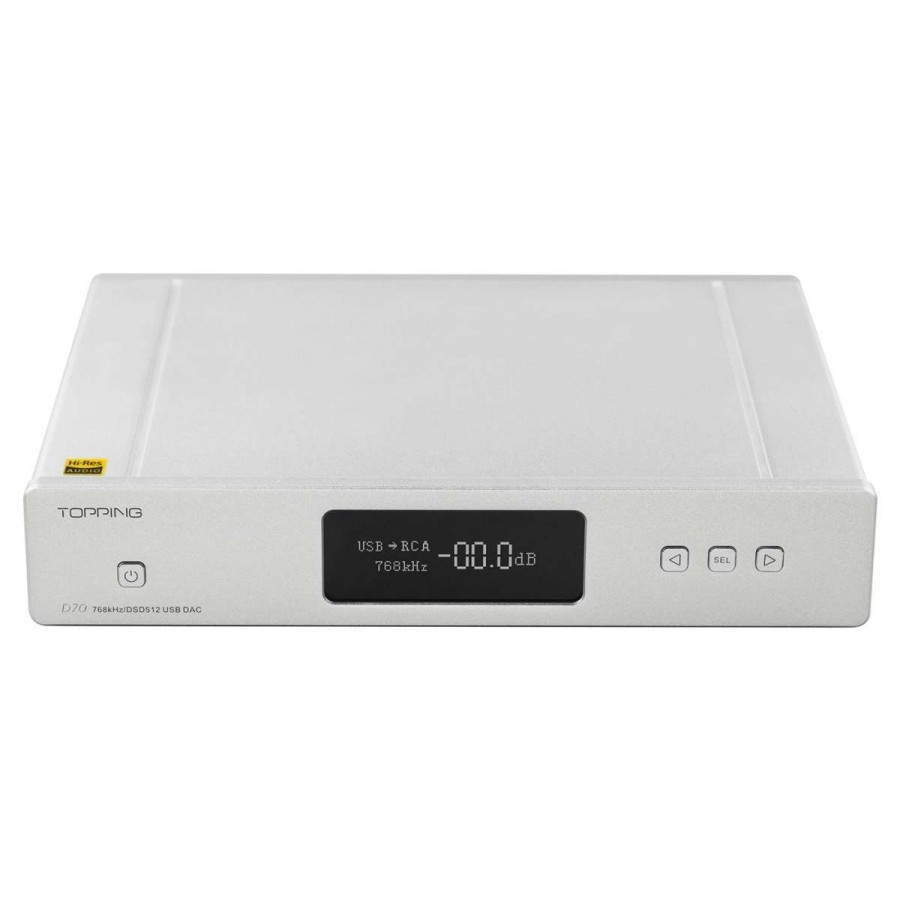

[GRADE S] TOPPING D70 Balanced DAC 2x AK4497 XMOS XU208 I2S 32bit 768kHz DSD512 Silver

TOPPING D70 DAC 2x AK4497 XMOS XU208 AK4118 32bit 768kHz DSD512
-7%
Refurbished product - Grade S

The DAC Topping D70 features many refinements specific to a high-end audio product. Powerful chips, ultra-low jitter clocks, latest generation interfaces and great versatility, this converter offers exceptional audio reproduction, characterized by magnificent transparency and rich sound.

No customer reviews yet, login to write a review.


Reduced price!
Reference : 16576
Refurbished
Limited special offer

415,84 €

-7%

385,84 €tax excl.

Including 0,04 € for green tax
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Refurbished product - Grade S

Product in perfect condition.

Topping D70

DAC 2x AK4497 XMOS XU208 AK4118 32bit 768kHz DSD512

Topping D70 DAC 2x AK4497 XMOS XU208 AK4118 32bit 768kHz DSD512

The DAC Topping D70 features many refinements specific to a high-end audio product. Powerful chips, ultra-low jitter clocks, latest generation interfaces and great versatility, this converter offers exceptional audio reproduction, characterized by magnificent transparency and a beautiful sound richness while offering practical features.

Topping D70 DAC 2x AK4497 XMOS XU208 AK4118 32bit 768kHz DSD512

DAC 2x AK4497 & Accusilicon Clocks

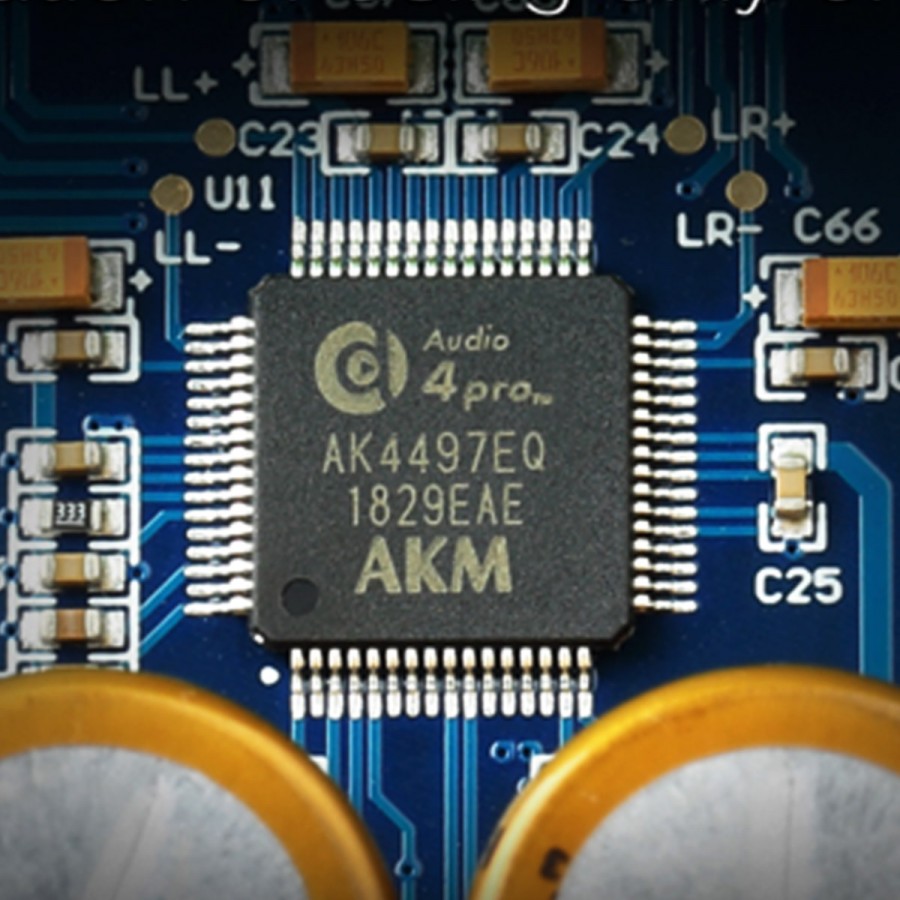

The AK4497 DAC chip from AKM is the brand's current flagship, allowing efficient and accurate decoding. Thus, the D70 integrates a pair of this DAC, each being associated with a channel for better separation of these. These chips allow it to reach a THD+N of -116dB and a dynamic range of 131dB. In addition, these chips support high sampling rates, allowing you to enjoy your PCM files up to 32bit 768kHz and DSD up to DSD512 Native.

These AK4497 DACs are combined with a pair of AccuSilicon 45.1584MHz and 49.1520MHz high-end femtosecond clocks. These allow a perfect synchronization of the data signals for an impressive jitter attenuation.

Connectivity & Features

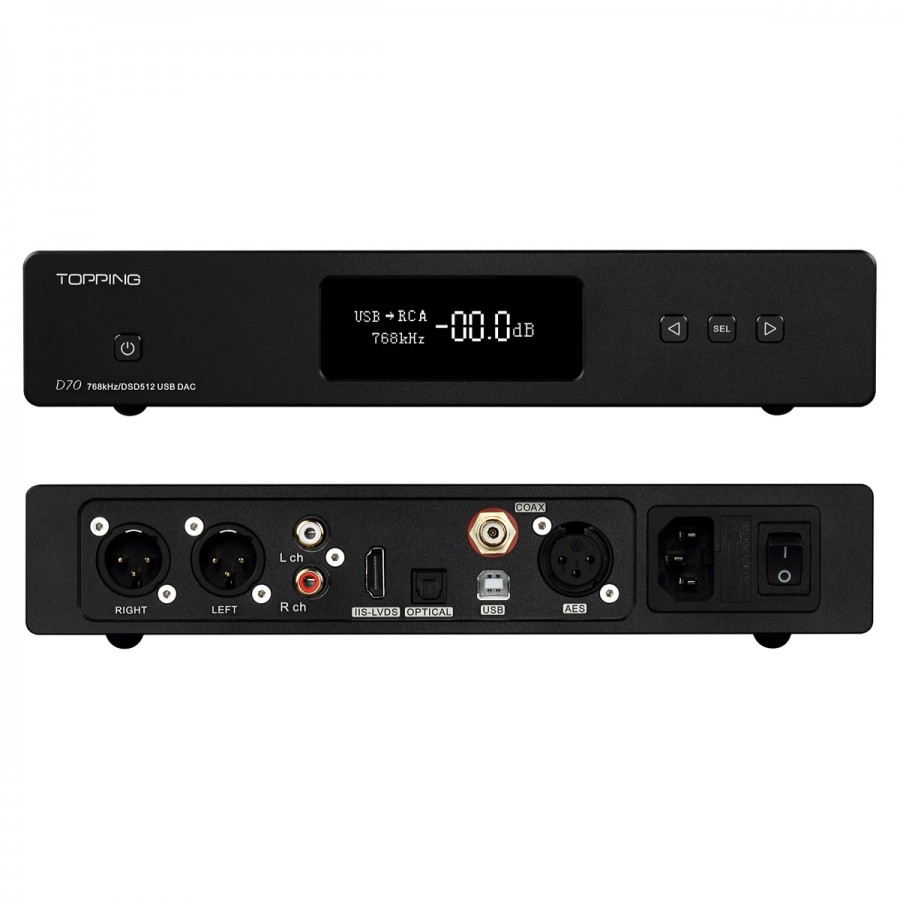

With its many features and connections, the Topping D70 can be integrated into the vast majority of audio systems, offering many options for use and installation. On the input connector side, the device offers AES/EBU, Coaxial SPDIF, Toslink Optics, USB and I2S LVDS via HDMI. Note that this last input has several selectable modes, in order to adapt to your other I2S LVDS devices. The output includes balanced XLR and single-ended RCA. The D70 allows you to select the output so that you can send the audio stream only to one or both of them at once.

The D70 also acts as a preamplifier since it includes a volume controller with attenuation from -99dB to 0dB. However, this volume control function can be disabled so that the D70 can only be used as a DAC with output levels constantly at their maximums, i.e. 4Vrms for XLR output and 2Vrms for RCA output.

Topping D70 DAC 2x AK4497 XMOS XU208 AK4118 32bit 768kHz DSD51213872-topping-d70-inpage1-jpg.png

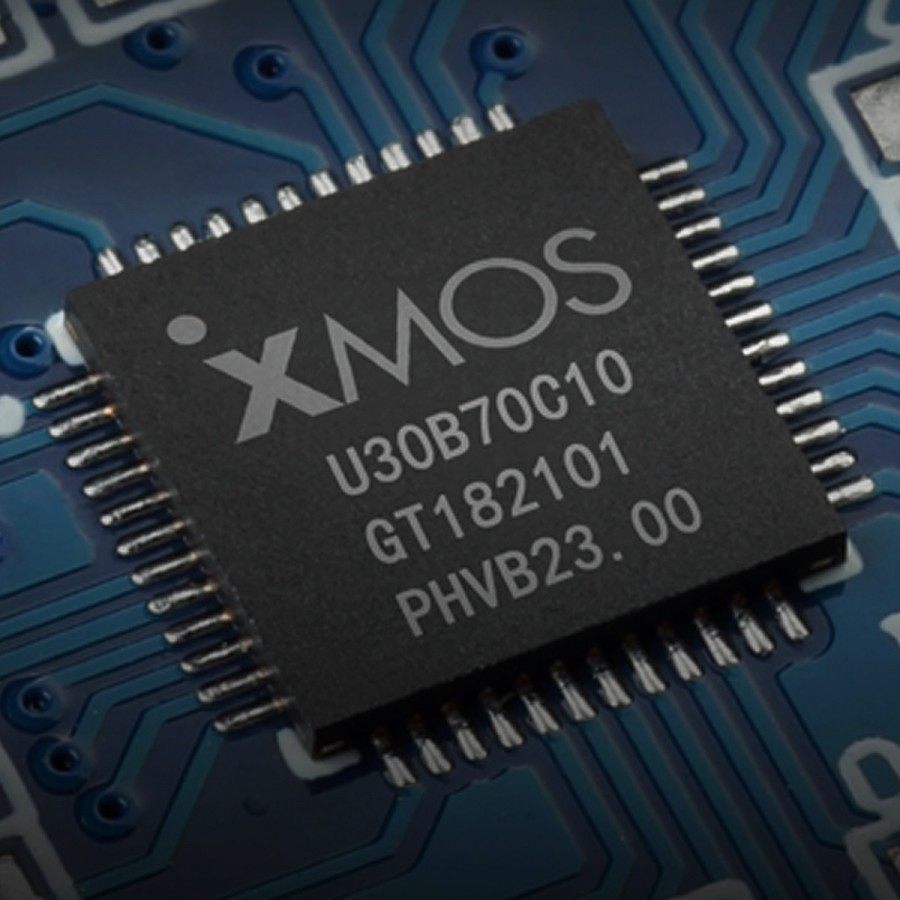

USB XMOS XU208 & SPDIF AK4418 Interfaces

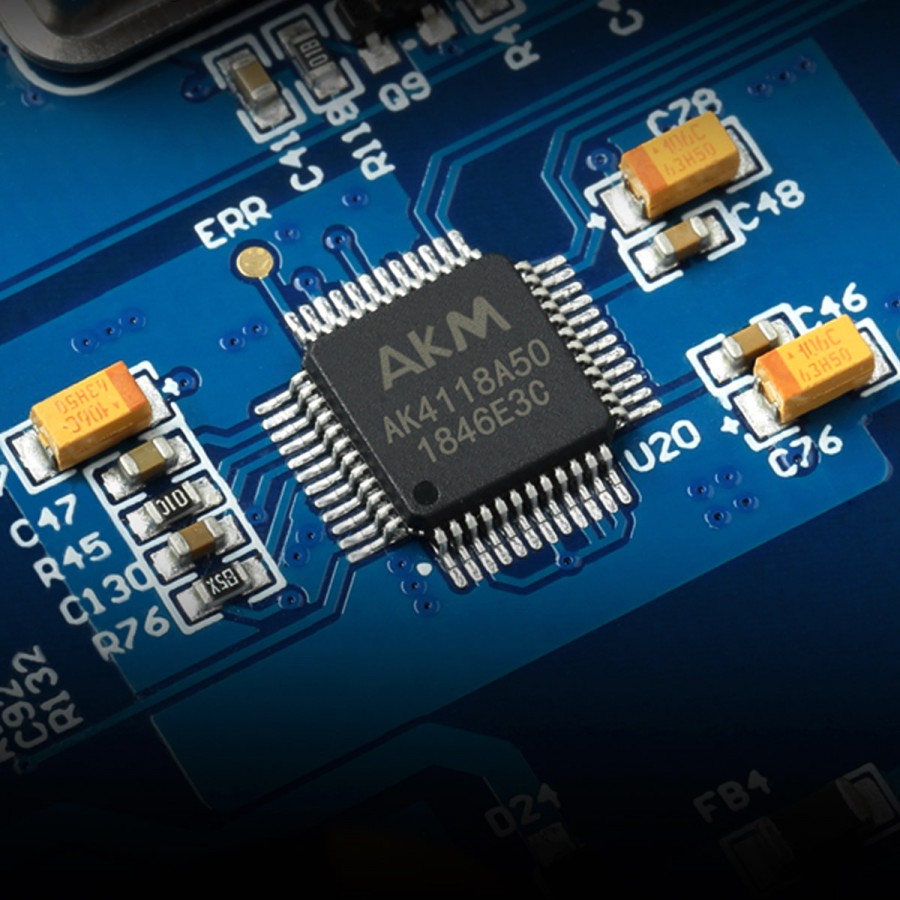

Once again, on the side of its digital interfaces Topping chooses quality and performance by integrating high-end chips into its D70. For the USB interface, we find an XMOS XU208 chip supporting high sampling rates up to 32bit 768kHz in PCM and up to DSD512 Native. For SPDIF signals, an AK4118 chip does the job by providing the lowest jitter on the market for this type of interface. This chip is therefore used for the Optical, Coaxial and AES inputs and allows sampling rates of 24bit 192kHz to be achieved for the latter.

Topping D70 DAC 2x AK4497 XMOS XU208 AK4118 32bit 768kHz DSD512

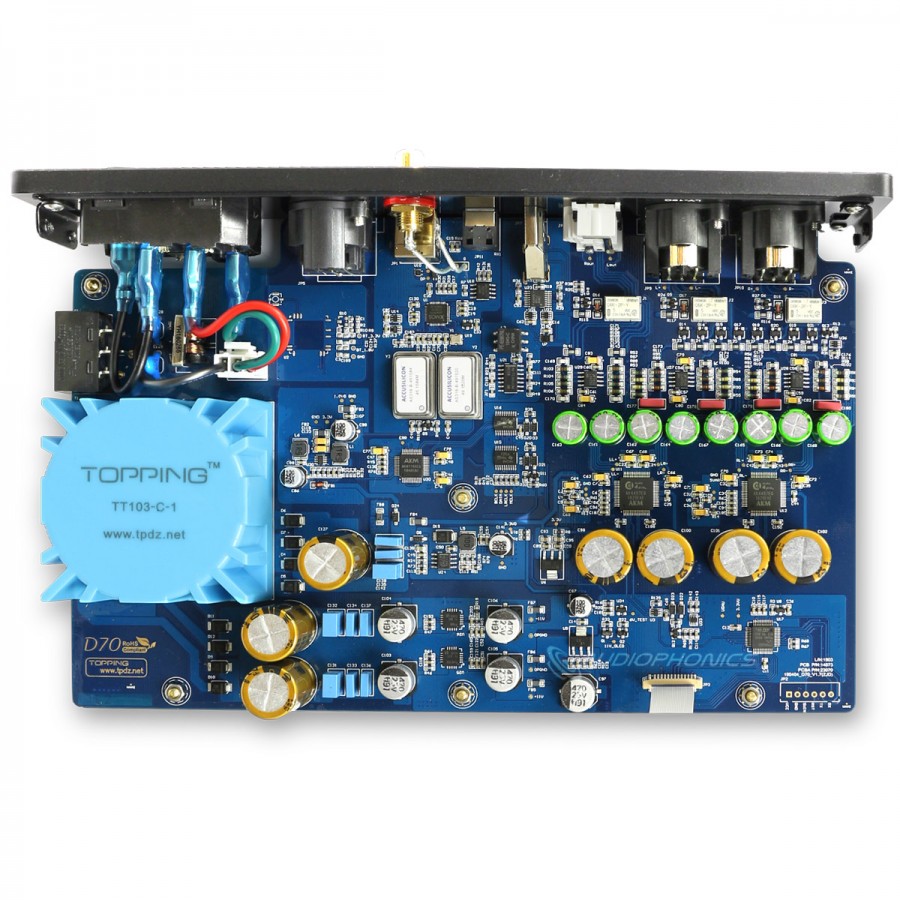

An incredible quality circuit

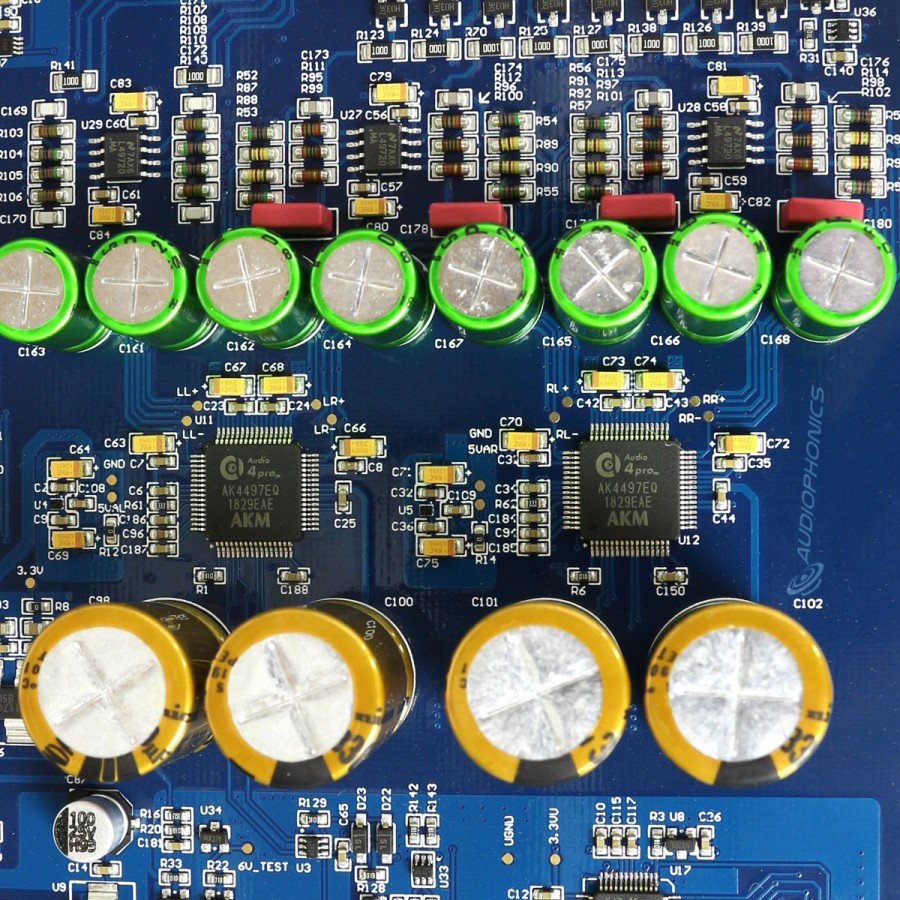

While the conversion and interface chips integrated into the D70 represent the best that is currently being done, the rest of the circuit is not to be outdone. For example, the PCB contains 4 Nichicon FW 3300µF capacitors as power reserve for the AK4497 and 8 Nichicon Muse capacitors for coupling the output signals. The output circuit is composed of a series of 3 AOP LME49720, high precision Vishay resistors and WIMA capacitors for excellent performance. The power supply circuit, on the other hand, incorporates ultra-low noise low voltage drop (LDO) linear regulators TPS7A4701 and TPS7A3301. This manufacturing quality allows the D70 to offer a breathtaking sound reproduction, with incredible precision, richness and depth.

Topping D70 DAC 2x AK4497 XMOS XU208 AK4118 32bit 768kHz DSD512

Remote control

Topping D70 DAC 2x AK4497 XMOS XU208 AK4118 32bit 768kHz DSD512
1Standby button
2Volume +
3Previous input
4Volume -
5NC
6Filter selection
7Automatic standby
8Mute mode
9Output mode selection
10Next input
11NC
12NC
13Screen brightness setting

Dimensions

Topping D70 DAC 2x AK4497 XMOS XU208 AK4118 32bit 768kHz DSD512

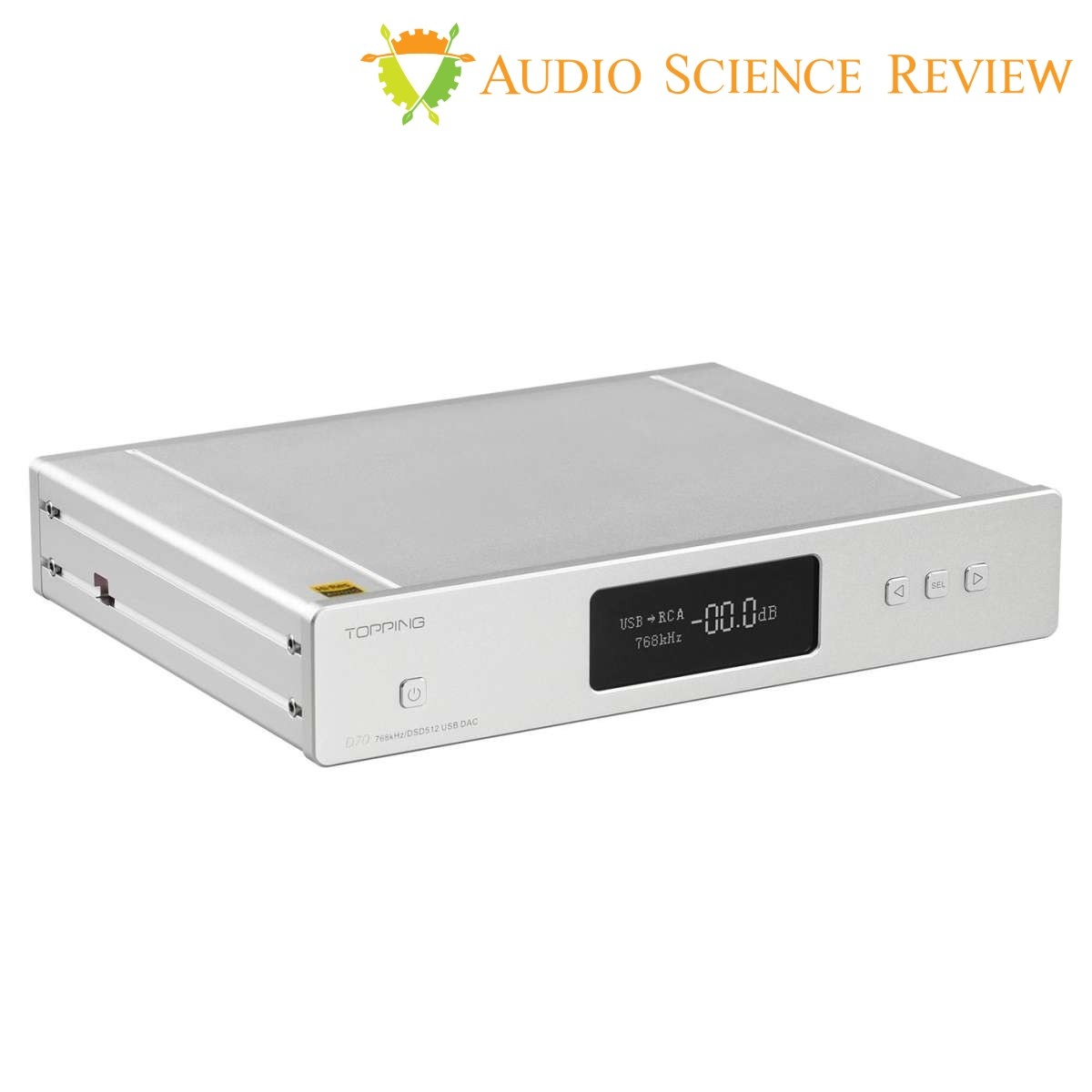

Test Audio Science Review



The Topping D70 was the subject of a detailed comparative analysis by the Audio Science Review platform.

Click here to access the Topping Review.


Technical characteristics

Specifications
Product typeDAC
DAC Chip2x AK4497
USB InterfaceXMOS XU208
SPDIF InterfaceAK4418
Inputs1x I2S LVDS (HDMI)
1x Optical Toslink
1x USB-B
1x Coaxial SPDIF
1x AES/EBU
Supported sampling ratesUSB : PCM up to 32bit 768kHz / Native DSD up to DSD512 / DSD DoP up to DSD256
I2S : PCM up to 32bit 768kHz / DSD up to DSD512
Coaxial, Optical, AES : PCM up to 24bit 192kHz
Outputs1x Balanced XLR
1x Single-Ended RCA
THD+NRCA : <0.0004% @ 1kHz A-Weighting
XLR : <0.0004% @ 1kHz A-Weighting
SNRRCA : >118dB @ A-Weighting
XLR : >127dB @ A-Weighting
Frequency responseRCA : 20Hz - 20kHz (+/-0.9dB)
XLR : 20Hz - 20kHz (+/-0.9dB)
Voltage outputRCA : 2Vrms @ 0dBFS
XLR : 4Vrms @ 0dBFS
NoiseRCA : <2.4µVrms
XLR : <1.8µVrms
CrosstalkRCA : -128dB @ 1kHz
XLR : -137dB @ 1kHz
General

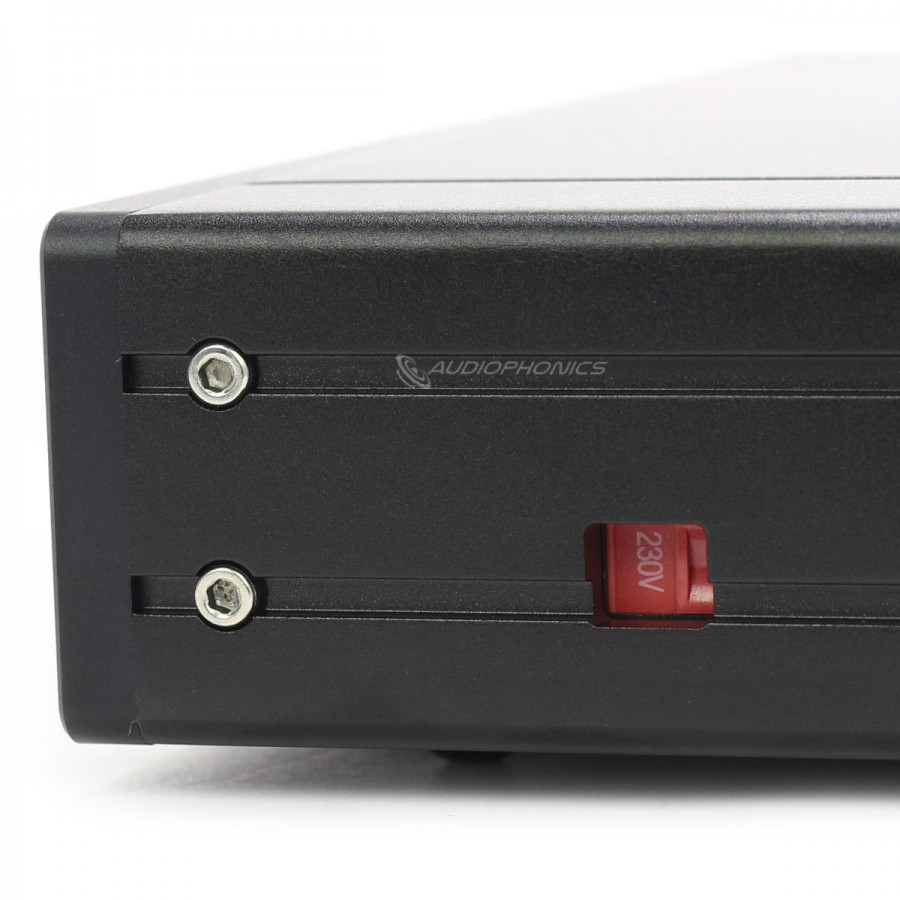

Power supplyAC110V/AC220V 50Hz/60Hz (switchable) via IEC (cable included)
Case materialAluminium
Dimensions25 x 19.5 x 5cm
Weight1.9kg
ColorSilver
Package1x Topping DX70
1x IR Remote Control
1x USB Cable
1x Power cable
1x User manual
1x Warranty card
Output modes
Output modeDisplayRCA OutputXLR OutputAdjustable volume
RCA--> RCA
XLR--> XLR
RCA + XLR--> R+X
DACDAC
PreamplifierVolume display
Brightness modes
OptionIntensity
LLow
MMedium (Default)
HHigh
PCM Filters
DisplayFilter
Mode1Sharp Roll-Off
Mode2Slow Roll-Off
Mode3Short Delay Sharp Roll-Off (Default)
Mode4Short Delay Slow Roll Off
Mode5Super Slow Roll-Off
Mode6Low Dispersion Short Delay
DSD Filters
DisplayFilter
Mode139kHz (Default)
Mode276kHz
Topping D70 DAC 2x AK4497 XMOS XU208 AK4118 32bit 768kHz DSD512
Topping D70 DAC 2x AK4497 XMOS XU208 AK4118 32bit 768kHz DSD512
Topping D70 DAC 2x AK4497 XMOS XU208 AK4118 32bit 768kHz DSD512
Topping D70 DAC 2x AK4497 XMOS XU208 AK4118 32bit 768kHz DSD512
Topping D70 DAC 2x AK4497 XMOS XU208 AK4118 32bit 768kHz DSD512
Topping D70 DAC 2x AK4497 XMOS XU208 AK4118 32bit 768kHz DSD512

Data sheet
InputI2S via HDMI
InputXLR
InputOptical
InputSPDIF
OutputXLR
OutputRCA
DAC / ADC ChipAK4497EQ
Max sampling rate768kHz
Max sampling rateDSD512
Channel2 (Stereo)
NetworkingNo
Remote ControlYes
Refurbished GradeGrade S
