Refurbished product - Grade S
Product reconditioned by the manufacturer, in perfect condition.

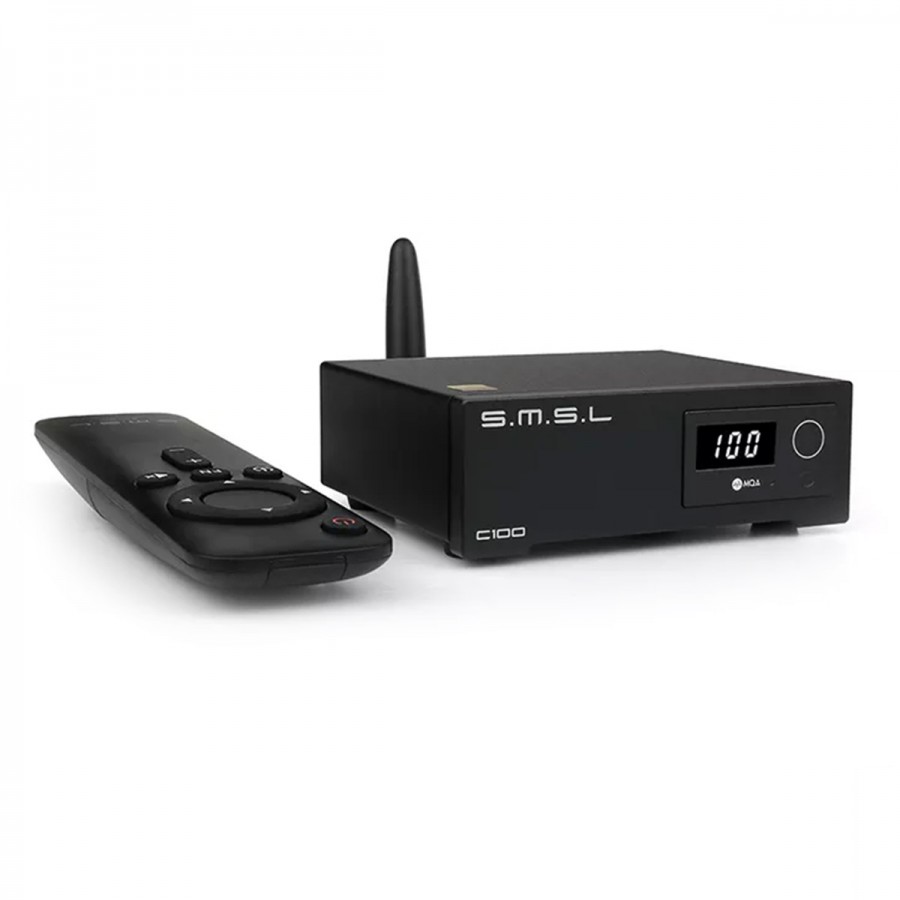

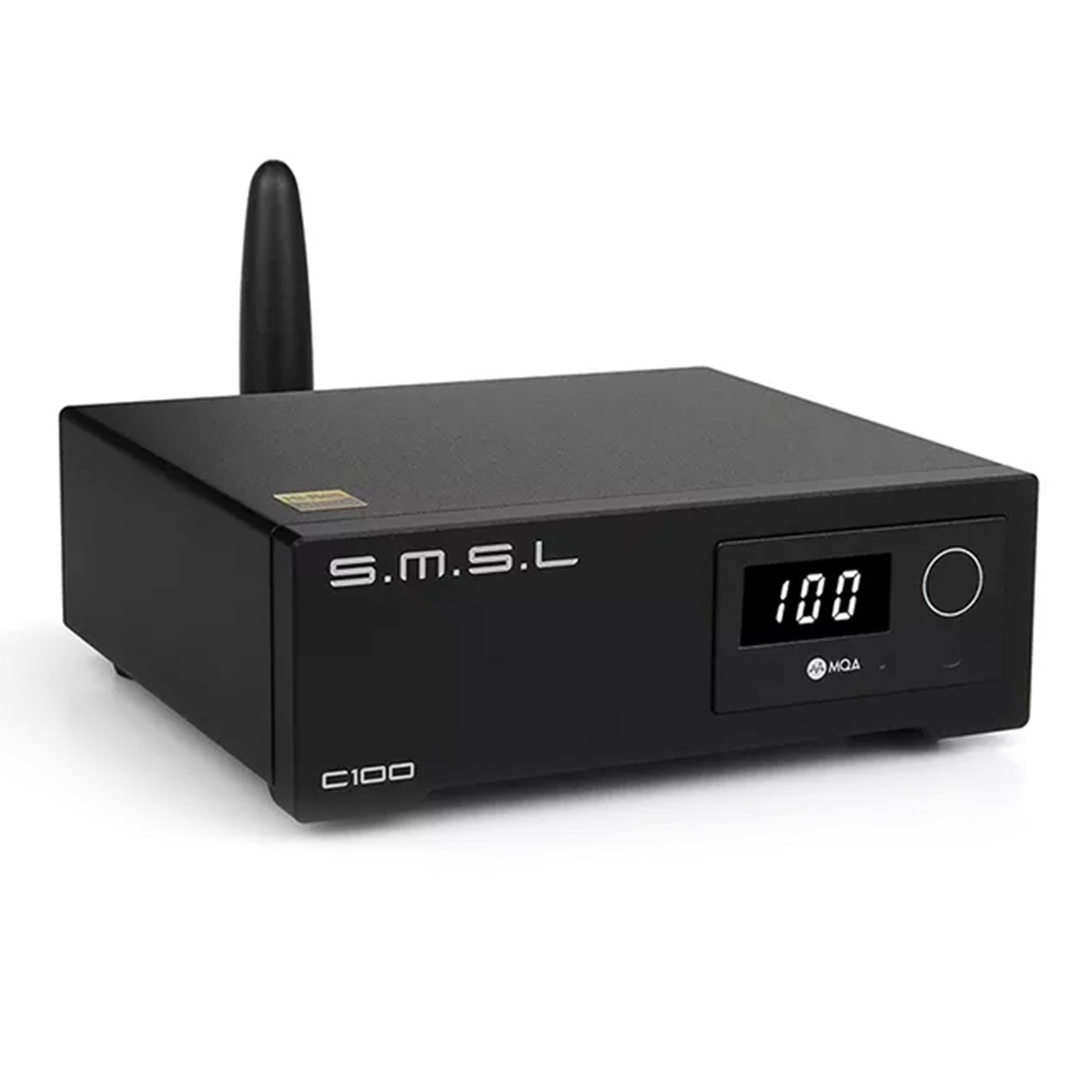

SMSL C100
DAC AK4493S XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA
The SMSL C100 presents itself as a compact and affordable DAC, but with the same care given to the more expensive models of the brand. Its components are indeed specially selected for their quality and efficiency, allowing the C100 to provide a precise sound reproduction. It adds to this a complete connectivity and a Bluetooth wireless connectivity for a foolproof versatility.

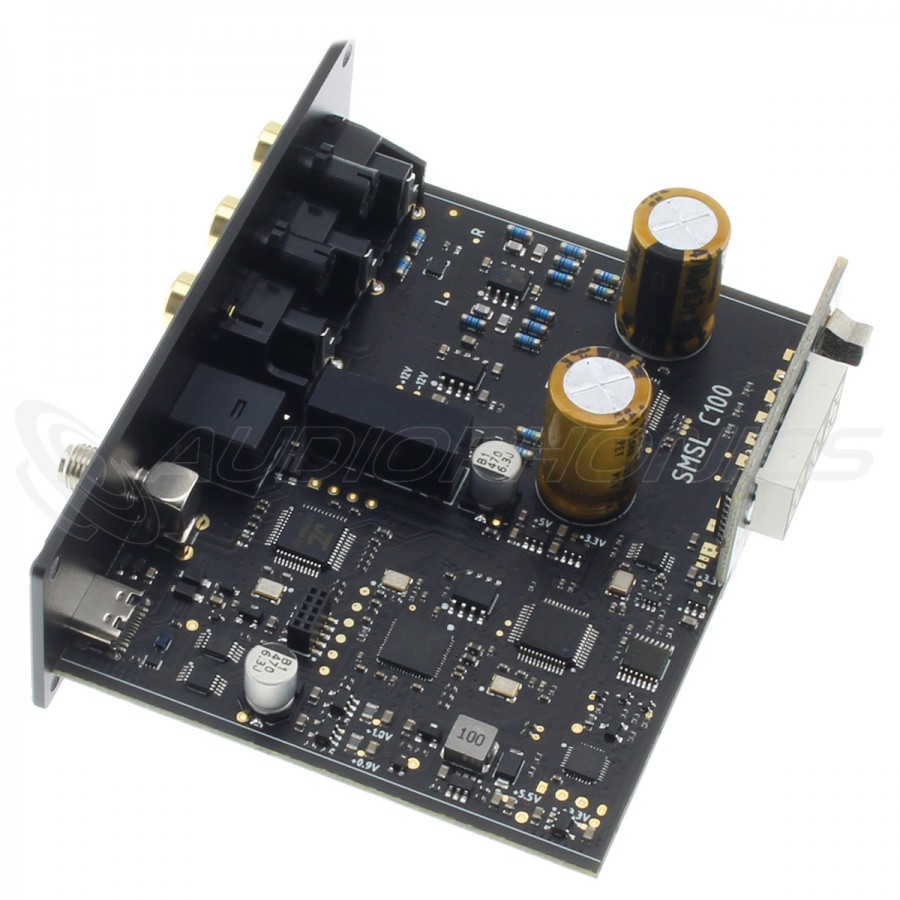

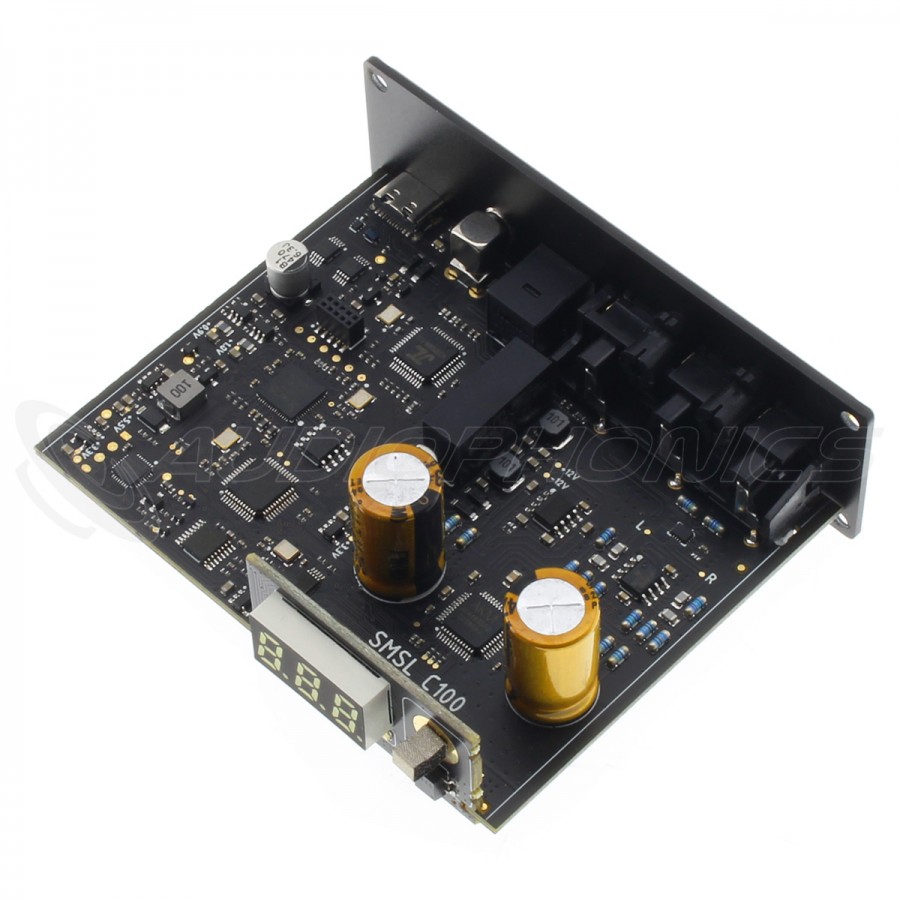

AKM AK4493S DAC
The digital / analog conversion stage of the SMSL is based on the use of a AKM AK4493S DAC chip. This model ensures excellent performances with notably a THD+N reaching here 0.00013% for a restitution at the same time precise, rich and dynamic.
XMOS XU316 USB Interface
The use of a USB XMOS XU316 interface allows the C100 to read high resolution files for the most faithful sound reproduction possible. It supports audio streams up to PCM 32bit 768kHz and DSD512 via its USB-B input.
CK-03 Clock Circuit & Filtered Power Supply
Like the vast majority of SMSL devices of this generation, the C100 embeds the proprietary CK-03 clock circuit, allowing excellent synchronization of the clock signals for the lowest possible jitter. On the other hand, the power supply circuit benefits from an efficient filtering system, allowing to provide a clean and stable power supply to all the audio circuits from a single USB-B port.
MQA Decoder
In addition to supporting high resolution PCM and DSD streams, the SMSL C100 is able to decode MQA (Master Quality Authenticated) files. These files allow to enjoy a very high sound quality, as close as possible to the original signal captured in a recording studio.

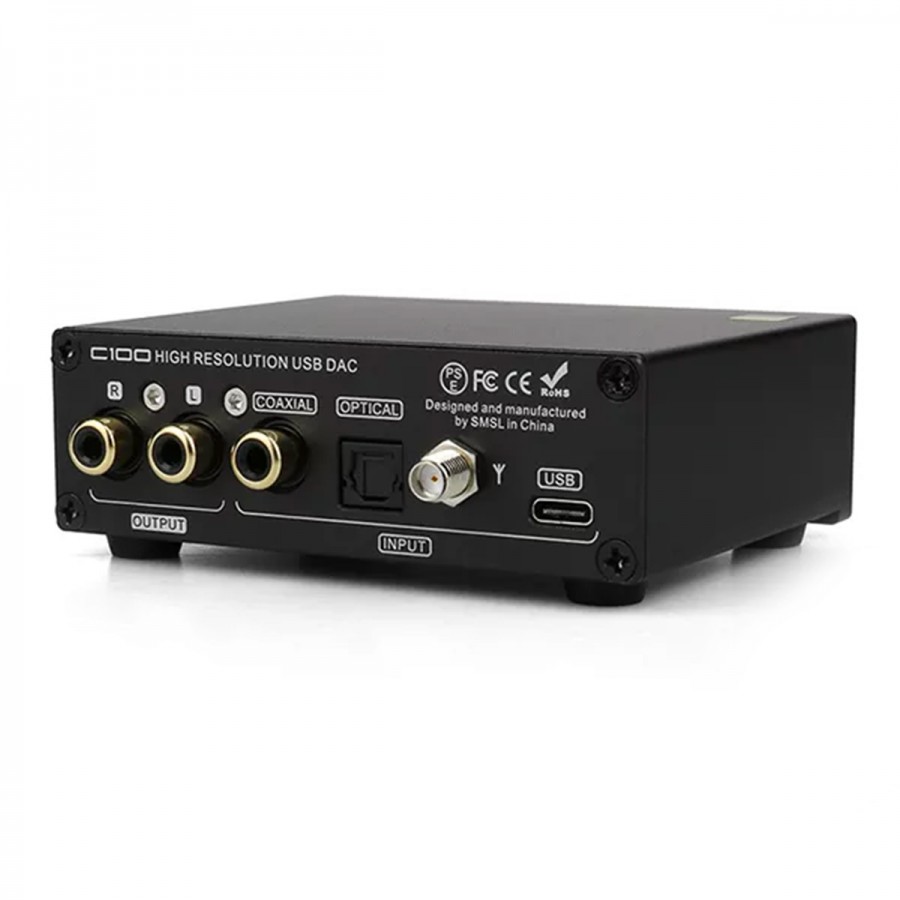

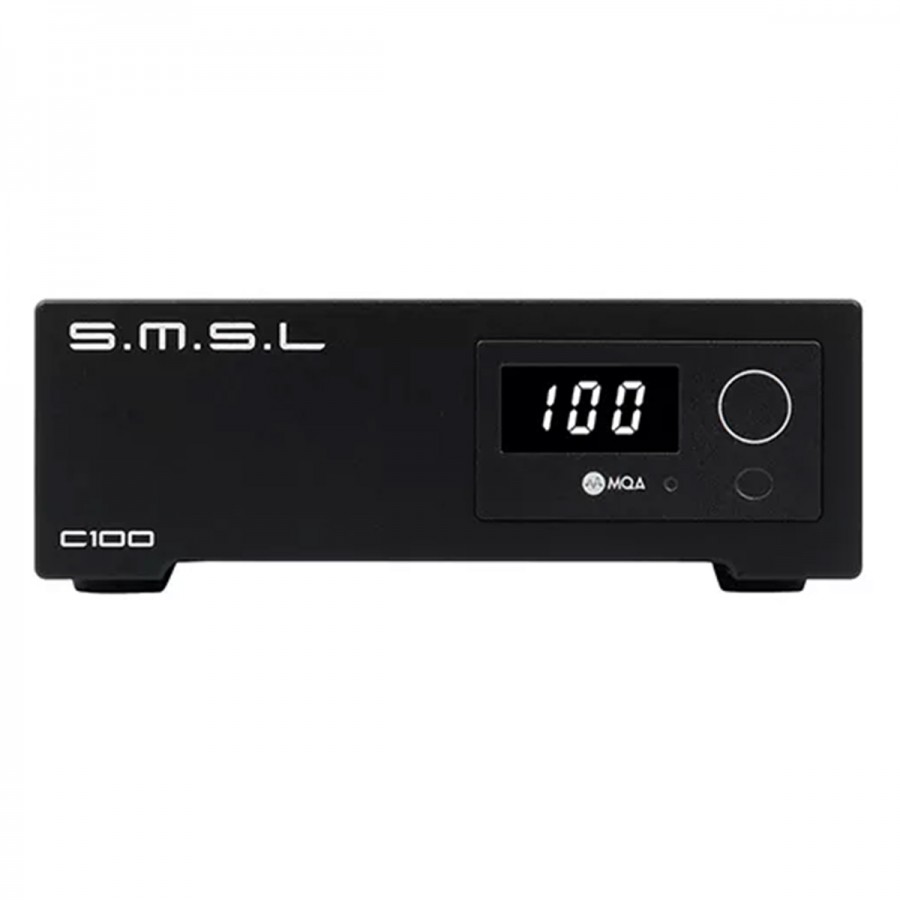

| 1 | Screen |
| 2 | Touch button |
| 3 | MQA LED indicator |
| 4 | IR receiver |
| 5 | Stereo RCA output |
| 6 | Optical Toslink input |
| 7 | Coaxial input |
| 8 | Bluetooth antenna |
| 9 | USB / power supply input |
Technical characteristics
| Specifications | |
|---|---|
| Prodcut type | DAC |
| DAC chip | AKM AK4493S |
| Inputs | Bluetooth 5.0 1* USB-C 1* Optical Toslink 1* Coaxial |
| Outputs | 1* Stereo RCA |
| USB transmission mode | Asynchronous |
| USB compatbility | Windows 7 / 8 / 8.1 / 10 / 11 Mac OSX 10.6 or later Linux |
| Output level | 2Vrms |
| THD+N | 0.00013% (-117dB) |
| Dynamic range | 121dB |
| SNR | 121dB |
| Supported sampling rates | USB : PCM up to 32bit 768kHz, Native DSD up to DSD512 Optical / Coaxial : PCM up to 24bit 192kHz |
| General | |
|---|---|
| Consumption | < 5W |
| Standby consumption | < 0.1W |
| Dimensions (W*D*H) | 77.5*95*32mm |
| Weight | 190g |
| Housing material | Aluminum |
| Color | Black |
| Package | 1x SMSL C100 1x Remote control 1x Antenna 1x USB-A to USB-C cable |
| Input | USB |
| Input | Optical |
| Input | SPDIF |
| Input | Bluetooth |
| Output | RCA |
| DAC / ADC Chip | AK4493S |
| Max sampling rate | DSD512 |
| Max sampling rate | MQA |
| Max sampling rate | 768kHz |
| Color | Black |
| Networking | No |
| Remote Control | Yes |
