TELEGARTNER J00029A6000 Ethernet RJ45 Female Connector
This Telegartner Cat.6A female RJ45 connector allows you to design Ethernet extension cables. Installation is simple and does not require crimping pliers. The connector accepts cables with a diameter of up to 9 mm and conductors with a cross-section of 0.102 mm² (27 AWG) to 0.326 mm² (22 AWG).
No customer reviews yet, login to write a review.
No loyalty points for this product.
Reference : 20895
New product
![[GRADE A] AUNE S9C PRO DAC 2x ES9068AS Discreet Headphone Amplifier 5W Bluetooth 32bit 768kHz DSD512 MQA Back](https://www.audiophonics.fr/64487-thumb_default/aune-s9c-pro-dac-2x-es9068as-discreet-headphone-amplifier-5w-bluetooth-32bit-768khz-dsd512-mqa-back.jpg)
![[GRADE S] 1877PHONO OCC Silver Dart Shielded Power Cable Schuko IEC C15 3x5.26mm² 2m](https://www.audiophonics.fr/68190-thumb_default/1877phono-occ-silver-dart-shielded-power-cable-schuko-iec-c15-3x526mm-2m-stockb.jpg)
![[GRADE S] NEOTECH NEI-1001 II Interconnect Cable Balanced UP-OCC Silver 2x1.17mm² Triple Shielding 0.9m](https://www.audiophonics.fr/68195-thumb_default/neotech-nei-1001-interconnect-cable-balanced-up-occ-silver-3x117mm-triple-shielding-stockb.jpg)
![[GRADE S] OYAIDE VONDITA Power Cable 102SSC Copper Shielded 3x4mm² Ø13mm 0.5m](https://www.audiophonics.fr/68199-thumb_default/oyaide-vondita-power-cable-102ssc-copper-shielded-3x4mm-o13mm.jpg)
![[GRADE S] 1877PHONO OCC Silver Dart Modulation Cable XLR-XLR (Pair) 1.5m](https://www.audiophonics.fr/68189-thumb_default/1877phono-occ-silver-dart-modulation-cable-xlr-xlr-pair-15m-stockb.jpg)
![[GRADE S] 1877PHONO OCC SILVER DART Speaker Cables Spades OCC Copper / Silver 2.5m (Pair)](https://www.audiophonics.fr/68178-thumb_default/1877phono-occ-silver-dart-speaker-cables-spades-occ-copper-silver-25m-pair-stockb.jpg)
![[GRADE A] LAIV HARMONY DAC Balanced Discrete R2R OS/NOS 768kHz DSD256 Silver](https://www.audiophonics.fr/68173-thumb_default/laiv-harmony-silver-stockb.jpg)

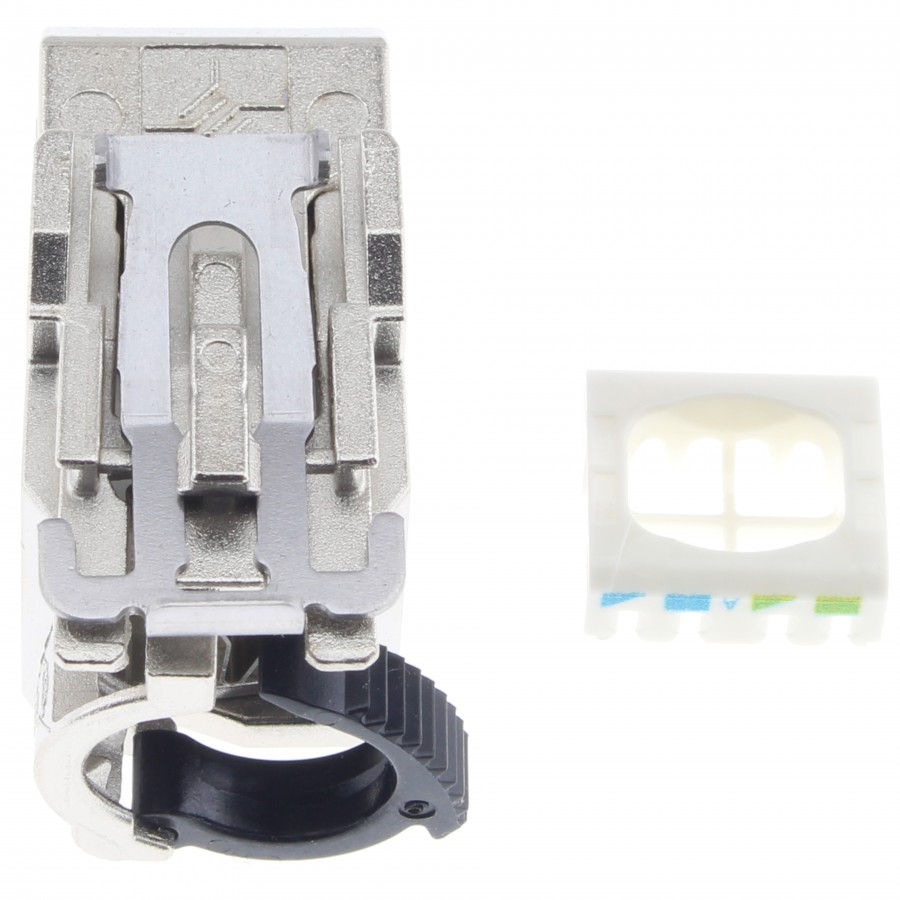

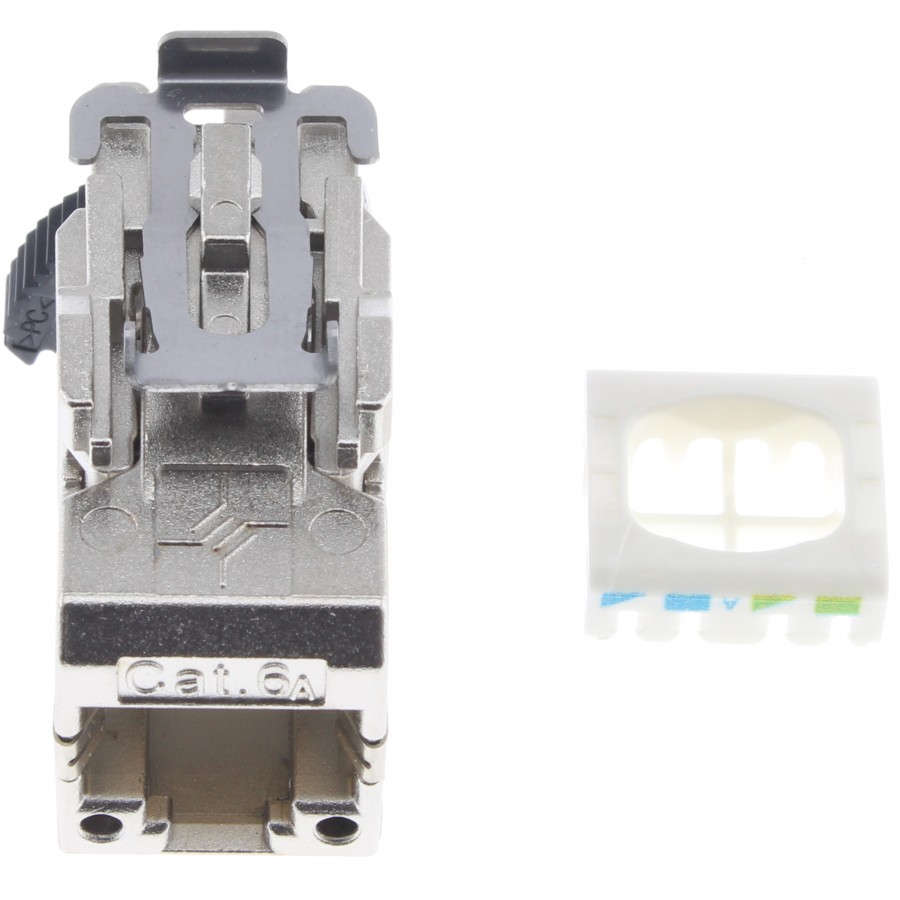

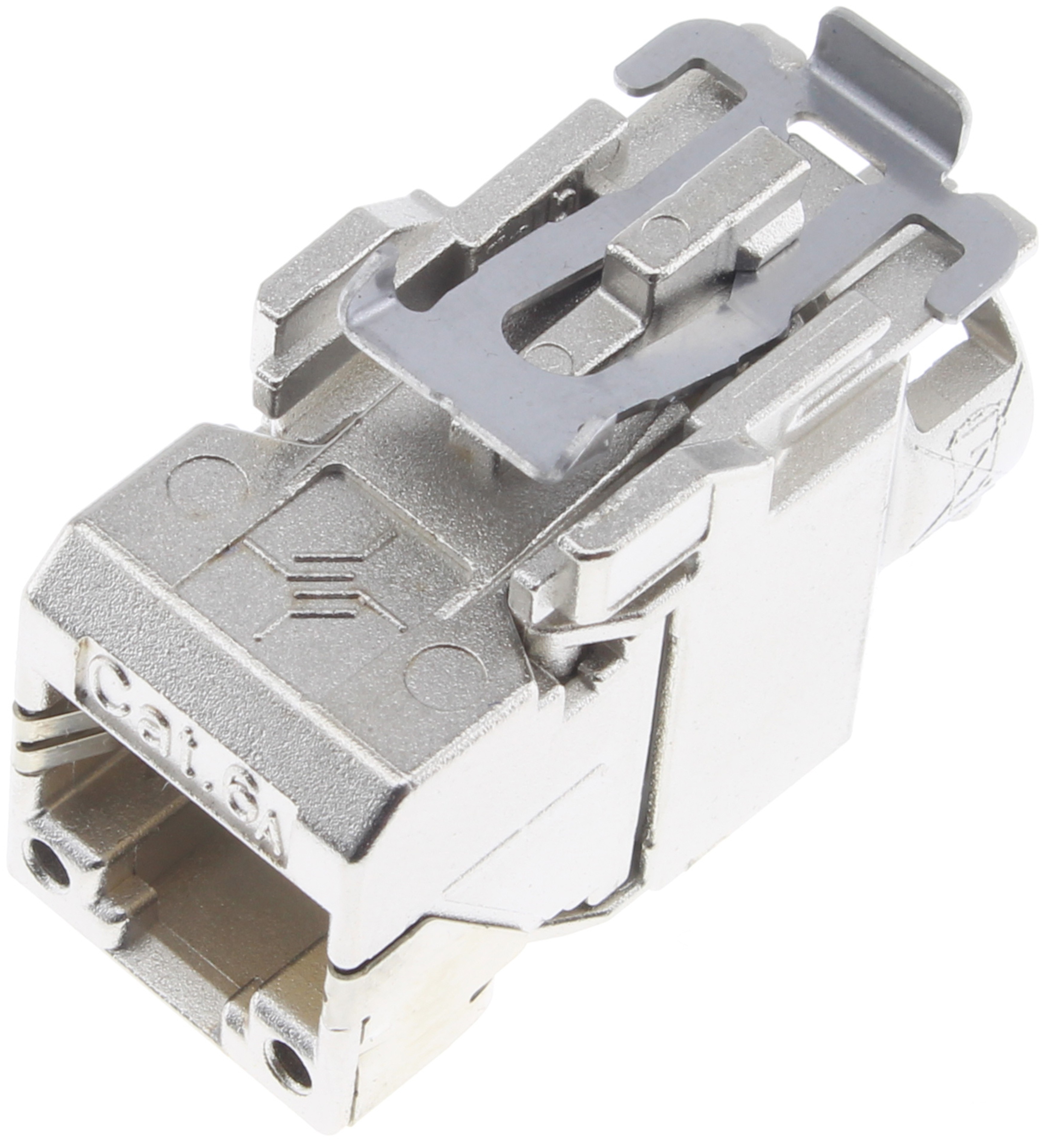

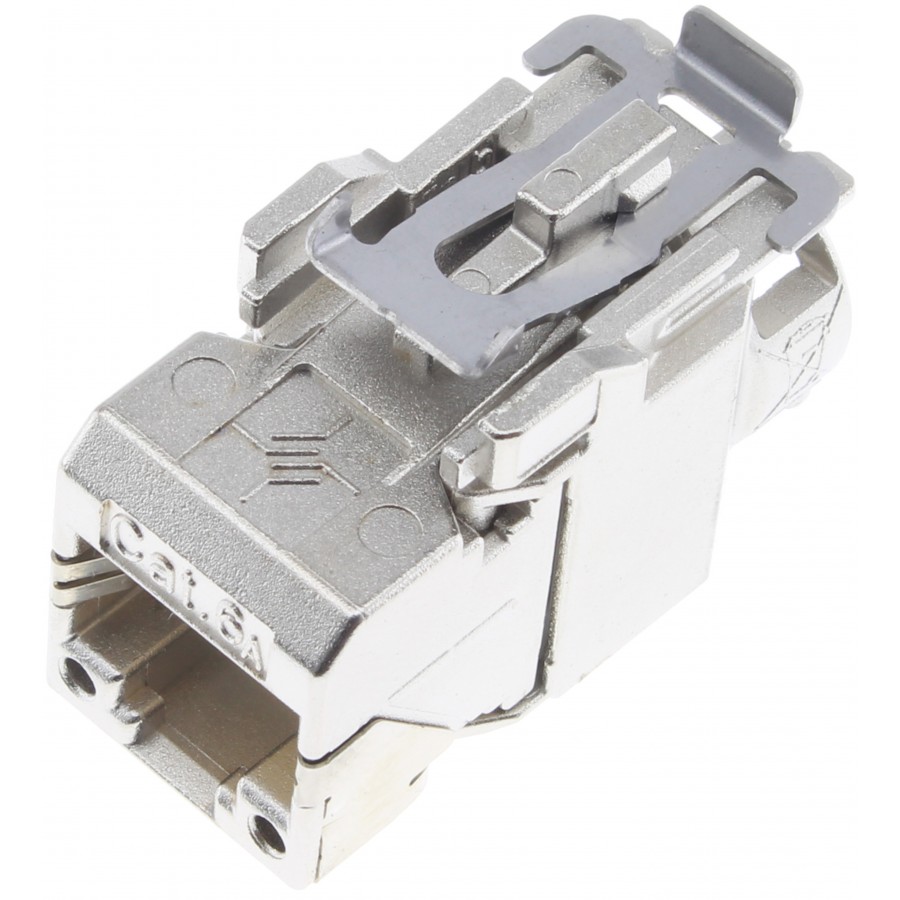

Telegartner J00029A6000 Ethernet RJ45 Cat.6A Female Connector Shielded Ø9mm
This Telegartner Cat.6A female RJ45 connector allows you to design Ethernet extension cables. Installation is simple and does not require crimping pliers. The connector accepts cables with a diameter of up to 9 mm and conductors with a cross-section of 0.102 mm² (27 AWG) to 0.326 mm² (22 AWG).
Technical characteristics
| Specifications | |
|---|---|
| Product type | Female RJ45 Cat.6A connector |
| Housing material | Nickel-plated zinc |
| Shielding material | Silver |
| Max bandwidth | 10Gbps |
| Contacts plating | Gold |
| Maximum cable diameter | Ø9mm |
| Service life | ≥ 750 insertion / extraction cycles |
| Temperature range | -40°C - +70°C |
| General | |
|---|---|
| Dimensions | 32 x 21 x 15mm |
| Package | Sold by unit |
| Max cable diameter (mm) | 9.0 |
| Mounting type | To connect |
| Connectic | Female |
| Connector | RJ45 |
| Contacts Material (Connector) | Copper Alloy |
| Contacts Plating (Connector) | Gold |
