By buying this product you get 8 loyalty points

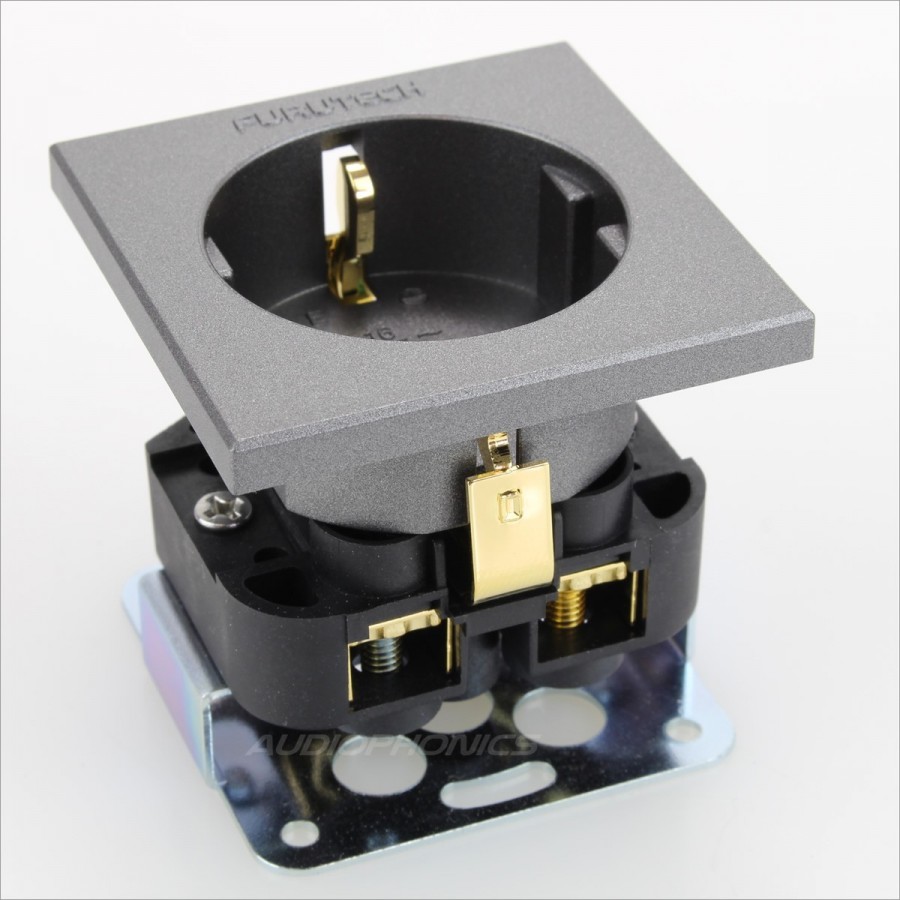

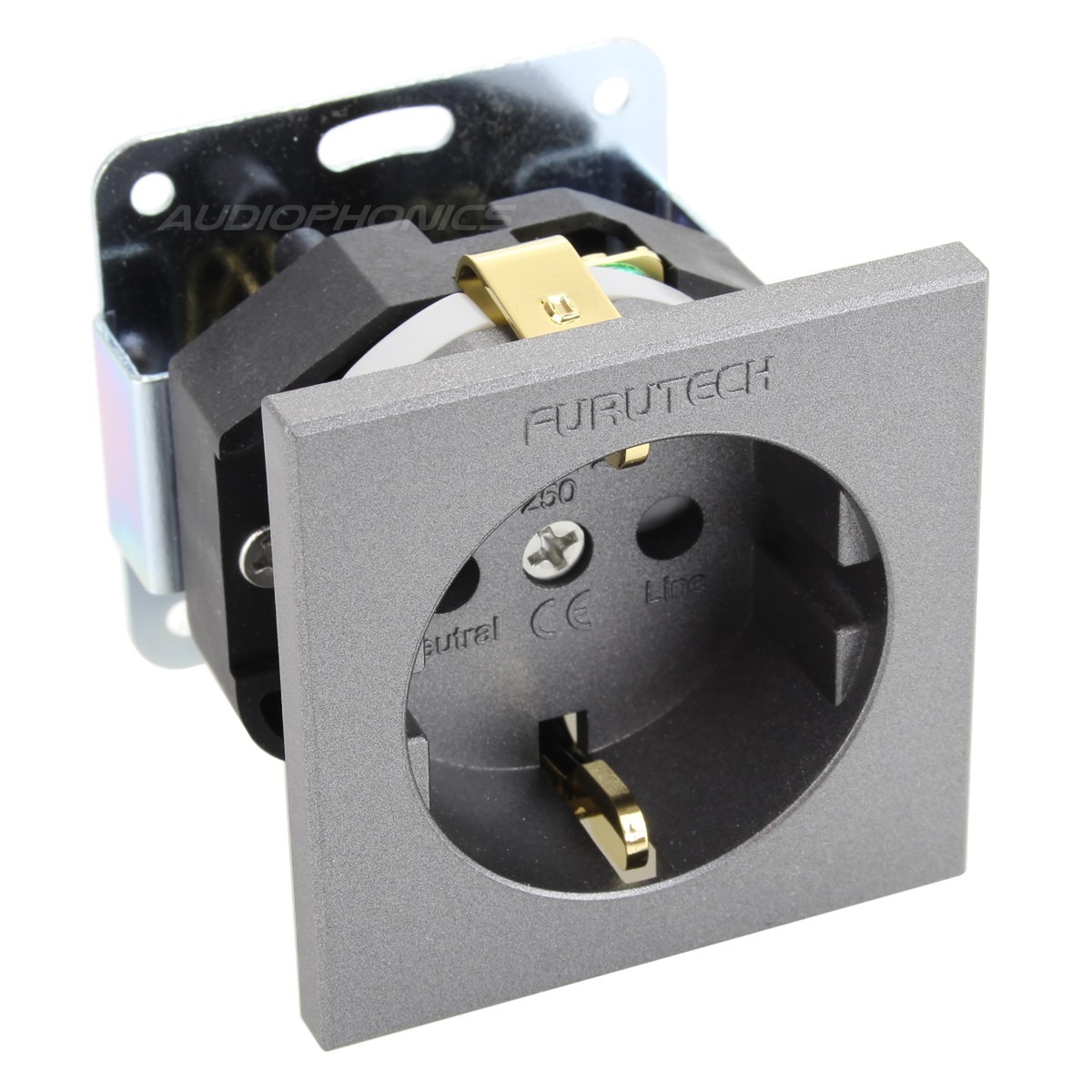

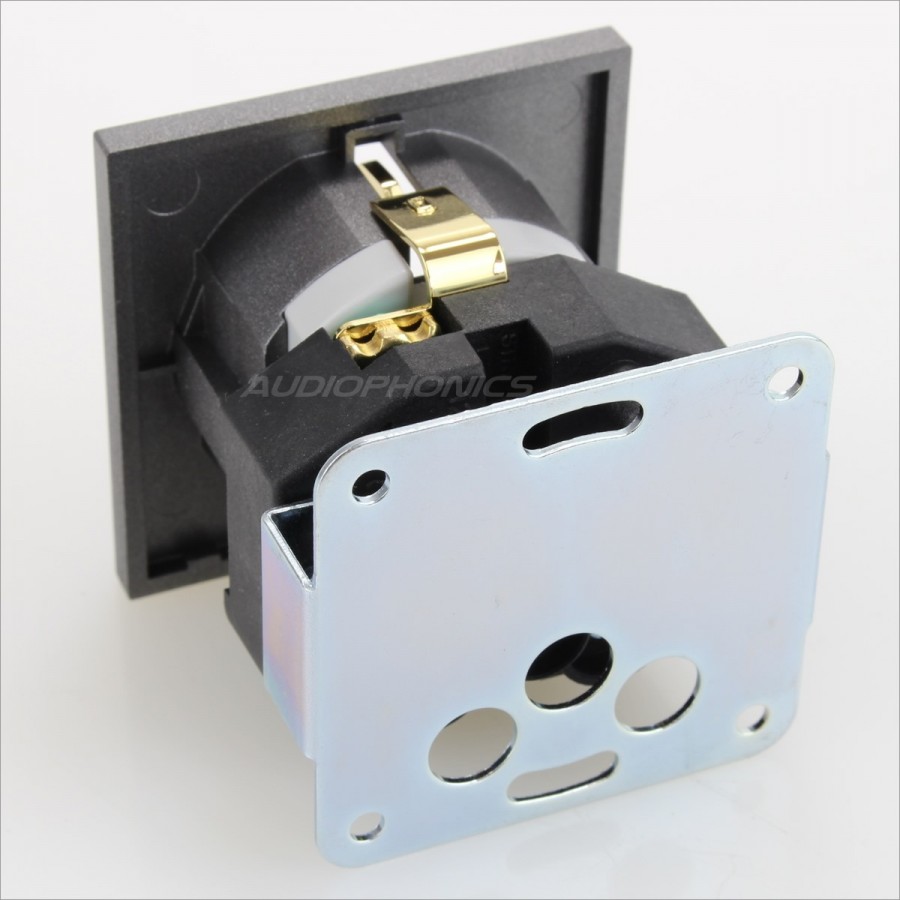

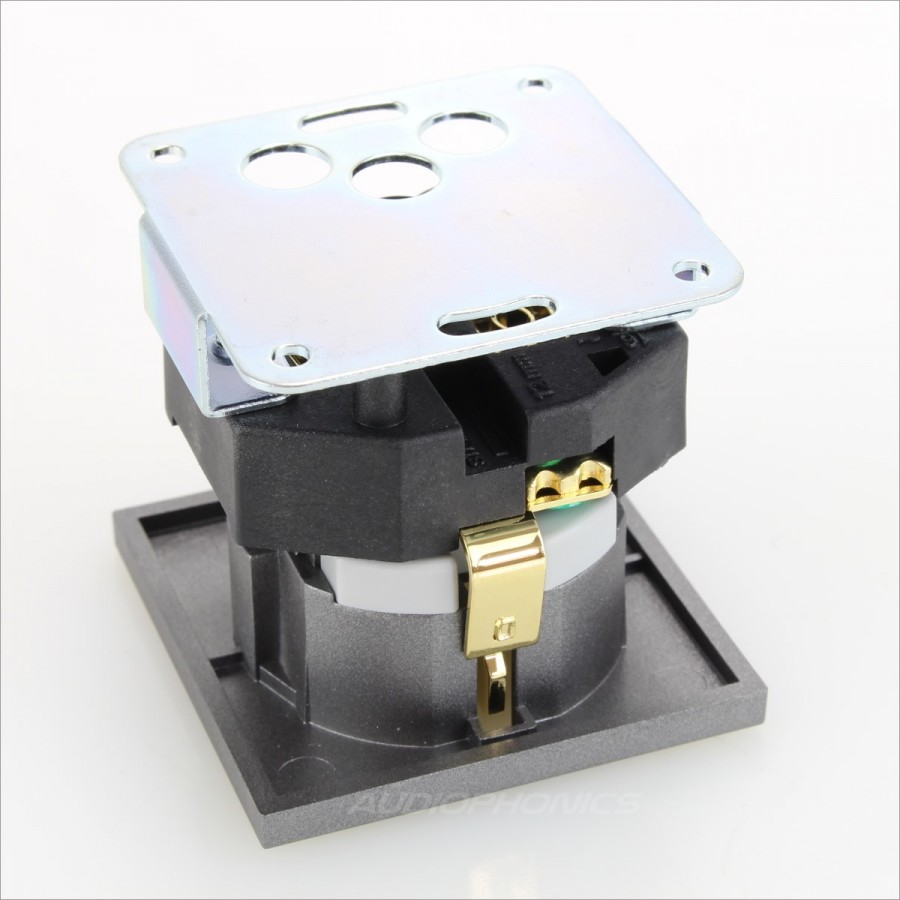

Schuko Socket for Power Distributor Gold Plated
This Schuko Furutech FT-SDS(G) sub-base is intended for installation in a power distributor. The high quality pure copper contacts with gold plating ensure excellent electrical signal conductivity. The body of the base is made of Nylon and fiberglass.
The depth of the grip is 52mm. This will not be suitable for all installations.
Specifications | |
---|---|
Product type | Schuko plug for power distributor |
Contacts material | Pure Copper Furutech α (Alpha) treatment |
Body material | Nylon Fiberglass |
Front panel material | Polycarbonate |
Base material | Zinc / Steel 1mm |
Max cable diameter | Ø2.8mm |
Max cable section | 5.5mm² (10AWG) |
Dimensions | 54.8 x 54.8 x 52mm |
Cutout diameter | Ø55mm |
Voltage / Current | 250VAC 16A |
Mounting holes spacing | 40 x 40mm |
Cutout for the passage of the bottom plate | 50 x 50mm |
Plating | Gold |
Max cable diameter (mm) | 2.8 |
Mounting type | To screw |
Connectic | Female |
Connector | Type F |
Contacts Material (Connector) | Copper |
Contacts Plating (Connector) | Gold |
Rated current (A) | 16.0 |
