SMPS240R Power supply board 240W +/-40V

SMPS240QR Module d'Alimentation à Découpage 240W / +/-60V
No customer reviews yet, login to write a review.

By buying this product you get 6 loyalty points


Reference : 11198
New product

69,90 €tax incl.

58,25 € tax excl.
Including 0,05 € for green tax
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

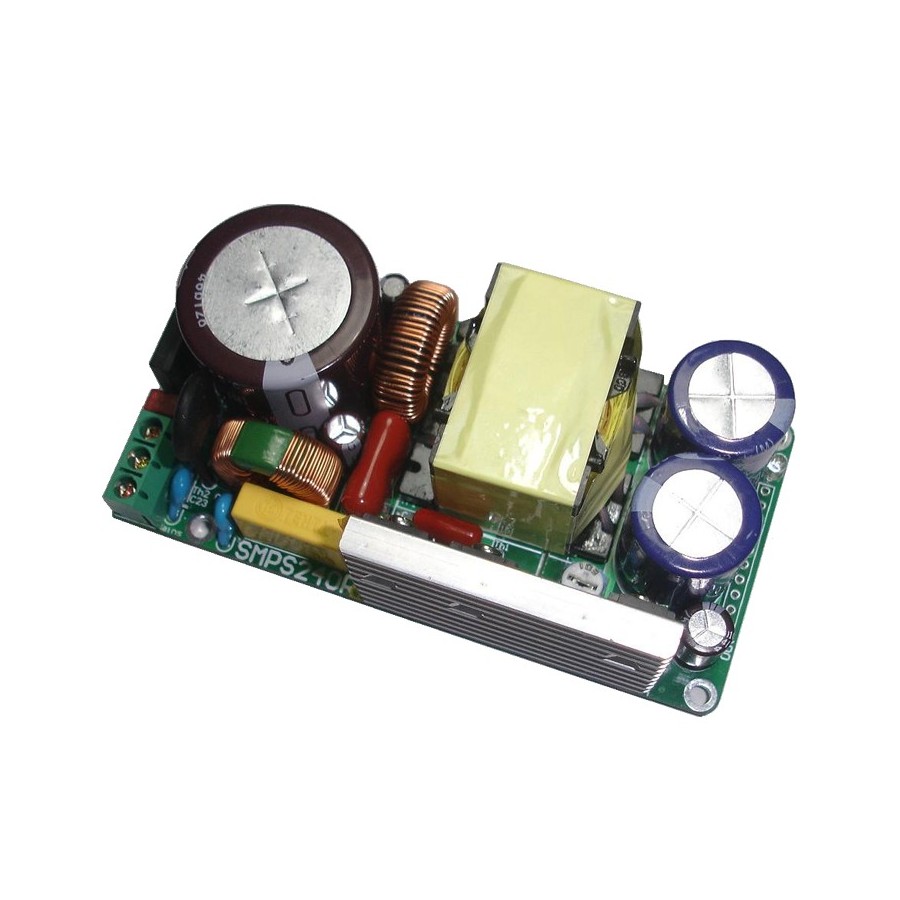

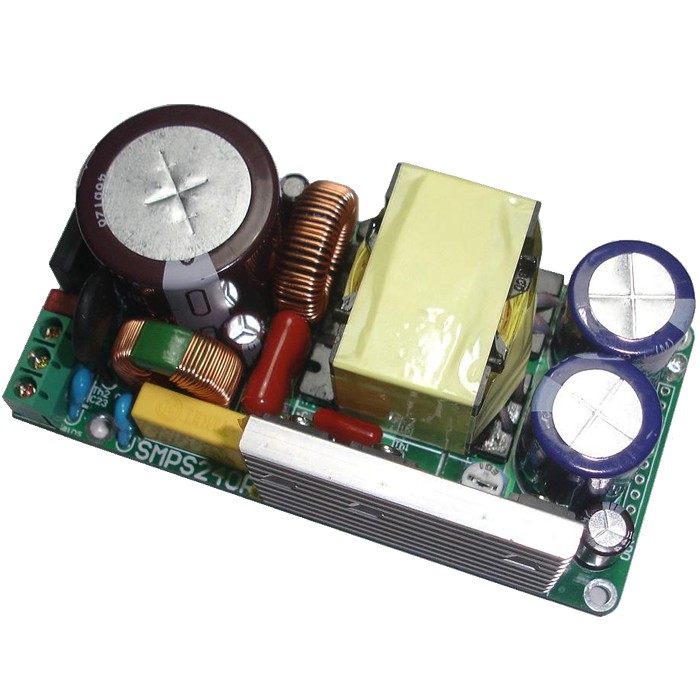

The SMPS240QR switched mode power supply is a very high efficiency model capable of developing a nominal power of 240 watts in an extremely small footprint.

This power supply is capable of delivering 240W of continuous power and up to 320W peak.

The version delivered is a + -40V.

The main feature of this power supply is the lack of radiators for both power switches and rectifier diodes.
The EMI radiation is less than any conventional power supply, and could be compared to a regulated linear power supply.

Its small size considerably reduced weight, allow to install the SMPS240QR everywhere.

The SMPS240QR incorporates overcurrent protection that limits the output current to approximately 130% of maximum peak power, approximately 280W.
This power supply is suitable for both class AB and class D / T amplifiers.

Particularly suitable for Hypex UCD180, TK2050 and TDA7293 modules.

Features:/ Strong>

  • Food at very high efficiency
  • Choice of input voltage
  • Amazing Compactness
  • Low electromagnetic radiation EMI
  • Advanced Protection
  • Output Voltage:+ /- 40V

Specifications:

  • Input Voltage Ranges: 190-250V (On Sector 220V)
  • Output Voltages: +/- 40V DC
  • Maximum Power Rating: 320watts
  • Nominal Power: 240watts
  • Dimensions: 100 x 50 x 30

https://www.audiophonics.fr/images2/7707/7707_SMSP240QR_1.jpg


Data sheet
InputScrew terminals
OutputPCB Connector
Output voltage (V)40.0
Output current (A)NC
Input voltage (V)190.0
Input voltage (V)210.0
Input voltage (V)240.0
Input voltage (V)230.0
Input voltage (V)200.0
Input voltage (V)220.0
Input voltage (V)250.0
Power SupplySMPS
