SHANLING EM7 Streamer DAC ES9038Pro Headphone Amplifier WiFi Bluetooth aptX LDAC 32bit 768kHz DSD512 MQA Silver

SHANLING EM7 Streamer DAC ES9038Pro Headphone Amplifier WiFi Bluetooth aptX LDAC 32bit 768kHz DSD512 MQA Silver
With its EM range, Shanling aims to provide an all-in-one network playback solution that is as effective for headphone listening as it is with a dedicated HiFi system. The EM7, an evolution of the EM5, is intended to go even further in the search for performance and functionality.

No customer reviews yet, login to write a review.

By buying this product you get 199 loyalty points


Reference : 16683
New product

1 990,00 €tax incl.

1 658,33 € tax excl.
Including 0,05 € for green tax

- +

Shipping date: 02-04-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Shanling EM7

Streamer DAC ES9038Pro Headphone Amplifier WiFi Bluetooth aptX LDAC 32bit 768kHz DSD512 MQA Silver

Shanling EM7 Lecteur réseau DAC ES9038Pro Amplificateur Casque WiFi Bluetooth aptX LDAC 32bit 768kHz DSD512 MQA

With its EM range, Shanling aims to provide an all-in-one network playback solution that is as effective for headphone listening as it is with a dedicated HiFi system. The EM7, an evolution of the EM5, is intended to go even further in the search for performance and functionality.

The conversion section of the EM7 is based on the use of an ESS ES9038Pro DAC, whose eight channels power supply a fully balanced amplifier built on a proven OP+BUF architecture. The latter has been designed specifically for the EM7, to perfectly match the chosen DAC, while providing high power output for the most demanding headphones.

As for network playback, the EM7 is based on a custom Android operating system. It allows you to access many streaming services, but also to play your music from your local network, to enjoy DLNA and AirPlay support, to have Bluetooth reception but also to play your files from a Micro SD card or a USB storage device. All these functions are executed by the Android Global Lossless Output (AGLO) system, ensuring optimal audio performance. To support this architecture, the EM7 is equipped with a powerful Qualcomm Snapdragon 665 processor, ensuring smooth operation. In addition, the free Eddict Player mobile application allows full remote control of the device.

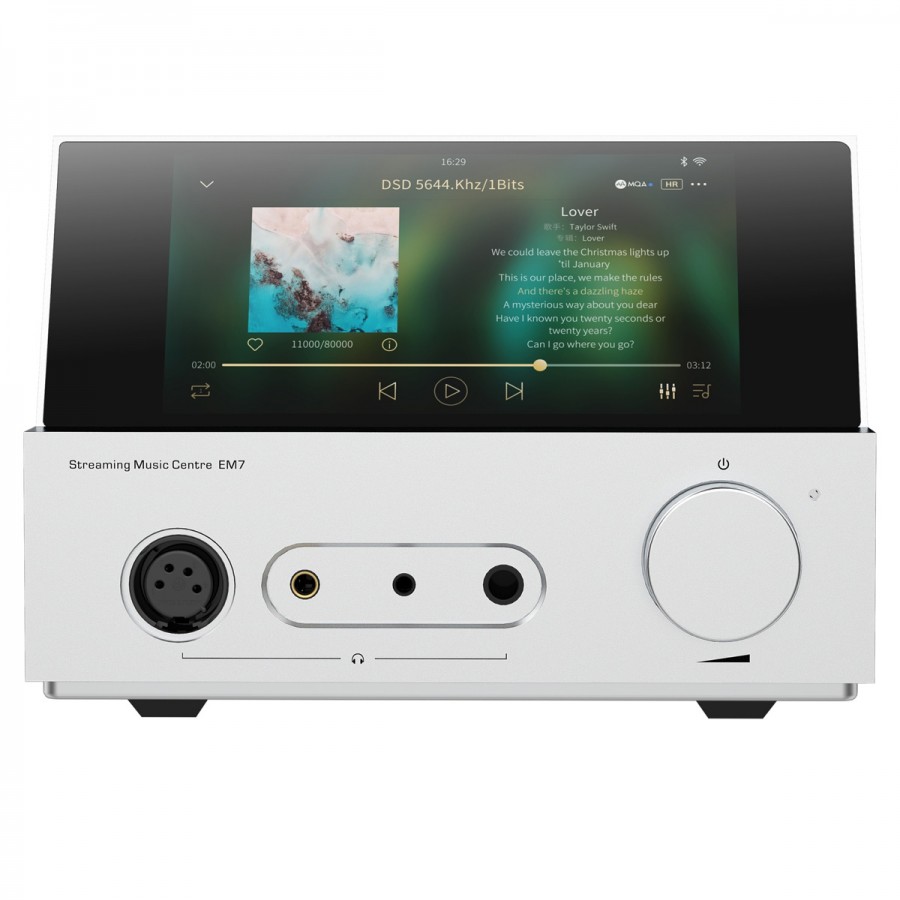

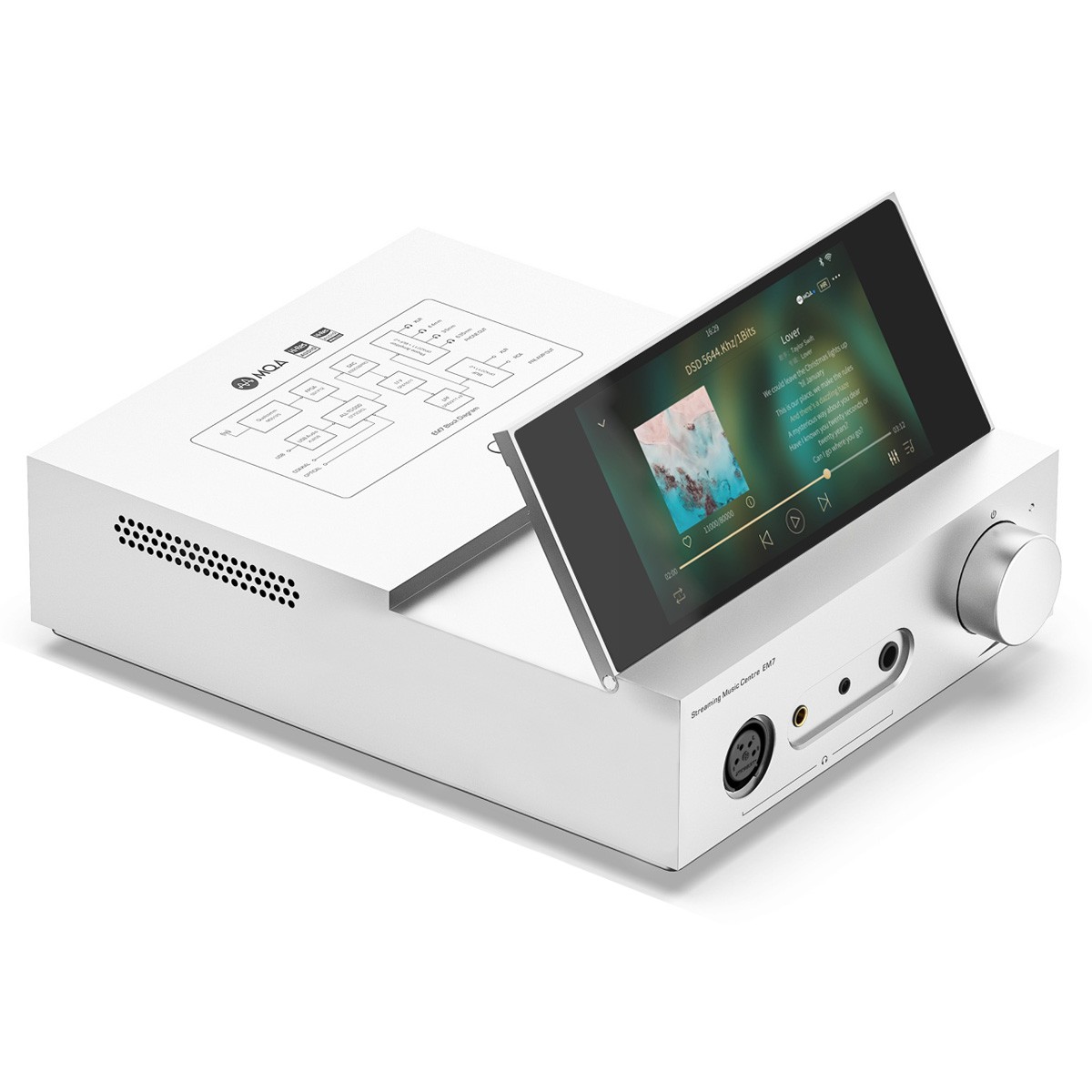

The big news about the EM7, however, is its new 60-degree tiltable touchscreen. Larger and with 1080p resolution, it can be used on a desk or atop a HiFi rack.

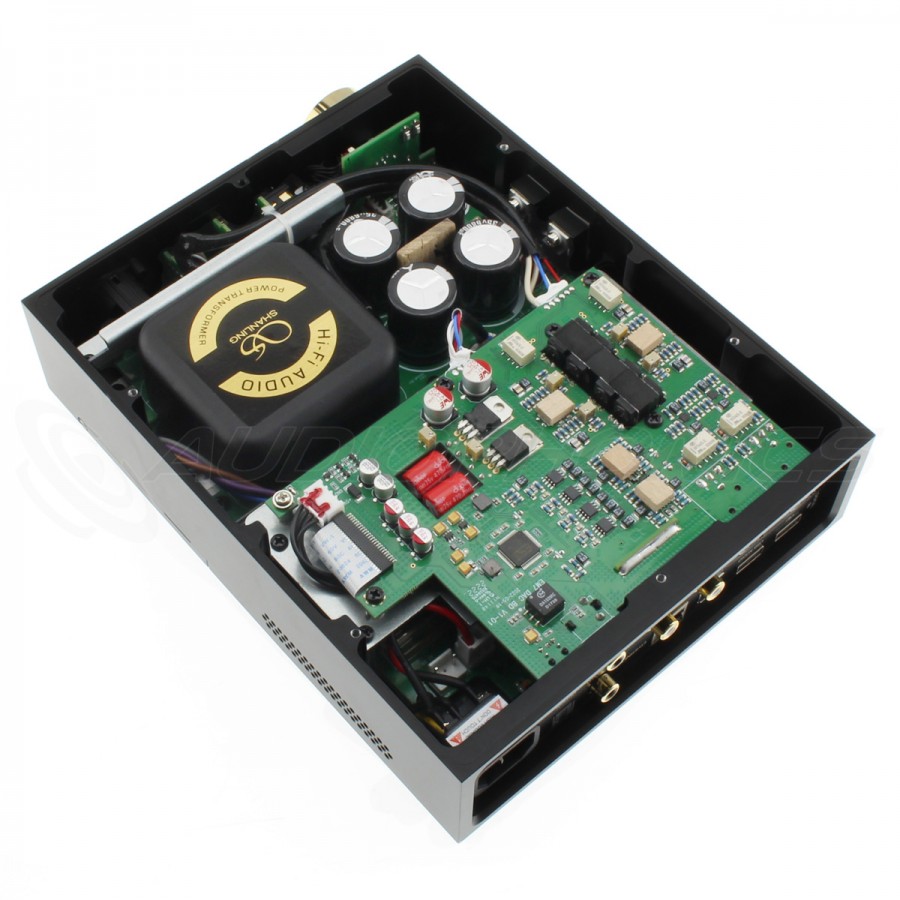

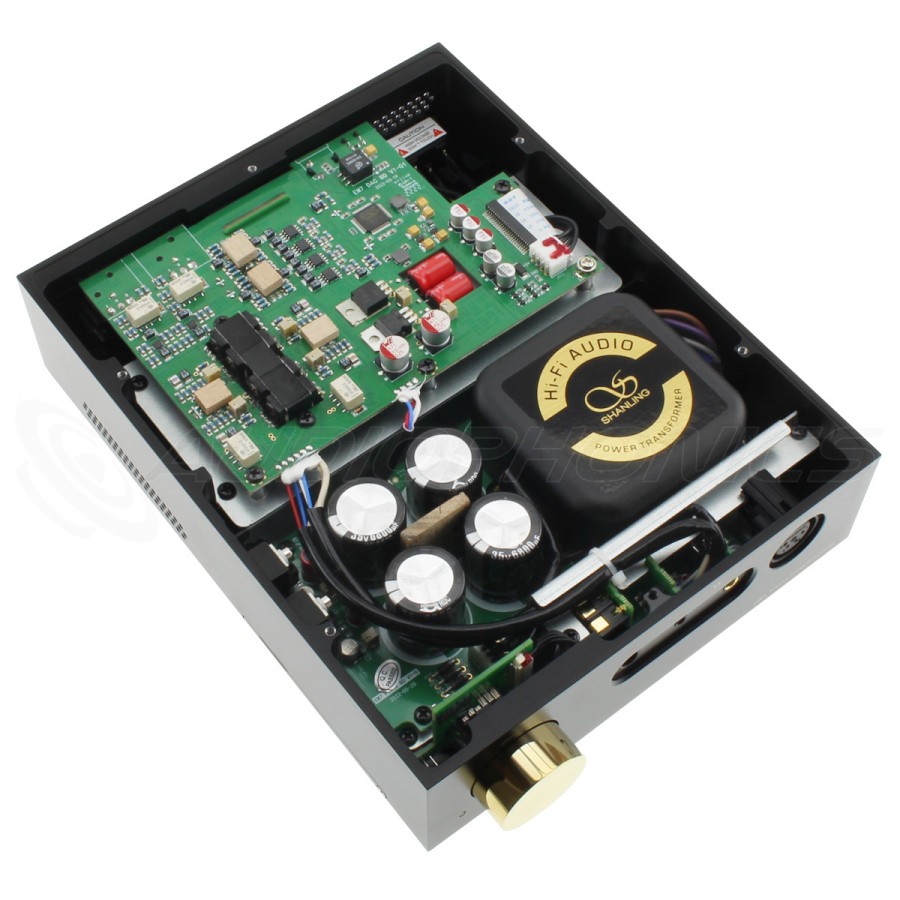

Moreover, in order to limit as much as possible any interference problem, the DAC and amplification sections are totally isolated from the software section, with an independent power supply for each one and a low noise Noratel toroidal transformer for the analog section.

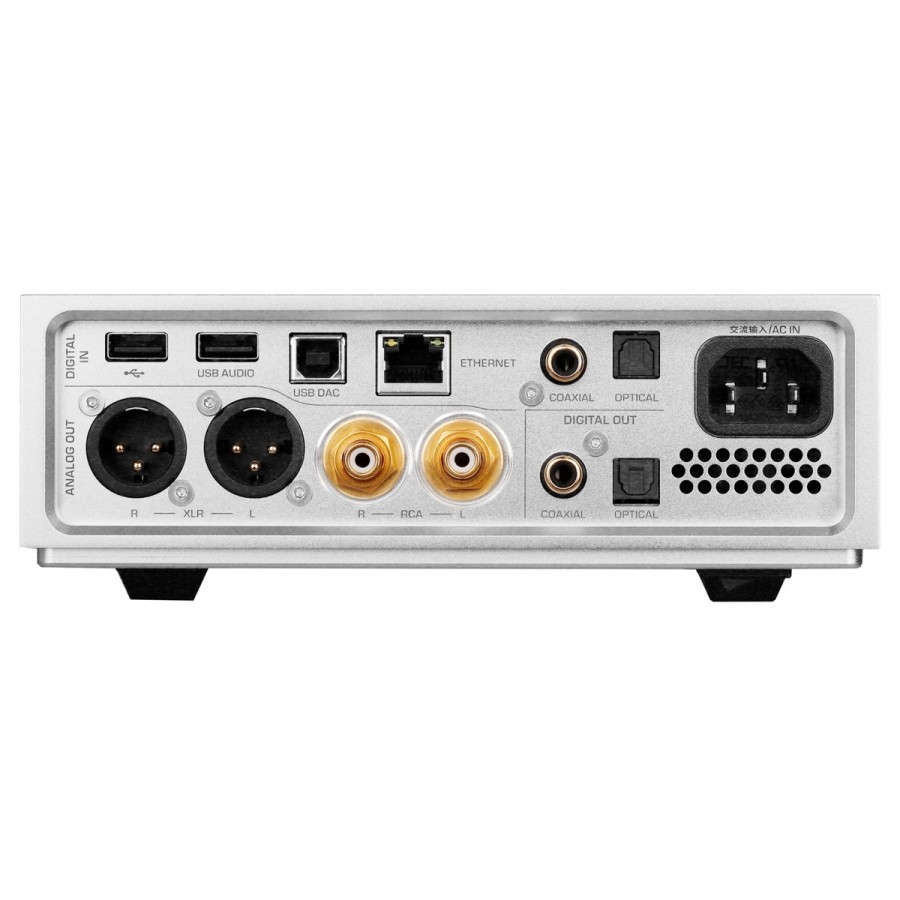

The Shanling EM7 also has a full range of connectivity options to meet the vast majority of needs. In addition to WiFi and Bluetooth connectivity, the input ports are USB-A, USB-B, RJ45 Ethernet, coaxial and optical. For the outputs, the device offers coaxial, optical, single-ended RCA and balanced XLR. The front panel of the EM7 also offers a series of headphone connections, with XLR 4 pins and 4.4mm jack for the balanced part and 6.35mm jack and 3.5mm jack for the single-ended section.

Thus, the EM7 is intended to be a versatile device, fulfilling all the functions that one could wish from an all-in-one audio system.

Technical characteristics

Specifications
Product typeStreamer
ConnectivityWiFi Dual Band 2.4/5Ghz
Bluetooth 5.0
Inputs1x USB-B
1x Coaxial SPDIF
1x Optical Toslink
2x USB-A (USB Host)
1x Micro SD slot
Outputs1x Coaxial SPDIF
1x Optical Toslink
1x USB
1x Balanced XLR
1x Single-ended RCA
1x Balanced XLR 4 pins headphone output
1x Balanced Jack 4.4mm headphone output
1x Single-ended Jack 3.5mm headphone output
1x Single-ended Jack 6.35mm headphone output
DAC ChipES9038Pro
Touchscreen5.8", 1920*1080px, IPS
OSAndroid 10 custom
Supported Bluetooth codecsReceiver: SBC, LDAC
Transmitter: SBC, aptX, aptX HD, LDAC
Supported sampling ratesPCM up to 32bit 768kHz
DSD up to DSD512
Single-ended output power2.3W @ 32Ω
270mW @ 300Ω
Balanced output power7W @ 32Ω
1W @ 300Ω
Output impedanceSingle-ended: 1.2Ω
Balanced: 2.4Ω
THD+N (balanced)0.0003%
Dynamic range (balanced)125dB
SNR (balanced)125dB
Channels separation104dB
General
Dimensions252 x 188 x 67.5mm
Weight3.2kg
ColorSilver

Data sheet
InputUSB
InputOptical
InputSPDIF
InputMicro SD
OutputJack 3.5mm
OutputCoaxial SPDIF
OutputJack 4.4mm
OutputUSB
OutputRCA
OutputXLR
OutputJack 6.35mm
OutputOptical Toslink
DAC / ADC ChipES9038PRO
Max sampling rateDSD512
Max sampling rateMQA
Max sampling rate768kHz
ColorSilver
Remote ControlN/A
Streaming services & Network protocolsNC
