IBASSO AMP12 Discrete Amplifier for iBasso DX300 / DX320 Blue

IBASSO AMP12 Discrete Amplifier for iBasso DX300 Blue

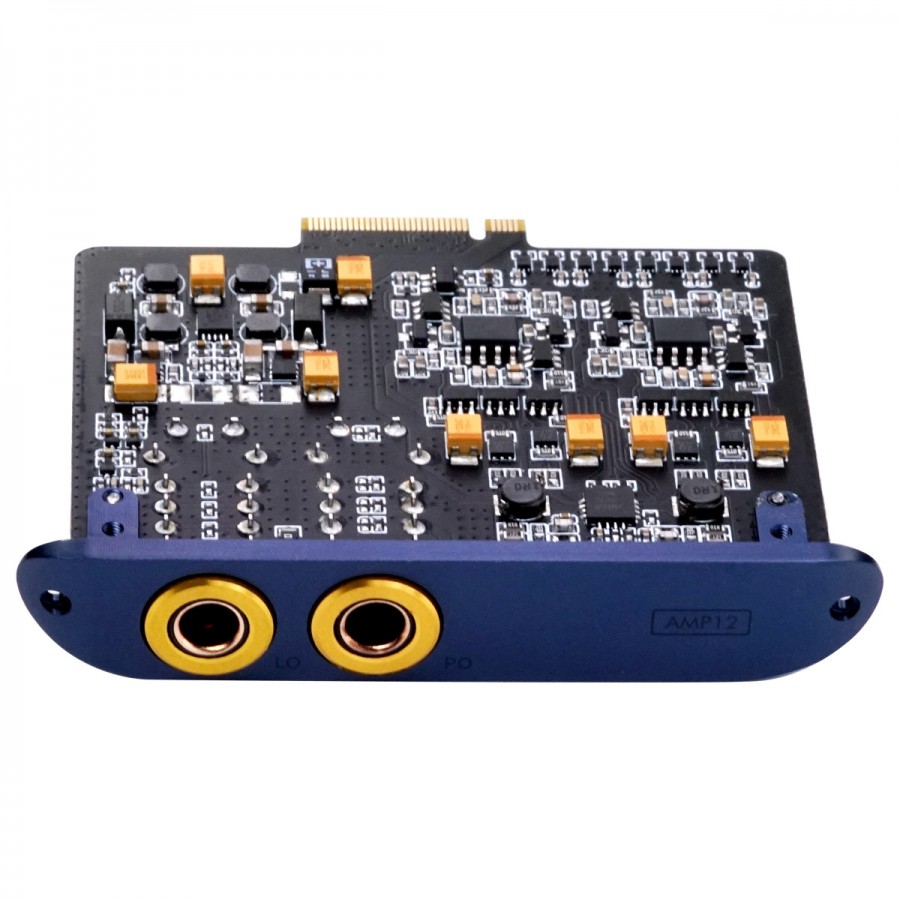

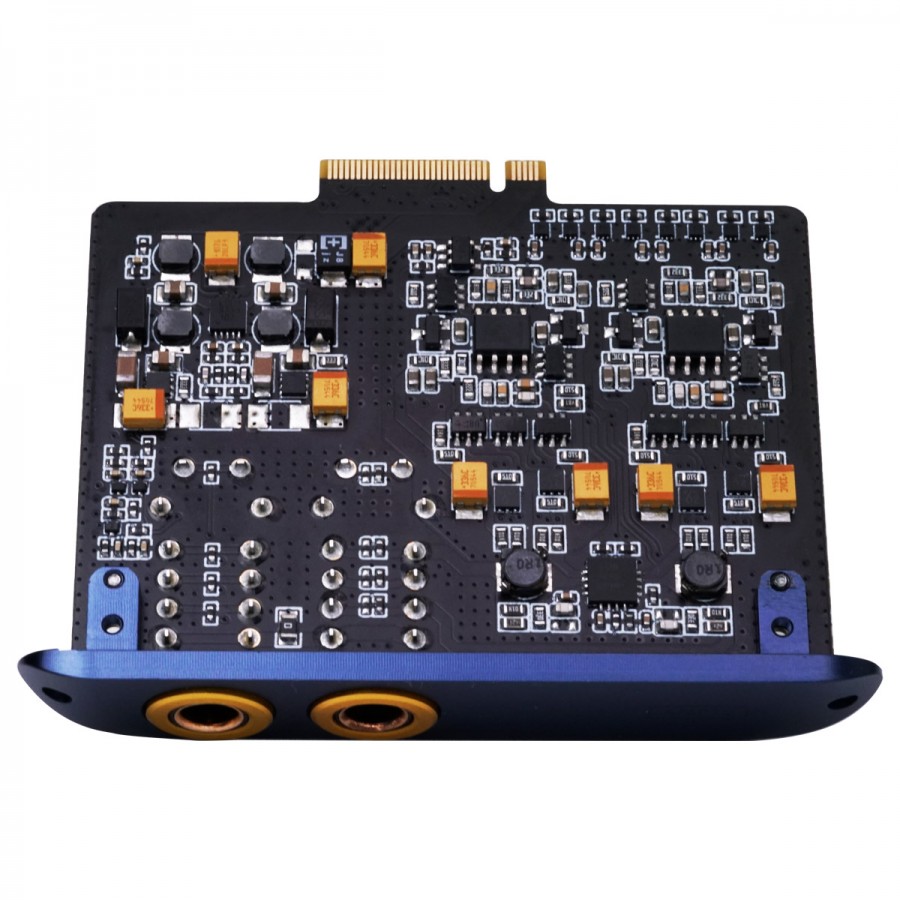

The iBasso AMP12 is a balanced amplifier card, designed for the iBasso DX300 / DX320. It benefits from a totally discrete architecture, both on the voltage and current amplification stages.

No customer reviews yet, login to write a review.

By buying this product you get 22 loyalty points


Reference : 15435
New product

229,00 €tax incl.

190,83 € tax excl.

- +

Shipping date: 23-02-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

iBasso AMP12

Discrete Amplifier for iBasso DX300 / DX320 Blue

iBasso AMP12 Amplificateur Discret pour iBasso DX300 Bleu

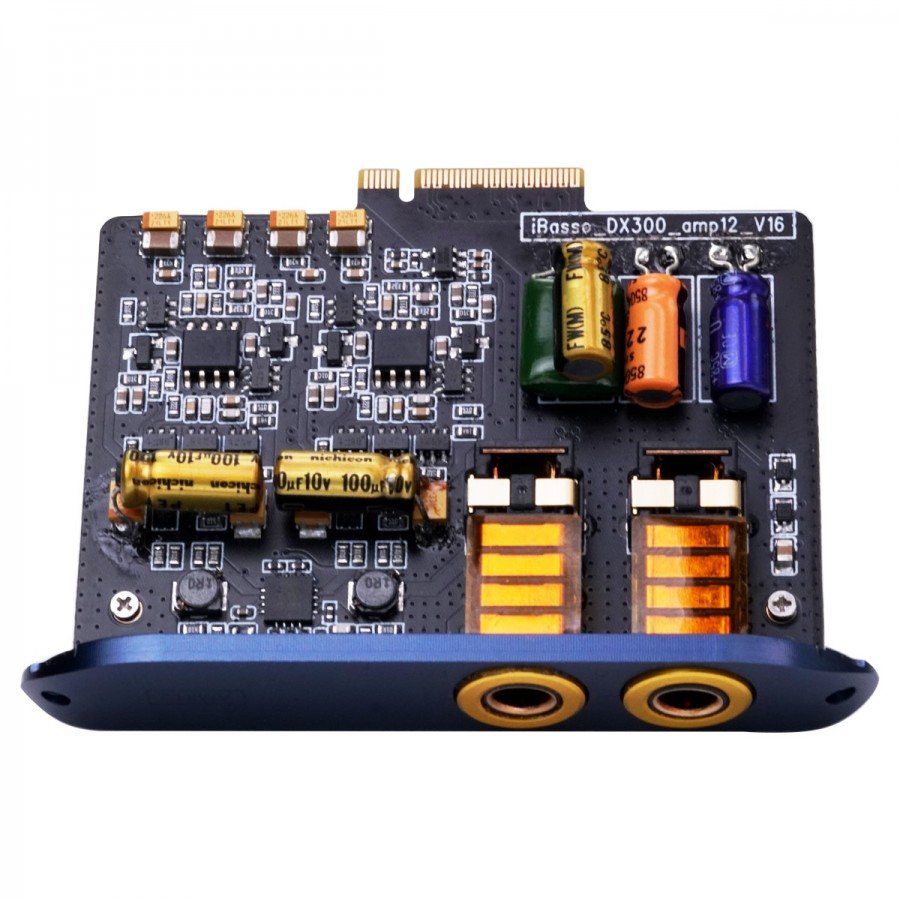

The iBasso AMP12 is a balanced amplifier card, designed for the iBasso DX300 / DX320. It benefits from a totally discrete architecture, both on the voltage and current amplification stages. Its input stage uses a special circuit that converts the signal into a positive and negative balanced analog waveform. The voltage is amplified by a circuit based on a symmetrical transistor. This allows to reach a very high cut-off frequency, for a better restitution of the high frequencies and consequently an extremely detailed sound.

The output stage uses a special design, equivalent to a Super Class A amplifier, with the characteristics of a Class A amplifier as well as offering a very low quiescent current. The use of an auto-zero transmitter helps to produce particularly deep bass.

The voltage feedback of the AMP12 adopts a double negative feedback loop, a DC gain loop feedback and a partial AC feedback. This method increases the electrical stability of the circuit and reduces the distortion of the transient response. An architecture that ensures high neutrality, lower noise level and high transparency, combined with a wide sound stage.

iBasso AMP12 Amplificateur Discret pour iBasso DX300 Noir

A dedicated battery

The DX300's amplifier board is larger than the DX200's, allowing for the integration of more complex circuitry and the use of better components in an overall optimized design. The AMP12 can integrate its own battery, providing a clean and stable power supply for high quality sound reproduction.

Dual balanced 4.4mm jack output

The AMP12 has two balanced outputs on 4.4mm jack. One of them is a line output, not using the amplifier stage, allowing to connect the AMP12 to an external amplifier.

iBasso AMP12 Amplificateur Discret pour iBasso DX300 Noir

Technical characteristics

Specifications
Product typeAmplifier board
Output voltageHeadphone output: 8.3Vrms
Line out: 4.1Vrms
Frequency response10Hz - 45kHz (±0.9dB)
THD+N (1k/48kHz/24bit 3Vrms)Headphone output: -113dB @ no load, -112dB @ 300Ω, -107dB @ 32Ω
Line out: -116dB @ no load
Dynamic range128dB
SNR128dB
Crosstalk-102dB
Output current2000mA
General
ColorBlue
Package1x iBasso AMP12
1x Leather protection cover
1x Transport box
1x Torx T3 screwdriver
