TONEWINNER SW-D8000PRO Active Subwoofer

New
The Tonewinner SW-D8000PRO active subwoofer is a bass reflex subwoofer equipped with two 38.1cm drivers for an RMS power of 1500W under 3Ω, and can reach 8000W at peak. It offers numerous options such as crossover frequency adjustment, 7-band equalisation, volume control and 0°-180° phase inversion. Six vents on the front panel improve bass response. In terms of inputs, you can choose between an RCA line input or two other inputs: single-ended RCA LFE and balanced XLR. Furthermore, the SW-D8000PRO also offers an LFE output.

No customer reviews yet, login to write a review.

By buying this product you get 319 loyalty points


Yes, notify me when available !
Reference : 20902
New product

3 190,00 €tax incl.

2 658,33 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Tonewinner SW-D8000PRO Active Subwoofer 1500W 3 Ohm 12Hz-220Hz 2x Ø38.1cm

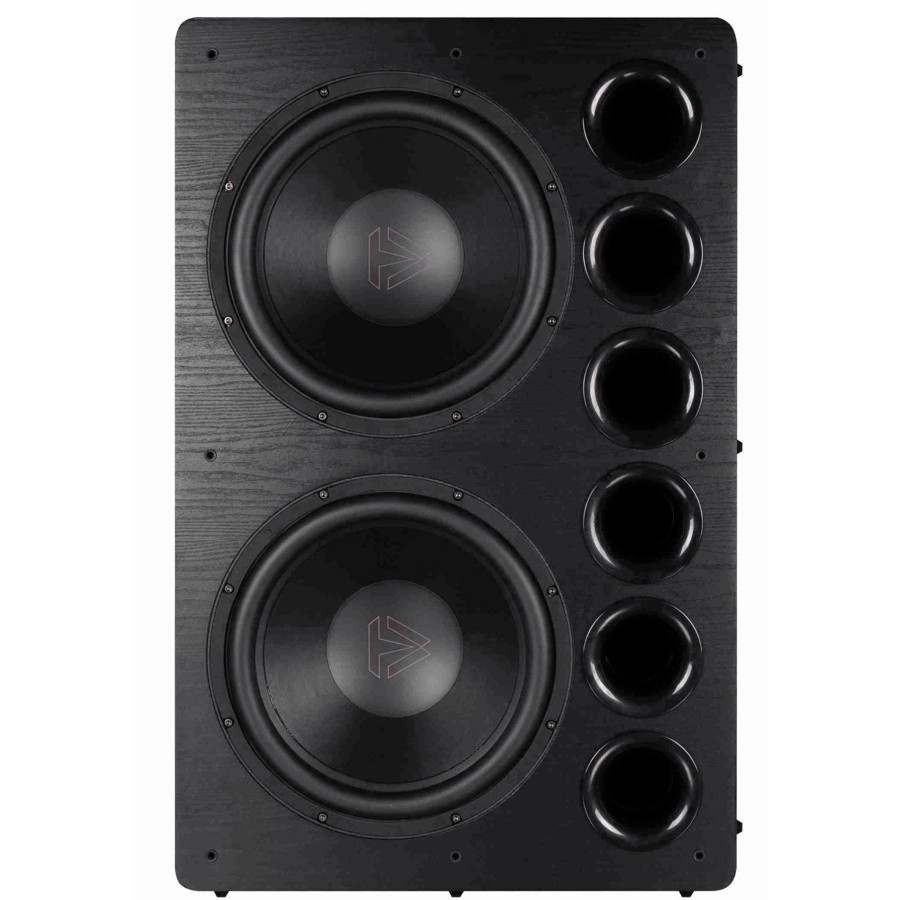

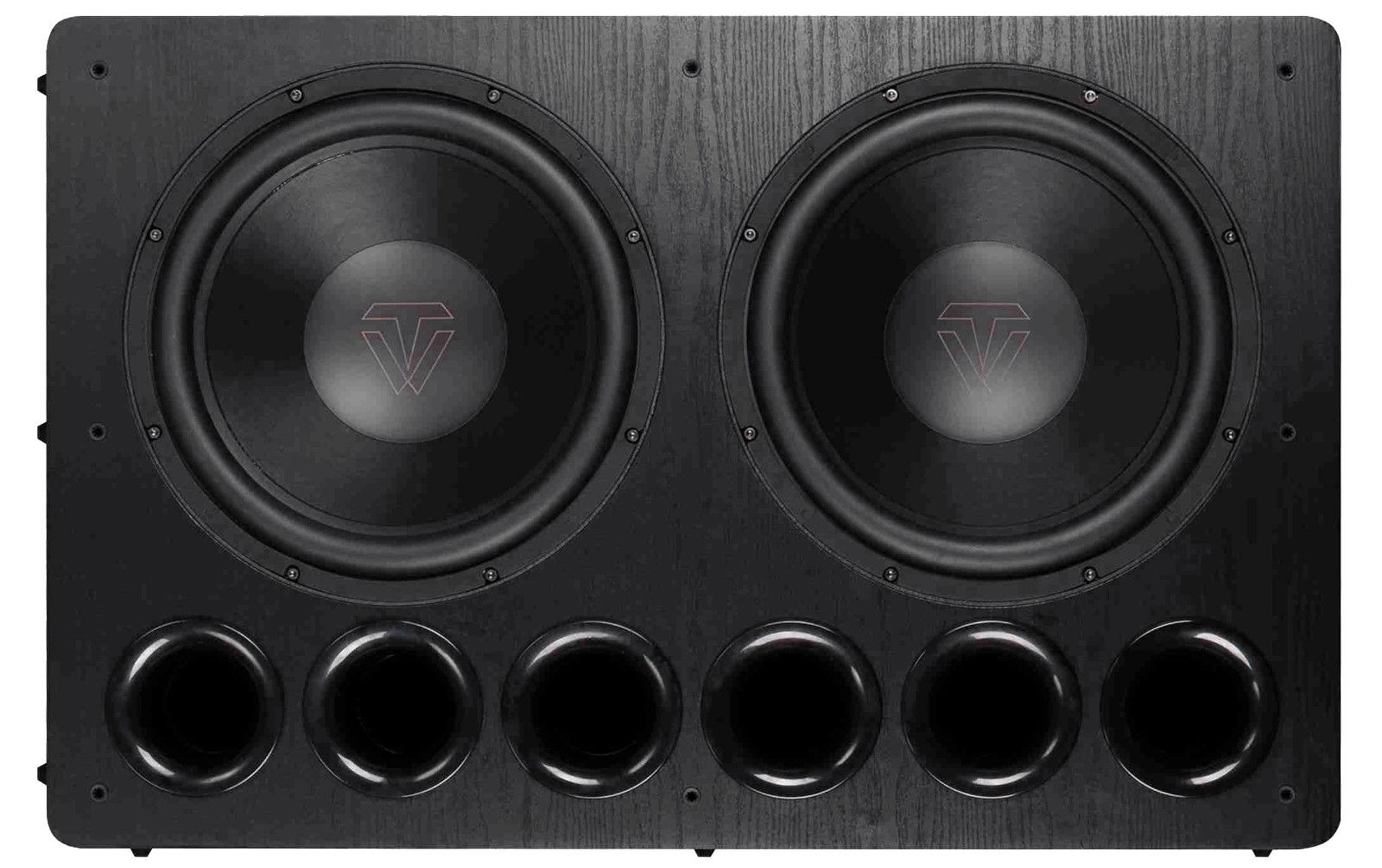

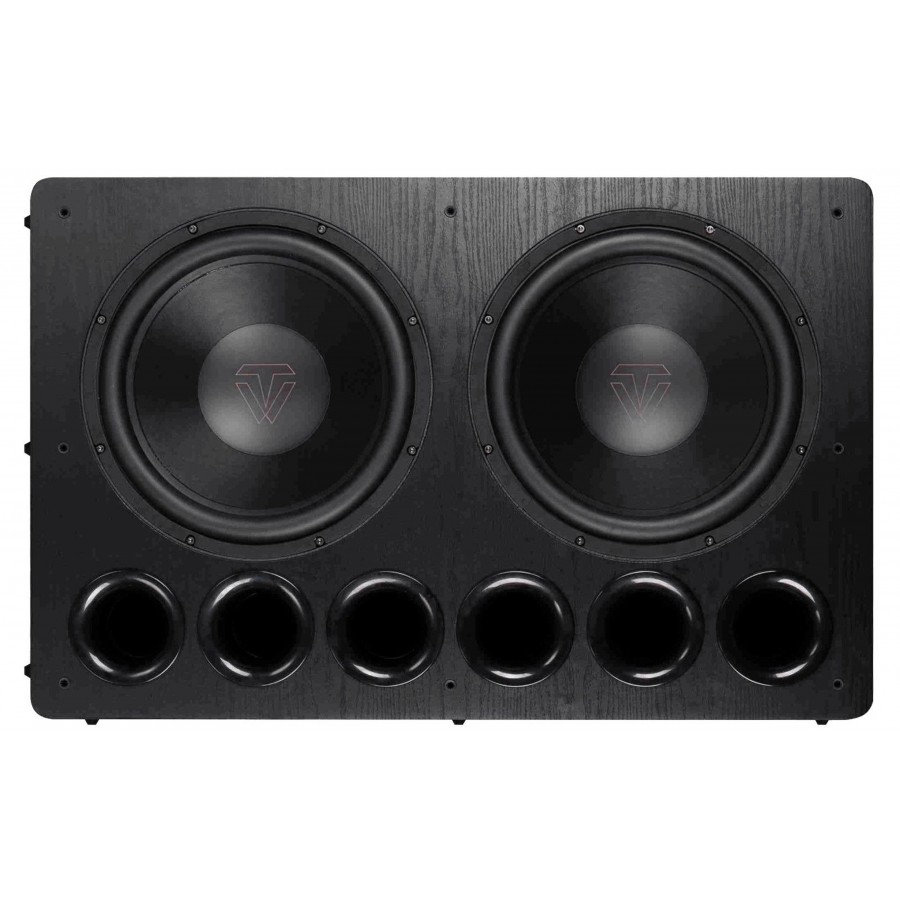

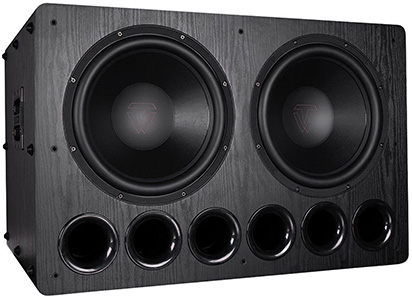

Tonewinner SW-D8000PRO : Front view


The Tonewinner SW-D8000PRO active subwoofer is a bass reflex subwoofer equipped with two 38.1cm drivers for an RMS power of 1500W under 3Ω, and can reach 8000W at peak. It offers numerous options such as crossover frequency adjustment, 7-band equalisation, volume control and 0°-180° phase inversion. Six vents on the front panel improve bass response. In terms of inputs, you can choose between an RCA line input or two other inputs: single-ended RCA LFE and balanced XLR. Furthermore, the SW-D8000PRO also offers an LFE output.

Tonewinner SW-D8000PRO: 2 x Ø38.1cm drivers

In order to deliver powerful bass, the SW-D8000PRO has been equipped with two 38.1cm diameter drivers, each coupled with a 75mm voice coil and a dual magnet circuit. This configuration allows you to get the most out of the 1500W Class D amplification, ensuring powerful and dynamic bass reproduction, capable of reaching frequencies as low as 12Hz.

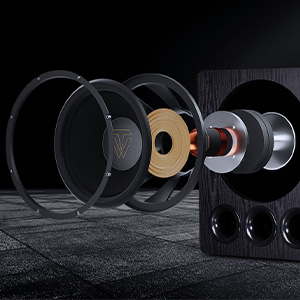

Tonewinner SW-D8000PRO : driver detail

Tonewinner SW-D8000PRO: Wide range of setting options

Thanks to the Tonewinner app available on Android and iOS, the SW-D8000PRO offers 7-band equalisation settings, crossover frequency adjustment and phase inversion, allowing you to perfectly tailor your subwoofer's performance to your listening environment and usage.

Tonewinner SW-D8000PRO Overview

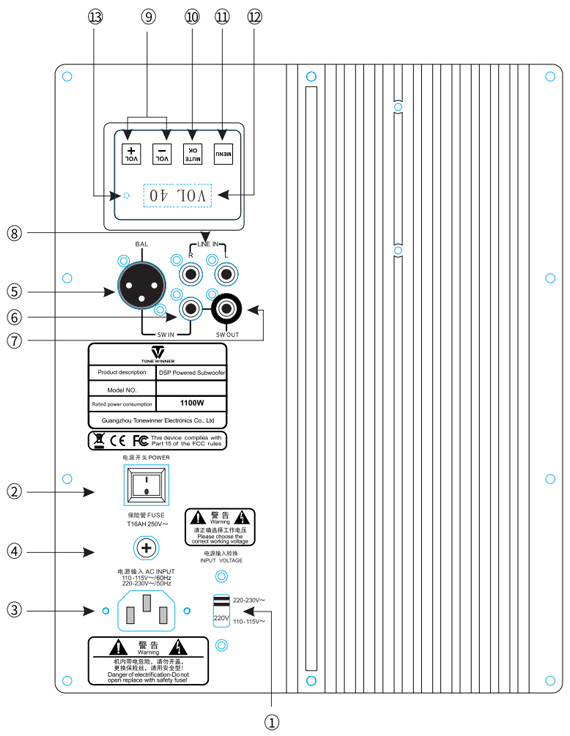

Tonewinner D8000PRO : rear facade diagram
1Power supply voltage switch
2Power switch
3Power supply socket
4Fuse
5Sub XLR input
6Sub RCA input
7Sub output
8RCA line input
9Volume control
10Mute function / Confirm button
11Menu button
12LCD screen

Technical characteristics

Specifications
Product typeActive subwoofer
Driver diameter2x Ø38.1cm
Amplification typeClass D
Output powerRMS : 1500W
Max : 8000W
Frequency response12Hz - 220Hz
Phase adjustment0 - 180°
Impedance3Ω
DSP / EQ
Inputs1x LFE XLR
1x LFE RCA
1x RCA stereo line input
Output1x RCA LFE output
General
Dimensions930 x 612 x 650mm
Weight85kg
ColorBlack
PackageSold by unit
