Aluminium Case with Heatsink 430x311x70mm Silver Front Panel
By buying this product you get 14 loyalty points
![[GRADE S] MOGAMI W3103 Speaker Cable OFC Copper 2x4.mm² Ø12mm 2.9m](https://www.audiophonics.fr/60807-thumb_default/mogami-w3103-speaker-cable-ofc-copper-2x4mm-o12mm.jpg)
![[GRADE S] FURUTECH FP-S55N LIMITED EDITION Power Cable OFC Copper Silver Gold Nano Liquid Alpha Treatment 5.26mm² Ø18mm 2.65m](https://www.audiophonics.fr/60802-thumb_default/furutech-fp-s55n-limited-edition-power-cable-ofc-copper-silver-gold-nano-liquid-alpha-treatment-526mm-o18mm.jpg)
![[GRADE B] IFI AUDIO ZEN STREAM Hi-Res Audio Streamer WiFi DLNA 32bit 384kHz DSD256 MQA](https://www.audiophonics.fr/60791-thumb_default/ifi-audio-zen-stream-hi-res-audio-streamer-wifi-dlna-32bit-384khz-dsd256-mqa.jpg)
![[GRADE B] IFI AUDIO ZEN STREAM Hi-Res Audio Streamer WiFi DLNA 32bit 384kHz DSD256 MQA](https://www.audiophonics.fr/60786-thumb_default/ifi-audio-zen-stream-hi-res-audio-streamer-wifi-dlna-32bit-384khz-dsd256-mqa.jpg)
![[GRADE B] IFI AUDIO ZEN CAN Class A Balanced Headphone Amplifier 15.2V](https://www.audiophonics.fr/60782-thumb_default/ifi-audio-zen-can-class-a-balanced-headphone-amplifier-152v.jpg)
Aluminium Case

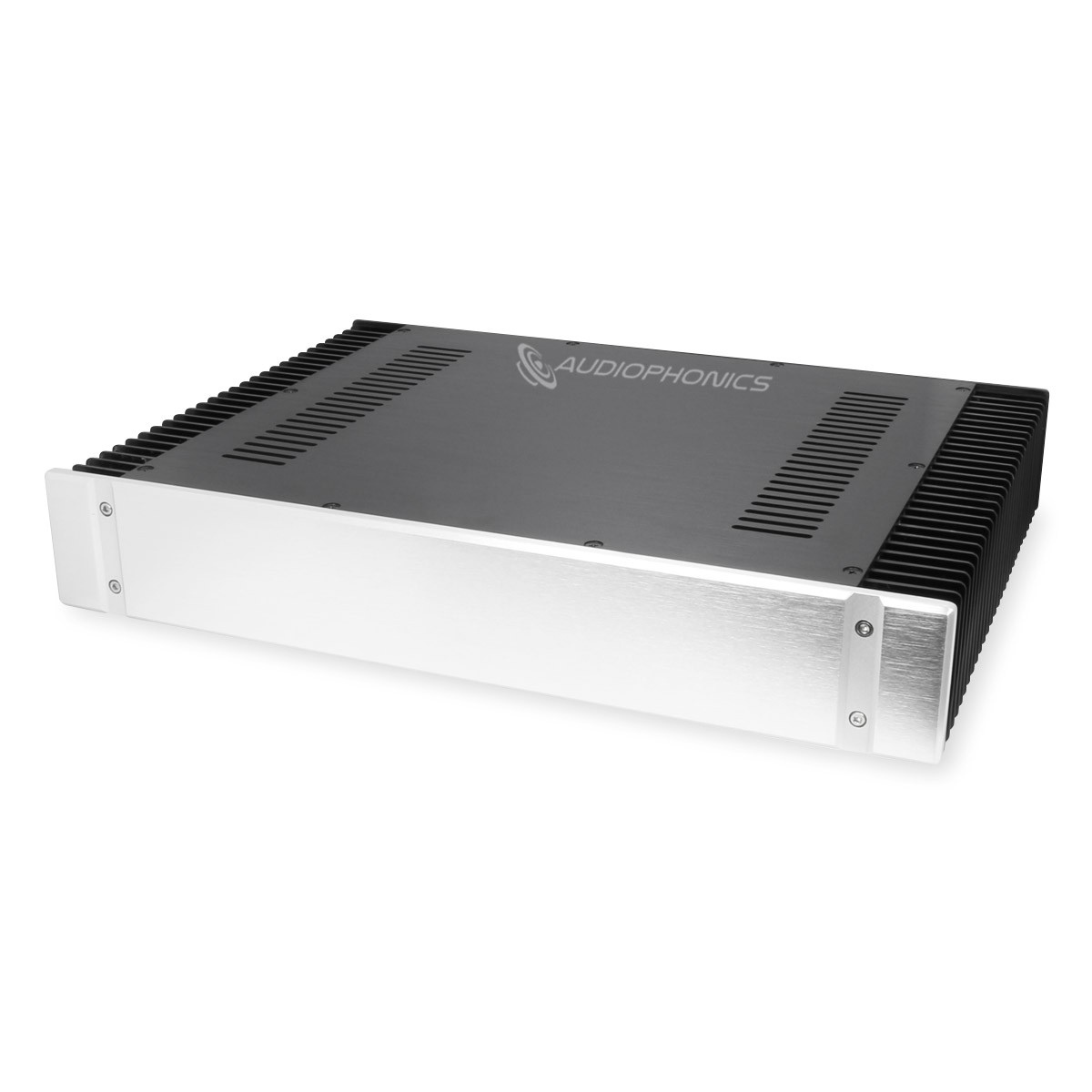

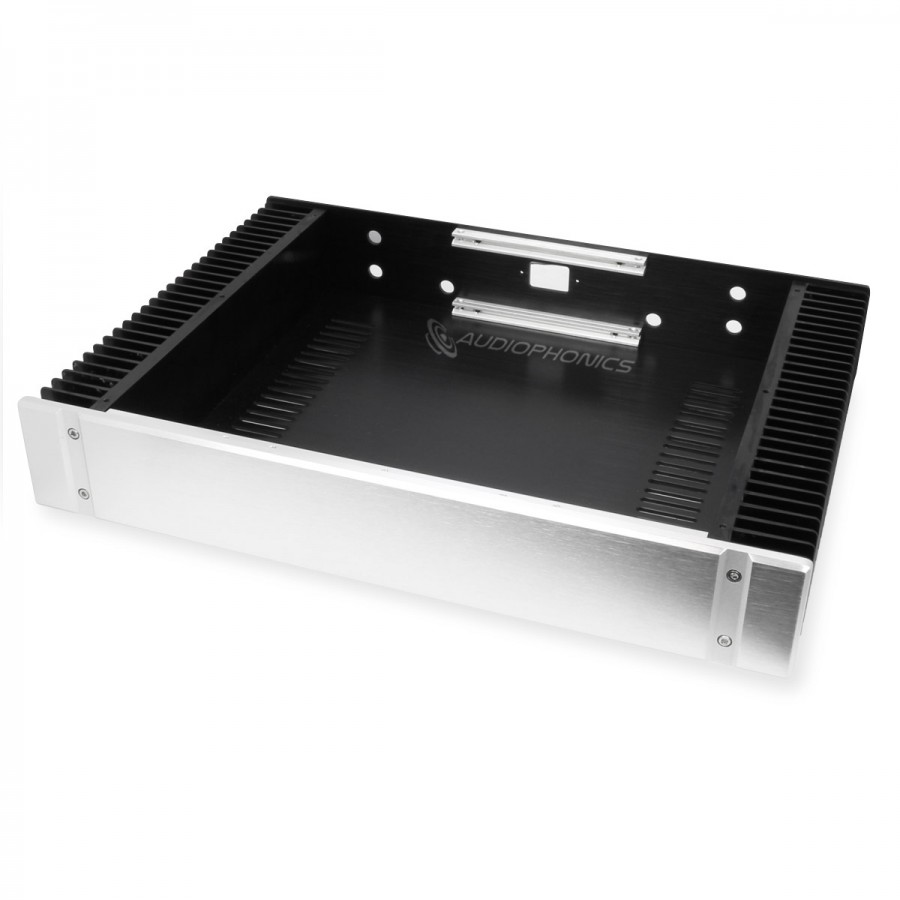

Aluminium Case with Heatsink 430 x 311 x 70mm Silver Front Panel
This 100% Aluminium DIY box equipped with two cooling radiators / lateral heat sinks will allow you to integrate an amplifier or any other audio mounting. Its design allows it to benefit from very good heat dissipation, thus allowing you to integrate components that release heat. In addition, it ensures professional assembly and finishing.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Case |
| Material | Anodized brushed Aluminium |
| External dimensions | 430 x 311 x 70mm |
| Internal dimensions | 330 x 300 x 64mm |
| Colors | Front panel : Silver Rest of the chassis : Black |
| Heatsink dimensions | 40 x 300 x 66mm |
| Panels thickness | Front panel: 8mm Back panel: 3mm Side panels: 9.3mm Top / Bottom panels: 3mm |
| Back panel round cutout diameter | 10.5mm |
| IEC cutout dimensions | 28 x 20mm |
| IEC fixation holes spacing | 40mm |
| Weight | 4.36kg |
| Package | 1x Boîtier 1x IEC Socket 4x Anti-slip feet |
