Aluminum Case for Khadas Tone Board

Aluminum Casing for Khadas Tone Board
Aluminum case designed to use your DAC Tone Board by Khadas in stand-alone mode. Allows you to exploit all the features of the card and effectively protects it against shocks and interference. Space-saving and lightweight

Average votes for this product
4.1 / 5

By buying this product you get 1 loyalty point


Reference : 13626
New product

14,92 €tax excl.

Available

- +

Shipping date: 15-11-2019.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Housing Aluminum for Tone Board (Khadas)

DIY case for khadas toneboard dac

CAUTION : this is the housing only. Tone Board DAC is Sold separately.


Housing for DAC Kadas


This alumunium housing is designed to accommodate your card ToneBoard Khadas stand-alone (one card). It provides an independent and functional finished DAC from the excellent DAC in Khadas. Whether you are curious about the entusiasthm met by Khadas DIY DAC in audiophiles circles or you are already convinced and want a quick integration in a more complex audio system, this housing allow a easy mounting for an immediate use.

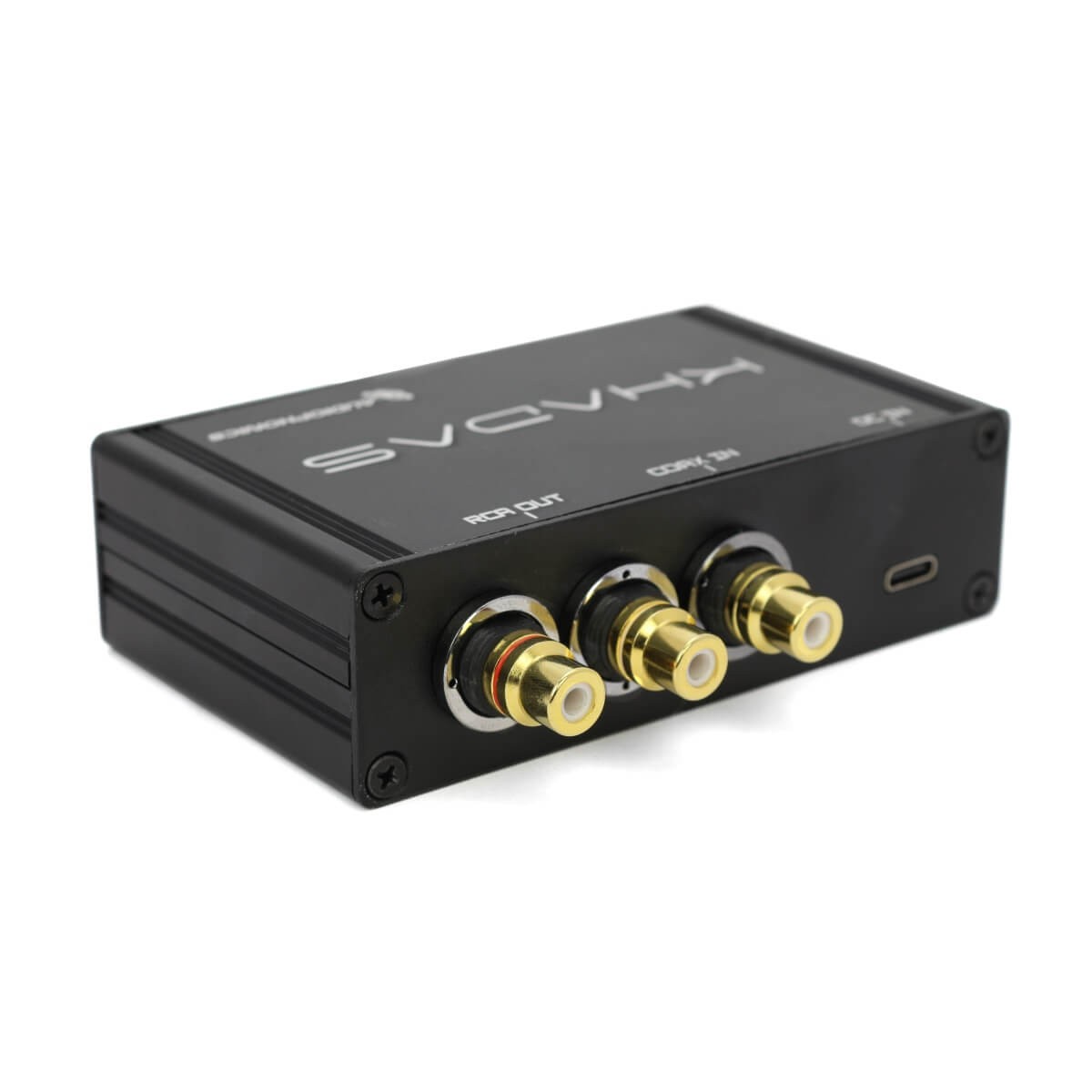

The openings provide quick access and secure all connectors. thus we end up on the same frontage digital input, analog outputs on RCA, the power supply / input on USB C.

Entirely made of aluminum, the case protects your Tone Board card against mechanical shock and most electromagnetic interference.

Once mounted, the set offers very advantageous dimensions: 102mm wide Pourr 65mm long with 30mm height.

The VIM Edition version of the Tone Board is not compatible with this box.

Design and conception by Audiophonics.

Specifications
TypeHousing
CompatibilityTone Board (Generic) - Khadas
Material100% Aluminum
Dimensions65 x 102 x 30mm
Weight105g (body only + screw + washers)
Package Contents
lower platex1
top platex1
front platex1
backplatex1
Mounting screwsx8
washersx1
Use screws, nuts and spacers provided with the Tone Board for mounting the PCB

Data sheet
ColorBlack
MaterialAluminium

Download

Montage_boitier_khadas_ap-v2

Montage_boitier_khadas_ap-v2_en

Download (1.12M)

Delivery
We deliver all of France, and internationally.
To discover the amount of the shipping costs, you just have to go in your shopping cart once the desired products added.
To discover our different services and delivery options, click on the following logos:
Colissimo - TNT - SoColissimo
Only registered users can post a review. Log in or create an account .
Average votes
4.1 / 5
11 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 4/5
Date :
Good result!
I don't give 5 stars because you need to shave off the stands like around 1,5 mm. Also be sure to carefully think how you will tighten the thing up.

It takes just little patience but if you don't hurry the finalized box looks really good!
 (0)
 (0)
This review has been posted for Aluminum Case for Khadas Tone Board
Note :
 5/5
Date :
Nice case, fits well -- one little trick though
Make sure to tighten the long brass screws to the spacer underneath the board gradually as you go. Do not fully tighten the first one immediately or you may find that the second or third one will not line up and that the board may need to bend in order to fully secure the next spacers.

Similarly, do not immediately tighten the screws of the front and back plate; tighten them gradually in a cross pattern. Otherwise you may find that the USB input does not line up with the hole on the front plate and/or there will be unsightly gaps between the plates and the top and bottom pieces.

I found it helpful to rest the LED side of the case on a flat surface as I installed the front panel screws.
 (0)
 (0)
This review has been posted for Aluminum Case for Khadas Tone Board
Note :
 5/5
Date :
Perfect
Great case for Khadas dac
 (0)
 (0)
This review has been posted for Aluminum Case for Khadas Tone Board
Note :
 5/5
Date :
Almost perfect case for the Khadas Tone Board
The case gives the little DAC board the justification and the robustness to play along with your other HIFI components, thank you Audiophonics !
It would deserve 6 stars if you had added four very small aditional components: 2 spacers M2*5 mm female-female and 2 screws M2*5 mm. The issue is, that the distance of the board to the bottom plate with the three holes (according to the drillings in the front plate) is exactly 5 mm, and not 7 mm, which is the size of the original Khadas spacers ... It is enough to fix the two rear spacers, since the board is also fixed at the front plate via the 3 RCA sockets. And one small piece of paper with a drawing please! M2 spacers and screws are difficult to get, almost only via the internet and in a set of 270-300 parts which costs approximately another 10 Euro! Please Audiophonics, add above mentioned components (for additional 1-2 Euro) and make the life easier for everyone building the case. Because if you use the Khadas spacers you are going to bend the board and/or the front plate, which in long term is not ideal.
But then again: with this case you finally have product which does not have to fear any comparison ! Add 11827 Damping Feet 10x5mm (Set x4), and it is perfect.
 (2)
 (0)
This review has been posted for Aluminum Case for Khadas Tone Board
Note :
 5/5
Date :
Great Case!!
Great Case! Well without a Manual i had tu first figure out how to screw the Khadas Boord in this thing.

Well work, its Aluminium and anyone nagging about the finish quality.. "14,92 €" .. so i wont take it into my bed every night to snuggle with it ;) ...

its feeling solid, no sharp corners ans solid laquering and prints.. without this one you have this raw tone board wich super sucks!

so 5stars!!
 (0)
 (0)
This review has been posted for Aluminum Case for Khadas Tone Board
