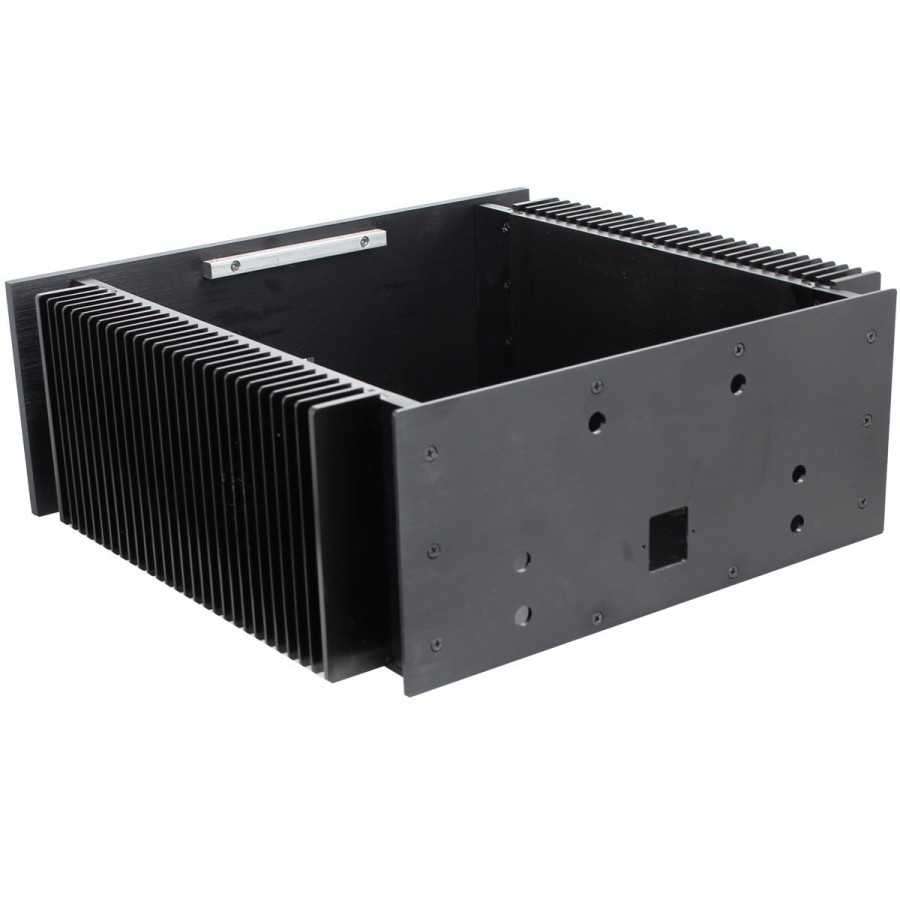

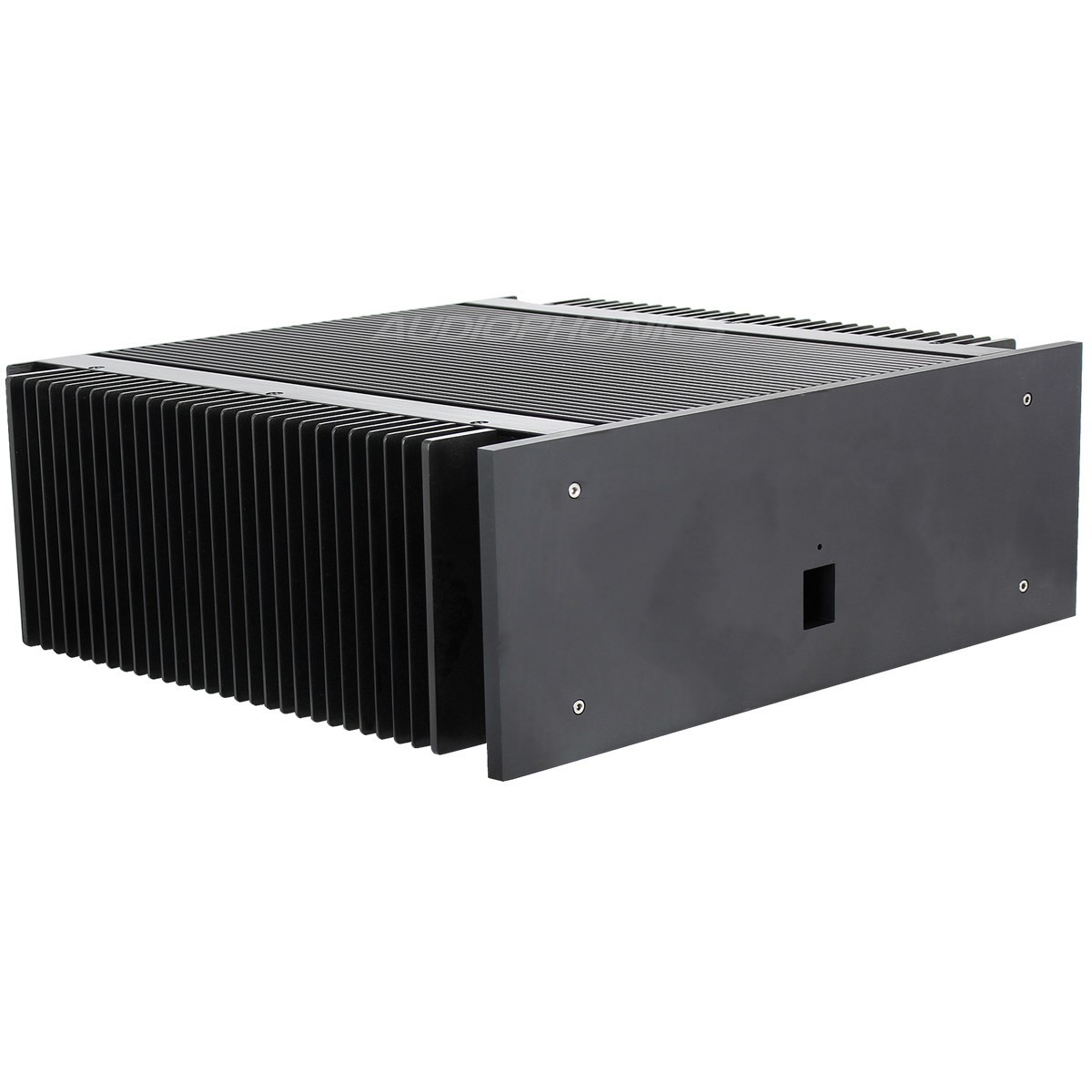

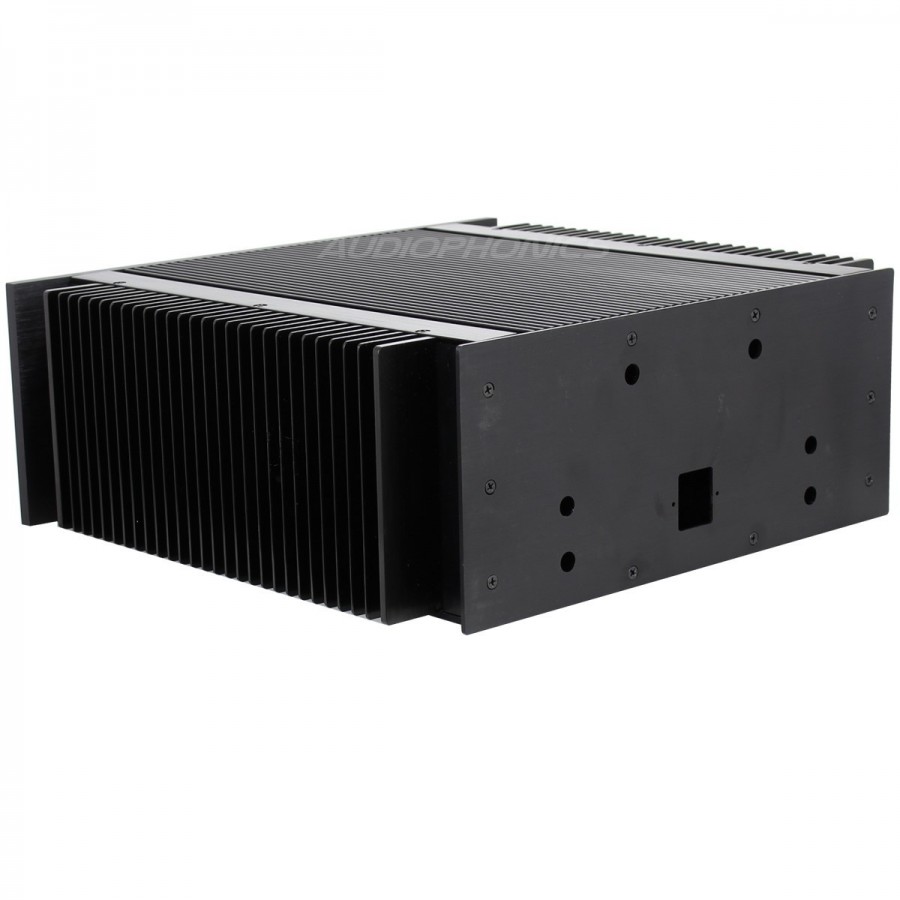

DIY Box / Case Power Amplifier 100% Aluminium 400x374x150mm

This DIY 100% Aluminum case in Hifi High End design in the United States is equipped with radiators with large surfaces.

In addition, holes are pre-drilled for the connection for stereo speakers and 2 RCA Cinch (not supplied).

Its original design ensures professional assembly and finishing at a low price.

Dimensions Internal:

• Working width: 300mm.
• Depth of use: 360mm.
• Working height: 142mm.

External Dimensions:

• Width: 400mm.
• Depth: 374mm.
• Height: 150mm.

Main Features :

• Brushed aluminum.
• Weight: 14kg.

Drilling Diameters:

Drilling Front:

• switch: 31mm x 22mm.

Holes Rear face:

• RCA: Ø 11mm x6.
• IEC connector: 27 x 32mm. (IEC 37mm distance).

The package contains:

• One female IEC socket: 18.65mm x 27.05mm.
• 4 non-slip feet: 39.77mm x 15mm.
• 22 x BTR type PH 1: 3.69mm x7.73mm.
• 7 x crosses: 11.91mm x 3.66mm.
• 9 x Phillips type PH00: 5.90mm x 2.76mm.
• 6 x Phillips type PH1: 17.3mm x 3.67mm.
• 3 x BTR H3: 6.75. x 3.68mm.
• 7 nuts: 6.72mm x 2.73mm.

Box sold to assemble.
