2SC5200 / 2SA1943 Mono Class AB Amplifier Boards 250W 4 Ohm (Pair)

2SC5200 / 2SA1943 Module Amplificateur mono 250W / 4 Ohm (La paire)
These mono power amplifier modules deliver 250W of power at 4Ω. The amplification stage consists of 6 high-quality Toshiba 2SC5200 / 2SA1943 bipolar transistors, while the power supply section includes two ELNA 63V 10000µF capacitors, a Sanken 50A diode bridge (rectifier) and a DIP8-mounted TL072CP dual OPA.

Average votes for this product
4.5 / 5

By buying this product you get 11 loyalty points


Yes, notify me when available !
Reference : 17869
New product

119,00 €tax incl.

99,17 € tax excl.

- +

Available on order
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

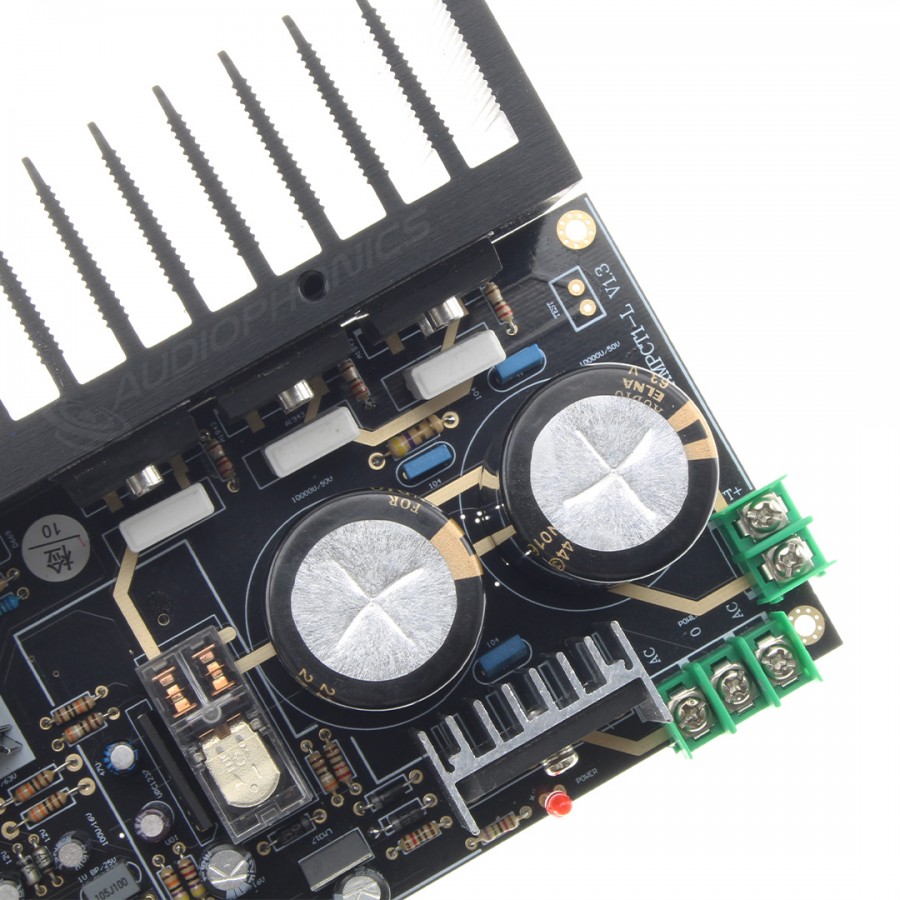

2SC5200 / 2SA1943

Mono Class AB Amplifier Boards 250W 4 Ohm (Pair)

2SC5200 / 2SA1943 Module Amplificateur Mono Class A/B 250W / 4 Ohm (La paire)

These mono power amplifier modules deliver 250W of power at 4Ω. The amplification stage consists of 6 high-quality Toshiba 2SC5200 / 2SA1943 bipolar transistors, while the power supply section includes two ELNA 63V 10000µF capacitors, a Sanken 50A diode bridge (rectifier) and a DIP8-mounted TL072CP dual OPA. In addition, two driver transistors (C2073 and A940) power the bipolar transistors, while a 669A heat regulation transistor located on the heat sink ensures their thermal stability. These amplifier modules have a wide frequency response of 10Hz - 50kHz and a low distortion of 0.002%. Input voltages range from 18-0-18VAC to 38-0-38VAC.

This pair of amplifier modules is ideal for DIY projects involving high-power amplification and high-fidelity sound. They deliver a transparent, detailed and powerful sound, ideal for creating a dual-mono amplifier.

The quiescent current must be set to 15mV at the test points, using the blue potentiometer (W 202).

2SC5200 / 2SA1943 Module Amplificateur Mono Class A/B 250W / 4 Ohm (La paire)

Speaker protection

Ce module d'amplification mono de 250 W de classe A/B intègre également une protection contre les retards de commutation et une protection contre le courant continu pour protéger vos haut-parleurs.

2SC5200 / 2SA1943 Module Amplificateur Mono Class A/B 250W / 4 Ohm (La paire)

2SC5200 / 2SA1943 Module Amplificateur Mono Class A/B 250W / 4 Ohm (La paire)

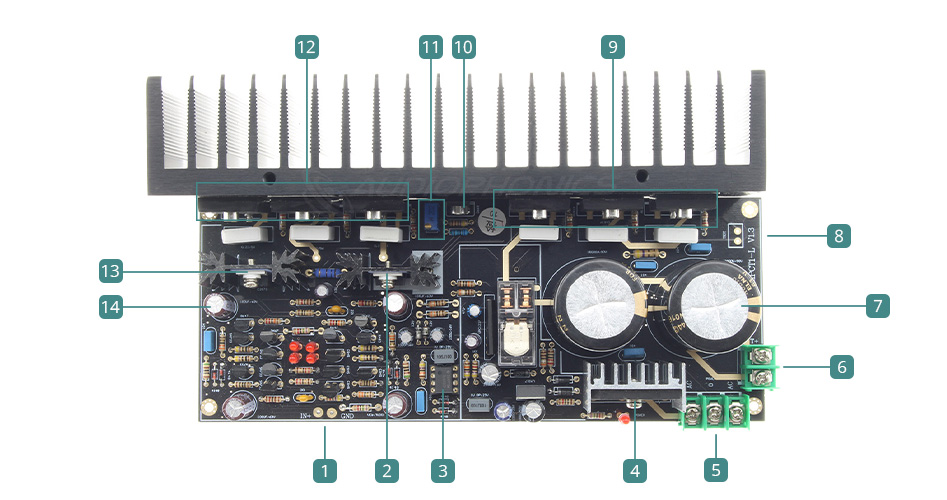

1Mono input (solder pads)
2A940 transistor (driver)
3Dual TL072CP OPA (DIP8)
450A diode bridge (rectifier)
518-0-18V AC to 38-0-38V AC Power supply input (screw terminal)
6Speaker output (screw terminal)
7ELNA 63V 10000µF capacitors
8Voltage test terminal for heat compensation transistor adjustment (solder pads)
93x Toshiba 2SA1943 power transistors
10669A Heat compensation transistor
11Potentiometer W202 (quiescent current adjustment)
123x Toshiba 2SC5200 power transistors
13C2073 transistor (driver)
144x 63V 120µF capacitors

Inputs & Outputs

2SC5200 / 2SA1943 Module Amplificateur Mono Class A/B 250W / 4 Ohm (La paire)
1Line input +
2Line input GND
3AC power supply input
40-GND power supply input
5AC power supply input
6Speaker output -
7Speaker output +
2SC5200 / 2SA1943 Module Amplificateur Mono Class A/B 250W / 4 Ohm (La paire)

Technical characteristics

Specifications
Product typePower amplifier modules
Amplification typeClass AB
Power transistorsToshiba BPN bipolar transistors:
3* 2SC5200
3* 2SA1943
Diver stage transistors1* C2073
1* A940
Regulator transistor (thermal compensation)1* 669A
OPADual OPA TLTL072CP (DIP8)
Capacitors2* ELNA 63V 10000µF
4* KZN 63V 120 µF
Output power250W @ 4Ω
150W @ 8Ω
Frequency response10Hz-50kHz
Distortion0.002%
Input1* Mono input on solder pads
Output1* Speaker output on speaker terminal
General
Power supply18-0-18V to 38-0-38V AC onscrew terminal
PCB dimensions (D*W*H)Aprox. 82*205*54mm
Dimensions with heatsink (D*W*H)Approx. 122*212*63mm
Mounting holes spacingApprox. 69*192.5mm
Weight890g/module
QuantitySold in pairs

Data sheet
InputSolder pad
InputScrew terminals
OutputScrew terminals
Channel1 (Mono)
ChannelDual Mono
ClassClass A / AB
Amplifier chipTransistors
Power (W)250.0
