Amplifier Module Dual Mono Class A NJW0281G 2x25W (Pair)

Module amplificateur Double Class A Toshiba 5200 (La paire)
This amplifier composed of 2 mono modules in Class A is able to deliver 25W per channel thanks to its 6 NJW0281G transistors.

No customer reviews yet, login to write a review.

By buying this product you get 2 loyalty points


Reference : 12670
New product

29,08 €tax excl.

Including 0,01 € for green tax

- +

Available on order

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Dual Mono Amplifier Class A

ONsemi NJW0281G

amplificateur double mono class A toshiba 5200

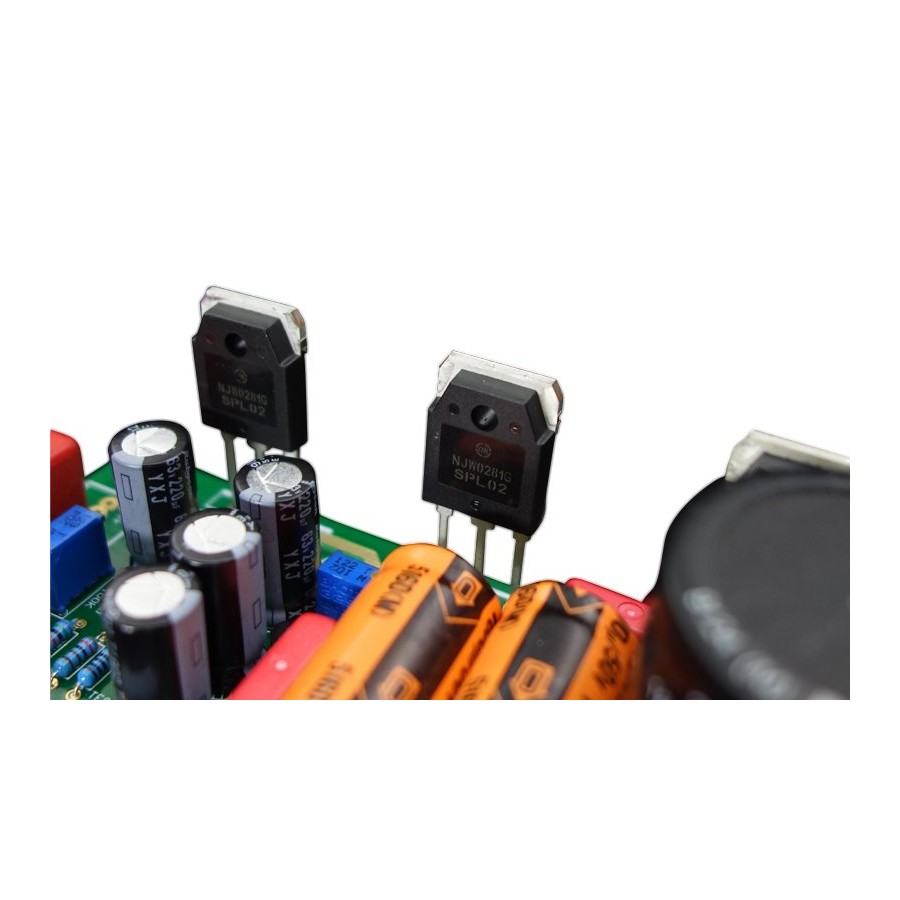

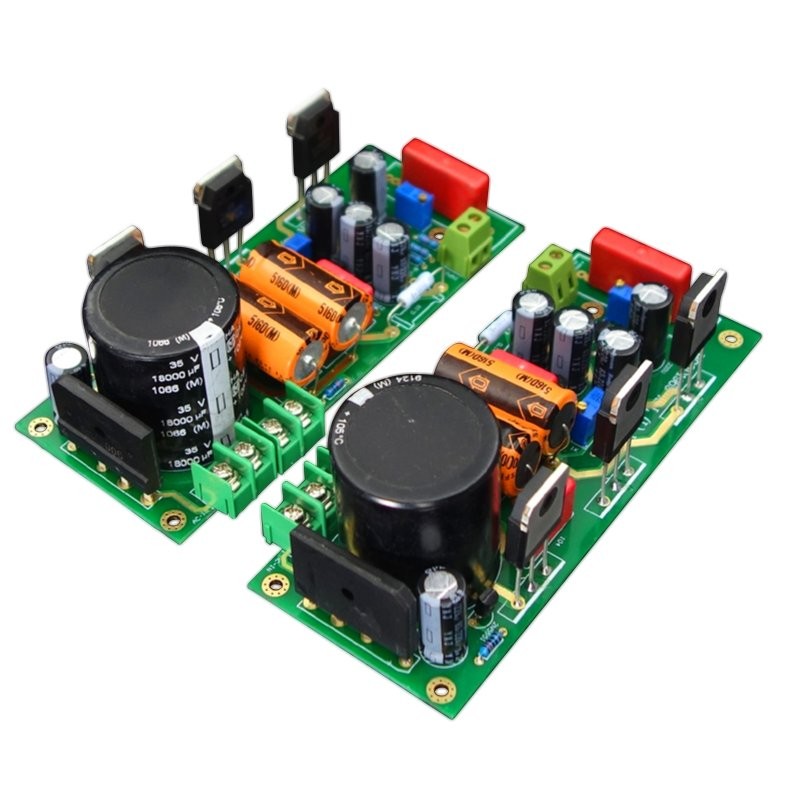

This amplifier consists of two mono amplification modules, each based on 3 excellent ONsemi NJW0281G transistors, for a total of 6 transistors. Thanks to these transistors, each module is able to deliver 25W in Class A for a sound that is both warm and clear.

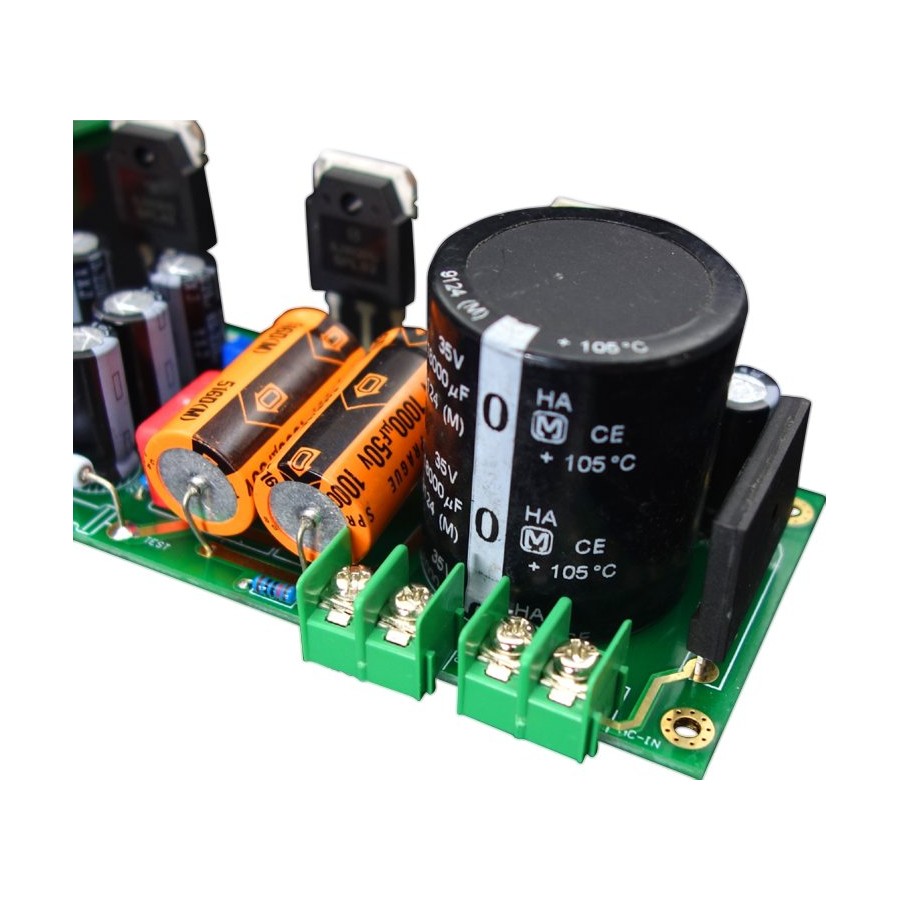

The module benefits from high quality components such as WIMA MKP, EPCOS or Nichicon capacitors. This allows in particular to enjoy a filtering and therefore a reduction of noise. In addition, the PCB benefits from a gold-plated double-sided circuit for better conductivity.

These amplifier module have to be set before being use. Read carefully this document to learn the full step-by-step procedure.

Technical characteristics

Specifications
Power2x25W
Amplifier typeClass A
Transistors2x3 ONsemi NJW0281G
Recommended transformerAC12V to AC22V
Dimensions136 x 55 x 43mm
Weight156g


Schema


1Audio Input
2Audio Output
3Power supply


schema electronique

Data sheet
Components / ChipToshiba 5200
ChannelDual Mono
ClassClass A / AB
Total Power (W)0-50
