ARYLIC UP2STREAM AMP V3 Amplifier Module Class D WiFi DLNA Bluetooth 5.0 2x50W 4 Ohm 24bit 192kHz

ARYLIC UP2STREAM AMP V3 Amplifier Module Class D WiFi DLNA Bluetooth 5.0 2x50W 4 Ohm 24bit 192kHz New
Particularly practical, the Arylic Up2Stream Amp V3 combines the functions of both Class D amplifier and WiFi and Bluetooth receiver. It will allow you to broadcast your music remotely, directly from your smartphone, computer, NAS or your favorite streaming services by connecting directly to your passive speakers. Several modules can be combined in a multi-room integration, with centralized control via a dedicated mobile application.

No customer reviews yet, login to write a review.

By buying this product you get 6 loyalty points


Reference : 14659
New product

65,83 €tax excl.

Including 0,04 € for green tax

- +

Shipping date: 17-08-2020.

Orders placed before 11AM (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

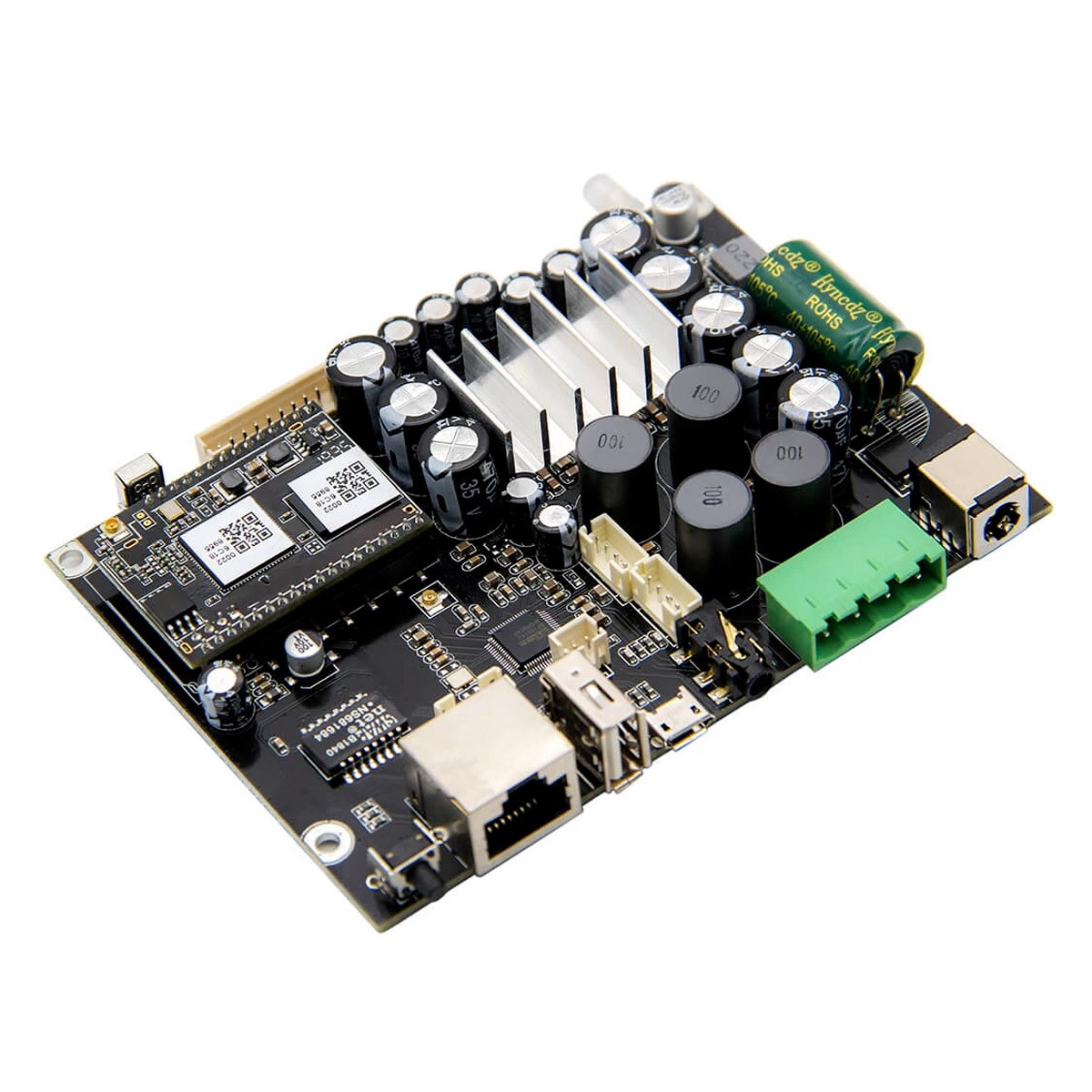

Arylic Up2Stream Amp V3

Amplifier Module Class D WiFi DLNA Bluetooth 5.0 2x50W 4 Ohm 24bit 192kHz

Arylic Up2Stream Amp V3 Module Amplificateur Class D WiFi DLNA Bluetooth 5.0 2x50W 4Ω 24bit 192kHz

Particularly practical, the Arylic Up2Stream Amp V3 combines the functions of both Class D amplifier and WiFi and Bluetooth receiver. It will allow you to broadcast your music remotely, directly from your smartphone, computer, NAS or your favorite streaming services by connecting directly to your passive speakers. Several modules can be combined in a multi-room integration, with centralized control via a dedicated mobile application.

The amplifier stage of the module is capable of delivering a power of 2x50W at 4Ω or 2x30W at 4Ω, with a high efficiency typical of Class D amplifiers. The Arylic Up2Stream Amp V3 supports sample rates up to 24bit 192kHz and offers an accurate and rich reproduction.

What's new in the V3 version

In this V3 version, the Up2Stream Amp is equipped with additional features and optimizations:

  • The Up2Stream Amp V3 can be connected to a computer and function as a USB DAC.
  • It is now possible to customize the WiFi and Bluetooth names of your module via the mobile application.

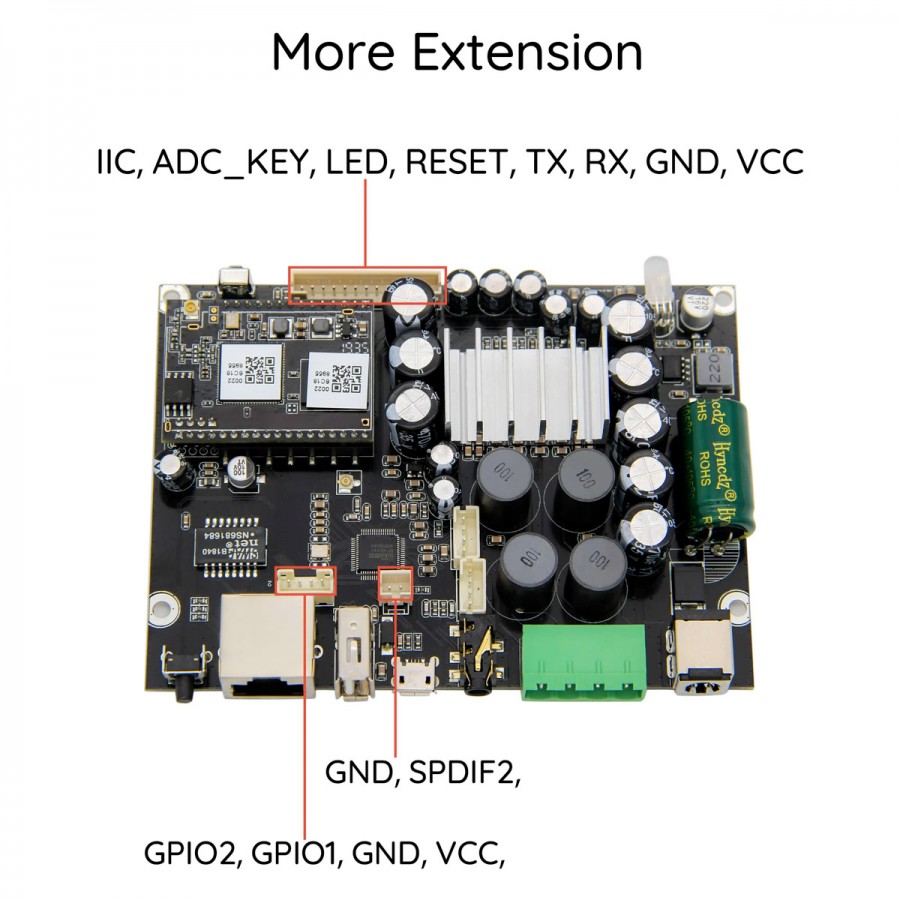

  • The module offers additional expansion ports and SPDIF output.
Arylic Up2Stream Amp V3 Module Amplificateur Class D WiFi DLNA Bluetooth 5.0 2x50W 4Ω 24bit 192kHz
Arylic Up2Stream Amp V3 Module Amplificateur Class D WiFi DLNA Bluetooth 5.0 2x50W 4Ω 24bit 192kHz

Android & iOS App

Arylic provides the 4Stream control application, available for Android and iOS smartphones. It allows total and easy control of your receiver and music playback. It is also via this interface that you will be able to manage your multi-room integration.

Application 4Stream Android
Application 4Stream iOS
Arylic Up2Stream Pro V3 Récepteur WiFi 2.4G Bluetooth 5.0 vers I2S SPDIF Multiroom 24bit 192kHz

Many streaming services available

The Up2Stram Amp V3 supports many music streaming services. You will be able to enjoy Spotify, Deezer, Tidal, Qobuz, Napster, Pandora, Amazon Music, iHeart Radio or internet radios. You will also be able to play your music directly from your NAS connected to the local network or USB storage device.

Arylic Up2Stream Pro V3 Récepteur WiFi 2.4G Bluetooth 5.0 vers I2S SPDIF Multiroom 24bit 192kHz

Technical characteristics

Specifications
Product typeAmplifier module
WiFi / Bluetooth receiver
Amplification typeClass D
Power2x50W @ 4Ω BTL, load 21V
2x30W @ 8Ω BTL, load 24V
2x15W @ 8Ω BTL, load 15V
WiFi networkIEEE 802.11 b/g/n 2.4G
EthernetRJ45 10/100M
Bluetooth version5.0
Bluetooth codecsSBC
AAC
Bluetooth transmission distance10m
Inputs1x USB-A (USB Host)
1x Micro USB
1x Jack 3.5mm / 4 pins connector
1x RJ45 Ethernet
WiFi
Bluetooth
OutputsSpeaker terminal 4 pins
Frequency response20Hz - 20kHz
THD0.03% @ 1kHz, 2x50W, 24V, 4Ω
Supported formatsFLAC, MP3, AAC, AAC+, ALAC, APE, WAV
Supported sampling ratesUp to 24bit 192kHz
Streaming protocolsAirPlay, DLNA, UPnP, Spotify Connect, QPlay
General
Supply voltage12-26V DC
Dimensions110 x 80 x 22mm
Accessories1x Arylic Up2Stream Amp V3
1x Analog 4 pins connector
1x WiFi antenna

Data sheet
InputWifi
InputUSB-A
InputJack 3.5mm
InputRJ45
InputUSB 2.0
InputMicro USB
InputBluetooth
OutputSpeaker terminal
Max sampling rate192kHz
Channel2 channels (Stereo)
Power (max)50W
