CL-400W Amplifier Board TDA7498E 2.0 / 2.1 / 4.0 Bluetooth I2S HDMI 4x120W 4 Ohm

CL-400W Amplifier Board 2.1 / 4.0 Bluetooth I2S HDMI 4x120W 4 Ohm

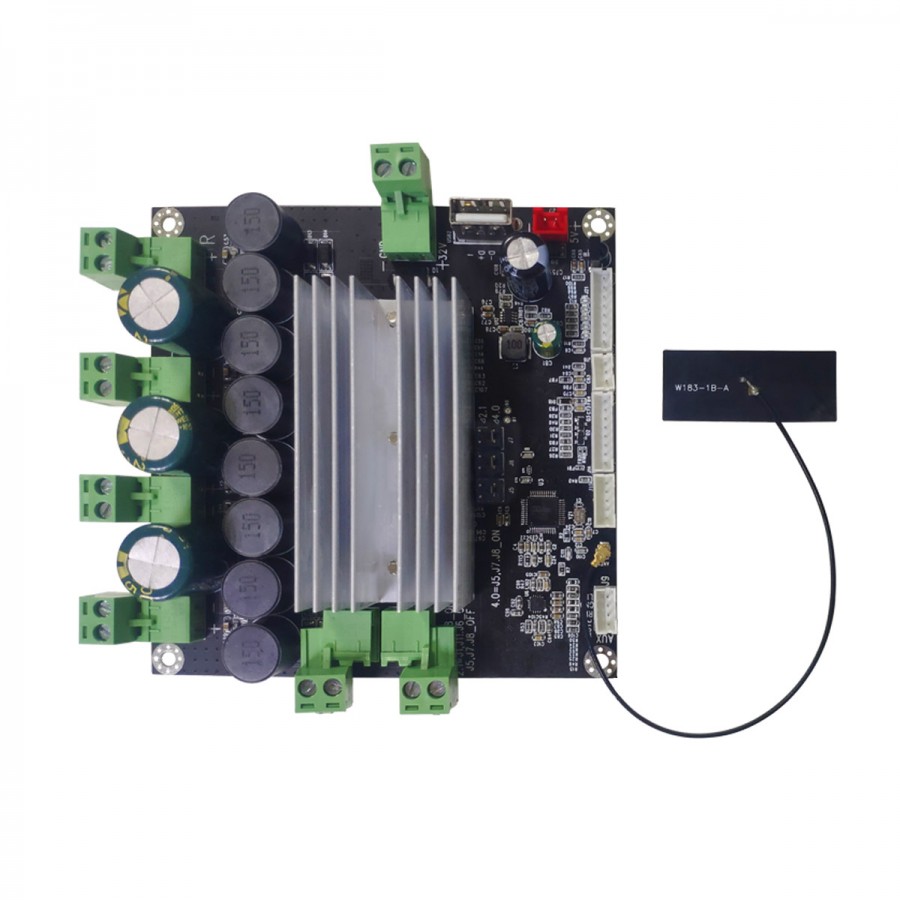

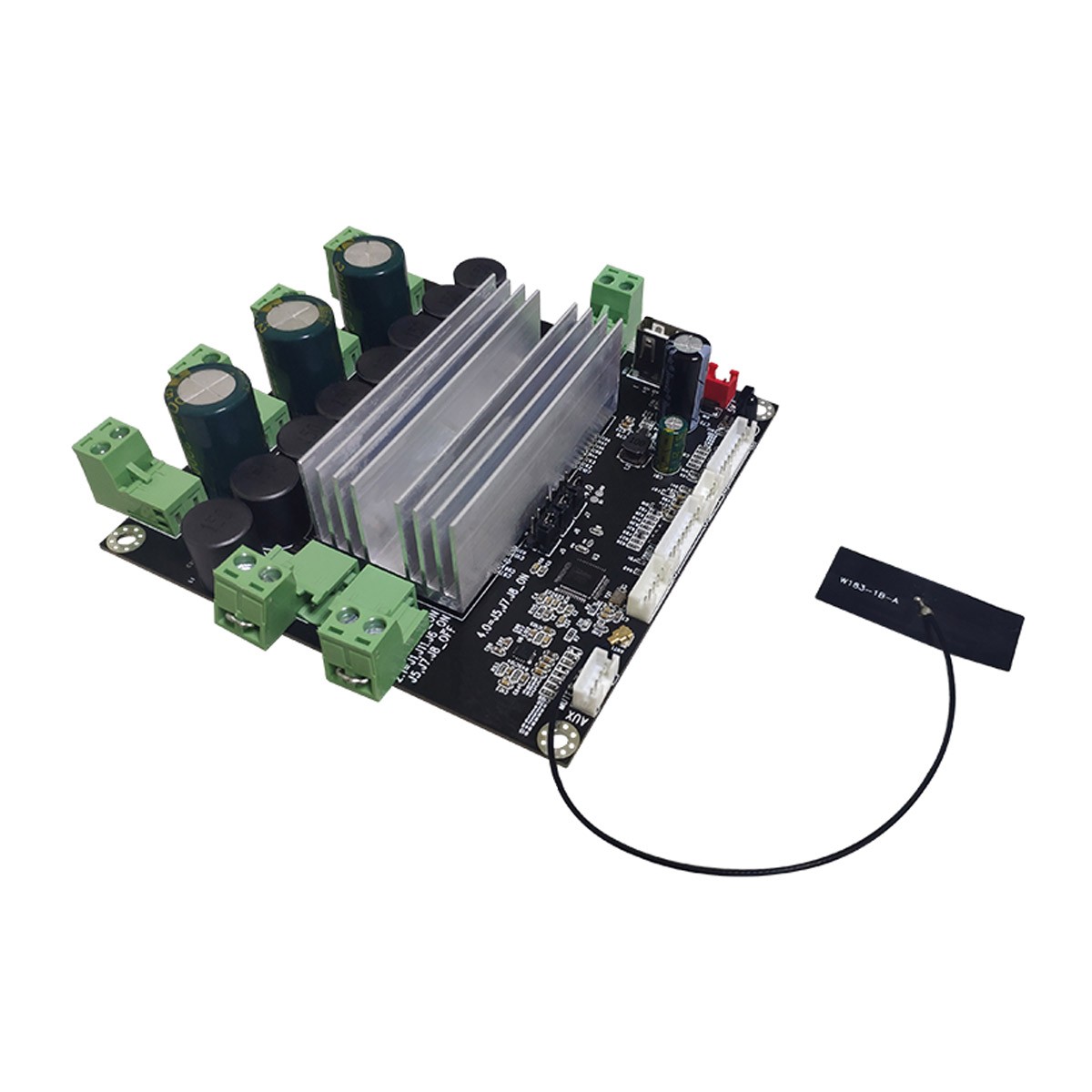

This complete and versatile CloudyX CL-400W amplifier module has the particularity of being able to operate in stereo mode (2.0), 2.1 or 4.0. It is capable of developing a power of 4x 120W under 4Ω while offering beautiful musical performances.

Average votes for this product
5.0 / 5

By buying this product you get 3 loyalty points


Reference : 15022
New product

33,25 €tax excl.

This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

CloudyX CL-400W

Amplifier Board 2.0 / 2.1 / 4.0 Bluetooth I2S HDMI 4x120W 4 Ohm

CloudyX CL-400W Module Amplificateur 2.0 / 2.1 / 4.0 Bluetooth I2S HDMI 4x120W 4Ω

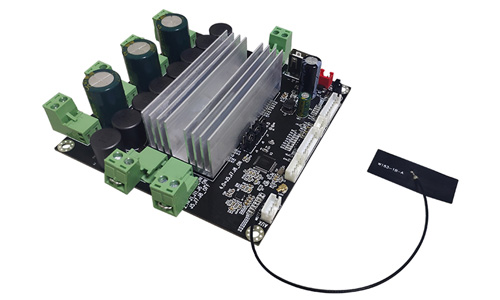

This complete and versatile CloudyX CL-400W amplifier module has the particularity of being able to operate in stereo mode (2.0), 2.1 or 4.0. It is capable of developing a power of 4x 120W under 4Ω while offering beautiful musical performances.

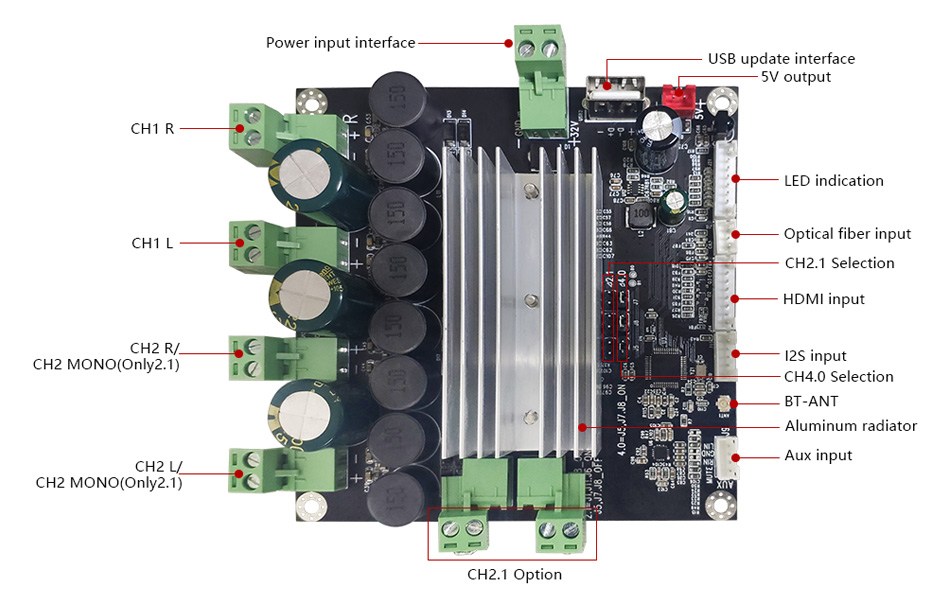

The amplifier has Bluetooth connectivity and comes with an antenna to enhance the range and stability of reception. It also integrates numerous connectors, allowing for a variety of inputs: I2S, HDMI, Optical or auxiliary.

CloudyX CL-400W Module Amplificateur 2.0 / 2.1 / 4.0 Bluetooth I2S HDMI 4x120W 4Ω
ChannelsSelection
1CH4.0J5, J7, J8 Jumper in, J1, J6, J11, J18, J19 Jump away
1CH2.1J1, J6, J11, J18, J19 Jumper in, J5, J7, J8 Jump away
CloudyX CL-400W Module Amplificateur 2.0 / 2.1 / 4.0 Bluetooth I2S HDMI 4x120W 4Ω

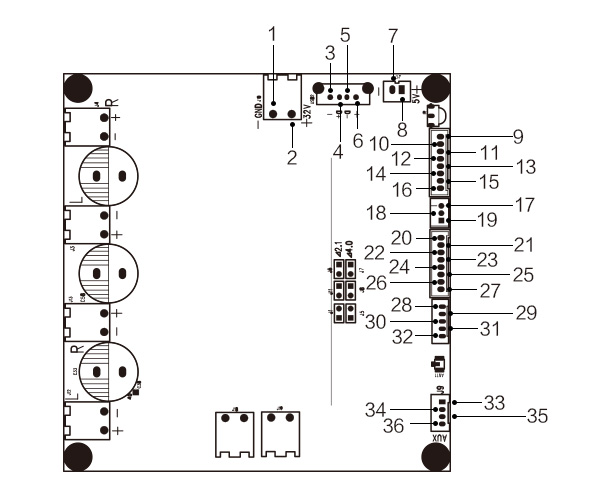

NameTypeFunction
1GNDGNDPower supply ground wire
2+32VVCCPower input 24~32V
3GNDGNDGround wire
4DPIUSB-DP
5DMIUSB-DM
65VVCCU Disk 5V Power supply
7GNDGNDGround wire
85VVCC5V Output
9GNDGNDGround wire
10GNDGNDGround wire
11AUX_LEDOAUX_IN mode indicator
12BT_LEDOBT mode indicator
13I2S_LEDOI2S_IN mode indicator
14HDMI_LEDOHDMI mode indicator
15Optical_LEDOOptical mode indicator
16ADC_KEYIADC button extension interface (not included)
17SPDIFIOptical signal input
18GNDGNDGround wire
19VCCOPVCCOptical receiver power supply
20GNDGNDGround wire
21DECTIHDMI DECT
22HDMI_5VVCCGround wire
23I2C_SDAI/OHDMI SDA
24I2S_SCLI/OHDMI SCL
25ARCIHDMI ARC Output
26GNDGNDGround wire
27CECIHDMI CEC
28GNDGNDGround wire
29DII/OI2S Data input
30BCLKI/OI2S BCLK
31LRCLKI/OI2S LRCLK
32MCLKI/OI2S MCLK
33LINIAUX Left channel input
34GNDGNDGround wire
35RINIAUX Right channel input
36MUTEIPower amplifier Mute external control interface
CloudyX CL-400W Module Amplificateur 2.0 / 2.1 / 4.0 Bluetooth I2S HDMI 4x120W 4Ω

Technical characteristics

Specifications
Product typeAmplifier board TDA7498E
InputsBluetooth
I2S
HDMI
Optical
Aux
OutputsSpeaker terminals
ChannelsStereo (2.0)
2.1
4.0
Output power4x 120W @ 4Ω
Frequency reponse20Hz - 20kHz
THD0.05%
Impedance2kΩ
SNR≥ 85dB
AUX Input sensitivity1V
General
Supply voltage32V DC 5A
Dimensions107 x 104 x 28mm
Package1x CloudyX CL-400W

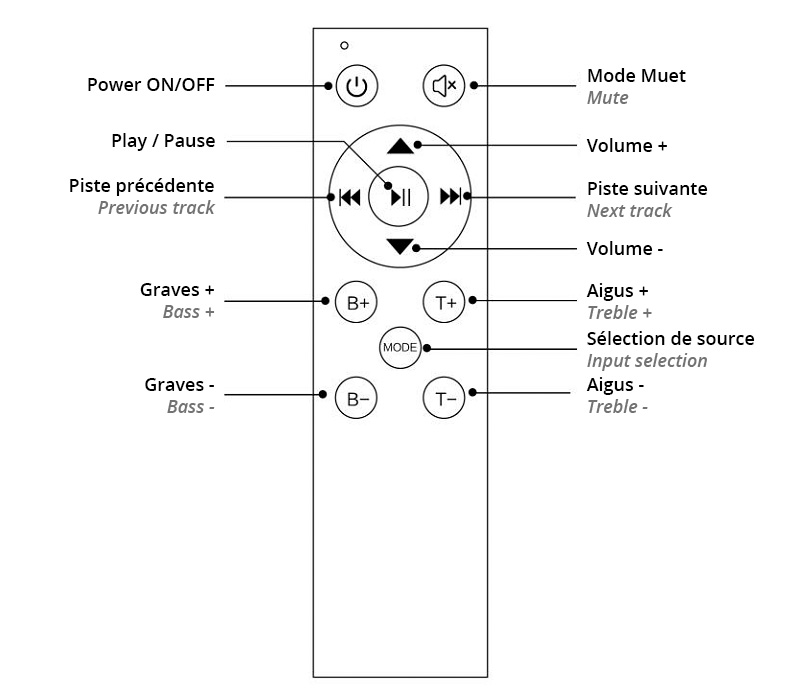

1x Remote control
1x Bluetooth antenna

Data sheet
InputOptical
InputBluetooth
InputAUX
InputI2S
InputHDMI
OutputSpeaker terminal
Channel2 (Stereo)
Channel2.1
Channel4
ClassN/A
Amplifier chipN/A
Power (W)120.0
