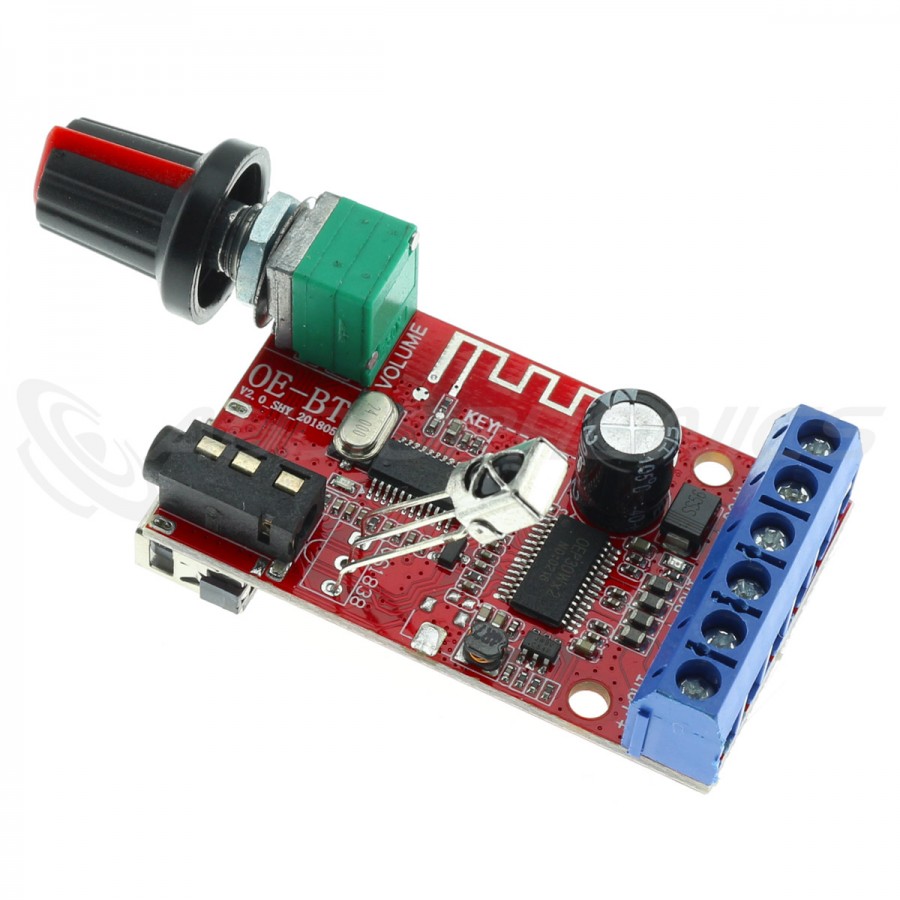

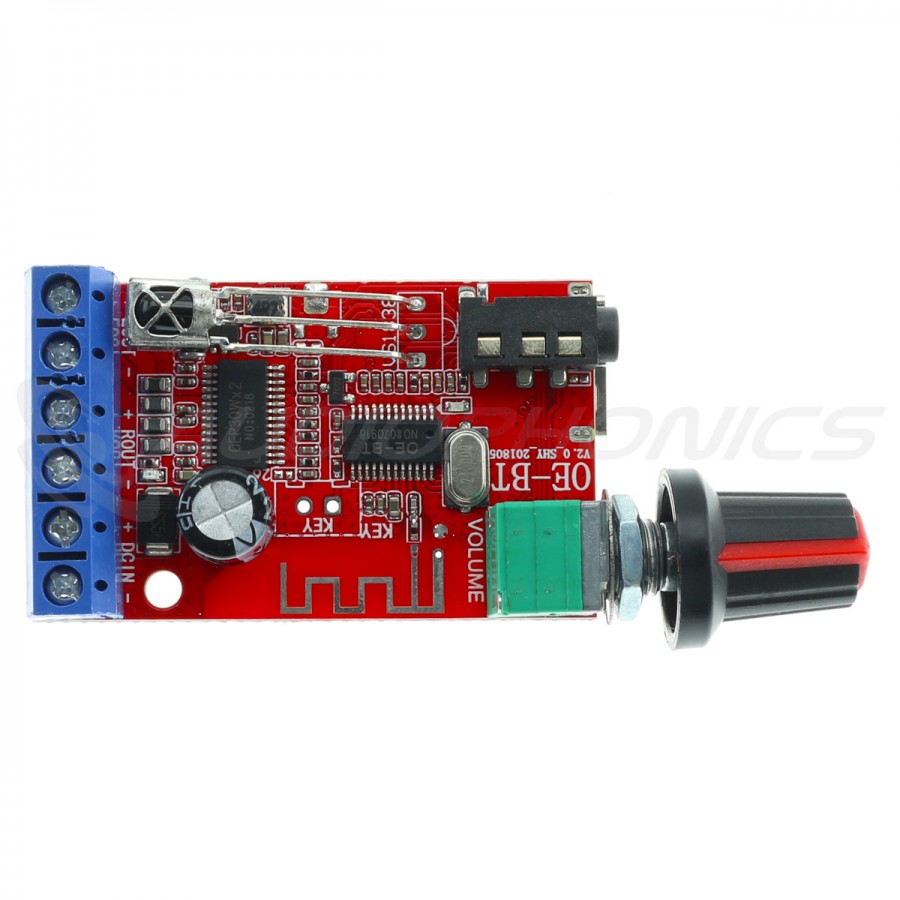

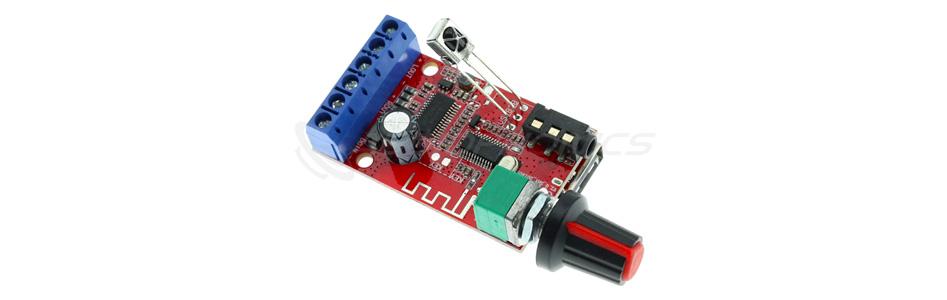

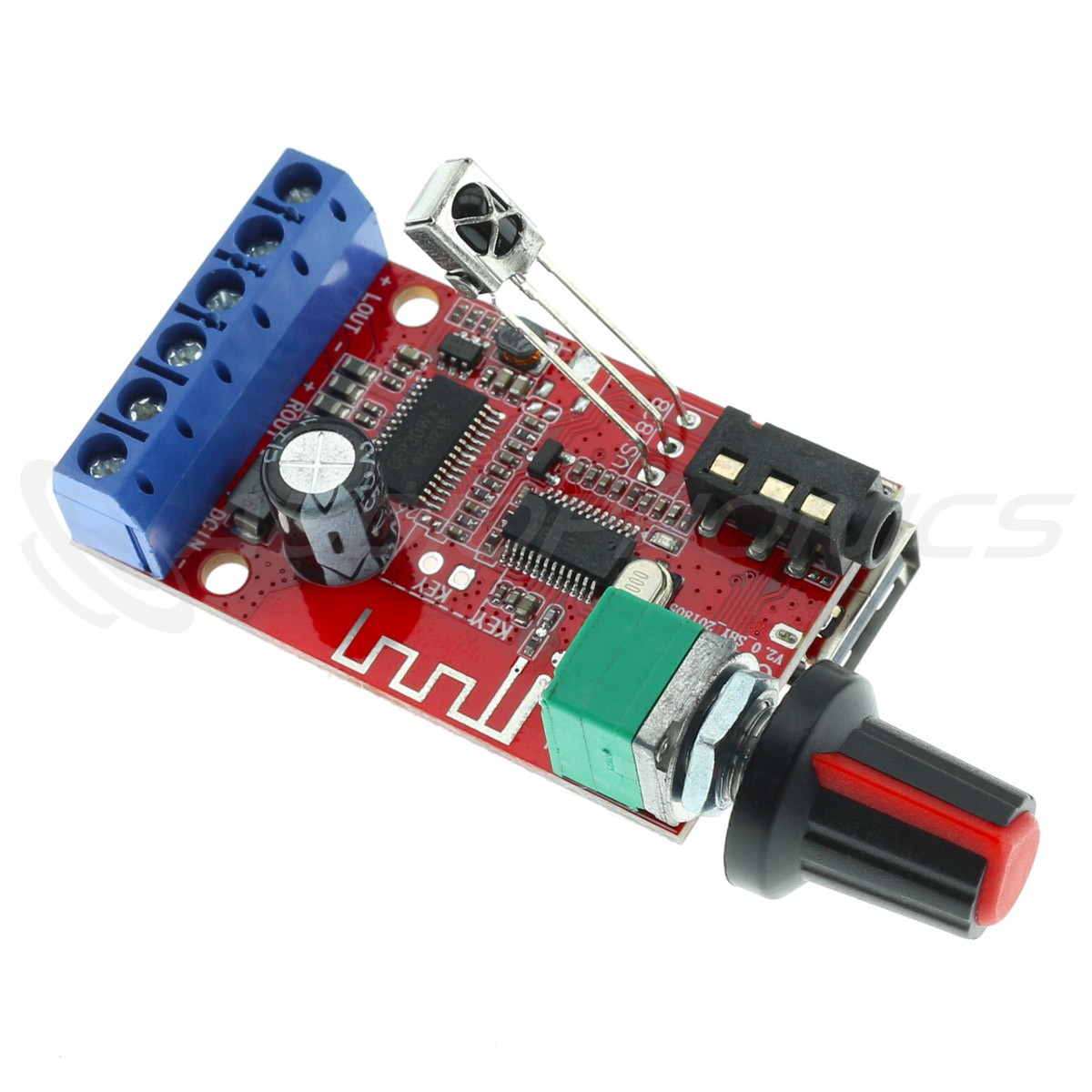

Class D Stereo Amplifier Module Bluetooth 4.2 USB Player 2x15W 8 Ohm

Stereo Amplifier Module Bluetooth 4.2 USB Player 2x15W
This small Class D amplifier module is capable of delivering, thanks to its OEP30Wx2 chip, up to 2x15W with a high efficiency of 90%. Despite its small size, this module is versatile since it offers 3.5mm jack, USB-A 2.0 and especially a Bluetooth 4.2 reception.

No customer reviews yet, login to write a review.

By buying this product you get 1 loyalty point


Reference : 14279
New product

14,90 €tax incl.

12,42 € tax excl.
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Amplifier Module

Class D Stereo Amplifier Module Bluetooth 4.2 USB Player 2x15W 8 Ohm

Module Amplificateur Stéréo Class D Bluetooth 4.2 Lecteur USB 2x15W 8 Ohm

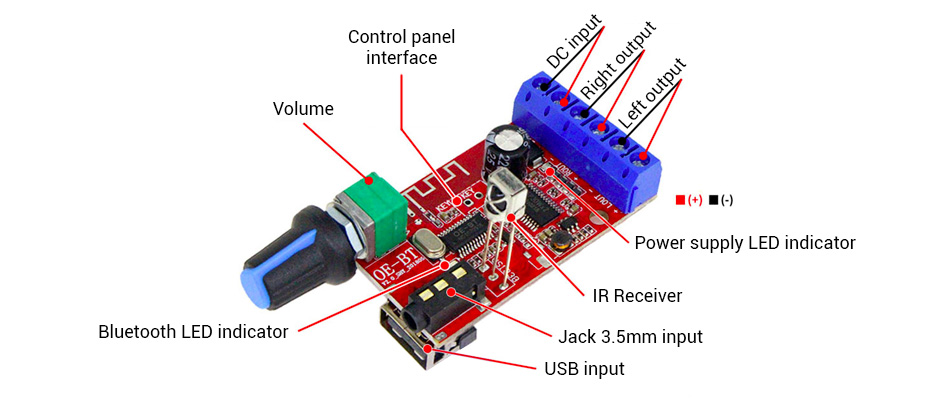

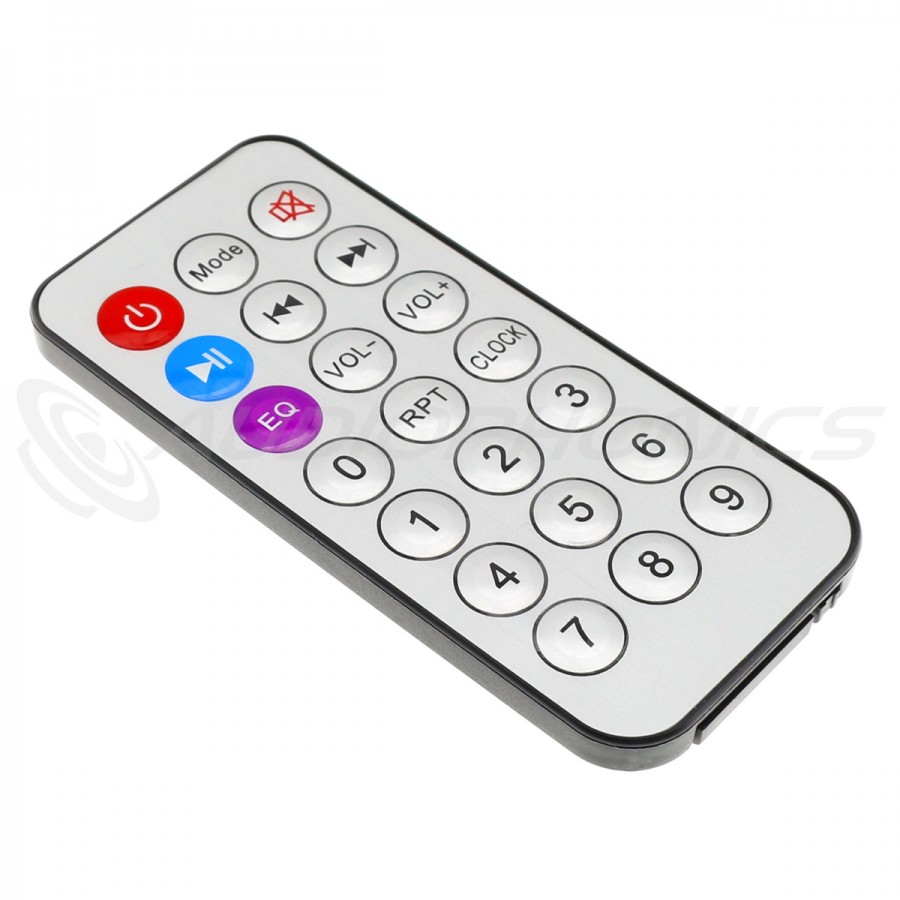

This small Class D amplifier module is capable of delivering, thanks to its OEP30Wx2 chip, up to 2x15W with a high efficiency of 90%. Despite its small size, this module is versatile since it offers 3.5mm jack, USB-A 2.0 and especially a Bluetooth 4.2 reception allowing you to broadcast your audio files remotely. The amplifier also includes a volume control and an IR receiver that allows you to control all the functions of the module remotely using the remote control provided.  The module is output and powered via screw terminals.

This module is ideal for the DIY design of a small amplified audio system such as a compact Bluetooth speaker.

Module Amplificateur Stéréo Class D Bluetooth 4.2 Lecteur USB 2x15W 8 Ohm

It is strongly recommended to use a radiator to dissipate the heat released by the amplifier chip.

Technical characteristics

Specifications
Product typeAmplifier module
Amplification classD
Amplification chipOEP30Wx2
Power2x30W @ 8Ω, 24V (THD+N 10%)
2x15W @ 8Ω, 18V (THD+N 1%)
2x22W @ 4Ω, 16V (THD+N 10%)
2x15W @ 4Ω, 14V (THD+N 1%)
InputsBluetooth 4.2
1x USB-A 2.0
1x Jack 6.35mm
OutputSpeaker terminal
SNR102dB
Frequency response20Hz - 20kHz
ProtectionShort circuit
General
Power supply7.5-24V DC
Remote control battery1x CR2025 (sold separately)
Min/Max operating temperature-40°C - 85°C
Dimensions50 x 31mm x 20mm

Data sheet
InputBluetooth
InputJack 3.5mm
OutputSpeaker terminal
Channel2 (Stereo)
ClassClass D / T
Amplifier chipOEP30Wx2
Power (W)15.0
Power (W)30.0
