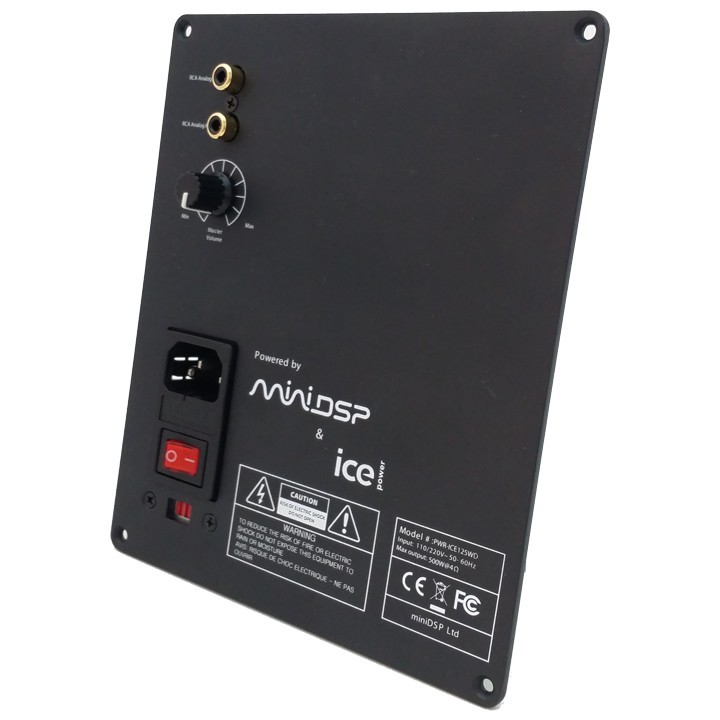

The PWR-ICE125WD is a compact amplifier module for 2-way speakers or mono subwoofers.
It is the result of the collaboration of two companies with innovative technologies.
On the power amplifier side, the IcePower ASX2 modules are full bridgeable flexible audio amplification solutions.
Their compact size, audio quality and high output power make them high-performance audio amplifiers.
The amplifier can deliver up to 2x125W at 4Ω or 1 x 450W at 4Ω.
Conversion is provided by an integrated DAC / ADC.
As for audio connectivity, the PWR-ICE125WD is equipped with unbalanced analog inputs (RCA) with internal jumpers allowing you to switch to mono (see datasheet) to provide maximum compatibility.
- IcePower ASX2 Amplifier Module (450W at 4 Ohms, 2x 125W at 4 Ohms)
- Analog Inputs: 1x RCA (Asymmetrical)
- Frequency response: 20Hz - 20kHz to 450W / 2x 125W under 4 Ohms
- Noise signal ratio: 117dB, 121dB in bridged mode Li>
- IMD: 0.0009%
- THD + N: 0.002%
- Volume control Li>
- On / Off switch
- Dimensions: 182x153x50mm
- Weight: 0.7kg
- Supplied mains cable Li>
