AUDIOPHONICS PSU S4-HP Linear Power supply Module DC Micrel29752

Audiophonics PSU S3 Linear Power supply Module DC LT1083

Average votes for this product
4.8 / 5

By buying this product you get 5 loyalty points


Reference : 10435
New product

54,08 €tax excl.

- +

Shipping date: 22-10-2021.

Orders placed before 11AM (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Audiophonics PSU HP-S4

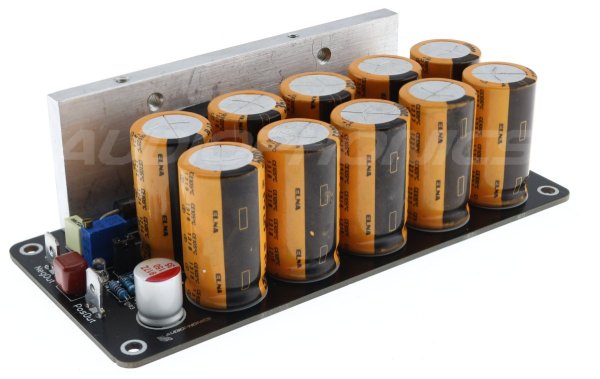

Audiophonics power supply module PSU S4-HP has been designed to provide clean power for an amplifier or any continuous audio circuit.

This version has a 6.5mm pre-drilled aluminum plate to improve heat-dissipation capacity and allow the module to deliver greater power. Those pre-drilled holes make it easier to mount the module into a housing or a heatsink.

It is equipped with a potentiometer and a jumper to adjust the voltage from 5 to 24V from an AC voltage source whose value is between 5 and 20V AC respectively.


Rigorous design and quality components make the PSU S4 HP an excellent choice to power a digital amplifier or any other Low Voltage High Fidelity devices such as DAC, headphone amplifiers for enhanced audio performance. For this purpose, the module uses 2x 1N5408 and 4 x 2scz2545 fast switching diodes.

The voltage regulator is a Micrel 29752, a popular component for critical systems due to its extremely low dropout.

This power supply has an impressive capacity for filtering with no less than 10 x ELNA electrolytic capacitors 5600μF / 35V (for a total of 56000μF available for filtering). A final output capacitor provides further enhancement for the PSU overall accuracy.

Specifications
Diodes42SCZ2545
Capacitor10x ELNA RJD 5600uF / 35V
6x MKT (for diodes).
1x OsCon 150µf (output filtering)
Voltage RegulatorMicrel 29752 7.5A
Discharge resistorIntegrated
Output VoltageAjustable by means of a potentiometer + jumper (Transformer must provide appropriate voltage)
Jumper On: Adjustable from 12 to 24V
Jumper Off: Adjustable from 5 to 12.5V
Specifications
Output VoltageVariable 5 to 24V
Maximum output currentto 7.5A according to the heatsink
connectable Maximum Music Powerapproximately 150W
Dimensions130 x 60 x 37mm.
Spacings50mm, 120mm
Distances heatsinks bores50mm
Weight204g
Transformer voltage5 to 20V AC.
Exemple : 11 or 12V AC for a 12VDC Output, the transformer must be able to deliver a rectified voltage with a delta of 4 to 6V DC

Data sheet
InputPCN Connector
OutputPCB Connector
Output voltage (V)24.0
Output voltage (V)12.0
Output voltage (V)20.0
Output voltage (V)15.0
Output voltage (V)5.0
Output voltage (V)10.0
Output current (A)7.5
Input voltage (V)N/A
Power SupplyRegulated Linear Power Supply
