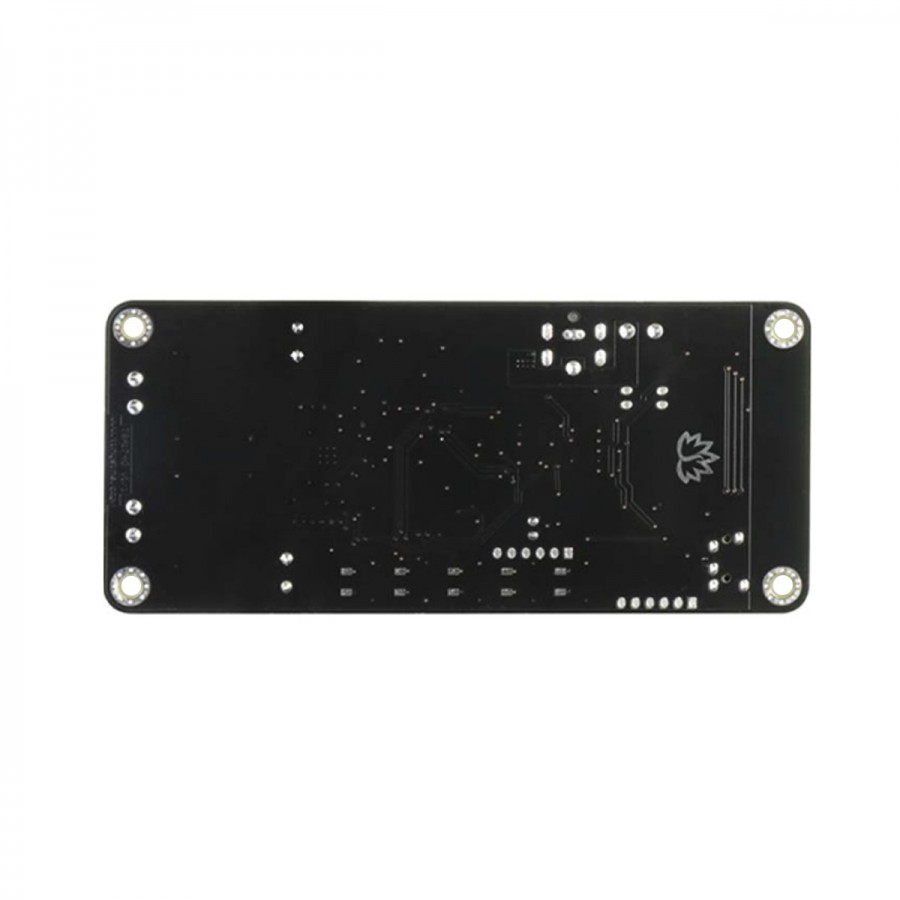

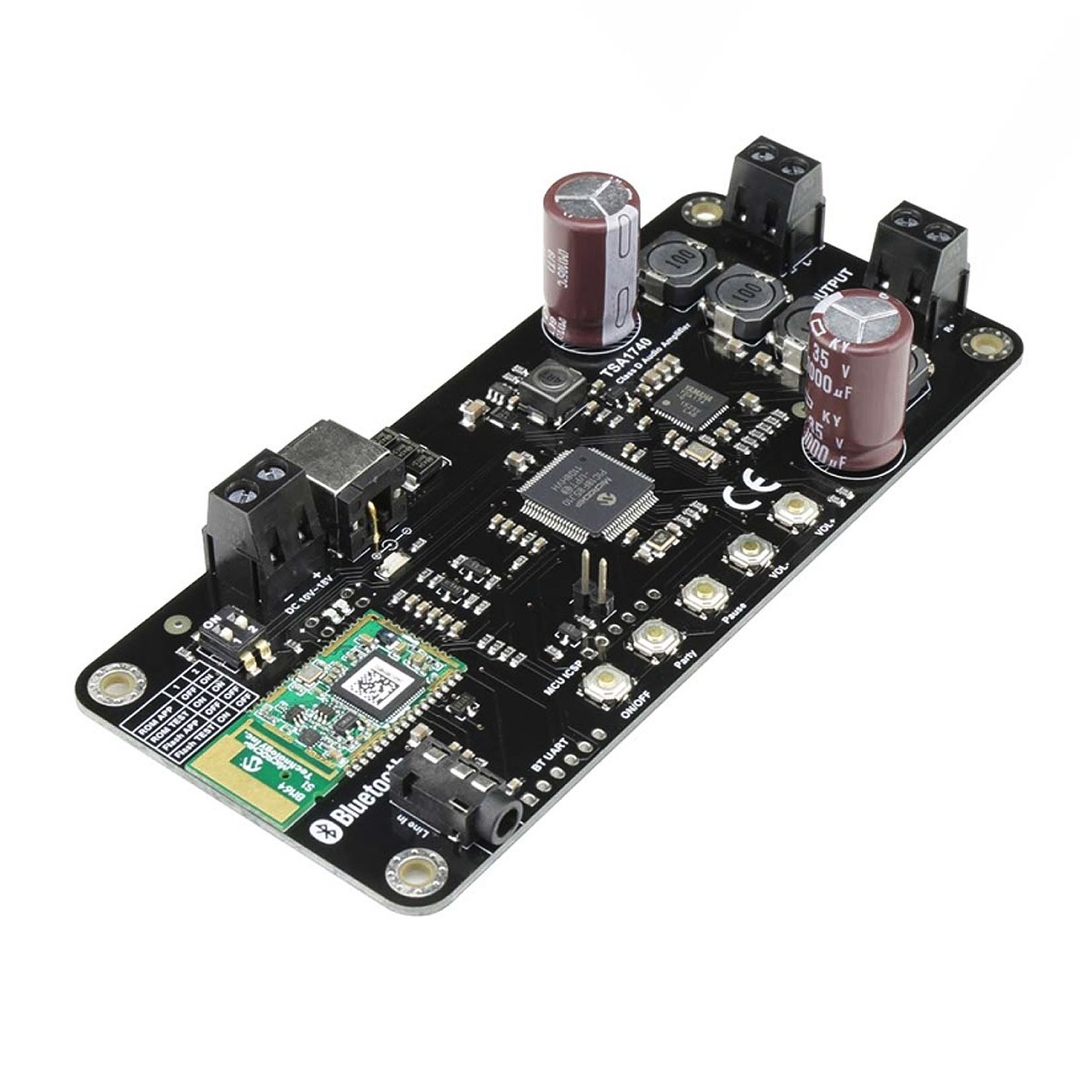

Amplifier Module Bluetooth 5.0 YDA174 2x20W 4 Ohm
With its TSA1740, TinySine offers a Class D amplifier module based on a Yamaha YDA174 amplifier chip that develops a power of 2x20W and integrates two DSPs to correct the signal according to your system. The module also includes a Bluetooth 5.0 chip so that you can stream your music remotely from a compatible device such as a smartphone or tablet, for example. The Bluetooth 5.0 standard ensures excellent transmission rate and stability. In addition, several TSA1740 modules can be connected via Bluetooth to each other in order to stream music to several modules simultaneously and wirelessly.
Specifications | |
---|---|
Product type | Amplifier module |
Inputs | 1x Jack 3.5mm Bluetooth |
Output | Screw terminal |
Bluetooth version | 5.0 |
Supported technologies | A2DP 1.3 AVRCP 1.6 HFP 1.6 HSP 1.2 SPP 1.2 |
Protections | Overvoltage, undervoltage, overcurrent, over temperature |
Measurements | ||||
---|---|---|---|---|
Parameters | Condition | Min. | Typ. | Max. |
Supply voltage | - | 10V DC | - | 18V DC |
Max current | 40W @ 4Ω | - | 3.42A | - |
Efficiency | PVDD = 12V, RL = 8Ω | - | 86% | - |
Min impedance | - | 3.2Ω | - | - |
Distortion | RL = 8Ω, PO = 4.5W, 1kHz | - | 0.05% | - |
Gain | - | - | 25dB | - |
Residual noise | RL = 8Ω, A-Weighted | - | 50µV | - |
Input impedance | - | - | 22KΩ | - |
Output power | PVDD = 14V, RL = 4Ω, THD+N = 10% | - | 20W | - |
PVDD = 15V, RL = 8Ω, THD+N = 10% | - | 15W | - | |
Frequency response @ +/-3dB | @ 4Ω | 20Hz | - | 20kHz |
THD | @ 4Ω, 1W, 1kHz | - | 0.0299% | - |
@ 4Ω, 10W, 1kHz | - | 0.073% | - |
General | |
---|---|
Supply voltage | 10V-18V DC via Jack DC or screw terminal (power supply sold separately) |
Dimensions | 126 x 56 x 28mm |
Input | Bluetooth |
Input | Jack 3.5mm |
Output | Speaker terminal |
Channel | 2 (Stereo) |
Class | Class D / T |
Amplifier chip | YDA174 |
Power (W) | 20.0 |
