TINYSINE TSA2210 Kit Class D Amplifier Module TPA3110D2 Bluetooth 2x8W + Volume Controller + LED

TINYSINE TSA2210 Kit Class D Amplifier Module TPA3110D2 Bluetooth 2x8W + Volume Controller + LED
This small Class D amplifier module based on a TPA3110D2 chip capable of developing a power of 2x8W. It can be used with speakers with an impedance of 4Ω or 8Ω.

Average votes for this product
4.5 / 5

By buying this product you get 2 loyalty points


Reference : 13688
New product

29,90 €tax incl.

24,92 € tax excl.
Including 0,05 € for green tax
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

TINYSINE TSA2210

Kit Class D Amplifier Module TPA3110D2 Bluetooth 2x8W + Volume Controller + LED

TinySine TSA2210 Kit Module Amplificateur Class D TPA3110D2 Bluetooth 2x8W + Contrôleur de Volume + LED

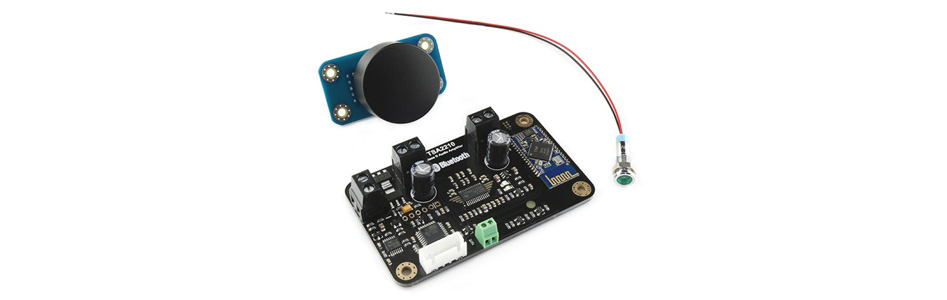

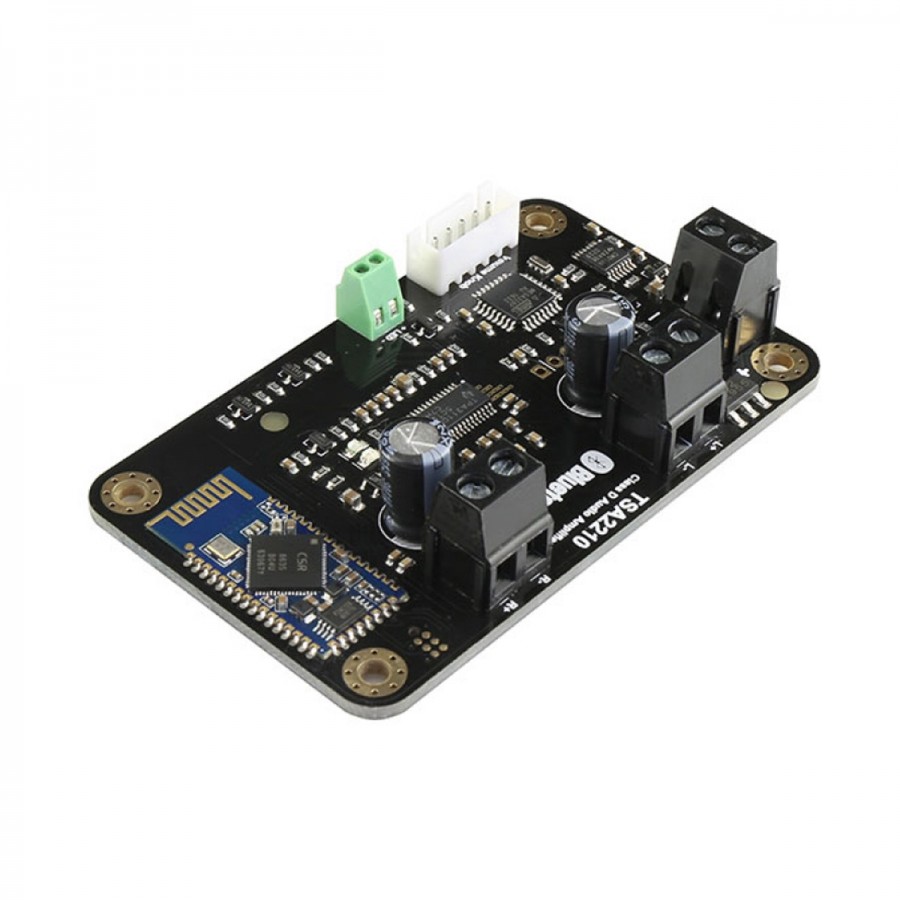

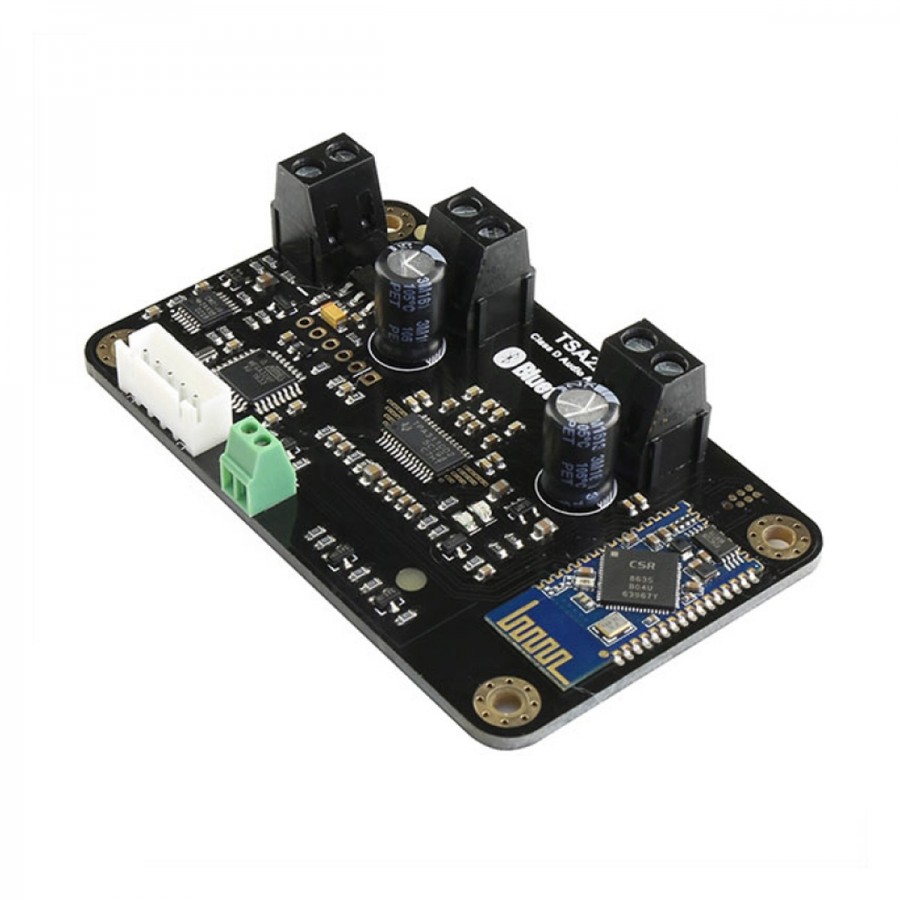

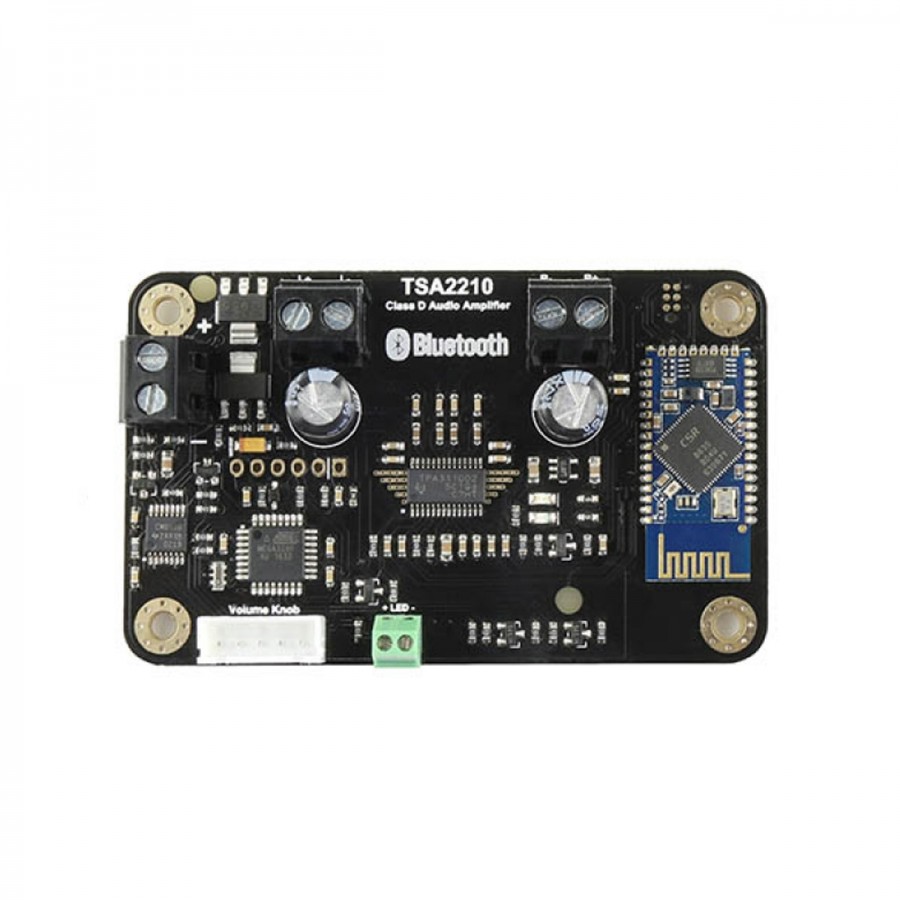

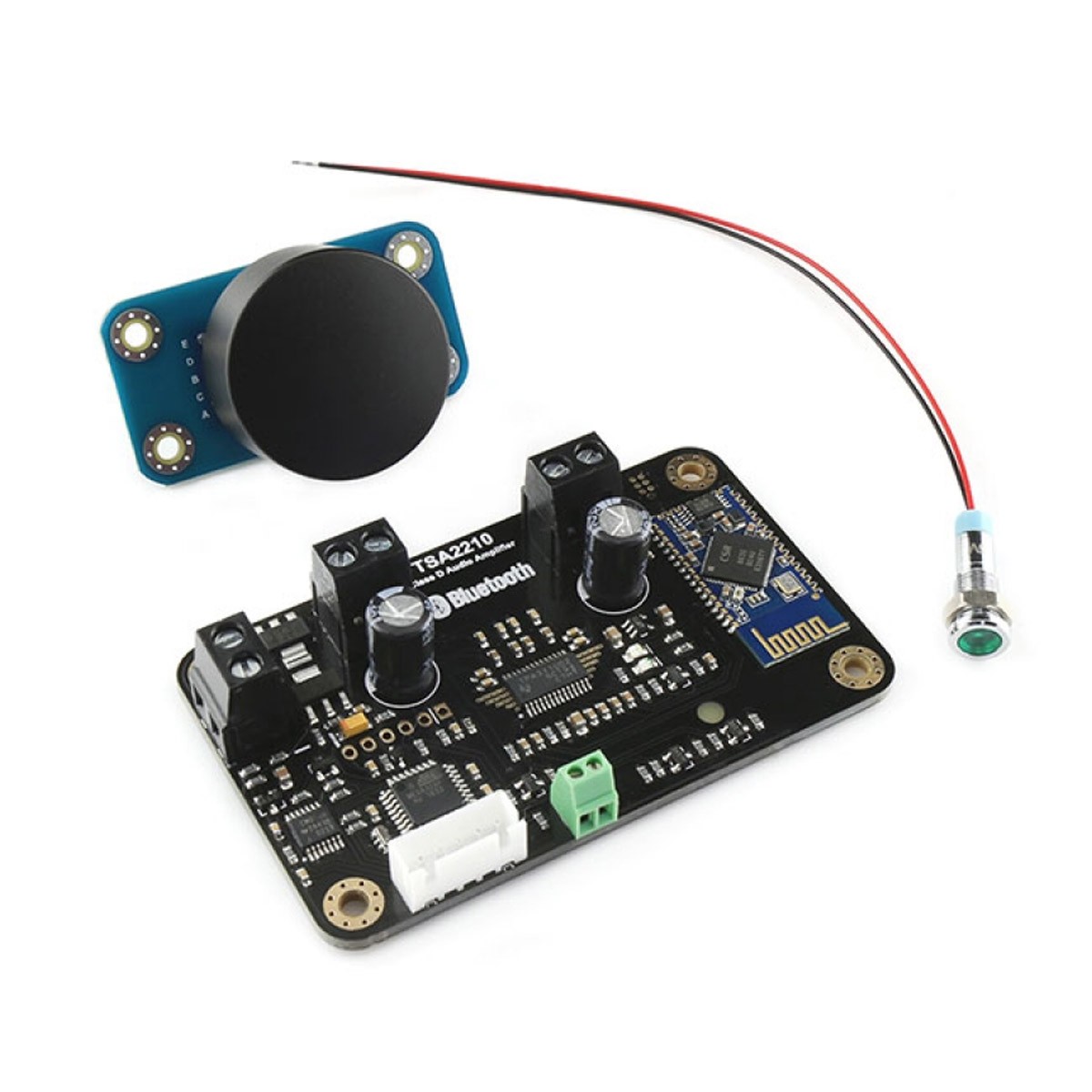

This TinySine kit consists of a Class D amplifier module, a volume controller and a status LED. The amplification module is based on a TPA3110D2 chip delivering a power of 2x8W and can be associated with speakers in 4Ω or 4Ω. It is also equipped with a Bluetooth AudioB Plus receiver from the brand, allowing you to simply stream your music from a smartphone or tablet, for example.

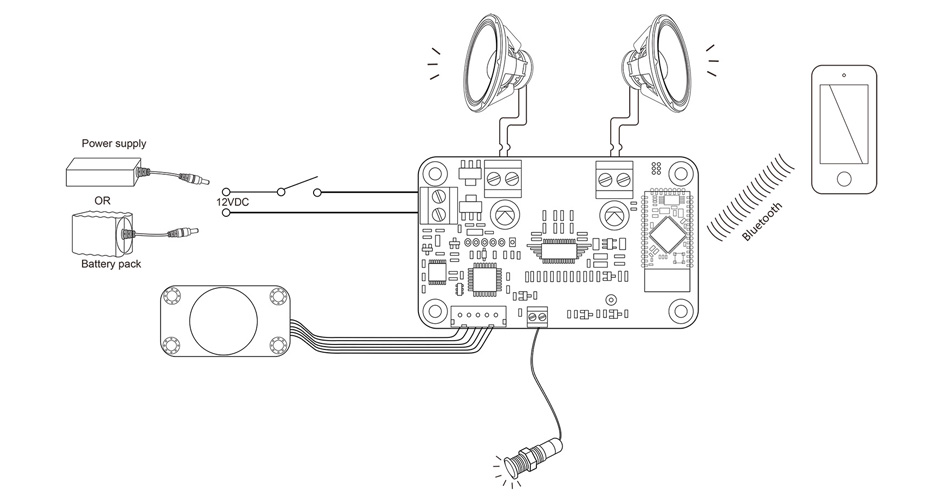

The supplied button therefore makes it possible to adjust the volume and also to switch the module on or off by pressing it. Volume can also be remotely controlled from the mobile brand application. The status LED indicates whether the module is on or off.

TinySine TSA2210 Kit Module Amplificateur Class D TPA3110D2 Bluetooth 2x8W + Contrôleur de Volume + LED

On your smartphone or tablet, the Bluetooth amplifier module will appear under the name "BT Speaker".

Technical characteristics

Specifications
Product typeAmplifier module kit
Bluetooth version4.0
InputBluetooth
OutputScrew terminal
ProtectionsOver voltage, under voltage, overload, over temperature
Measurements
ParameterConditionsMin.Typ.Max.
Supply voltage-81216
Input sensitivityGain = 26dB-0.283V-
Input impedance--30KΩ-
Gain--26dB-
Power outputTHD+N = 10%, Vcc = 12V-8Wrms-
EfficiencyVcc=12V, RL=8Ω, PO=5W-86%-
Minimum load-3.2Ω4Ω-
Frequency response±3dB20Hz-22kHz
Operating temperature--40°C20°C65°C
General
Amplifier module dimensions80 x 48mm
Package1x Amplifier module TinySine TSA2210
1x Volume controller
1x LED (green)
1x Ribbon cable

Data sheet
InputBluetooth
OutputScrew terminals
Channel2 (Stereo)
ClassClass D / T
Amplifier chipTPA3110D2
Power (W)8.0

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
4.5 / 5
2 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
TINYSINE TSA2210
C'est mon deuxième ! Utilisés pour redonner une vie moderne à 2 vieux postes de radio TSF irrécupérables , le bouton en plastique de controle de volume ne s'enlève pas de son axe ce qui aurait permis de cacher le circuit imprimé !
 (0)
 (0)
This review has been posted for TINYSINE TSA2210 Kit Class D Amplifier Module TPA3110D2 Bluetooth 2x8W + Volume Controller + LED
Note :
 4/5
Date :
Ideal pour petite enceinte portable diy
par contre attention haut parleur 8 ohms uniquement
sur des 4 ohms l'ampli plante au 3/4 du volume maxi
 (0)
 (0)
This review has been posted for TINYSINE TSA2210 Kit Class D Amplifier Module TPA3110D2 Bluetooth 2x8W + Volume Controller + LED
