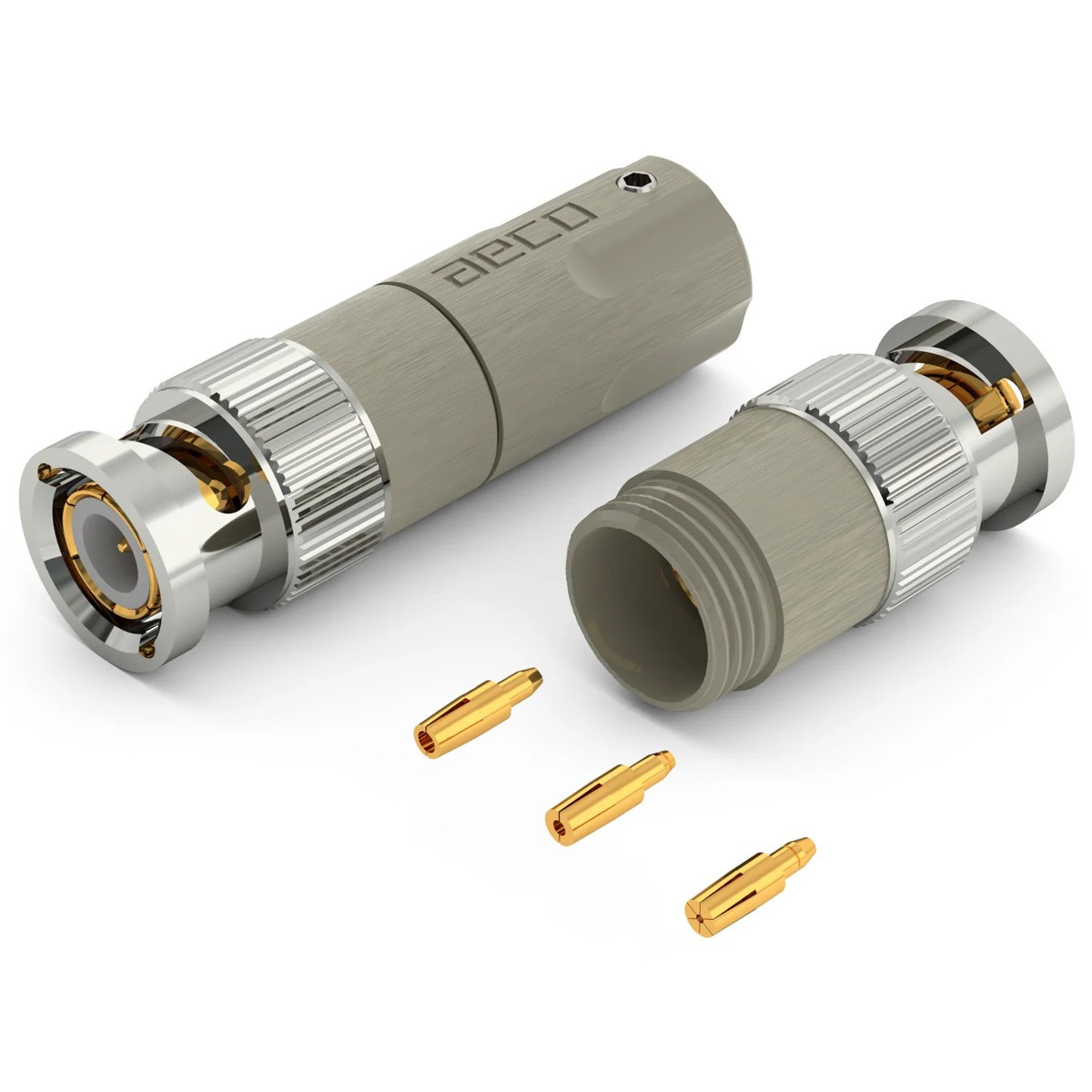

AECO ABC-1471 BNC Connectors 75 Ohm Beryllium Copper Gold Plated Ø10mm (Pair)

The aeco ABC-1471 are 75Ω BNC connectors featuring a very high quality design. They feature high-purity beryllium copper contacts with 10µ gold plating, providing excellent conductivity and protection against oxidation.

No customer reviews yet, login to write a review.

By buying this product you get 8 loyalty points


Yes, notify me when available !
Reference : 18043
New product

89,00 €tax incl.

74,17 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

aeco ABC-1471

Connecteurs BNC 75 Ohm Cuivre Beryllium Plaqué Or (La paire)

aeco ABC-1471 Connecteurs BNC 75 Ohm Cuivre Beryllium Plaqué Or (La paire)

The aeco ABC-1471 are 75Ω BNC connectors featuring a very high quality design. They feature high-purity beryllium copper contacts with 10µ gold plating, providing excellent conductivity and protection against oxidation. The body is made of brass to make the connector extremely robust. The cable, with a maximum diameter of Ø7.5mm, can be fitted by soldering or crimping.

Technical characteristics

Specifications
Product typeBNC connectors
Contacts materialBeryllium copper (purity: ≥ 97%)
Contacts platingGold 10µ
ShellBrass
Impedance75Ω
Frequency range1GHz
VSWRUp to 1.2
Contact resistance< 0.1mΩ
Max cable diameterWith reducer: Ø8.5mm
Without reducer: Ø10.5mm
General
Total dimensionsØ14.5*42mm
Quantity2 connectors

Data sheet
Max cable diameter (mm)10.5
Mounting typeTo weld
Mounting typeTo crimp
ConnecticMale
Max panel thickness (mm)N/A
Impedance (Ω)75
Contacts Material (Connector)Beryllium Copper
Contacts Plating (Connector)Gold
