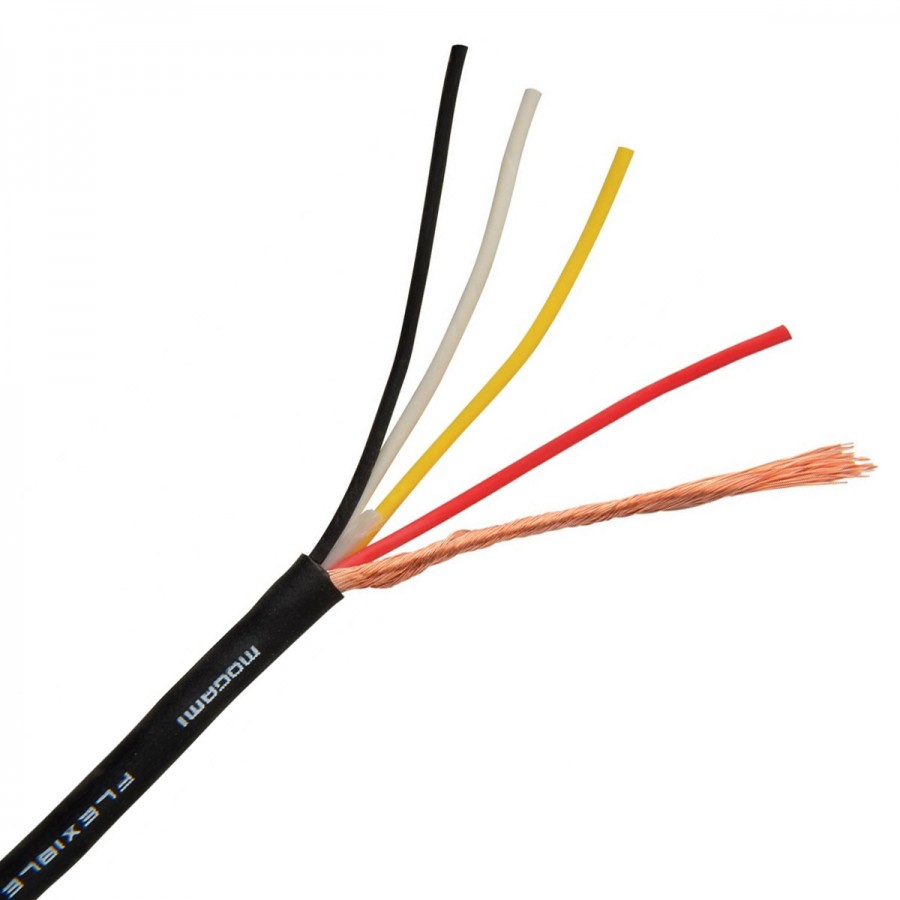

Mogami 2929
Interconnect Cable OFC Copper 4x0.081mm² Ø2.7mm
The Mogami 2929 is a modulation cable consisting of 4 OFC copper conductors with a cross-section of 0.081mm² (28AWG) for a total diameter of 2.7mm. The filling of the cable is made of polypropylene and the outer sheath is made of PVC. This cable offers very good conductivity and excellent shielding.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Interconnect cable |
| Conductors number | 4 |
| Conductors material | OFC Copper |
| Conductors section | 0.081mm² (28AWG) |
| External diameter | Ø2.7mm |
| Filling | Polypropylene |
| External sheath | PVC |
| Voltage breakdown | 250V DC / 15sec |
| Conductors resistance | 0.22Ω/m |
| Insulation resistance | 1000MΩ x m Min. @ 250VDC, 20°C |
| Temperature range | -20°C / +80°C |
| General | |
|---|---|
| Color | Black |
| Quantity | Sold by the meter |
| Diameter (mm) | 2.7 |
| Length (m) | Sold by length |
| Number of conductors | 4 |
| Insulation material | PVC |
| Shielding | No |
| Section (mm²) | 0.0810 |
| Conductors material (Cable) | Copper |
| Conductors Plating (Cable) | None |
| Ground / Shielding | Yes |
