MOGAMI 3284 Polar Flex Balanced micro cable 2x0.2mm² Ø5.5mm

MOGAMI 3284 Polar Flex Balanced micro cable 2x0.14mm² Ø 5.5mm
20%

No customer reviews yet, login to write a review.


Reduced price!
Reference : 9840
New product
Limited special offer

4,90 €tax incl.

-20%

3,92 €tax incl.

3,27 € tax excl.
Available

- +

Shipping date: 19-12-2018.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

More info

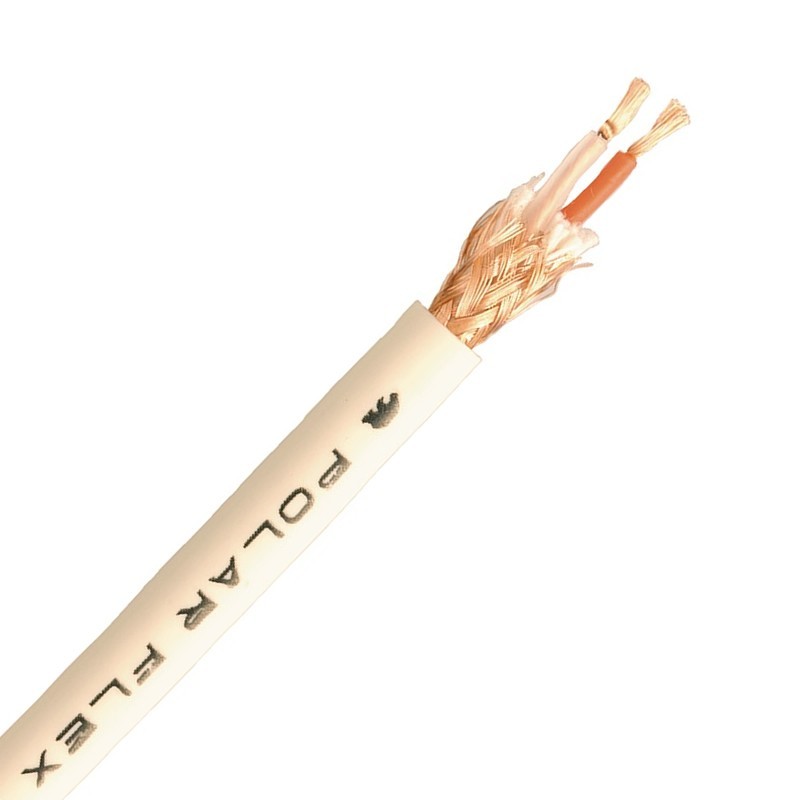

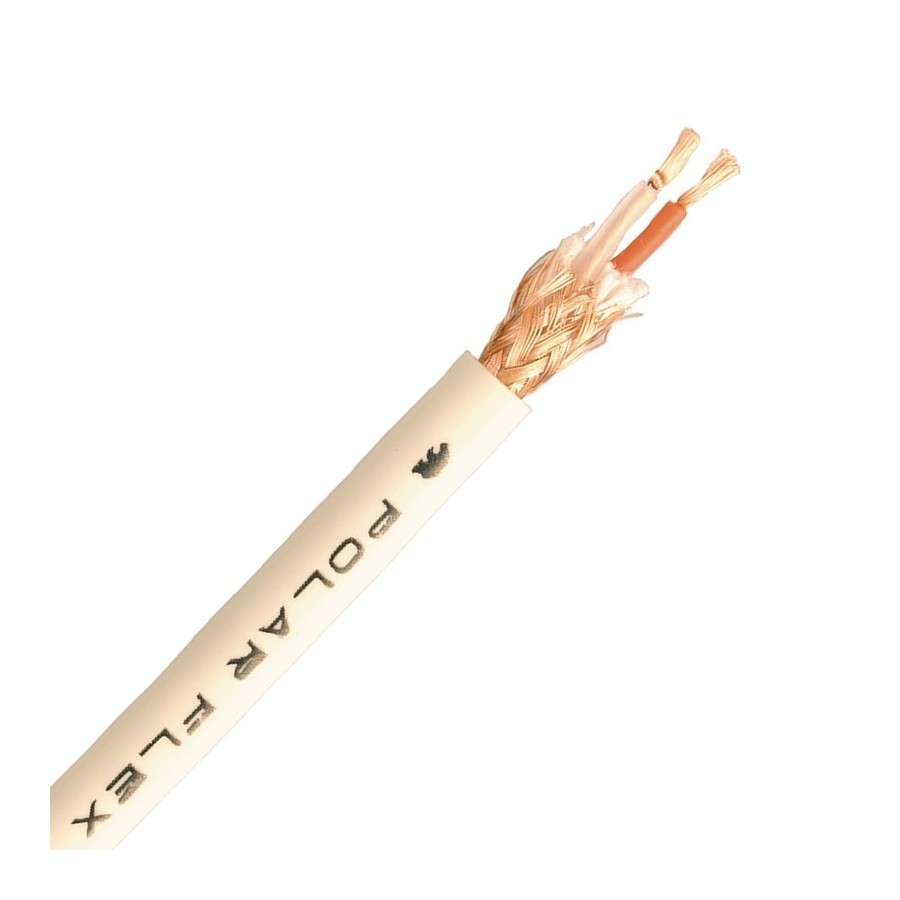

Le câble MOGAMI 3284 Polar Flex est conçu pour être résistant aux températures extrêmes.
De qualité supérieure, extrêmement durable et très flexible à fois, il possède de grandes qualités d'isolation et un blindage à recouvrement total de 105 brins tressés.

Ainsi, il est particulièrement adapté à la scène et au studio.

Caractéristiques :

  • Conducteur Cuivre 2x 0.2mm²
  • Isolation Polyéthylène faible bruit XLPE
  • Double blindage : recouvrement total via Cuivre OFC tressé de 105 brins
  • Gaine TPE flexible
  • Diamètre externe : 5.5mm
  • Ce conducteur à la coupe est livré au mètre linéaire, une unité commandée est égale à un mètre livré (les longueurs sont livrées d'un seul tenant)

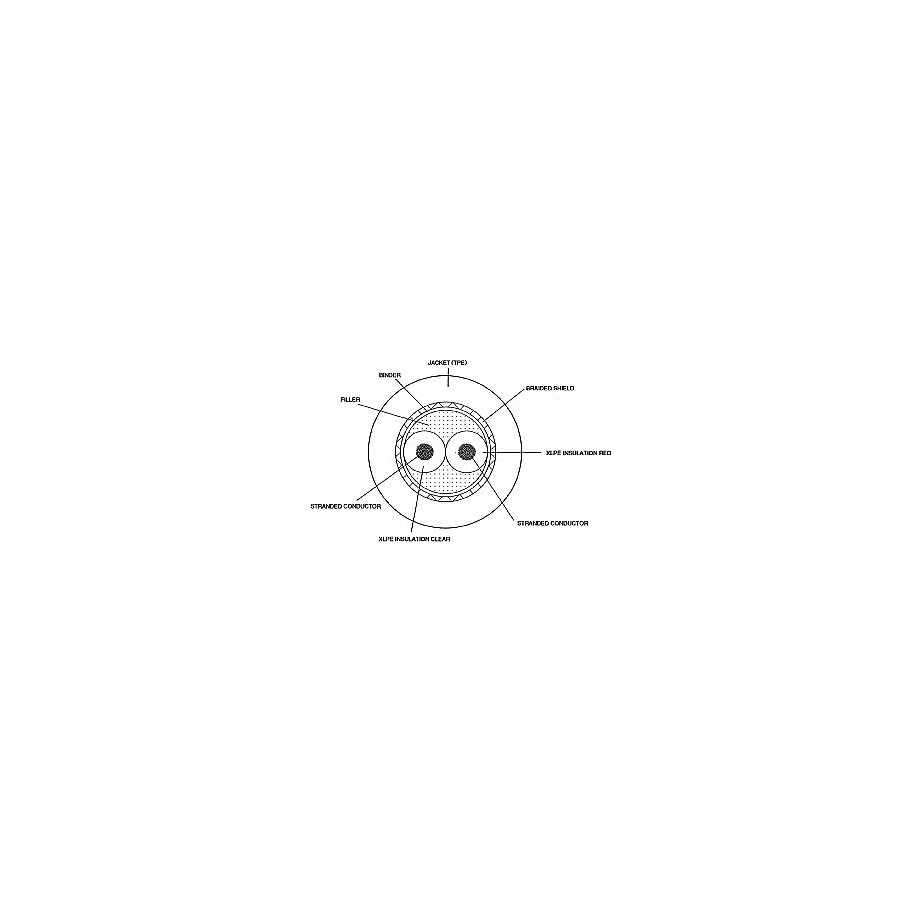

Specifications

Part No.3284
Conductor
Details
105/0.05 A
Size (mm²)
0.206 mm² (#24AWG)
Insulation
Ov. Dia. (mm²)
1.5 Ø (0.059")

Material
XLPE (Cross-Linked Polyethylene)

Colors
Red/ Clear
Shield
Braid 0.10A/9/16
Jacket
Ov. Dia. (mm²)
5.5 Ø (0.217")
Material
Flexible TPE
Colors
Black/ White
Roll Sizes
100m (328Fk)
Weight per 100m Roll
3.4kg

Electrical & Mechanical Characteristics

Part No.
3284
DC Resistance at 20°C
Inner Cond.
0.09W/m(0.027W/Ft)
Shield
0.02W/m(0.006W/Ft)
Capacitance at 1kHz, 20°C(Partial C, Value).See below figure (1)
K0
86pF/m(26pF/Ft)
K1
10pF/m(3.1pF/Ft)
Inductance between conductors at 1kHz, 20°C
0.8 µ H/m(0.24 µ H/Ft )
Electrostatic Noise. See below figure (2)
250mV Max.
Electromagnetic Noise. See below figure (2)
0.15mV Max.
Microphons at 50kWLoad
30mV Max.
Voltage Breakdown
Must withstand at DC 500V/15 sec.
Insulation Resistance
10 MW · m Min. at DC 125 V, 20°C
Flex Life
164, 000 cycles
Tensile Strength
578 N
Emigration
Non-Emigrant to ABS
Applicable Temperature
-40°C ‾+60°C (-40°F‾+140°F)


Data sheet
ColorBlack
Diameter (mm)5.5
Separated conductorsYes
Number of conductors2
Insulation materialPET
ShieldingYes
Section (mm²)0.2
