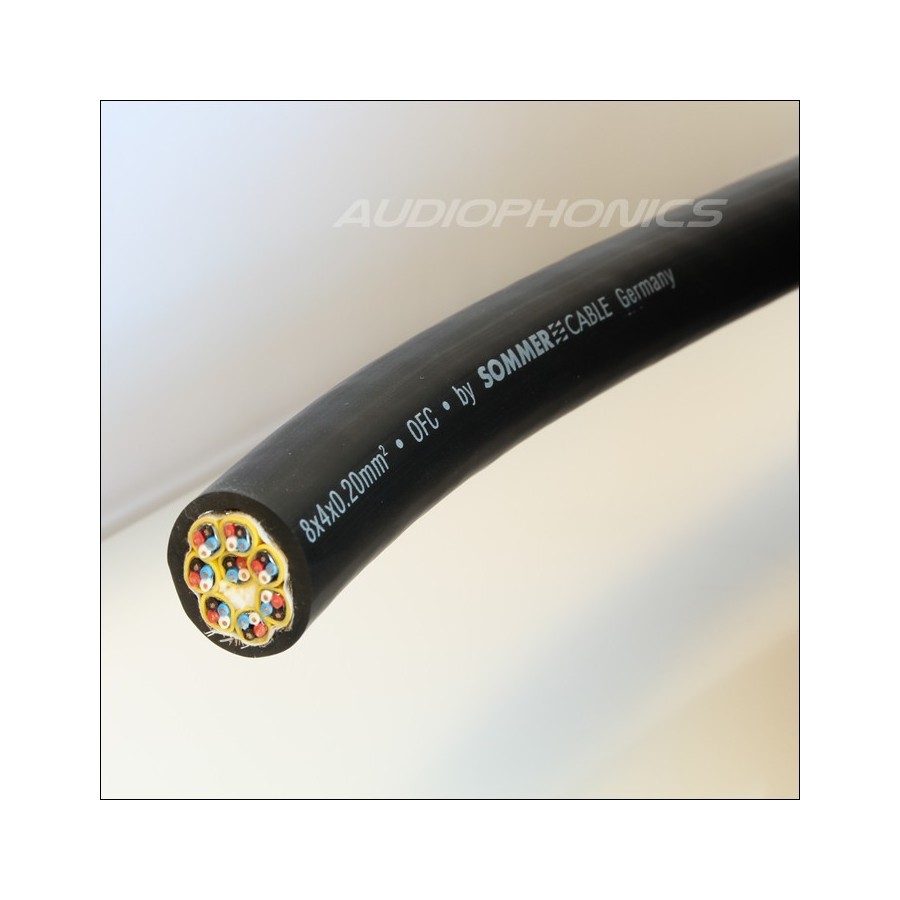

SOMMER CABLE SC-PEGASUS CMCK-08 8 x 4 x 0,20 mm2 Ø21mm

SOMMER CABLE SC-PEGASUS CMCK08

No customer reviews yet, login to write a review.

By buying this product you get 2 loyalty points


Reference : 9577
New product

24,00 €tax incl.

20,00 € tax excl.
Available

- +

Shipping date: 14-12-2018.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

More info

It is the hunt for stars ...

that we have undertaken with this product because we have developed a high-end multipair cable that is probably the best in the market today. This multi-purpose cable is intended for professionals who are ambitious and who are not accustomed to compromise in terms of linearity and protection. To optimize the sound, we have connected two opposite conductors in X ("Crossover"), which makes it possible to obtain a value of metric capacity cond./cond. incredibly low of 37 pF, therefore a virtually lossless retransmission, also over long distances. Connected in X, the SC-PEGASUS is even able to transmit digital signals (AES / EBU 110 Ohm). The short torsional torsion technique adapted to the linearity values ​​and the use of very thin (0.05 mm) copper strands of oxygen-free copper guarantee a homogeneous and faithful sound and a high resistance to the alternating bending and a large longevity.

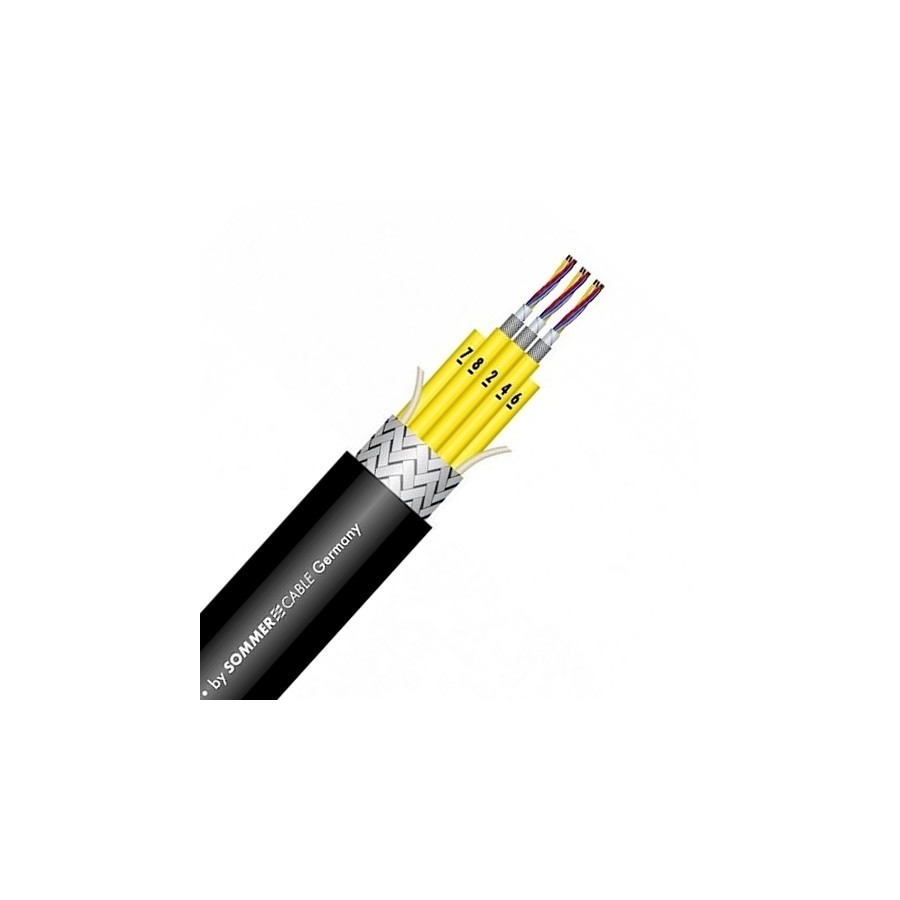

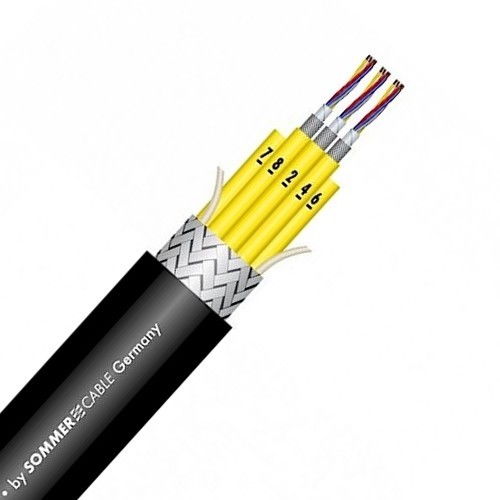

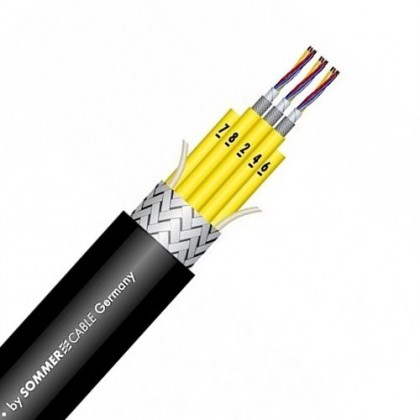

The SC-PEGASUS is equipped with awhich far exceeds the requirements normally required for a high-end multipair cable. It is protected by an overall shielding and by a shielding per channel, guaranteeing a 100% optical coverage. The overall screen is provided by a tubu braidcopper.
The conductors are shielded by a helical copper winding, assisted by a conductive aluminum foil. The SC-PEGASUS therefore not only has a screen against external disturbances, but the pairs of conductors are insulated and protected from one another. With SC-PEGASUS, you will acquire for many years the reference article on the cable market, plus the certainty that you will only have to deal with music and mixing.

teile ">ADVANTAGES :

  • Homogeneous and faithful sound
  • Loss-free transmission, perfect protection
  • Excellent electrical and technical characteristics
  • Digital use possible (connection "Crossover")

USE :

  • Reference product in the studio field
  • Fixed installations of superior quality
  • Manufacture of high-end stage boxes
Specifications:

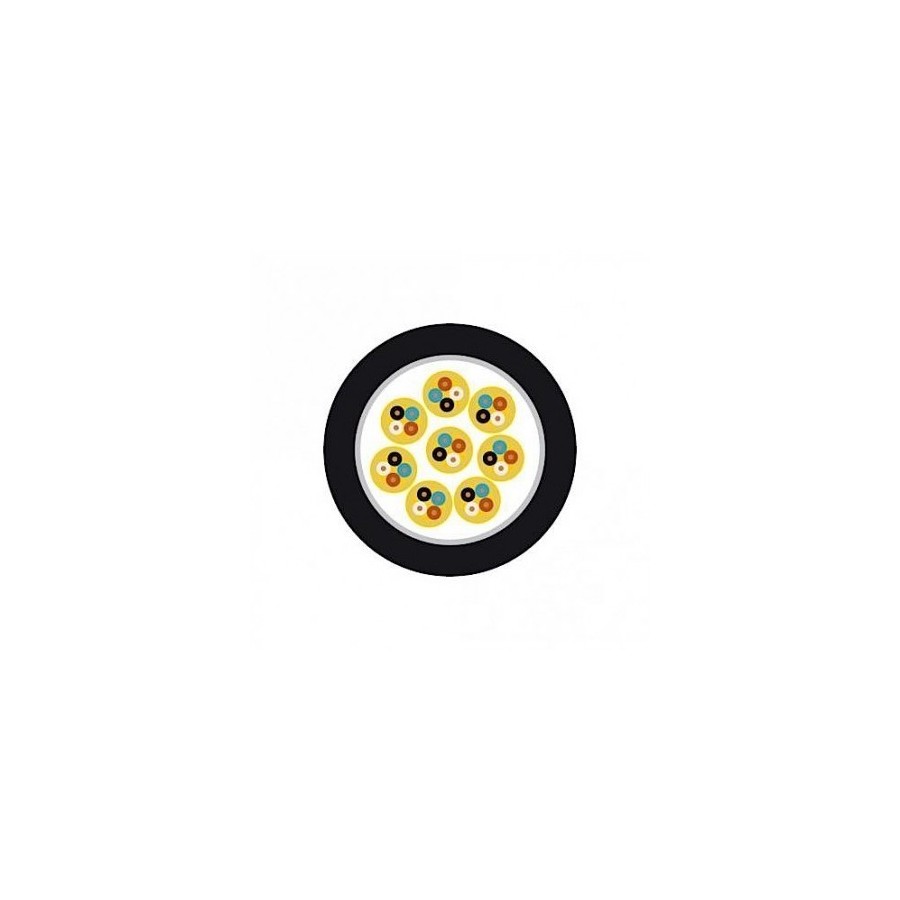

Constitution[Xx (4LI2Y0,20mm2) (T) DY] CY
Envelope, diameter S-PVC 21,0 mm
AWG24
Conductor inside 8 x 4 x 0.20 mm2 / Ø 5mm (x8)
Copper strands per core 102 x 0.05 mm
Insulation of the conductorFoam / Skin-PE
Protectionbraid copper tinned (overall) + coil tinned copper + sheet AL / PT (pair)
Optical cover100%
Operating temperature min. -20 ° C
Operating temperature max. 70 ° C
Fire resistance per m 1.93 kWh
Weight per m538 g
Color of envelopeblack Packaging, packaging unit per meter

Electrical Specifications :
Capacity metric cond./cond. (Crossover) 37 pF
Metric Capacity Screen / Display (Crossover) 76 pF
Odometer Resistance, Conductor <100 Ohm
Resistance, insulation > 20 MOhm
Characteristic Impedance (Crossover) 110 - 120 Ohm
Reduction per 100 m (20 ° C) 1 MHz: 3.2 dB
Reduction per 100 m (20 ° C) 10 MHz: 8.9 dB
Reduction per 100 m (20 ° C) 25 MHz: 14.6 dB
Reduction per 100 m (20 ° C) 50 MHz: 20.0 dB
Reduction per 100 m (20 ° C) 75 MHz: 24.3 dB
Reduction per 100 m (20 ° C) 100 MHz: 28.3 dB

Data sheet
Diameter (mm)21
Number of conductors8
Insulation materialOther
ShieldingYes
Section (mm²)0.20
