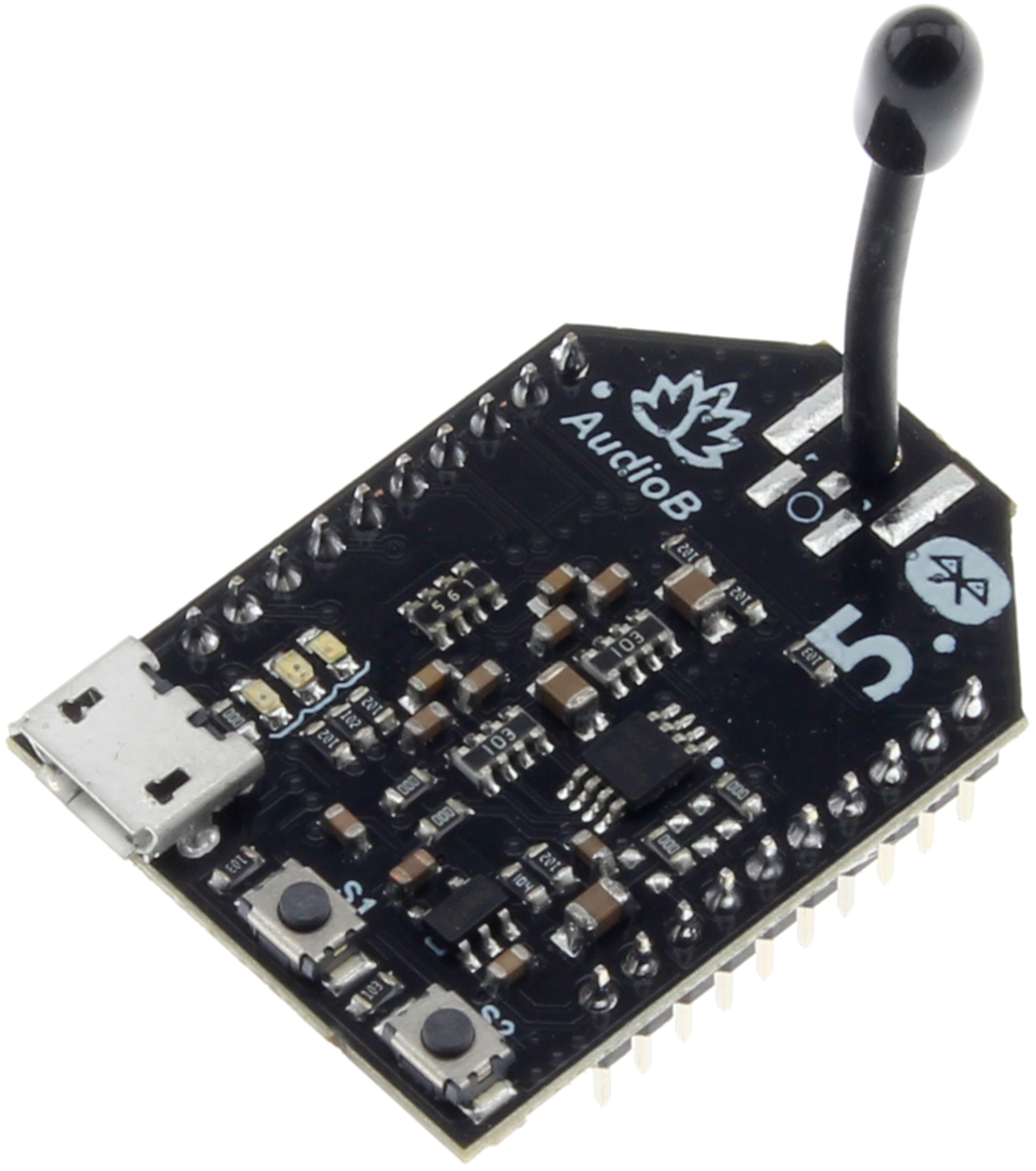

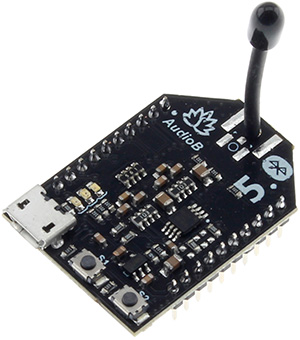

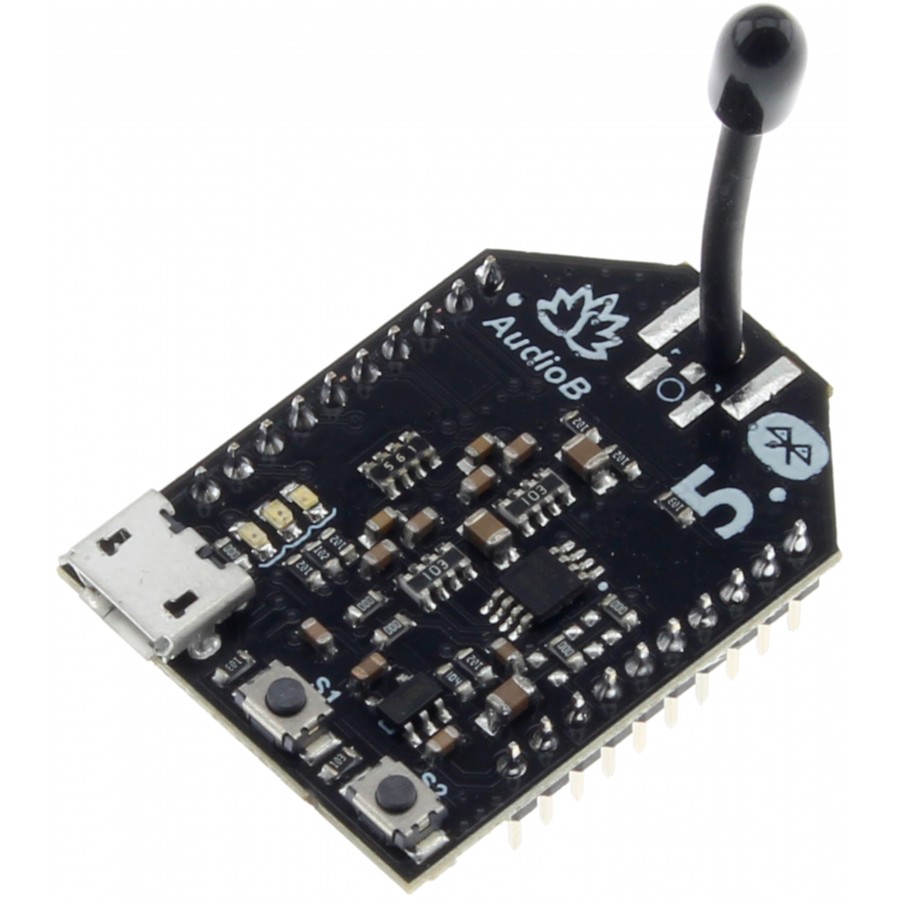

TINYSINE AUDIOB TSA6179 Bluetooth 5.0 Receiver Board with Antenna

The TinySine AudioB TSA6179 is a Bluetooth 5.0 stereo receiver based on a Qualcomm QCC3031 chip that can be integrated into a wide range of DIY projects to provide your devices with wireless reception. It includes a micro USB port for firmware updates and two buttons that can be assigned to different functions. This version comes directly with a Bluetooth antenna, so you can connect to it straight away.

TinySine AudioB TSA6179: Examples of use

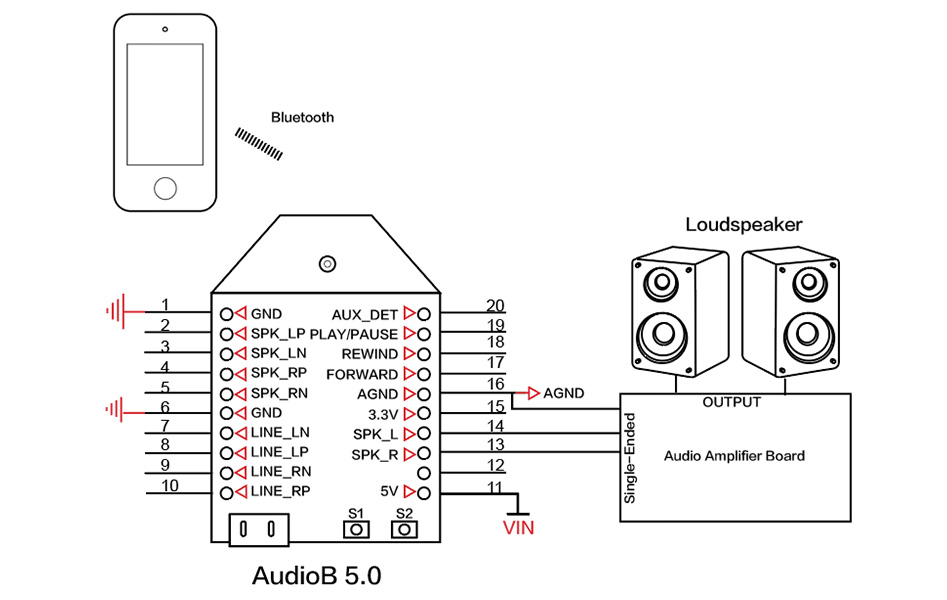

Single-ended output

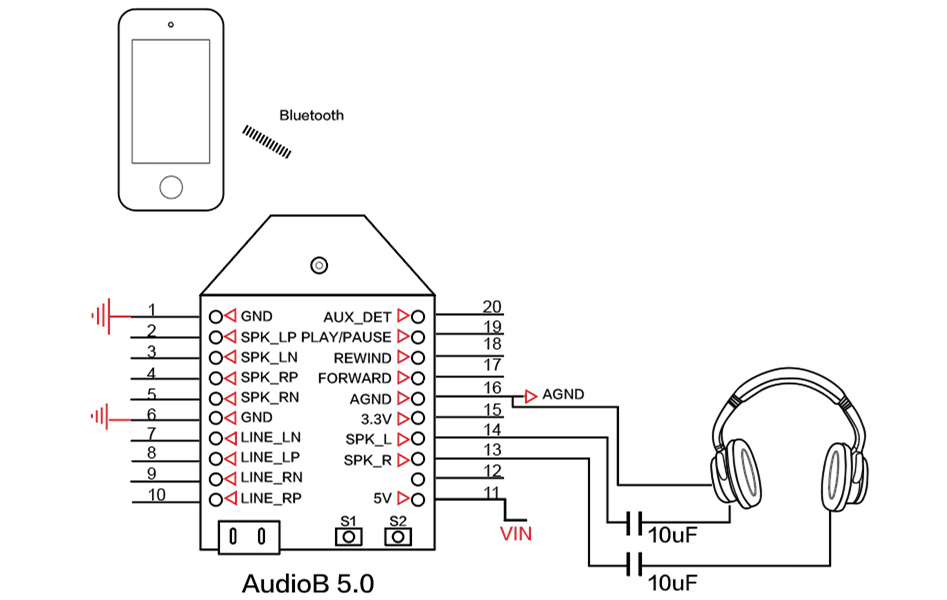

Single-ended output with headphone/small speakers

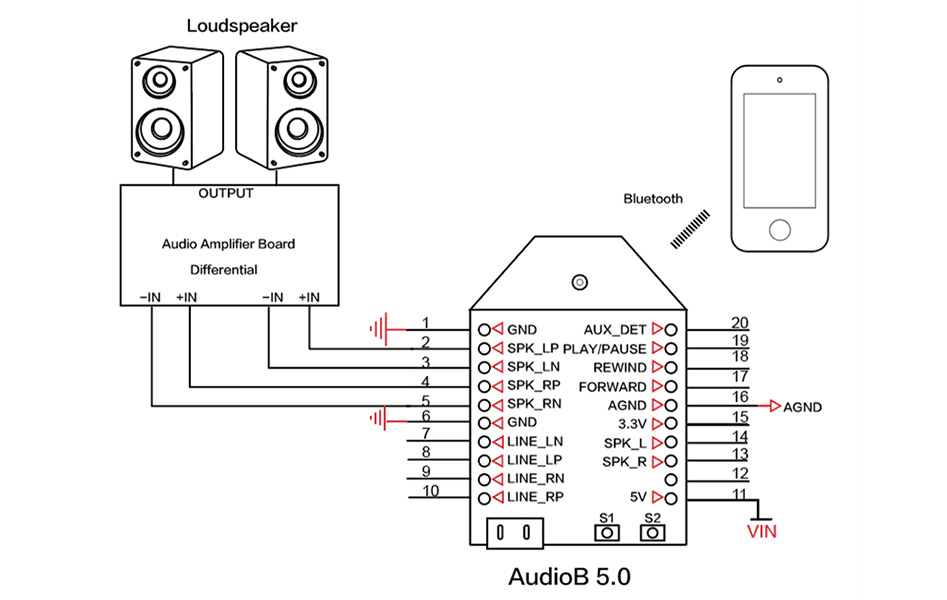

Differential output

TinySine AudioB TSA6179: Operating modes

The TSA6179 provides two firmware options: TWS Mode and Party Mode (multipoint). The firmware can be updated via the micro USB port of the module :

• TWS Mode: The module works as a stereo Bluetooth receiver and can be connected to most amplifiers.
• Party Mode: Several modules can be paired together and work together. This option makes it possible to create a wireless surround system.

First use:

1. Turn on the module and wait 1 second. The module goes into pairing mode, the blue and red LEDs flash alternately.
2. From your smartphone, look for the Bluetooth module named "TSA6179". Select it to connect to it.
3. You can now start playing your music. If you use the module as a simple receiver, the following steps are not necessary.

TWS Connection

Master board:

1. Press the S1 button for a moment to switch the module to TWS master mode.

Slave board:

1. Switch on the slave module and press the S2 button for a moment to activate the TWS slave mode.
2. The master module then automatically searches for the slave module. The two modules pair up.
3. Your music is now played on both the master and slave modules.

Party Mode Connection

Master board:

1. Press button S2 to switch the master module to transmit mode. The red LED lights up.

Slave board:

1. Switch on the slave module. The blue LED flashes slowly.
2. Make sure that the master module is working properly and that it is in transmit mode. Press button S2 to switch the slave module to receive mode. The green LED lights up.
3. Press the S2 button on the master module twice and then repeat the operation on the slave module. The master module now automatically searches for the slave module. Both are now connected to each other.
4. You can now listen to music from the slave module.
5. If a new module is to be added as a slave module, simply press the S2 button on the slave module to activate the receive mode and then press the S2 button on the master module twice.
6. To deactivate a slave module, press the S2 button to switch it to transmission or normal mode.
