FIIO BR13 Bluetooth Receiver

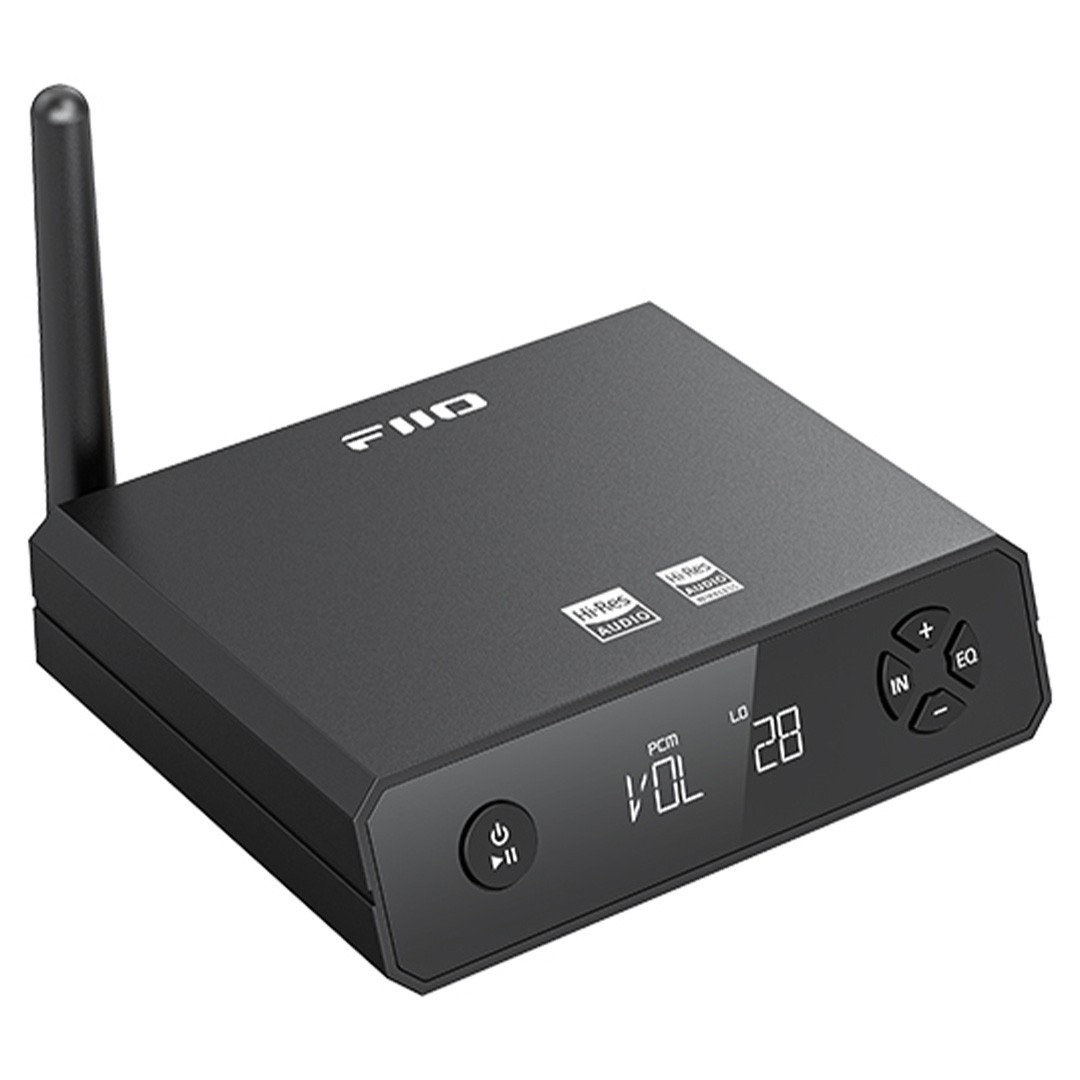

Main view of FIIO BR13 Bluetooth receiver

The FiiO BR13 is a Bluetooth receiver equipped with a high-performance DAC.

KEY FEATURES:

  • Bluetooth 5.1 QCC5125 receiver chip
  • SBC, AAC, aptX, aptX adaptative, aptX LL, aptx HD, LDAC
  • DAC ES 9018K2M
  • 24Bit 96kHz
  • TPA1882
  • EQ and presets via control application

Average votes for this product
5.0 / 5

By buying this product you get 6 loyalty points


Reference : 18506
New product

69,00 €tax incl.

57,50 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 28-05-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

FIIO BR13 Bluetooth 5.1 Receiver QCC5125 DAC ES9018K2M aptX-HD LDAC 24bit / 96kHz

FIIO BR13 Bluetooth 5.1 Receiver QCC5125 DAC ES9018K2M aptX-HD LDAC 24bit / 96kHz

This BR13 Bluetooth receiver from FiiO is equipped with an ES9018K2M DAC chip, a QCC5125 Bluetooth version 5.1 receiver chip and a TPA1882 amplifier chip. Versatile and high-performance, it boasts a wide range of connectors, including Toslink optical, coaxial SPDIF and USB-C inputs, as well as two outputs: a stereo RCA line output and a Toslink optical output. This makes it compatible with a large number of Hi-Fi devices for easy integration into your sound system, chained directly to a DAC, power amplifier or active speakers, for example. It accepts 24-bit 96kHz resolution streams via its inputs, and is capable of reproducing a 2Vrms signal level via its RCA output.

FIIO BR13 Bluetooth 5.1 Receiver QCC5125 DAC ES9018K2M aptX-HD LDAC 24bit / 96kHz

FIIO BR13 : Bluetooth 5.1 QCC5125 receiver chip

The Qualcomm QCC5125 Bluetooth receiver chip enables FiiO's BR13 to support high-resolution Bluetooth codecs; SBC, AAC, aptX, adaptive aptX, aptX LL, aptx HD, LDAC. It supports multiple connections to up to 2 simultaneous devices for easy source switching. Low Latency mode (aptX LL) lets you use the BR13 to watch movies or play video games while avoiding latency effects.

FIIO BR13 Bluetooth 5.1 Receiver QCC5125 DAC ES9018K2M aptX-HD LDAC 24bit / 96kHz
FIIO BR13 Bluetooth 5.1 Receiver QCC5125 DAC ES9018K2M aptX-HD LDAC 24bit / 96kHz

FIIO BR13 : Presets and EQ for a customizable listening experience

Thanks to its control application, the BR13 gives you access to 7 presets and 2 types of EQ settings with 10 adjustable frequency bands. This feature allows you to customize your listening experience according to your tastes and audio source.

FIIO BR13 : Upsampling technology

FiiO's proprietary technology enables the BR13 to upsample low-resolution streams up to 24Bit 96kHz via all its inputs, for quality sound reproduction.

FIIO BR13 Bluetooth 5.1 Receiver QCC5125 DAC ES9018K2M aptX-HD LDAC 24bit / 96kHz

FIIO BR13 : A high-performance chipset

The BR13 integrates high-quality components: a QCC5125 Bluetooth receiver chip, an ES9018K2M DAC chip and a TPA1882 amplifier chip. The combination of these three components guarantees quality sound reproduction. The ES9018K2M DAC chip is a 32-bit stereo chip from ESS Technologie specially designed for audiophile applications. In addition, the TPA1882 operational amplifier chip guarantees low distortion and noise levels. In terms of performance, FiiO's BR13 boasts an SNR > 112dB as well as a THD+N < 0.0008% on its non-Bluetooth inputs and a THD+N < 0.0018% in Bluetooth LDAC.

FIIO BR13 Bluetooth 5.1 Receiver QCC5125 DAC ES9018K2M aptX-HD LDAC 24bit / 96kHz

FIIO BR13: Many possible configurations

FIIO BR13 Bluetooth 5.1 Receiver QCC5125 DAC ES9018K2M aptX-HD LDAC 24bit / 96kHz

Bluetooth input

FIIO BR13 Bluetooth 5.1 Receiver QCC5125 DAC ES9018K2M aptX-HD LDAC 24bit / 96kHz

USB input

FIIO BR13 Bluetooth 5.1 Receiver QCC5125 DAC ES9018K2M aptX-HD LDAC 24bit / 96kHz

Optical/SPDIF input

FIIO BR13 Bluetooth 5.1 Receiver QCC5125 DAC ES9018K2M aptX-HD LDAC 24bit / 96kHz

Optical/SPDIF input

Overview of the FiiO BR13 Bluetooth receiver

FIIO BR13 Bluetooth 5.1 Receiver QCC5125 DAC ES9018K2M aptX-HD LDAC 24bit / 96kHz
1RCA stereo line output
2Toslink optical input
3SPDIF Coaxial input/output
4Toslink optical output
5USB-C input
6Bluetooth antenna

Technical characteristics

Specifications
Product typeBluetooth Receiver
DAC ChipES9018K2M
Amplification chipTPA1882
Bluetooth ChipQCC5125
Inputs1x USB-C input
1x Optical Toslink input
1x Coaxial SPDIF input/output

Bluetooth
Outputs1x Optical Toslink
1x SPDIF Coaxial input/output
1x RCA stereo
Supported Bluetooth codecsAAC / SBC / aptX / aptX LL / aptX Adaptive / aptX HD / LDAC
Multi-sources Bluetooth
Supported sample ratesLocal: 32Bits 96kHz
Coaxial input: 32Bits 192kHz
Toslink input: 24Bits 96kHz

Coaxial output: 24Bits 96kHz (upsampling x2)
Toslink output: 24Bits 96kHz (upsampling x2)
ScreenLCD
LDAC BLUETOOTH RECEPTION AND RCA LINE OUTPUT MEASUREMENTS
THD+N< 0.002% (1kHz / -0dB @ 10KΩ)
Crosstalk≥ 98dB (1kHz / -0dB @ 10KΩ)
Frequency response20Hz-20KHz
SNR≥ 113dB (A-weighted)
Noise floor<5uV (A-weighted)
RCA line output level2Vrms
RCA LINE OUTPUT MEASUREMENTS (USB DAC INPUT/OPTICAL DECODING)
THD+N< 0.0006% (1kHz / -0dB @ 10KΩ)
Crosstalk≥ 108dB
Frequency response20Hz-20KHz
SNR≥ 114dB (A-weighted)
Noise floor<5uV (A-weighted)
RCA line output level2Vrms
RCA LINE OUTPUT MEASUREMENTS (SPDIF INPUT)
THD+N< 0.0006% (1kHz / -0dB @ 10KΩ)
Crosstalk≥ 109dB
Frequency response20-20KHz : damping < 1.9dB
20Hz-50KHz : damping < 1.2dB
SNR≥ 114dB (A-weighted)
Noise floor<5uV (A-weighted)
RCA line output level2vrms
General
Power supply voltageUSB 5V 1A
Dimensions98 x 96 x 26.5mm
Net weight135g
ColorBlack
Package1x FiiO BR13 Bluetooth receiver
1x USB-A to USB-C cable (Data)

Data sheet
InputOptical
InputSPDIF
InputBluetooth
InputUSB
OutputOptical Toslink
OutputCoaxial SPDIF
OutputRCA
DAC / ADC ChipES9018K2M
ColorBlack
Transmission / Reception protocolBluetooth
Supported Bluetooth codecsAAC
Supported Bluetooth codecsaptX HD
Supported Bluetooth codecsaptX Adaptive
Supported Bluetooth codecsSBC
Supported Bluetooth codecsaptX
Supported Bluetooth codecsaptX LL
Supported Bluetooth codecsLDAC
