FIIO BTA30 PRO Bluetooth 5.0 Receiver / Transmitter CSR8675 DAC ES9038Q2M aptX-HD LDAC 32bit 384kHz

FIIO BTA30 PRO Bluetooth 5.0 Receiver / Transmitter CSR8675 DAC ES9038Q2M aptX-HD LDAC 24bit 192kHz
FiiO's BTA30 comes back in a Pro version, taking all the features of its big brother with an updated DAC chip. Both a Bluetooth receiver and transmitter, this one is now equipped with an ESS ES9038Q2M digital to analog converter. Always as versatile and efficient, this one is still equipped with a complete connectivity and a control application, associated with excellent performances in terms of sound restitution.

Average votes for this product
5.0 / 5

By buying this product you get 13 loyalty points


Reference : 15784
New product

139,00 €tax incl.

115,83 € tax excl.
Including 0,05 € for green tax

- +

Shipping date: 17-04-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

The exact release date in Europe is not yet known for this product.

FiiO BTA30 Pro

Bluetooth 5.0 Receiver / Transmitter CSR8675 DAC ES9038Q2M aptX-HD LDAC 32bit 384Hz

FiiO BTA30 Pro Récepteur / Émetteur Bluetooth 5.0 CSR8675 DAC ES9038Q2M aptX-HD LDAC 24bit 192kHz

FiiO's BTA30 comes back in a Pro version, taking all the features of its big brother with an updated DAC chip. Both a Bluetooth receiver and transmitter, this one is now equipped with an ESS ES9038Q2M digital to analog converter. Always as versatile and efficient, this one is still equipped with a complete connectivity and a control application, associated with excellent performances in terms of sound restitution.

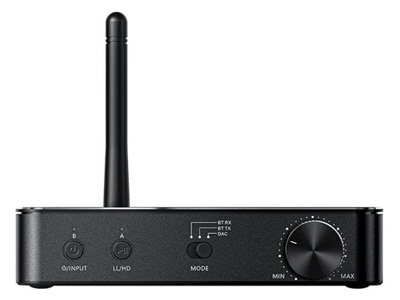

3 Operating modes

The BTA30 Pro offers 3 distinct operating modes: Bluetooth reception (BT Rx), Bluetooth transmission (BT Tx) and DAC. The selection is done simply by pressing a button on the front of the device. The embedded Bluetooth chip also supports high-resolution codecs such as aptX-HD and LDAC.

FiiO BTA30 Pro Récepteur / Émetteur Bluetooth 5.0 CSR8675 DAC ES9038Q2M aptX-HD LDAC 24bit 192kHz

A complete connectivity

Although compact, the BTA30 Pro is equipped with a complete connectivity. It has Bluetooth 5.0, Toslink optical, Coaxial and USB-C as inputs. On the output side, the device offers Bluetooth, optical, coaxial and a stereo RCA line output.

The coaxial input and output are shared on a single connector.

The USB-C connector provides both data transmission and power to the device.

FiiO BTA30 Pro Récepteur / Émetteur Bluetooth 5.0 CSR8675 DAC ES9038Q2M aptX-HD LDAC 24bit 192kHz

CSR8675 Bluetooth chip

The Bluetooth reception and transmission of the BTA30 Pro are enabled by a Qualcomm CsR8675 Bluetooth chip. It supports a transmission up to 24bit 96kHz (depending on the codec used).

FiiO BTA30 Pro Récepteur / Émetteur Bluetooth 5.0 CSR8675 DAC ES9038Q2M aptX-HD LDAC 24bit 192kHz

ES9038Q2M DAC

The BTA30 Pro is now equipped with an ESS ES9038Q2M digital to analog conversion chip. The latter offers excellent performance for a rich, precise and transparent sound reproduction. The DAC is also combined with film capacitors for an even more pure and neutral sound.

FiiO BTA30 Pro Récepteur / Émetteur Bluetooth 5.0 CSR8675 DAC ES9038Q2M aptX-HD LDAC 24bit 192kHz

XMOS USB Interface

The USB-C input of the BTA30 Pro is associated with a particularly efficient XMOS interface. It allows the support of high sampling rates, up to PCM 32bit 384kHz and DSD256.

Volume control

The BTA30 Pro incorporates a high-level volume control. It allows for precise adjustment of the sound level through ADC curve reconstruction. It affects the volume of both the digital and RCA outputs, and can be controlled remotely via the mobile app.

When using the device in USB DAC mode, the volume control cannot be used.

Control app

Your smartphone, when connected to the BTA30 Pro, can control the latter via the FiiO Music or FiiO Control application. This allows you to adjust the balance, filters, Bluetooth format priority, disable the LEDs, adjust the volume level or activate a fixed output level.

FiiO BTA30 Pro Récepteur / Émetteur Bluetooth 5.0 CSR8675 DAC ES9038Q2M aptX-HD LDAC 24bit 192kHz

Technical characteristics

Specifications
Product typeBluetooth receiver / transmitter
Bluetooth version5.0
Bluetooth chipCSR8675
DAC chipESS ES9038Q2M
USB interfaceXMOS
InputsBluetooth 5.0
1x USB-C
1x Optical Toslink
1x Coaxial
OutputsBluetooth 5.0
1x Stereo RCA
1x Coaxial
1x Optical Toslink
Supported Bluetooth codecsSBC, AAC, aptX, aptX HD, LDAC
Supported sampling ratesPCM up to 32bit 384kHz
DSD up to DSD256
GGeneral
Housing materialAluminum
CouleurBlack

Data sheet
InputBluetooth
InputOptical
InputSPDIF
OutputRCA
OutputBluetooth
OutputOptical Toslink
OutputCoaxial SPDIF
DAC / ADC ChipES9038Q2M
Max sampling rate384kHz
ColorBlack
NetworkingNo
Remote ControlNo
Transmission / Reception protocolBluetooth
Supported Bluetooth codecsSBC
Supported Bluetooth codecsaptX
Supported Bluetooth codecsLDAC
Supported Bluetooth codecsAAC
Supported Bluetooth codecsaptX HD

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
4 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Excellent pour écouter sa chaine Hifi au casque Bluetooth
Acheté dans le but d'écouter une chaine hifi non équipée pour le sans-fil (Rega Apollo & Brio R) sur un casque Grado GW100x, le FiiO BTA30 PRO s'est montré étonnamment performant.

Bien sur le Bluetooth n'est pas à proprement parler un mode "Hifi" mais le son qu'il transmet est vraiment bon et n'engendre pas de frustration.

Par ailleurs le FiiO BTA30 PRO fonctionne très bien aussi pour écouter Qobuz ou Tidal sur la chaine à partir d'un smartphone.

L'installation et l'utilisation m'ont demandé un peu de patience pour m'y retrouver mais le résultat en vaut la peine.
Je le recommande chaudement car il est d'un excellent rapport qualité/prix.

 (0)
 (0)
This review has been posted for FIIO BTA30 PRO Bluetooth 5.0 Receiver / Transmitter CSR8675 DAC ES9038Q2M aptX-HD LDAC 32bit 384kHz
Note :
 5/5
Date :
Great things come in small packages
I hate to admit how good this thing is. I have tested as an external DAC to my Musical Fidelity M6.

There is a hair in the difference in the sound quality in favour of the M6 which is astounding.

The power and RCA cables used to connect the M6 are over €1,000 vs this thing that is USB powered and connected via RCA/Coax leads costing less than €60.

As a Bluetooth receiver, the sound quality is outrageously good. Beats the pants off the Zen Air Blue. Also works really well as a BT transmitter for my headphones.

I really can't fault this little device.

 (0)
 (0)
This review has been posted for FIIO BTA30 PRO Bluetooth 5.0 Receiver / Transmitter CSR8675 DAC ES9038Q2M aptX-HD LDAC 32bit 384kHz
Note :
 5/5
Date :
FIIO BTA30 PRO
Bonsoir a tous,
je confirme l"avis de José, un temps "d'adaptation pour la mise en phase sur l"ensemble du système" est nécessaire.
Sur mon système le tout numéric via un "Mac Bouque Aéré" couplé en acquisition à une carte son en externe toute simple, une Esi 22 usb, il confirme [en source directe] ce que j'attends du numéric pour une restitution analogique via des enceintes 4 voies pas forcement évidentes à driver... à mon humble avis, dans une gamme qui à coup d'AOP surmultipliées et de marketing d'assemblage promus en tête de gondole il a forcement sa place.
Allez pour une fois je me lache ;
Un Big Up!
Audiophonics, qui au fil du temps, sait m'accompagner au fil musical de ma passion. Merci à Vous!
 (0)
 (0)
This review has been posted for FIIO BTA30 PRO Bluetooth 5.0 Receiver / Transmitter CSR8675 DAC ES9038Q2M aptX-HD LDAC 32bit 384kHz
Note :
 5/5
Date :
très bon son
très bon pour le prix , rodage obligatoire min, 50 h.
 (0)
 (0)
This review has been posted for FIIO BTA30 PRO Bluetooth 5.0 Receiver / Transmitter CSR8675 DAC ES9038Q2M aptX-HD LDAC 32bit 384kHz
