INTERTECHNIK LU44/30-AG Copper / Silver Air Self 0.8mm 0.82mH

INTERTECHNIK LU44/30-AG Self à Air Cuivre/Argent 0.80mm 0.82mH

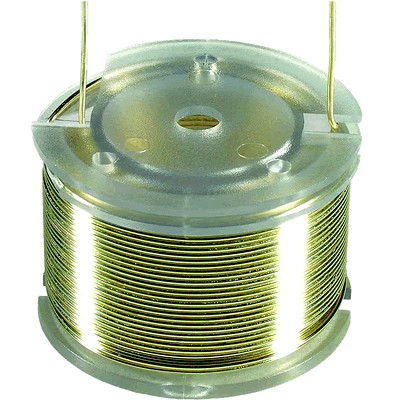

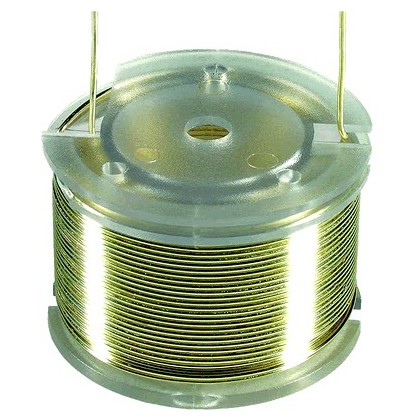

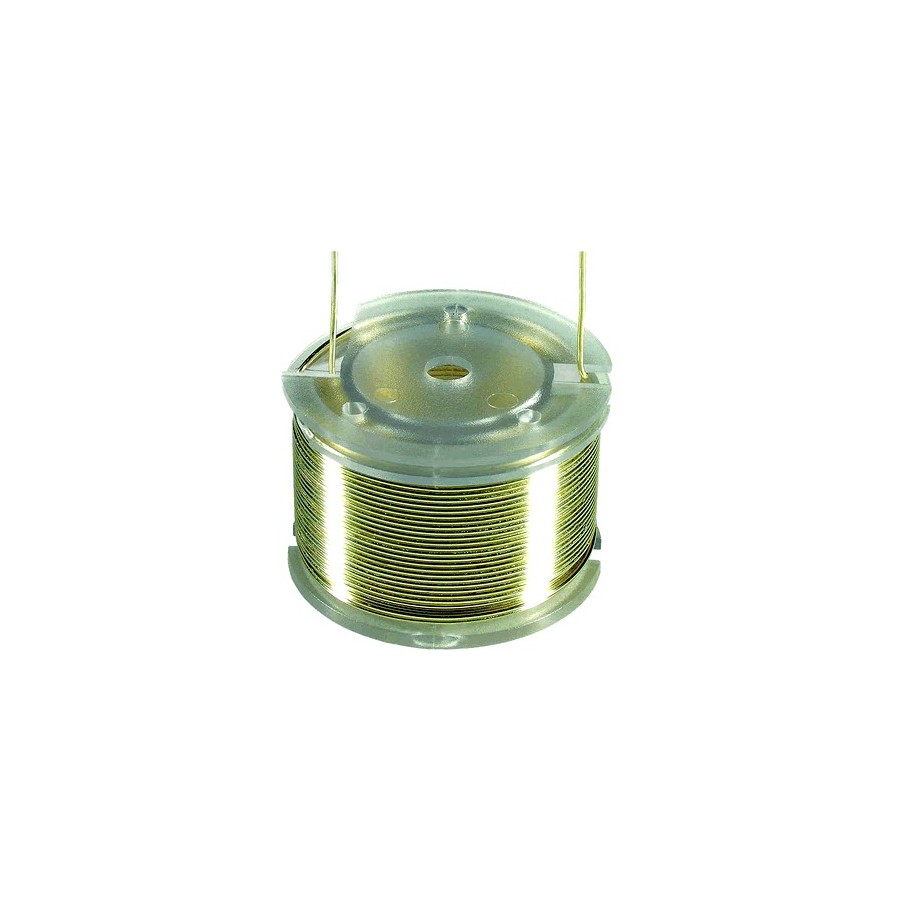

Air coil wound with 0.8mm diameter copper wire, silver plated and covered with a thermoplastic anti-vibration film. Transparent polycarbonate support. The air coils are, for physical reasons, totally unbeatable in terms of precision on the restitution of the impulses.
No customer reviews yet, login to write a review.

By buying this product you get 1 loyalty point


Reference : 4596
New product

12,42 €tax excl.

- +

Last items in stock !
Shipping date: 24-09-2021.

Orders placed before 11AM (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

INTERTECHNIK LU44/30-AG

Copper / Silver Air Self 0.8mm 0.82mH

INTERTECHNIK LU32/26-AG Self à Air Cuivre / Argent 0.8mm 0.05mH

Air coil wound with 0.8mm diameter copper wire, silver plated and covered with a thermoplastic anti-vibration film. Transparent polycarbonate support. The air coils are, for physical reasons, totally unbeatable in terms of precision on the restitution of the impulses. Their design exempts them from any form of distortion, unlike ferrite coils.

Technical characteristics

Specifications
Product typeAir self
Inductance0.82mH
Resistance0.68Ω
Tolerance3%
MaterialSilver plated Copper 0.8mm
InsulationAnti-vibration thermoplastic
SupportPolycarbonate
Operating temperature25°C @ 1kHz
Contacts length10mm
Dimensions
Diameter D44mm
Diameter d125.5mm
Diameter d25.3mm
Diameter d328mm
Height H30mm
Height h123mm
INTERTECHNIK LU32/26-AG Self à Air Cuivre / Argent 0.8mm 0.05mH

Data sheet
Inductance (mh)0.82
